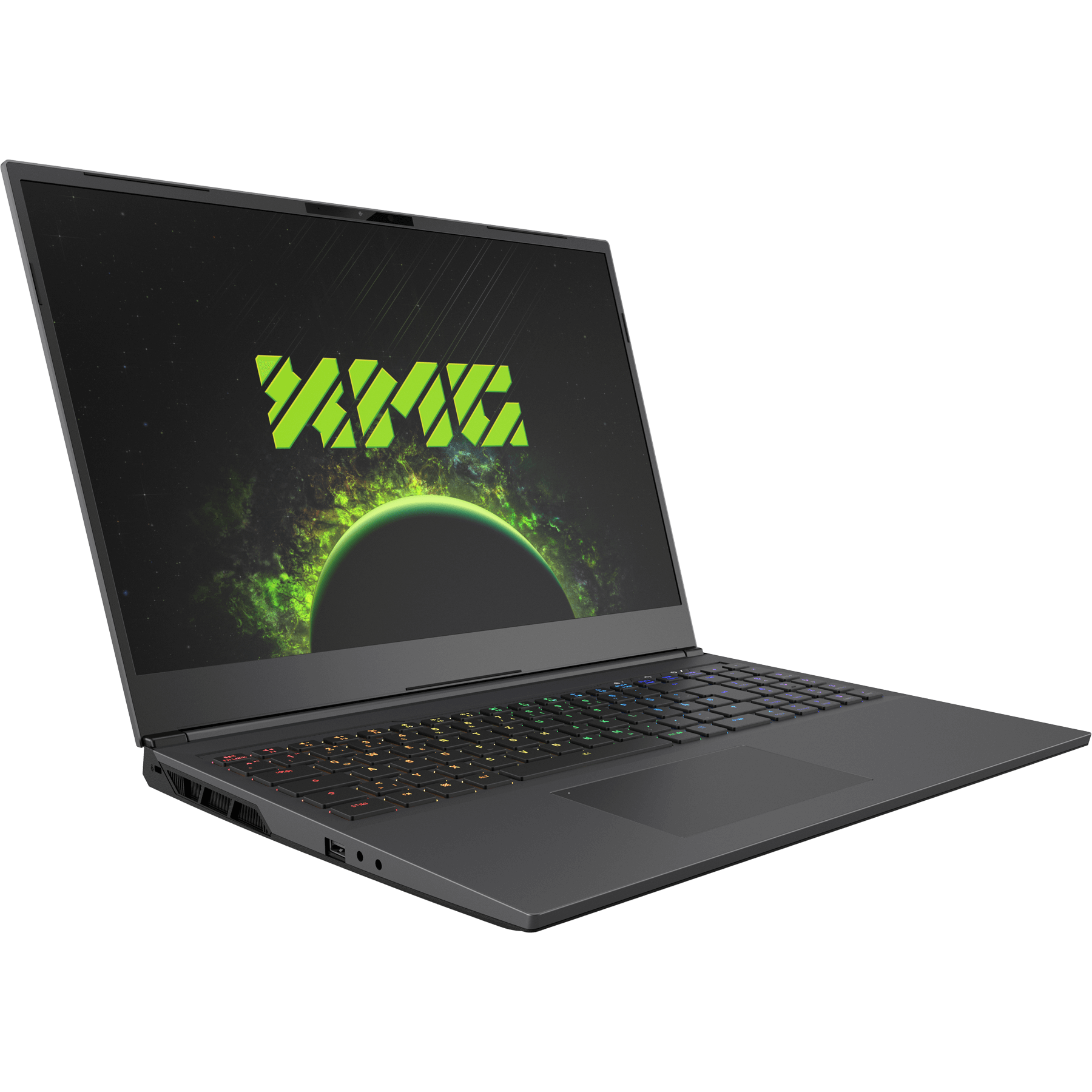

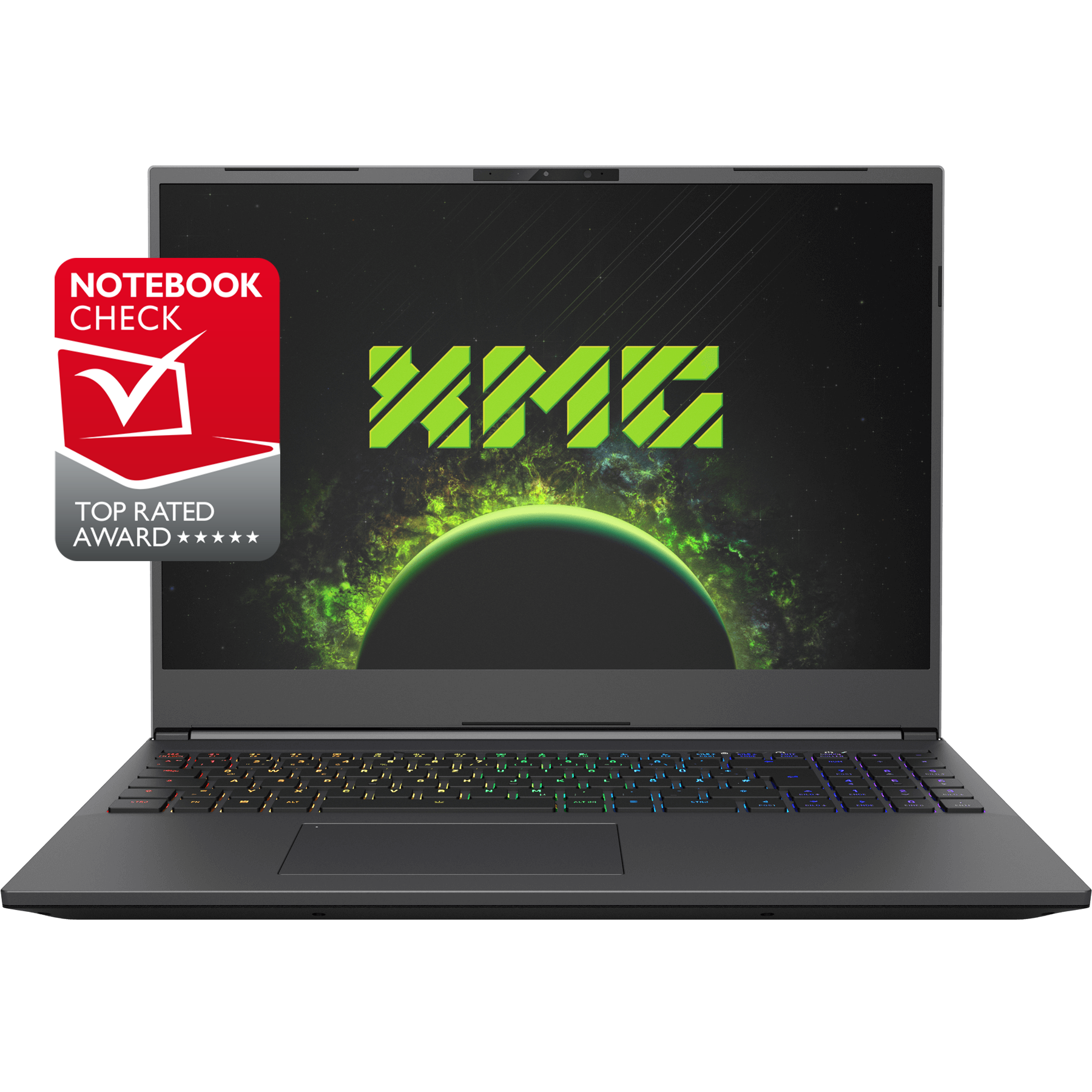

XMG CORE 16

UNDERCOVER GAMING

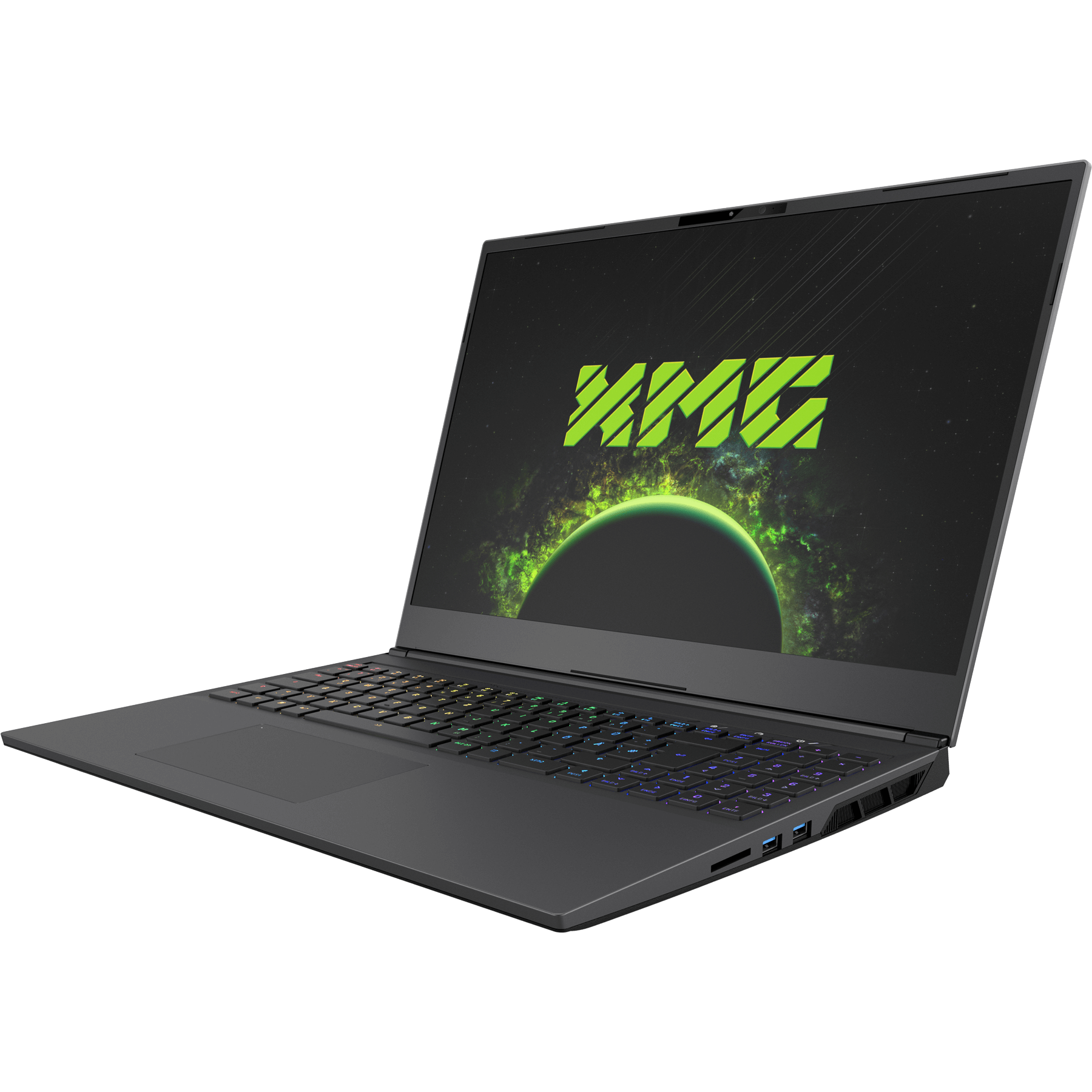

The XMG CORE 16 opens a new chapter in Undercover Gaming with high-end features, premium build quality, a stylish-elegant design, and the very top of midrange performance in a smart 16-inch form factor.

Designed on the basis of the XMG NEO 16, this gaming laptop takes many features of the top model and bundles them into an outstanding complete package, including the optional mechanical keyboard with CHERRY MX Ultra Low Profile switches. A highly efficient, high-performance eight-core processor from the AMD Phoenix series, graphics cards up to the DLSS3-capable NVIDIA GeForce RTX 4070, a maximum of 96 GB RAM, a huge battery and a superior cooling system including liquid metal give the CORE 16 the finishing touch.

NVIDIA GeForce RTX 40
Innovative graphics features

NVIDIA’s powerful line-up of upper mid-range laptop graphics cards provides you with great performance for ultra-smooth gaming thanks to innovative features. In the XMG CORE 16, you have the choice between a high-performance GeForce RTX 4070 or a fast RTX 4060, both with the maximum power limits. Dedicated ray tracing and tensor cores as part of the innovative GPU design enable stunning graphics effects and unlock AI-powered acceleration features in your content creation software.

Cherry Feature
DLSS 3
DLSS is a revolutionary breakthrough in AI-powered graphics that massively increases performance. DLSS 3 uses the new fourth-generation Tensor compute units and Optical Flow Accelerator on GeForce RTX 40 series laptop GPUs to create additional high-quality frames using AI.
media

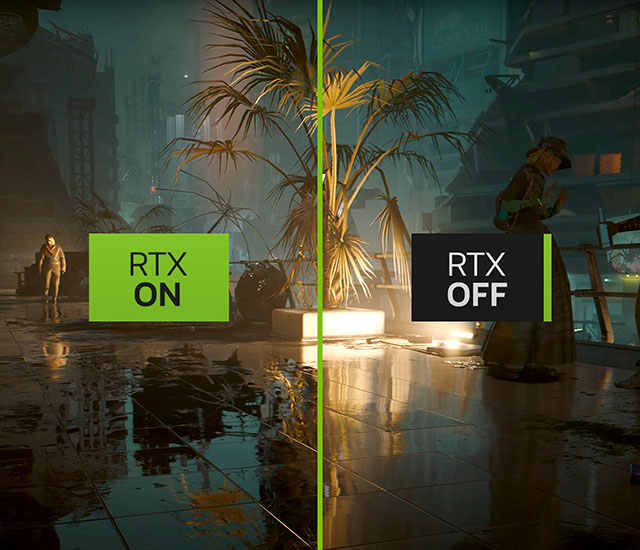

Ray Tracing
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series Laptops and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
Cherry Feature
Dynamic Boost
AI-powered Dynamic Boost now automatically optimises GPU, GPU memory and CPU power usage for better performance. The AI networks in Dynamic Boost manage performance per frame, so your laptop is constantly optimising power usage as you develop.

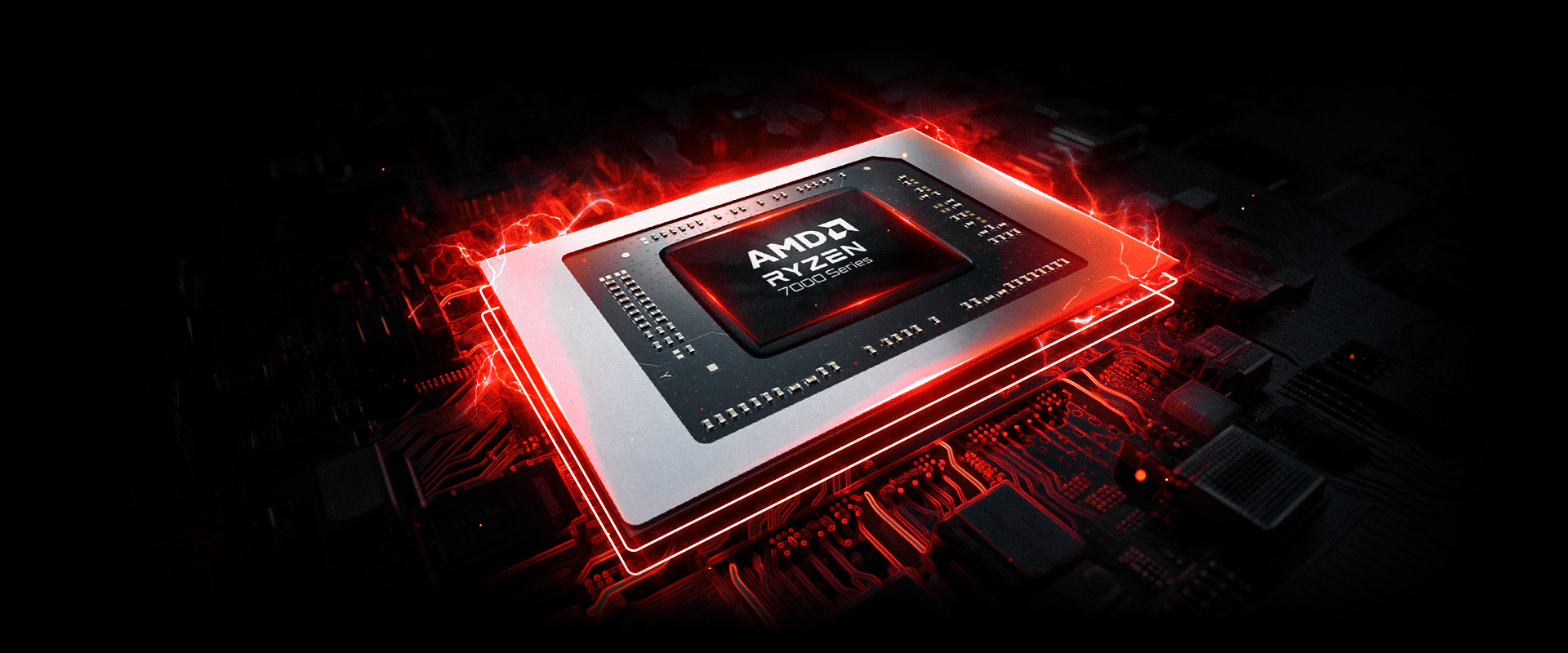

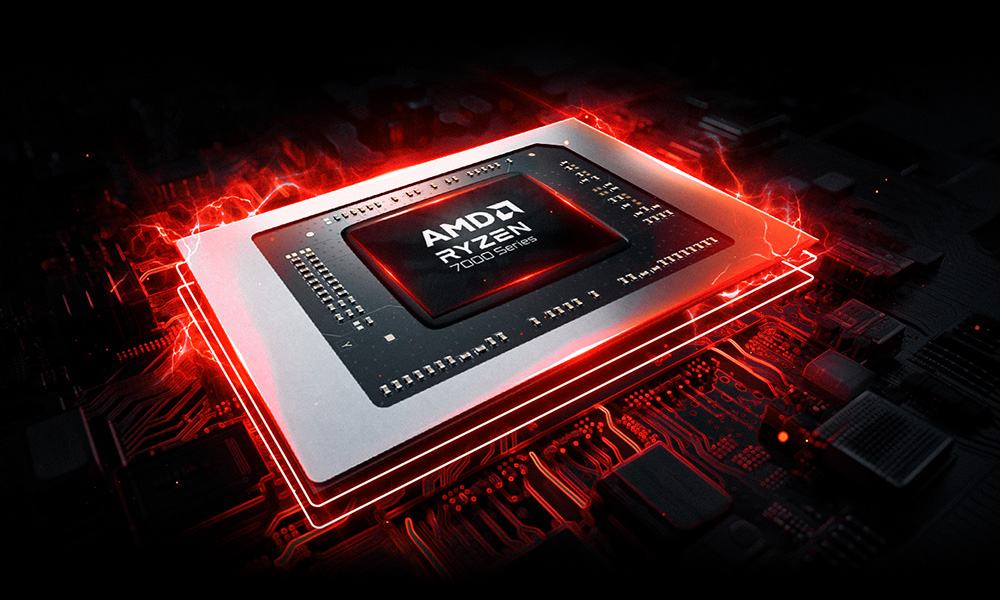

AMD Ryzen 7 7840HS
High performance & best efficiency

AMD’s Ryzen 7 7840HS boasts top-notch performance with optimised energy efficiency thanks to its modern Zen 4 architecture. With 8 cores and 16 threads, this processor gives you everything you need for gaming at continuously high FPS, streaming or working in demanding software. Compared to the Zen 3-based predecessor generation, this CPU offers a significant increase in both single- and multi-core performance.

XMG CORE 16 L23 LP Feature 02 CPU DESKTOP
XMG CORE 16 L23 LP Feature 02 CPU MOBILE

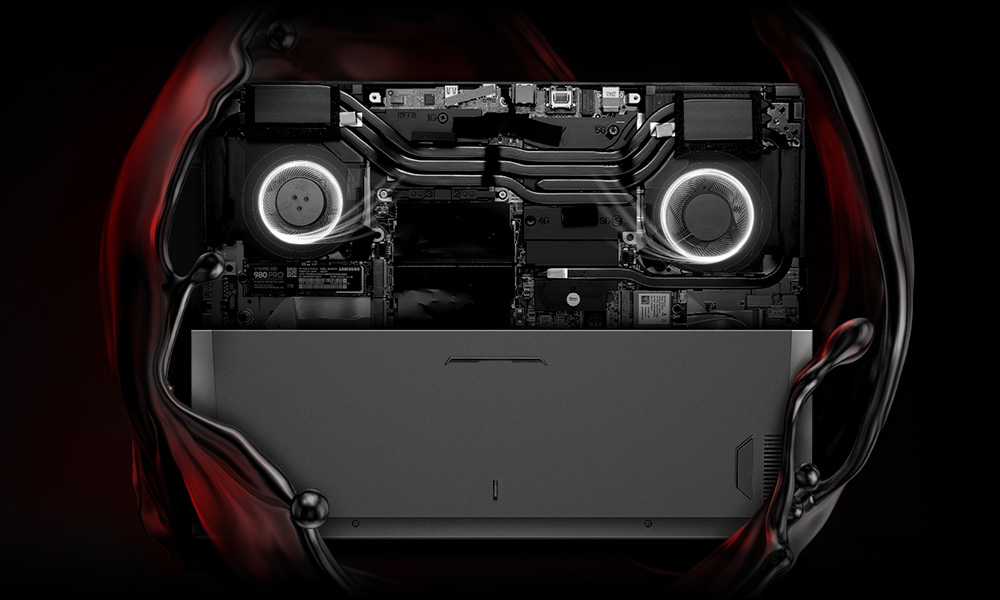

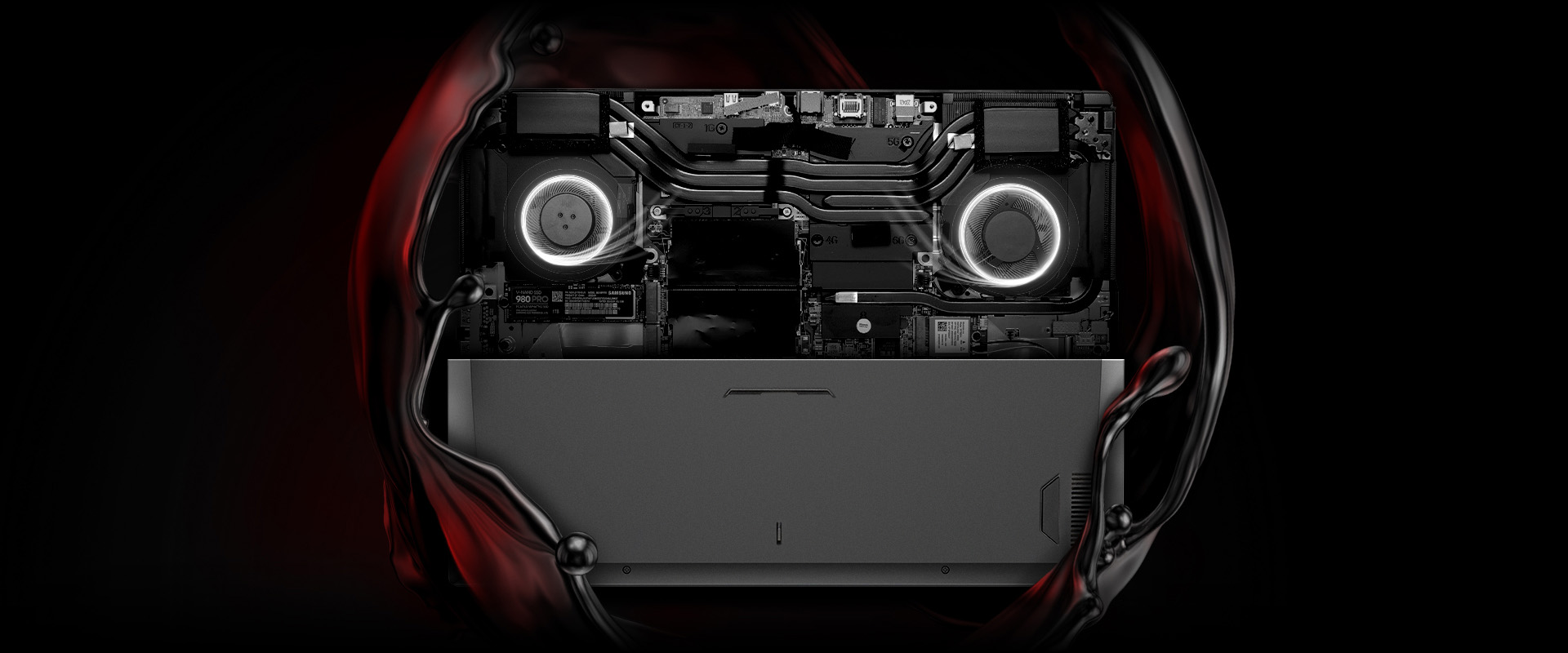

High-end compound cooling system
Liquid metal for CPU and GPU

In the XMG CORE 16, highly efficient laptop components meet a generous cooling system that ensures excellent temperatures in every situation. Four heat pipes, separate heat sinks on all four air outlets and large fans with a low-frequency acoustic characteristic offer more than enough reserves to get the maximum performance out of the processor and graphics card. The additional use of liquid metal completes the high-performance cooling.

XMG CORE 16 L23 LP Feature 03 Kuehlung DESKTOP
XMG CORE 16 L23 LP Feature 03 Kuehlung MOBILE

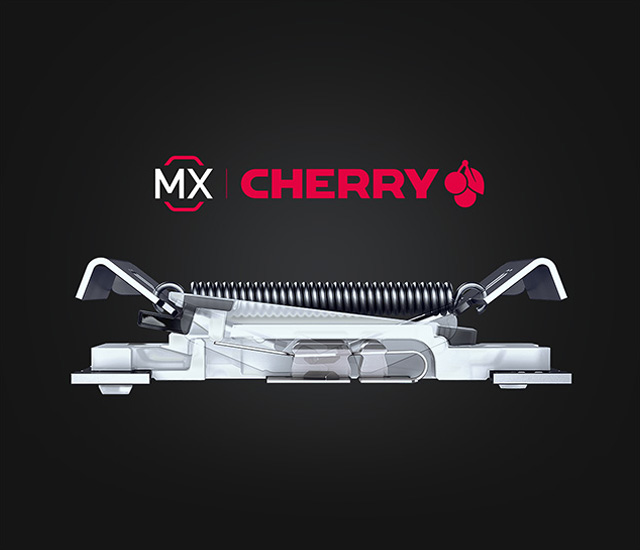

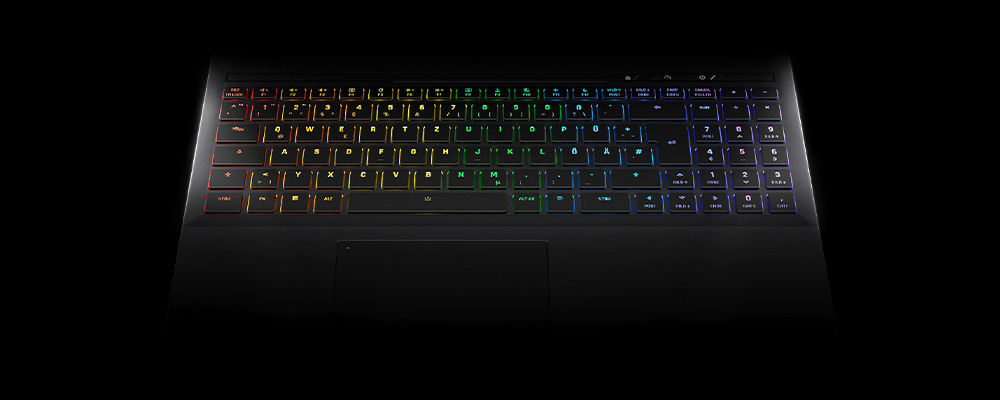

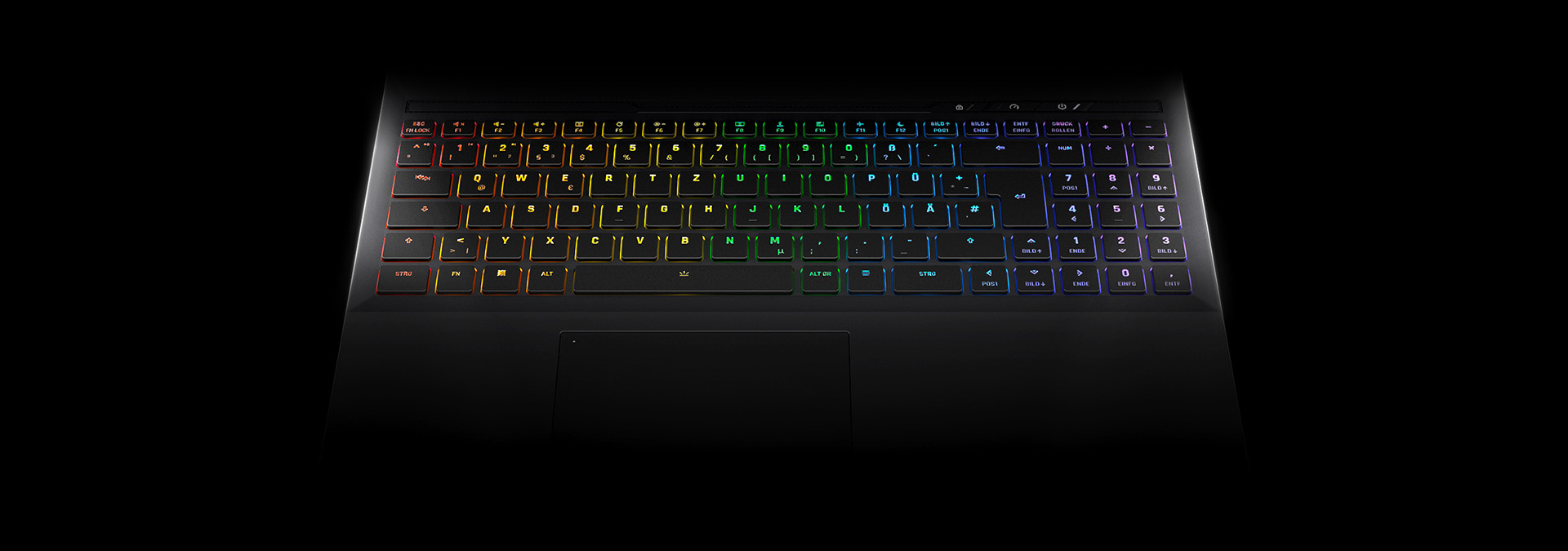

RGB keyboard with CHERRY MX switches
Precision meets perfection

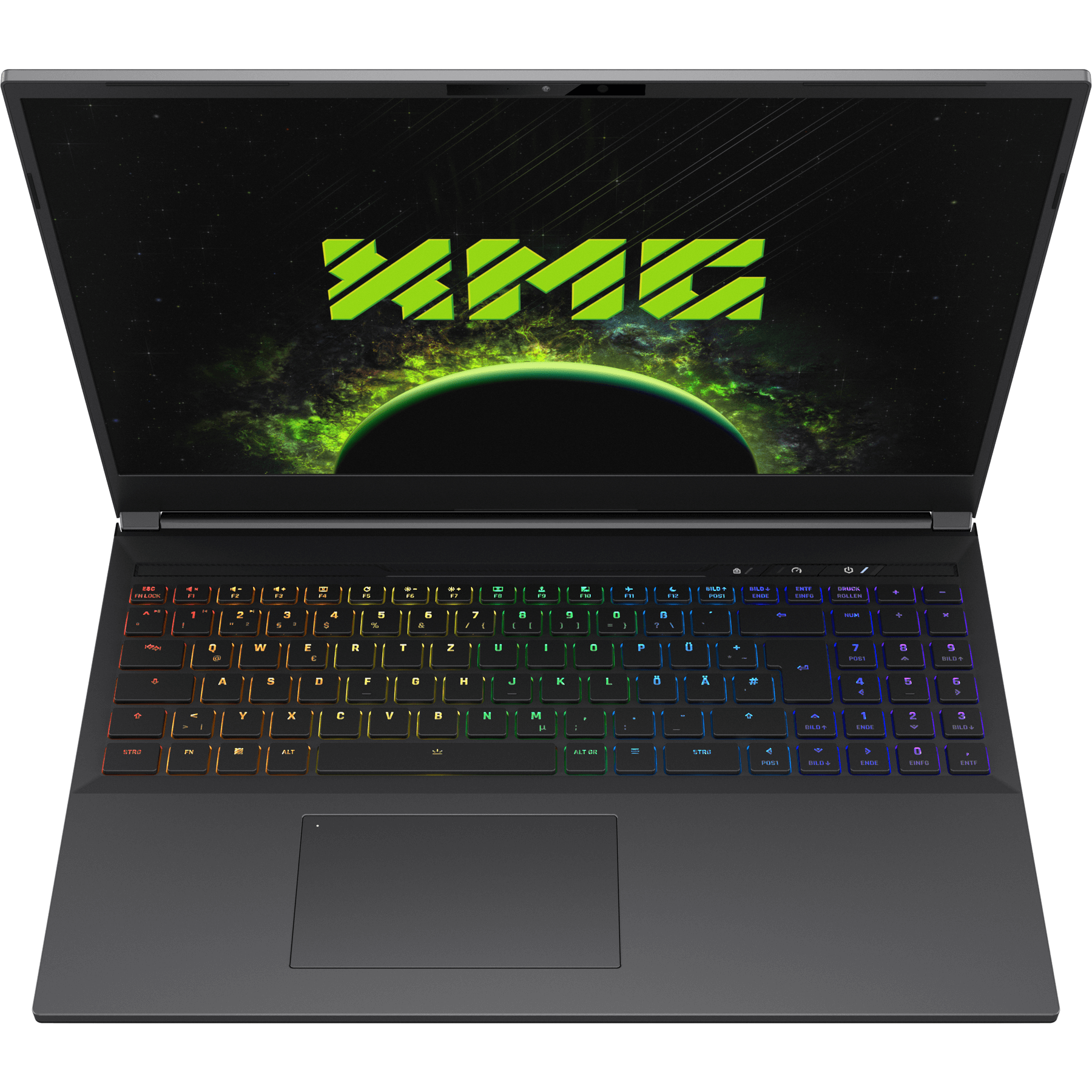

With its optional high-end keyboard based on CHERRY’s groundbreaking Ultra Low Profile Tactile switches, the XMG CORE 16 picks up on one of the key features of the XMG NEO series. The flattest, fully mechanical switches for laptops impress with a uniquely precise feedback, proven CHERRY durability and freely programmable RGB per-key backlight – N-key rollover, anti-ghosting and features such as a dedicated numeric keypad and large arrow keys included. For those who prefer particularly quiet typing, the CORE 16 is also available with a keyboard with silent membrane switches.

XMG CORE 16 L23 LP Feature 04 Keyboard DESKTOP
XMG CORE 16 L23 LP Feature 04 Keyboard MOBILE
XMG CORE 16 L23 LP Feature 04.1 CHERRY 1
  • Tactile switching characteristic
  • 65 cN operating force
  • 0.8 mm pre travel
  • 1.8 mm total travel
High-resolution IPS display
Razor sharp on 16 inch

The 16-inch non-glare display offers an enhanced WQXGA resolution (2,560 x 1,600 pixels) for a razor-sharp image reproduction. Thanks to a brightness of 350 nits, everything can be seen perfectly even in bright environments. With the IPS technology used, you can expect not only vibrant colours, a high contrast and excellent black levels, but also a wide viewing angle stability.

XMG CORE 16 L23 LP Feature 05 Display DESKTOP
XMG CORE 16 L23 LP Feature 05 Display MOBILE
XMG CORE 16 L23 LP Feature 05.1 Display Gaming
Extremely smooth
240 Hz gaming

A very fast refresh rate of 240 Hz is ideal for smooth gaming with high FPS – NVIDIA graphics cards with DLSS 3 flex their muscles in this category. The display is connected via a MUX switch: this allows you to permanently link the display device to the dGPU for maximum performance.

XMG CORE 16 L23 LP Feature 05.1 Display Content Creation
Colour accurate display
Smart 16:10 format

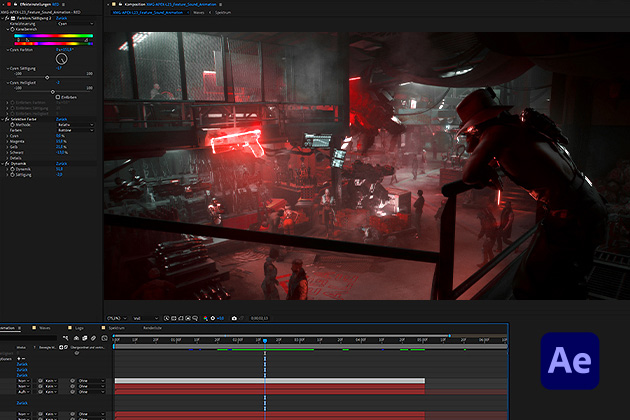

The display’s complementary features make it the right choice for professional image or video editing. For example, the factory colour-calibrated panel covers 95 per cent of the sRGB colour space to meet creatives’ requirements for high colour accuracy, and also uses the 16:10 format with more vertical screen area – ideal for enhanced ease of use in photo and video editing applications.

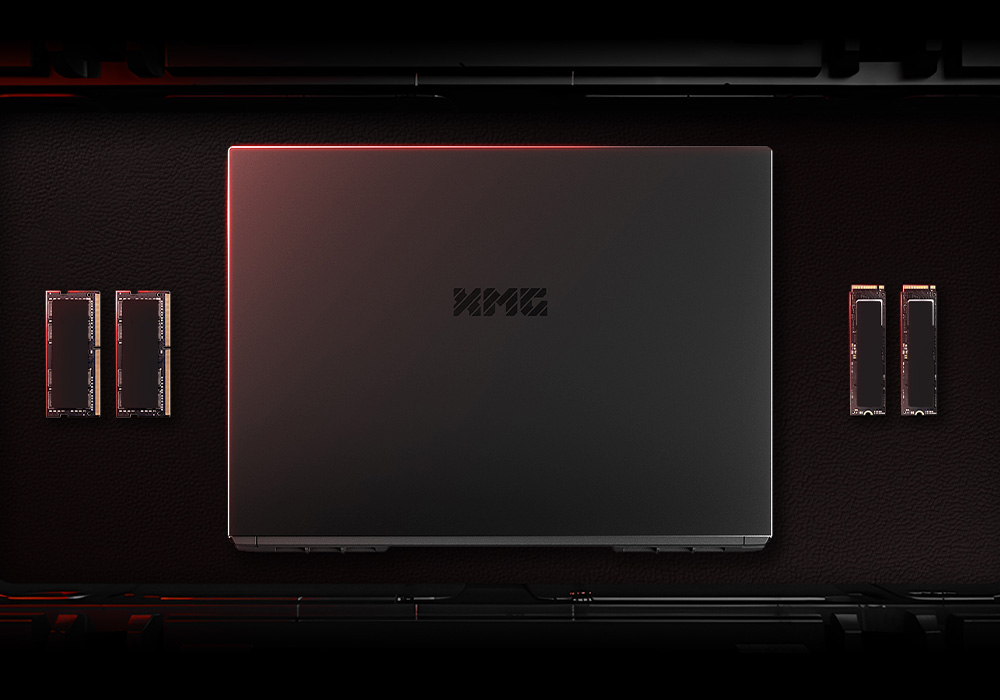

Holds two blazing-fast SSDs and
96 GB DDR5-5600 RAM

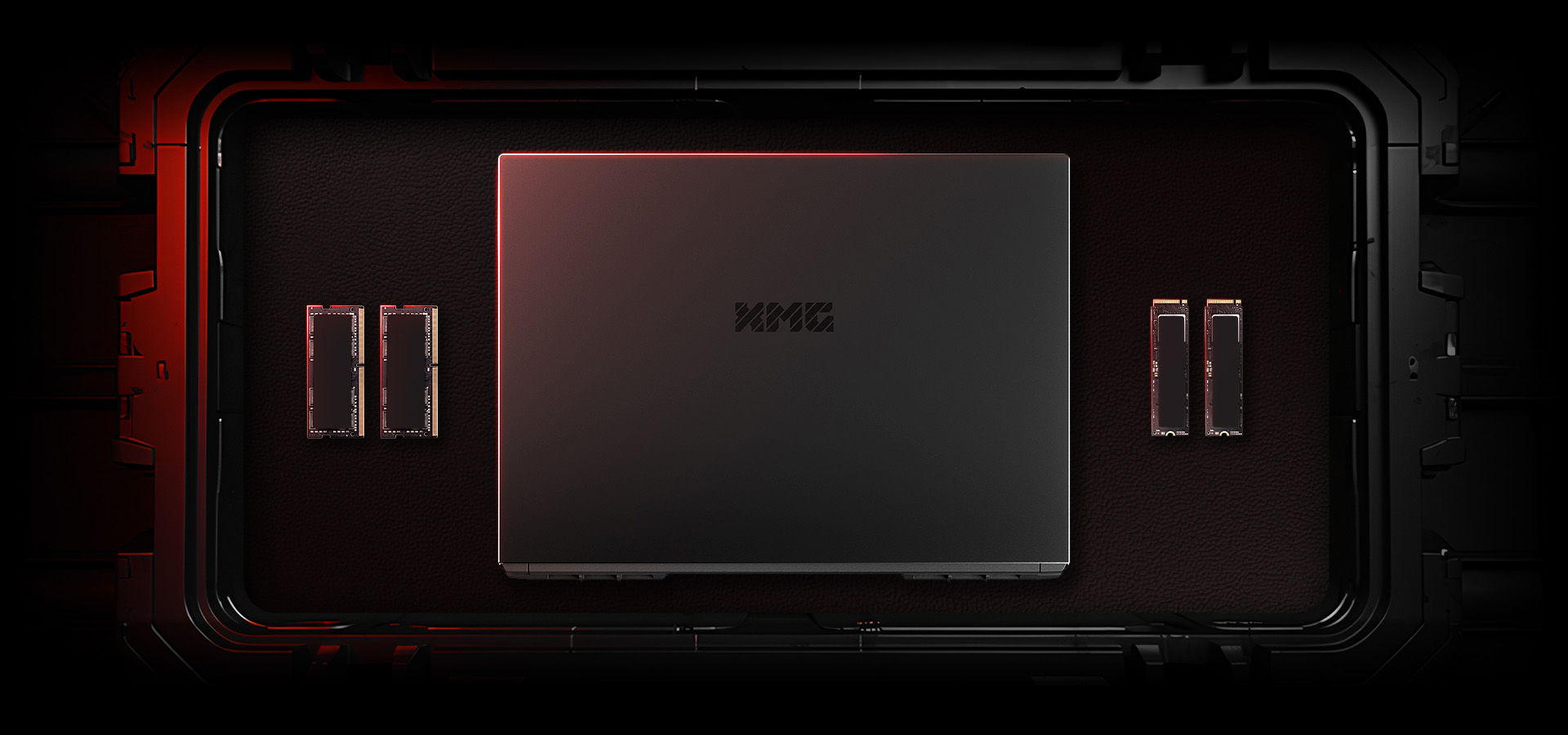

As one of the first gaming laptops ever, the XMG CORE 16 can hold up to 96 GB of plugged-in, high-performance DDR5 RAM with a maximum clock frequency of 5600 MHz. But it’s not just the configuration options for the memory that leave you all options open: Two M.2 slots outfitted with thermal pads for fast SSDs connected via PCI Express 4.0 provide more than enough storage space if needed.

XMG CORE 16 L23 LP Feature 07 Speicher DESKTOP
XMG CORE 16 L23 LP Feature 07 Speicher MOBILE

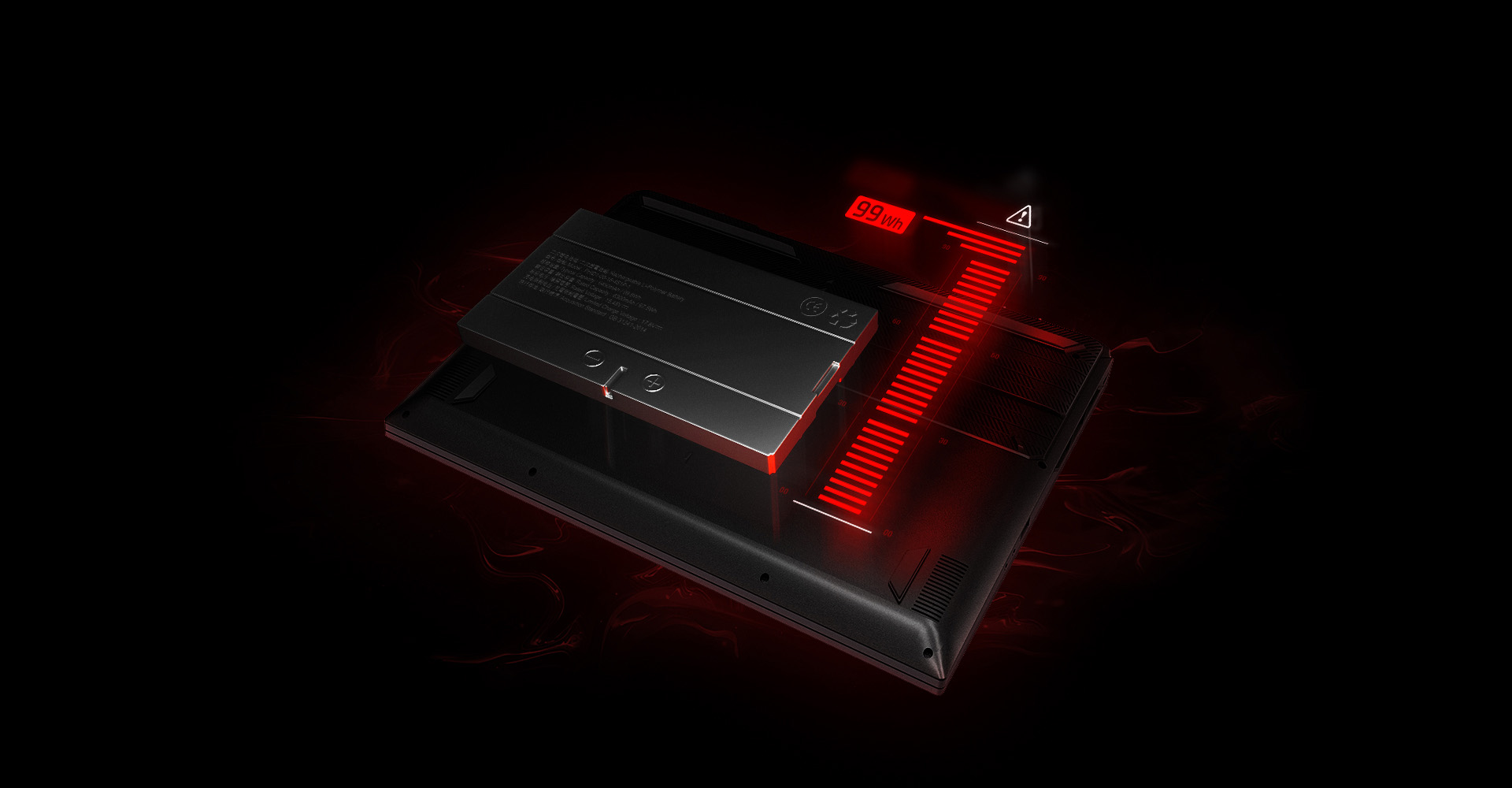

Maximum battery capacity
99 Wh for long runtimes

A battery capacity of 99 Wh is the absolute maximum allowed for unrestricted mobile use of your laptop. Combined with the efficient high-performance components, the XMG CORE 16 offers impressive runtimes on the go. When taking advantage of the clever 60 Hz feature, over 8 hours are possible during light workloads such as streaming videos. In addition, three selectable profiles allow you to adjust the maximum capacity and charging speed of the battery to optimise longevity according to your individual use of the laptop.

XMG CORE 16 L23 LP Feature 06 Akku DESKTOP
XMG CORE 16 L23 LP Feature 06 Akku MOBILE

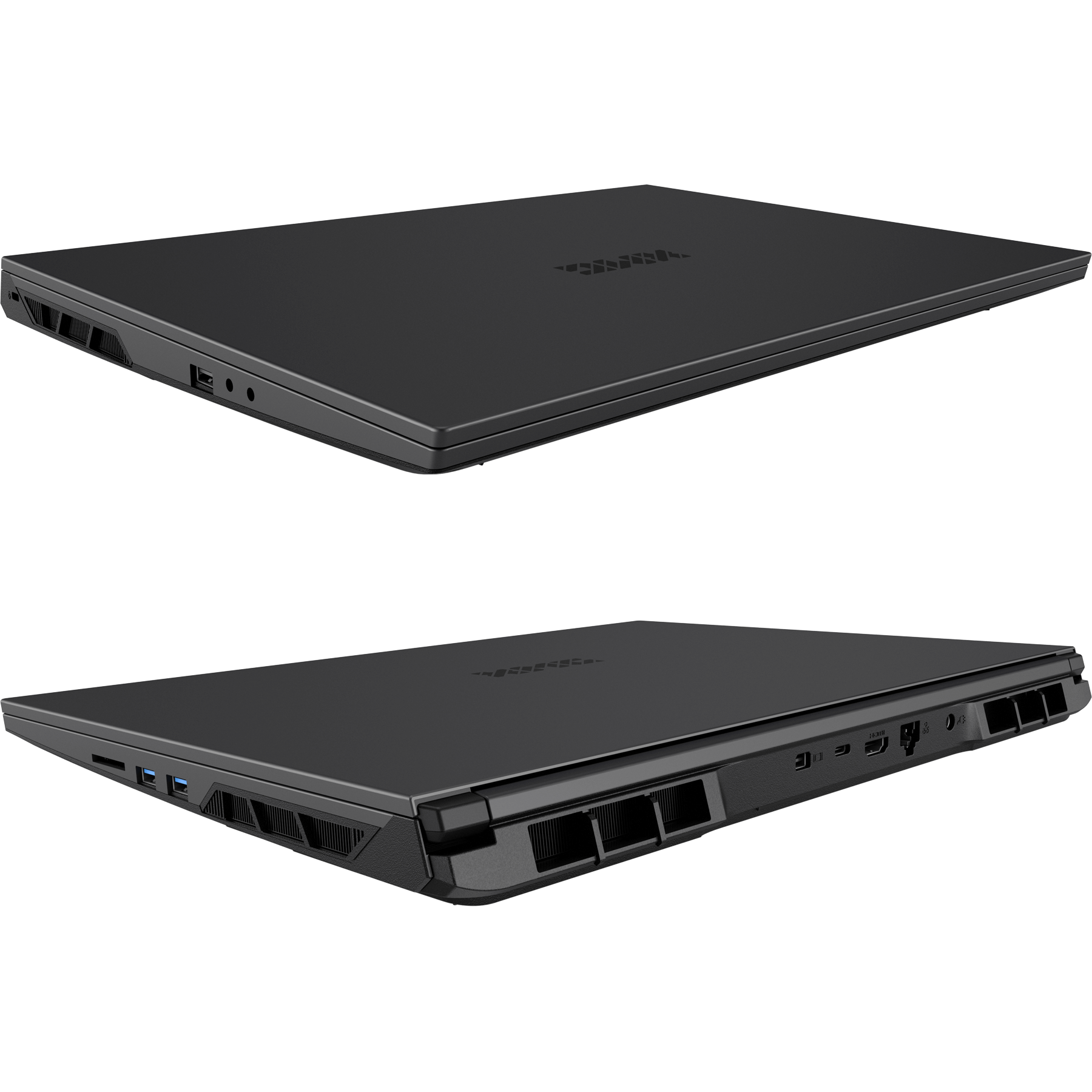

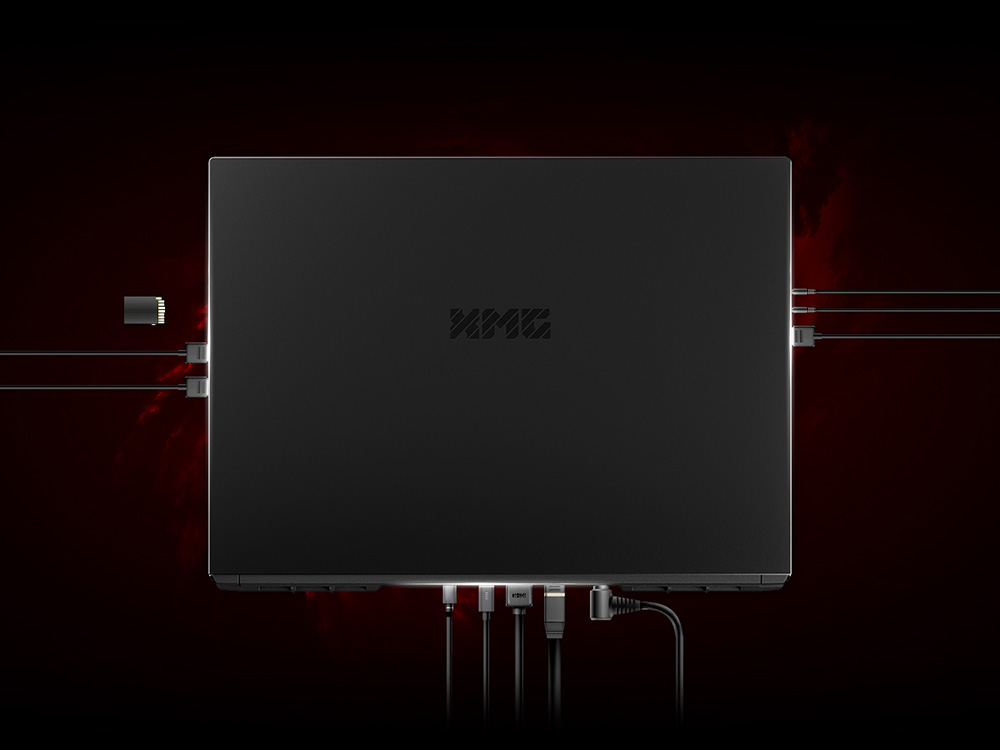

Modern features
All the connectivity you need

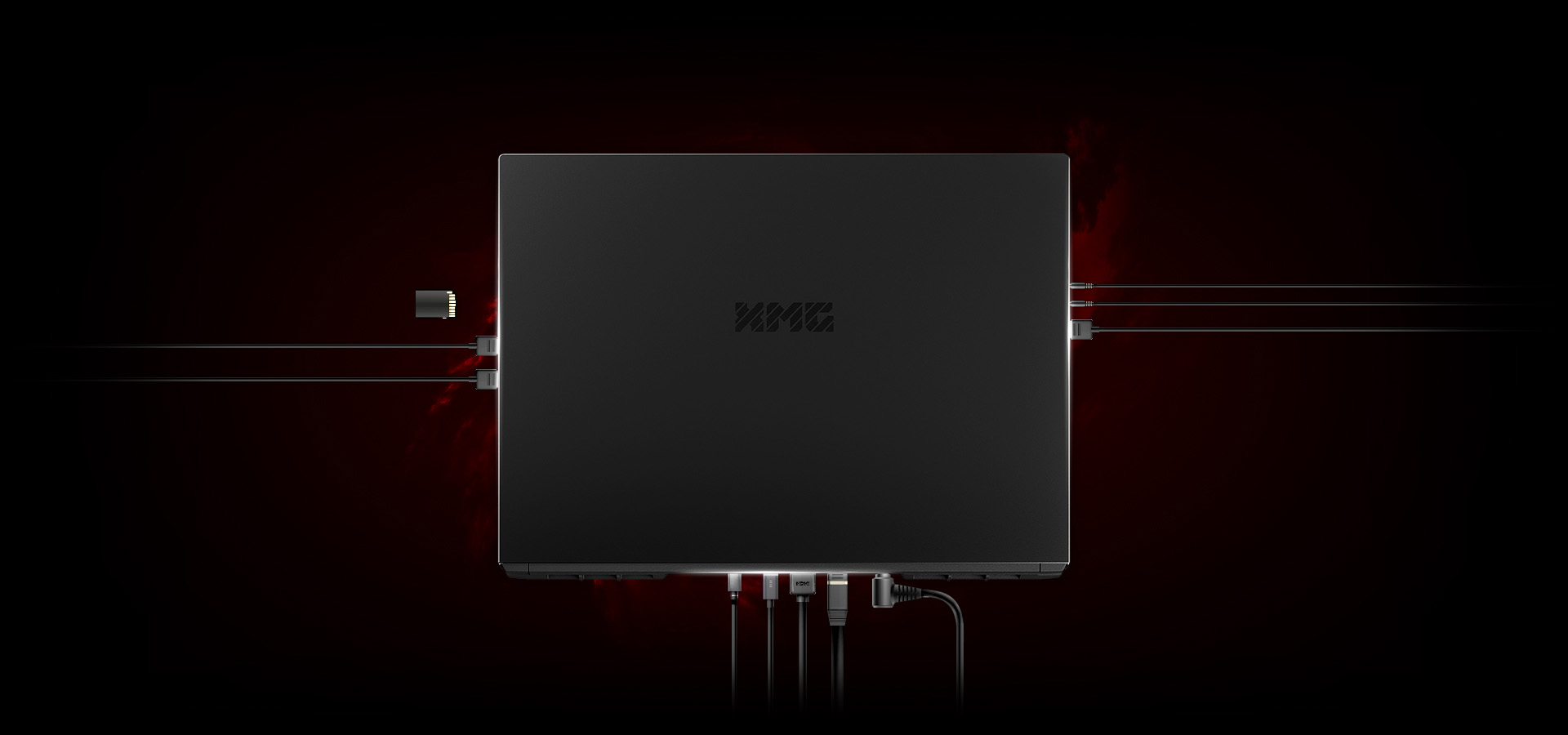

The versatile XMG CORE 16 comes with all the ports you need for your gaming setup or daily workflow. These include three USB-A and one USB-C port as well as a card reader for full-size SD cards and separate audio jacks for headphones (compatible with combo plug headsets) and a microphone. Additional display devices such as external G-SYNC monitors or smart TVs for convenient couch gaming can be operated via a Mini DisplayPort or HDMI output. Network connection is via fast Wi-Fi 6 or wired Gigabit Ethernet.

XMG CORE 16 L23 LP Feature 08 Anschluesse DESKTOP

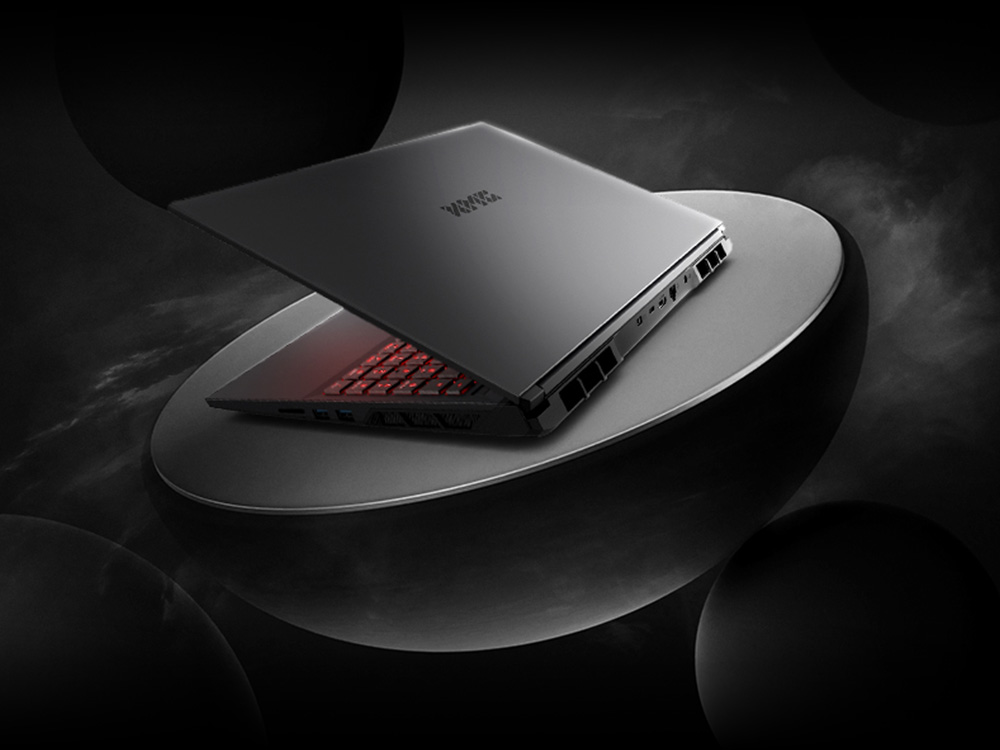

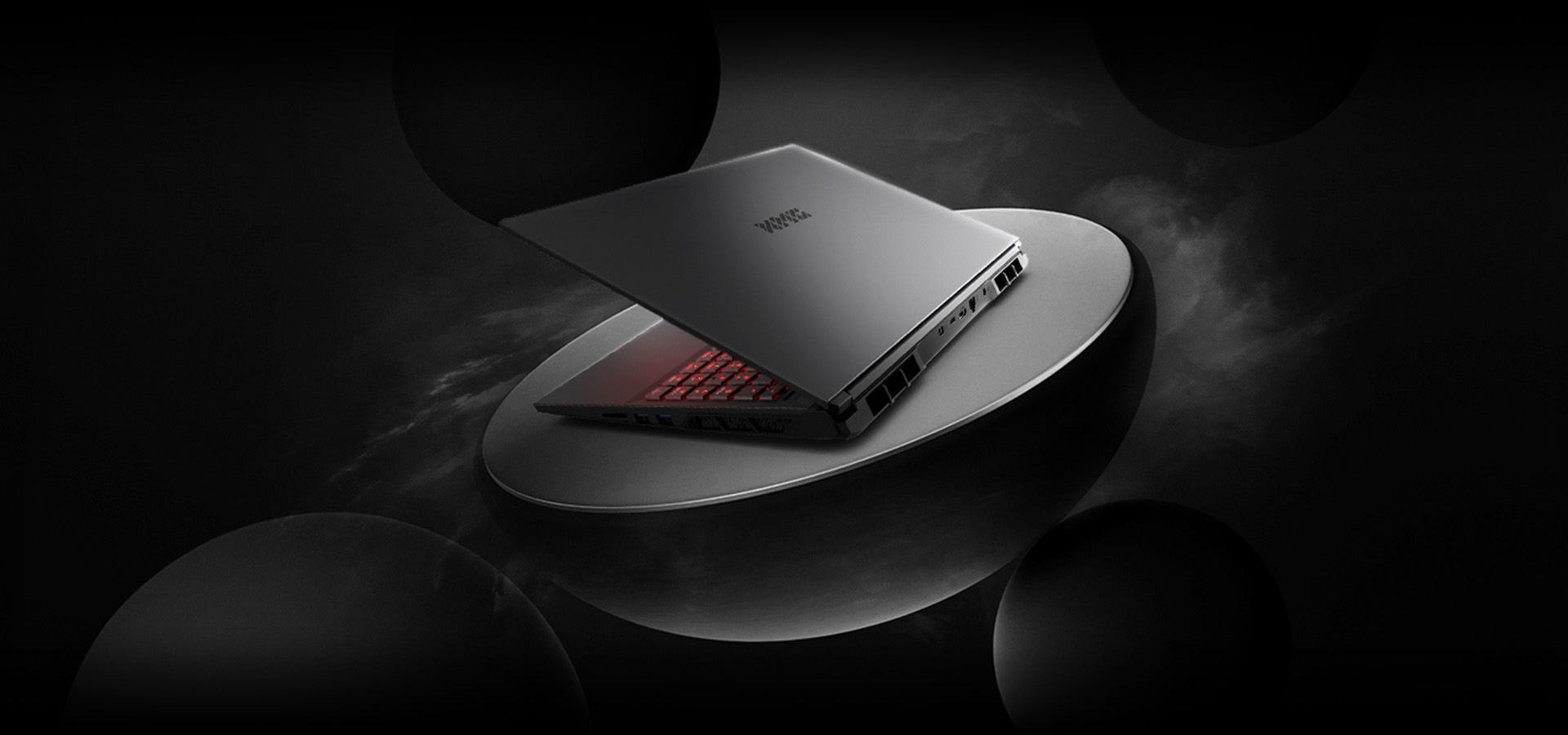

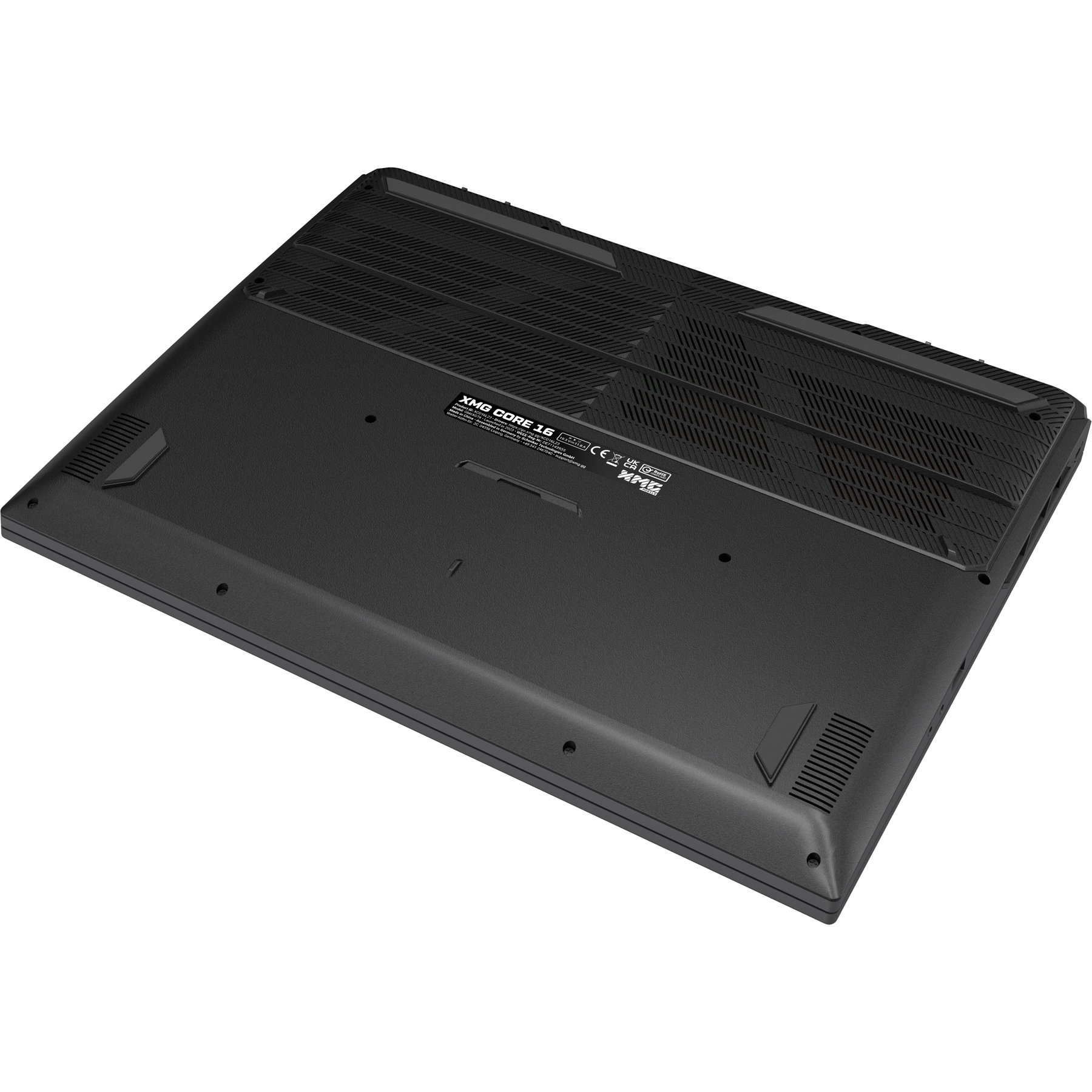

Robust chassis, precise glass touchpad
Durable & high-quality

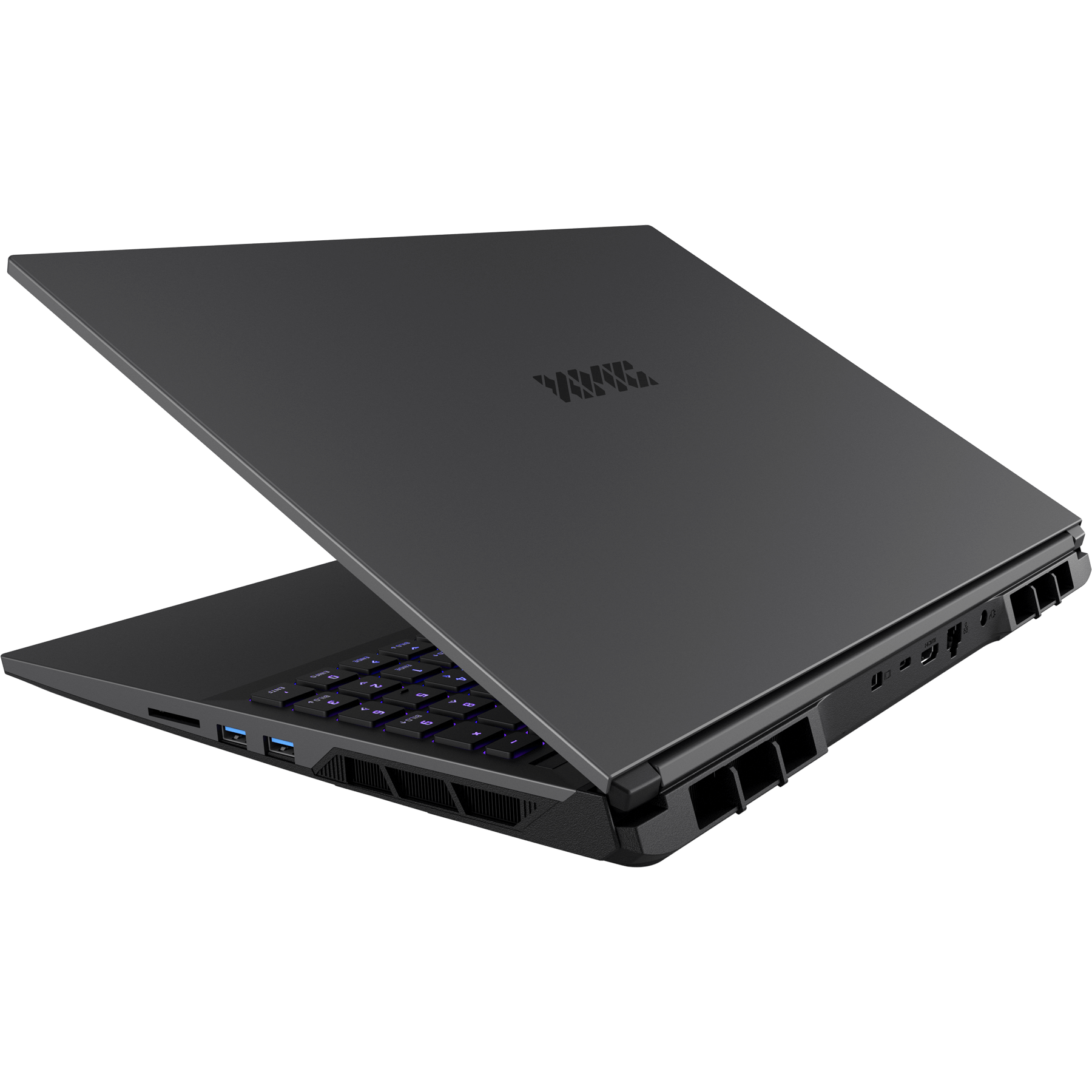

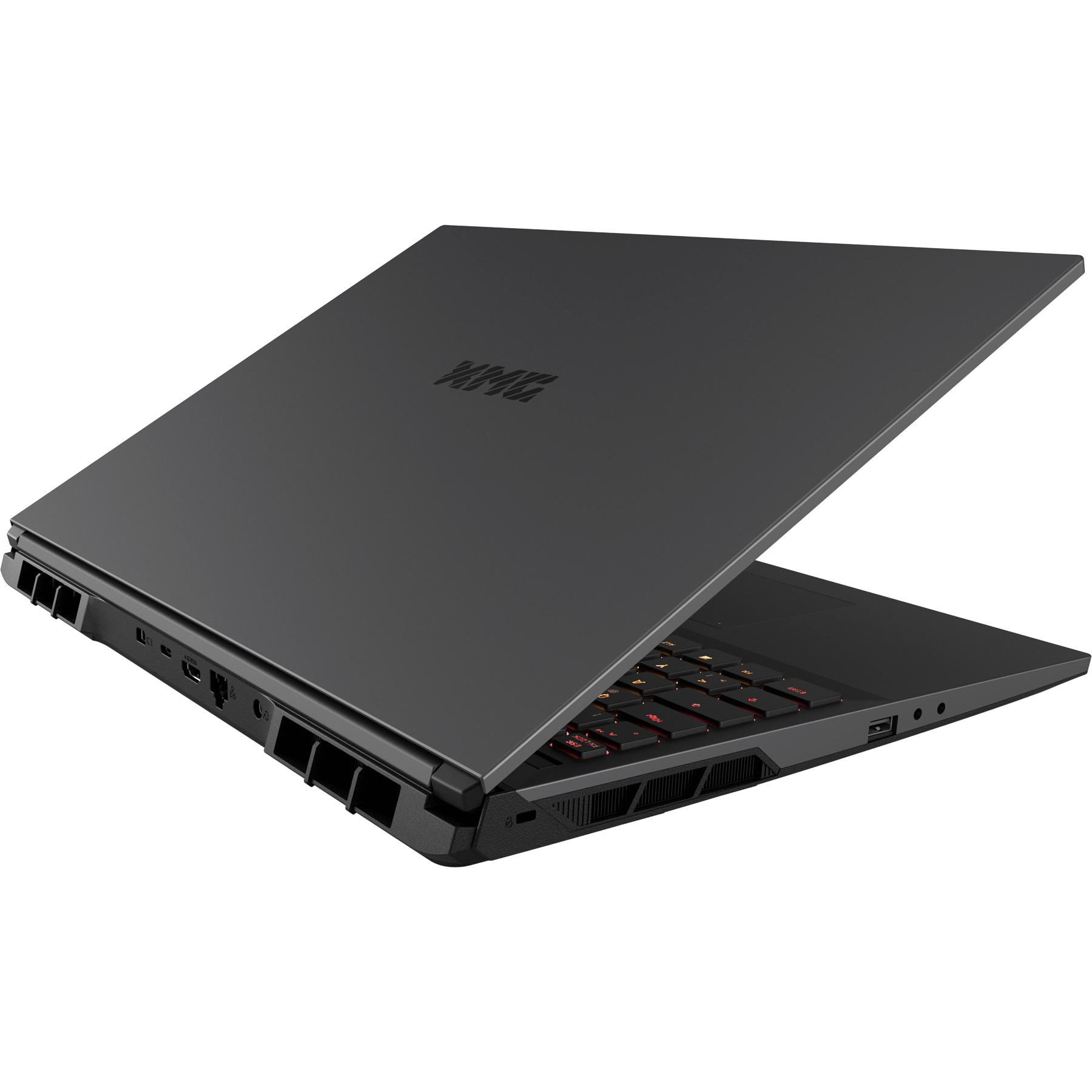

Even the chassis of the XMG CORE 16 is in keeping with the concept of bringing high-end features to the upper mid-range: The excellently crafted chassis is based on a sturdy base unit and a display lid made of high-quality aluminium, while the area below the keyboard offers you a non-slip grip thanks to a special, non-slip polymer. A Microsoft Precision Touchpad made of glass accurately handles all inputs and helps to prevent unintentional input errors thanks to automatic recognition of the palm of the hand.

XMG CORE 16 L23 LP Feature 09 Gehaeuse DESKTOP
XMG CORE 16 L23 LP Feature 08 Anschluesse MOBILE
XMG CORE 16 L23 LP Feature 09 Gehaeuse MOBILE
XMG Control Center
All settings under control

The XMG Control Center is a powerful tool that gives you complete control over your laptop’s performance settings. Here you will find tailor-made performance profiles to select the ideal balance of power, noise and temperatures at the touch of a button. If desired, you can access tons of expert manual tuning options to push your laptop’s high-end components to the maximum of the allowed power limits for CPU and GPU, to get the absolute most out of your setup.

VIDEOS & TESTS
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
Play Video about XMG NEO (E23) Unboxing
Play Video
Play Video
Play Video about XMG NEO E23 HandsOn
TECHNICAL SPECIFICATION

XCO16L23

16.0″ IPS | 2560×1600 px (16:10) | 240 Hz (alternatively 60 Hz settable) | 350 nits | 95 % sRGB | FreeSync | non-glare

  • AMD Ryzen 7 7840HS | 8 cores/16 threads |up to 5.1 GHz | 16 MB Cache | 54+ W TDP
  • Thermal Grizzly Conductonaut liquid metal compound ex factory
  • AMD Radeon 780M | 12 Compute Units | integrated (iGPU)
  • NVIDIA GeForce RTX 4060 | 8 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated
  • NVIDIA GeForce RTX 4070 | 8 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated
  • Thermal Grizzly Conductonaut liquid metal compound ex factory

    *XMG CORE is able to max out the GPU power consumption of the RTX 40-series laptop GPUs (140 W for RTX 4060/4070) in synthetic stress tests (e.g. FurMark). However, according to the NVIDIA specifications, the actual GPU power consumption depends on the type of workload. Therefore, the power consumption may be below (sometimes significantly lower) than the specified TGP and Dynamic Boost power draw values and is defined by NVIDIA.



  • display connection: iGPU with NVIDIA Optimus or dGPU (via MUX switch)

  • HDMI 2.1, Mini DisplayPort 1.4a connection: dGPU

  • 2 external displays directly addressable



  • VR Ready

2x DDR5 SO-DIMM | Dual Channel | max. 96 GB | max. 5600 MHz | max. 1.1 V

2x M.2 2280 SSD via PCI Express 4.0 x4 (suppports RAID 0/1)

  • stereo speakers
  • microphone with noise cancelling
  • Nahimic by SteelSeries software

silent membrane keyboard with one RGB backlight zone
optional:
mechanical keyboard with per-key RGB backlight, N-key rollover, anti-ghosting and
CHERRY MX Ultra Low Profile Tactile switches*
*keys of upper function row and numeric keypad use membrane switches

both keyboards feature a numeric keypad, full-size arrow keys and Fn lock function

  • Microsoft Precision Glass Touchpad, two integrated buttons | 114.5 x 70 mm (W x D)
  • automatic palm recognition to avoid false inputs
  • quick (de)activation of the touchpad with a double tap in the upper left area

Left:

  • headphone-out (compatible with combo jack headsets)
  • mic-in
  • USB-A 2.0 (powered)



Rear:

  • DC-in
  • RJ45 port (LAN)
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
  • USB-C 3.2 Gen2×1 (DisplayPort: no | Power Delivery: no)
  • Mini DisplayPort 1.4a (G-SYNC compatible | 2 streams with a total of 32.4 Gbps)



Right:

  • 2x USB-A 3.2 Gen1 (powered)
  • card reader (SD/SDHC/SDXC)
  • Realtek Gbit LAN
  • Wi-Fi 6 + Bluetooth 5
  • Full HD webcam (Windows Hello compatible)
  • Kensington NanoSaver
  • TPM 2.0 (via fTPM)
  • Windows Hello (via webcam)

230 watts (152 x 76 x 26 mm | 672 g incl. EU power cable)

  • changeable 99 Wh Li-poly battery (internally screwed)
  • different battery charging profiles selectable in control center
  • display lid made of aluminium
  • display frame, top and bottom case made of plastic
  • 135° display opening angle
  • PH 0 screw heads
  • one-hand opening
  • performance mode switch button

ca. 2.35 kg

358.4 x 266.8 x 26.1 mm (W x D x H)

  • laptop (incl. battery)
  • power supply
  • driver USB stick
