XMG PRO 16 Studio

UNCHAIN YOURSELF

Pro-grade workstation for content creation: As a GeForce RTX Studio certified laptop, the powerful and cutting-edge XMG PRO 16 Studio in a modern 16-inch format is the perfect choice for creatives and gamers.

An elegant design and exceptionally robust construction are not only impressive in everyday mobile use. The 19.9 mm slim, predominantly aluminium chassis makes the PRO 16 Studio the thinnest member of this model series and offers compact portability as well as high performance equipment. An impressive high-end cooling system with a vapor chamber, as well as a colour-accurate X-Rite-certified and razor-sharp display in the practical 16:10 format are just some of the many highlights of this workstation.

NVIDIA GeForce RTX 40
Innovative high performance

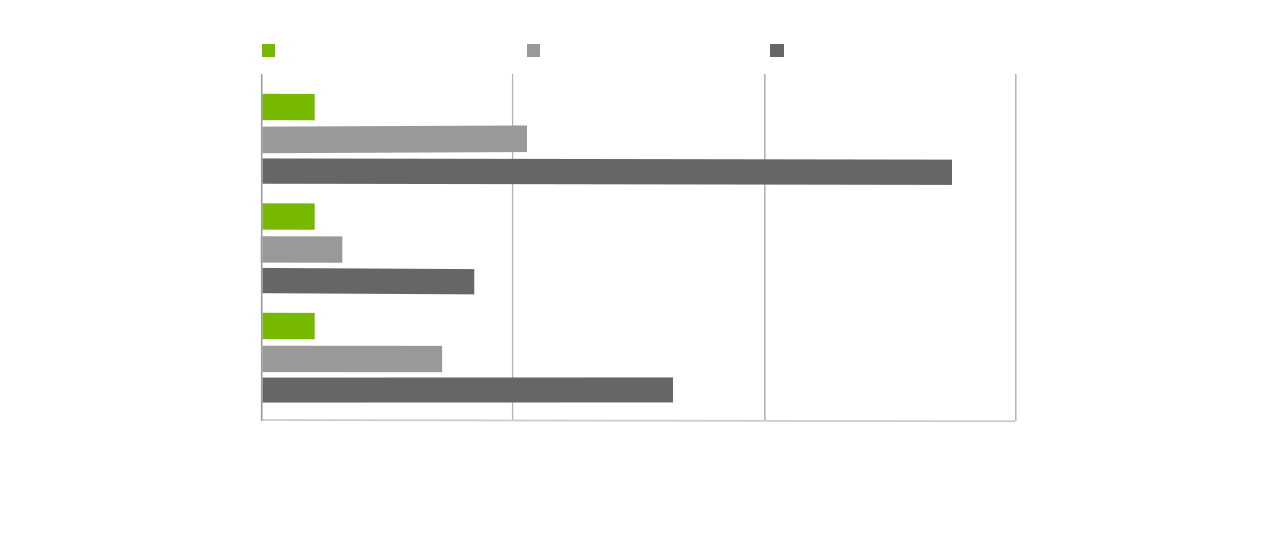

In the XMG PRO 16 Studio, NVIDIA’s GeForce RTX 40 graphics cards provide you with innovative features and high performance for GPU-accelerated, professional workloads or demanding blockbuster games. In addition to the very powerful RTX 4070, the default option RTX 4060 already offers plenty of performance. Based on dedicated tensor and ray tracing cores, NVIDIA’s laptop graphics cards unlock advanced features in compatible creative applications. These include lightning-fast, AI-based technologies for automatic image enhancement and ray tracing effects. Combined with the Studio driver developed specifically for creatives, the result is customised top performance.

Play Video
XMG PRO 16 Studio M23 LP Feature 02 GPU Graph DESKTOP EN

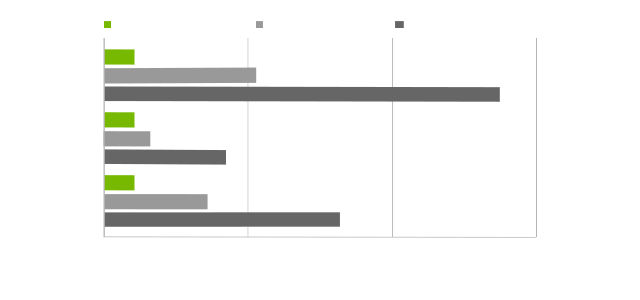

XMG PRO 16 Studio M23 LP Feature 02 GPU Video MOBILE EN
Intel Core i9-13900H
Multithreading powerhouse

On the processor side, the XMG PRO 16 Studio is trimmed for high performance with Intel’s Core i9-13900H: 14 cores and 20 threads as well as a boost clock of up to 5.4 GHz make for more than just superior application performance in your creative software or gaming. Despite the indisputable power, the CPU with its smart hybrid architecture (6 P- and 8 E-cores) focuses on efficient operation – for a balanced relationship between high computing speed, lower power requirements and quieter cooling.

XMG PRO 16 Studio M23 LP Feature 02 CPU DESKTOP
XMG PRO 16 Studio M23 LP Feature 02 CPU MOBILE

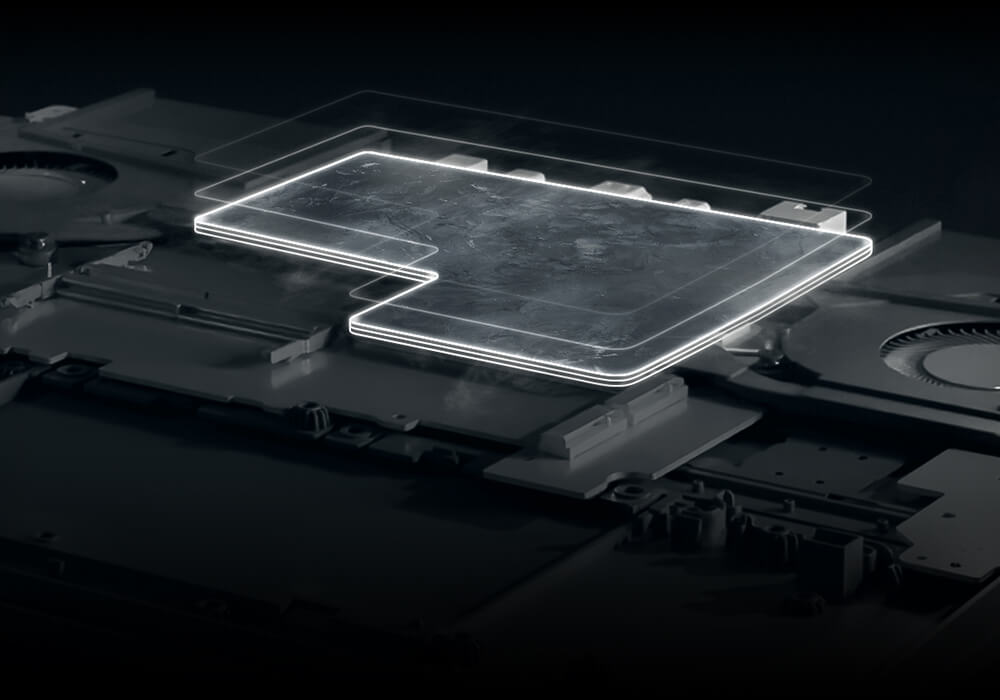

Vapor-Chamber
High performance - quietly cooled

Thanks to a highly efficient vapor chamber, the compact, thin XMG PRO 16 Studio excels with impressively quiet cooling – for relaxed and distraction-free working or even gaming. The large heat sink covers both the CPU and GPU as well as surrounding components such as the voltage regulators. Even under continuous load, you can expect maximum performance and quiet operation. The ideal balance of these features is offered by the “Entertainment mode” performance profile, while in “Performance mode” you can get the last reserves out of your CPU if necessary.

XMG PRO 16 Studio M23 LP Feature 03 Vapor Chamber DESKTOP
XMG PRO 16 Studio M23 LP Feature 03 Vapor Chamber MOBILE
High-resolution 16:10 display

The lightning-fast display of the XMG PRO 16 Studio convinces both gamers and creatives. The practical 16:10 format gives you more vertical viewing space and makes your software even more user-friendly, for example by allowing you to display additional toolbars in photo or video editing software.

XMG PRO 16 Studio M23 LP Feature 04 Display Content Ceation
Colour calibration powered by X-Rite

The factory-calibrated IPS display covers over 95 % of the sRGB colour space – a guarantee for first-class display quality in professional, colour-accurate image editing. In the X-Rite software, you can also choose from various profiles optimized for your application.

XMG PRO 16 Studio M23 LP Feature 04 Display Gaming
Ultra-smooth gaming at 240 Hz

A resolution of 2,560 x 1,600 pixels paired with a refresh rate of 240 Hz provides a razor-sharp and smooth display of your games – without any tearing or stuttering. A MUX switch allows you to manually switch the connection of the bright display between the energy-efficient Iris Xe graphics chip from Intel and the dedicated high-performance graphics card from NVIDIA to get the maximum FPS out of your games.

Professional top equipment
All the connectivity you need

With its large number of external ports, the XMG PRO 16 Studio offers extensive connectivity and expansion options. Thunderbolt 4, USB-C 3.2, two USB-A 3.2, fast network connections via 2.5 Gigabit ethernet or Wi-Fi 6E and a microSD card reader – this content creation workstation leaves nothing to be desired. Separate inputs and outputs for headphones (headset-compatible) and microphone complete the range of features, as do several video interfaces, which are located collectively at the back of the laptop.

XMG PRO 16 Studio M23 LP Feature 05 Anschluesse DESKTOP
XMG PRO 16 Studio M23 LP Feature 05 Anschluesse MOBILE
Versatile high-end interface
Thunderbolt 4

Thunderbolt 4 is much more than a high-speed interface for data exchange with the fastest external SSDs. With its integrated DisplayPort streams coupled to the efficient iGPU, the port allows you to output images to two 4K-capable external monitors or even connect to the most powerful, multifunctional docking stations. This allows you to connect your laptop to your work environment in a flash and with just one cable – including multi-monitor setups, network connection, printer, mouse and keyboard.

Native connectivity for
up to 3 external monitors
Native connectivity for
up to 3 external monitors

In professional environments, multi-monitor setups boost productivity and are also increasingly used in gaming and streaming systems. The XMG PRO 16 Studio can natively drive up to three external displays in addition to its internal display: via HDMI 2.1, Mini DisplayPort 1.4 and a DisplayPort-enabled Thunderbolt 4 port. While the first two are directly connected to the powerful NVIDIA dGPU and thus support G-SYNC, NVIDIA Surround and current VR headsets, the DisplayPort stream of the Thunderbolt port operates via the efficient iGPU from Intel – the rendering of computationally intensive 3D content then still runs on the faster NVIDIA graphics card.

Advanced security features

Safety first

A Full HD webcam with Temporal Noise Reduction not only enables clear image transmission in video conferences, but also supports a secure, biometric log-in procedure thanks to Windows Hello compatibility. In addition to a Kensington Lock, the XMG PRO 16 Studio comes with a tamper-proof hardware based TPM 2.0 module for a secure, trusted computing platform. This is used, for example, to manage cryptographic keys for encrypting internal or external storage devices via Bitlocker.

XMG PRO 16 Studio M23 LP Feature 06 Sicherheit
Up to 64 GB RAM & two M.2 SSDs
High-end memory options

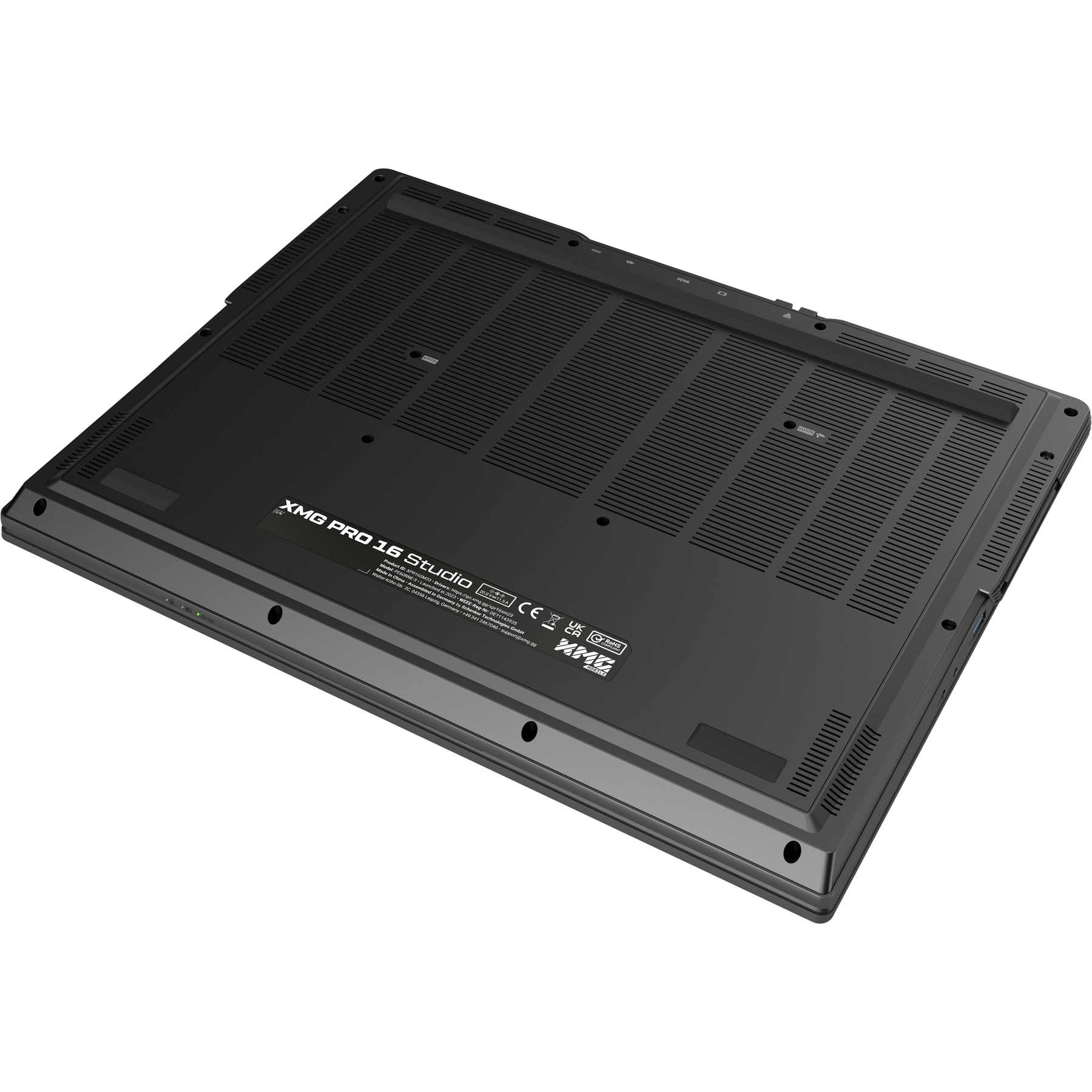

In terms of memory the XMG PRO 16 Studio stands out with maximum flexibility and allows high-end configurations that fully meet professional demands. Two SO-DIMM slots and M.2 sockets with PCI Express 4.0 connection allow for up to 64 GB DDR5-5200 RAM and the utilisation of the highest-speed SSDs for gaming and workstation laptops. As the inside of the chassis is freely accessible, it is possible to upgrade at a later time.

XMG PRO 16 Studio M23 LP Feature 07 Speicher DESKTOP
XMG PRO 16 Studio M23 LP Feature 07 Speicher MOBILE
Functional convenience
Precise input devices

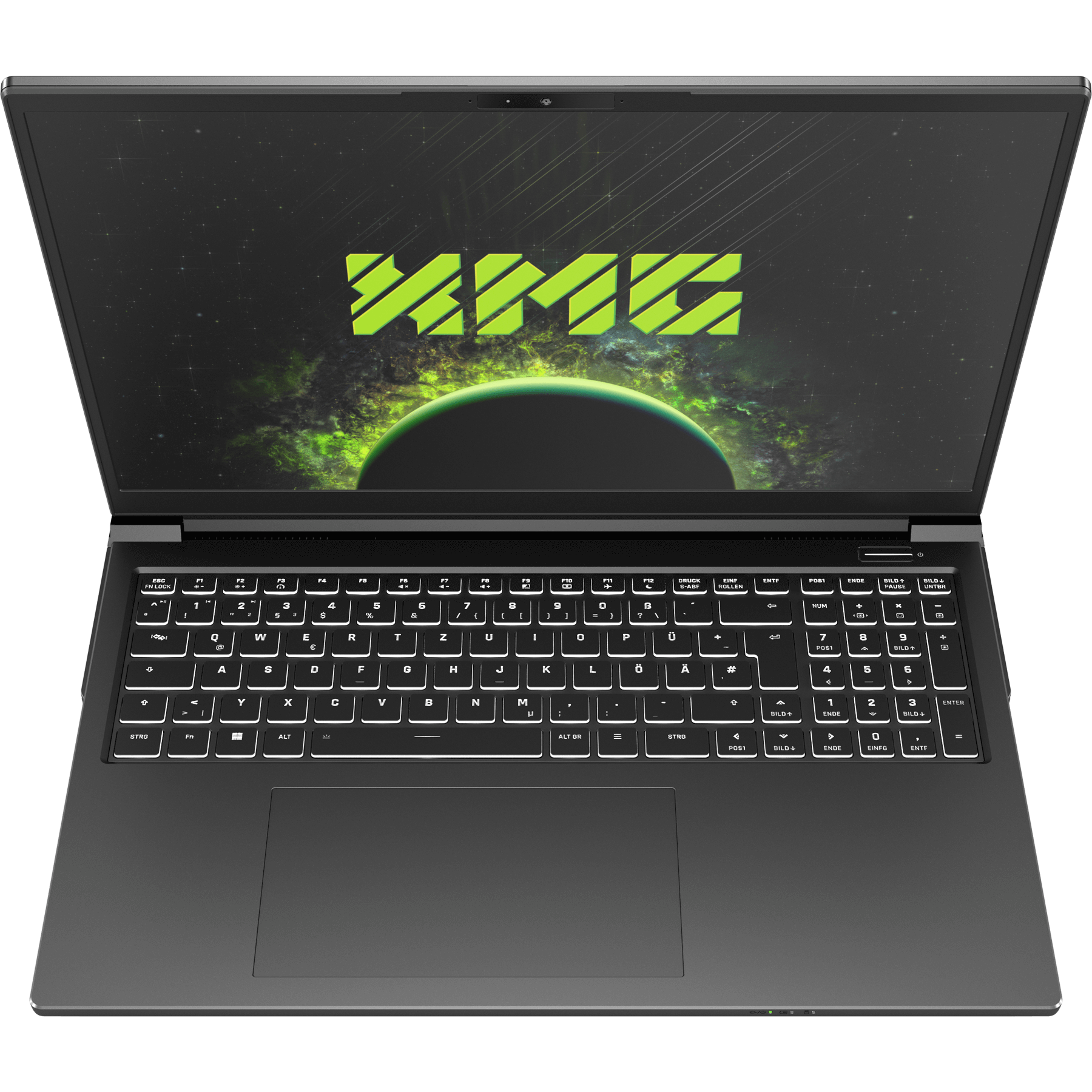

The multi-typist precision keyboard of the XMG PRO 16 Studio boasts a highly functional full-size design with a dedicated number pad, full-size arrow keys and a good typing experience. Even in a dark work environment, the keys are always easy to read thanks to a colour-adjustable LED backlight. A comfortable, Microsoft Precision-compliant touchpad enables precise execution of all inputs.

XMG PRO 16 Studio M23 LP Feature 08 Eingabe DESKTOP
XMG PRO 16 Studio M23 LP Feature 08 Eingabe MOBILE
VIDEOS & TESTS
Play Video about XMG PRO E23
Play Video
Play Video about XMG NEO 15 OASIS Jarrod
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
TECHNICAL SPECIFICATION

XPR16SM23

16.0″ IPS | 2560×1600 px | 240 Hz (alternatively 60 Hz settable) | 350 nits | >95 % sRGB | colour calibrated* | non-glare

*three factory-calibrated profiles selectable via pre-installed X-Rite software

Intel Core i9-13900H | 6 P- & 8 E-cores/20 Threads | up to 5,4 GHz | 24 MB cache | 45+ W TDP

  • Intel Iris Xe Graphics | 96 Execution Units | integrated (iGPU)
  • NVIDIA GeForce RTX 4060 | 8 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)
  • NVIDIA GeForce RTX 4070 | 8 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)


    *XMG PRO 16 Studio is able to max out the GPU power consumption of the RTX 40-series laptop GPUs (140 W for RTX 4060/4070) in synthetic stress tests (e.g. FurMark). However, according to the NVIDIA specifications, the actual GPU power consumption depends on the type of workload. Therefore, the power consumption may be below (sometimes significantly lower) than the specified TGP and Dynamic Boost power draw values and is defined by NVIDIA.

    display connection: iGPU with NVIDIA Optimus or dGPU (MUX switch)
    HDMI, Mini DisplayPort: dGPU
    DP via TB4/USB-C connection: iGPU with NVIDIA Optimus
    3 external displays directly addressable
    additional external displays possible with docking station via TB4/USB-C 4.0
    VR Ready

    GeForce RTX Studio certified
    NVIDIA Studio driver pre-installed

2x DDR5 SO-DIMM | Dual Channel | max. 64 GB | max. 5200 MHz | max. 1.1 V

2x M.2 2280 SSD via PCI Express 4.0 x4 (suppports RAID 0/1)

  • stereo speakers
  • microphone with noise cancelling
  • Sound Blaster Studio Pro

backlit keyboard with full-fledged numeric keypad and full-size arrow keys, 15 colour options

Microsoft Precision Touchpad, two integrated buttons | 151 x 91 mm (W x D)

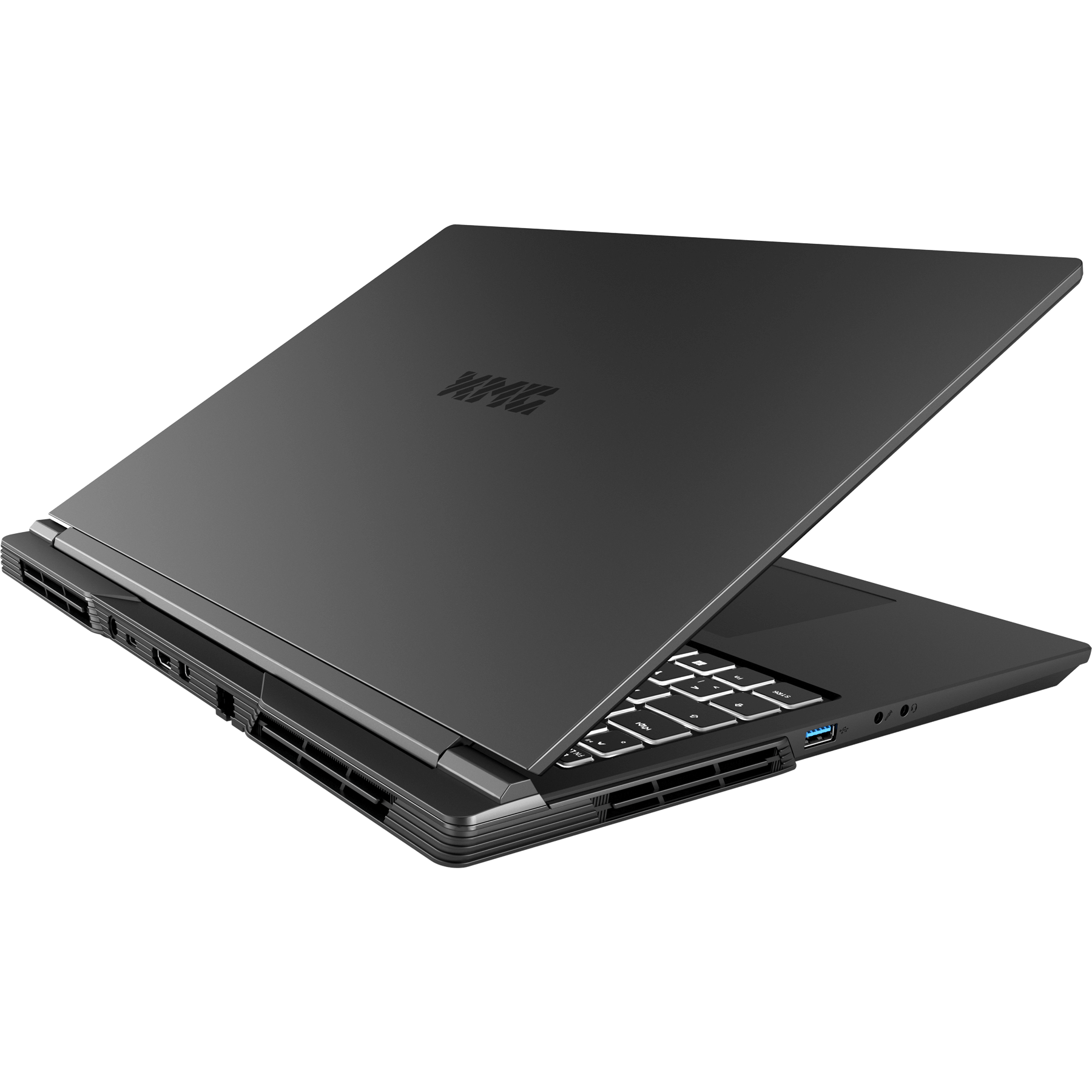

Left:

  • headphone-out (compatible with combo jack headsets)
  • mic-in
  • USB-A 3.2 Gen1 (powered)

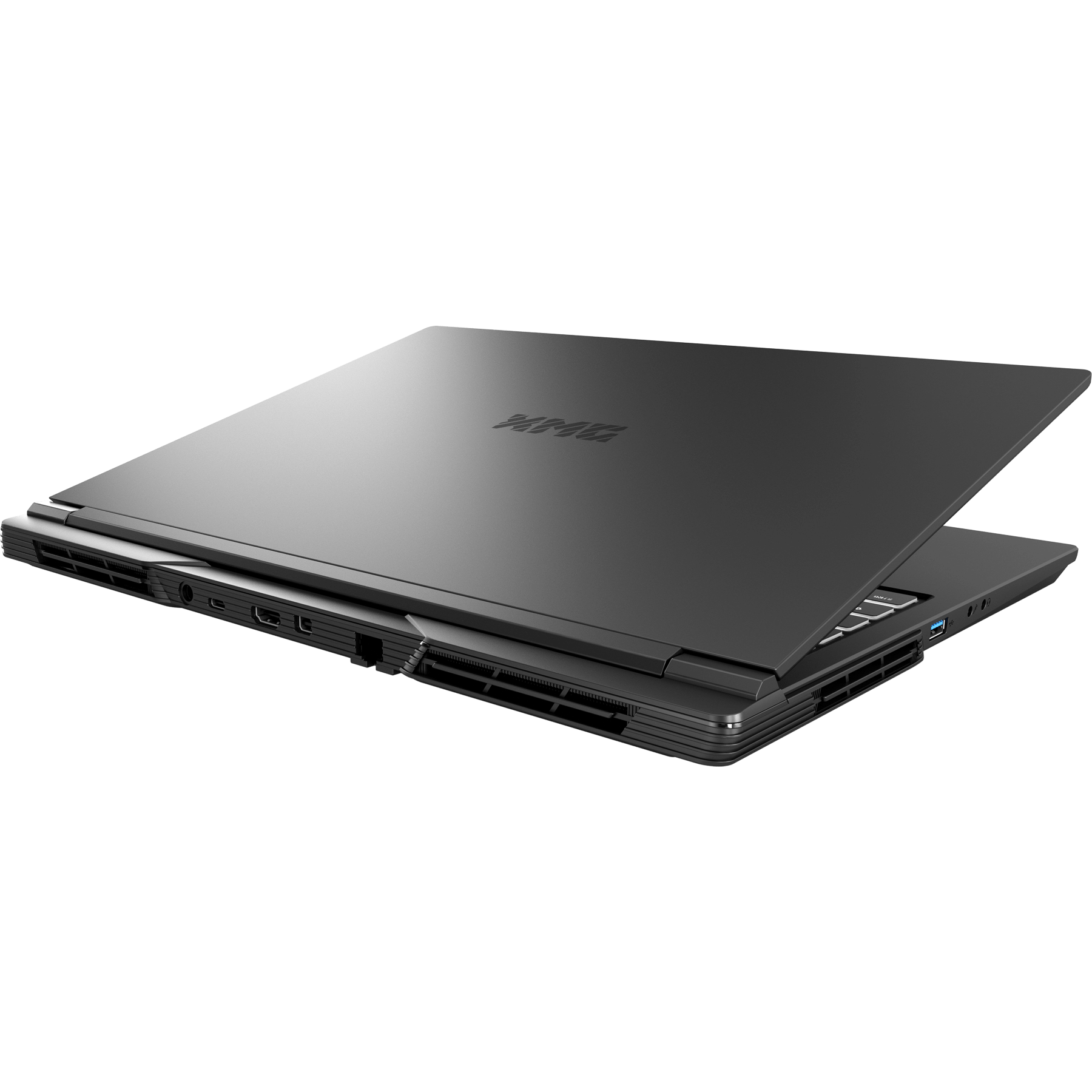

Rear:

  • RJ45 port 2.5 Gbit (LAN)
  • Mini DisplayPort 1.4a (G-SYNC compatible | 32.4 Gbps)
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
  • USB-C 3.2 Gen2×1 (DisplayPort: no | Power Delivery: no)
  • DC-in

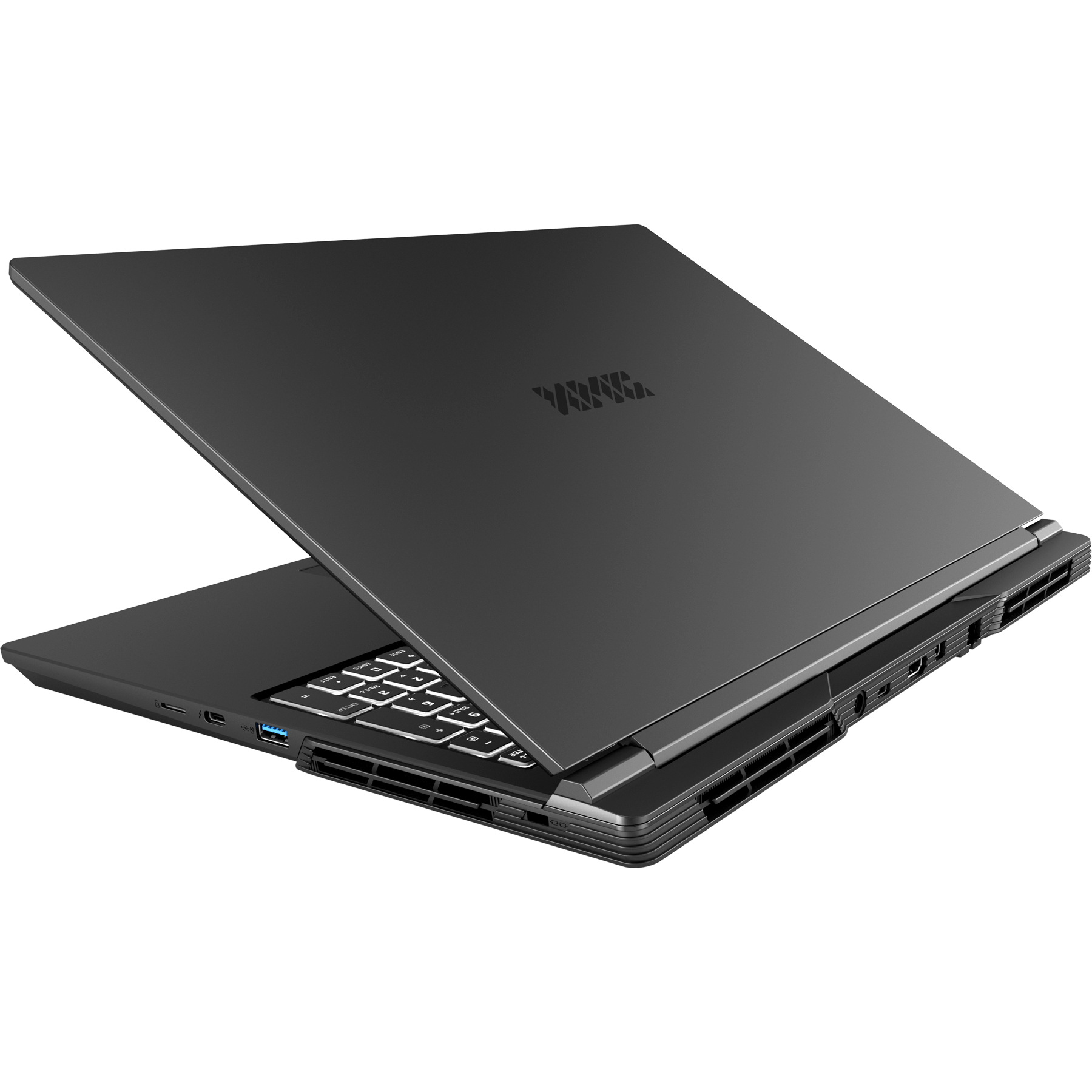

Right:

  • USB-A 3.2 Gen1 (powered)
  • Thunderbolt 4/USB-C 4.0 Gen3×1* (DisplayPort 1.4a: yes | Power Delivery: yes)
  • microSD card reader


*details:
Thunderbolt 4 with 40 Gbit/s
USB-C 4.0 Gen3×1 with 20 Gbit/s
USB-C 3.2 Gen2×1 with 10 Gbit/s
Power Delivery: 20V/5A (100 watts | significantly reduced performance, should only be used for low CPU-only workloads)
power supply for peripherals: max. 5V/3A (15 watts)
supports 2 DisplayPort streams with a total of 32.4 Gbps
no support for VR headsets
No support for G-SYNC (proprietary), but compatible with Adaptive Sync (incl. FreeSync and G-SYNC Compatible)

  • Realtek 2.5 Gigabit LAN
  • Wi-Fi 6E + Bluetooth 5
  • Full HD webcam with Temporal Noise Reduction (Windows Hello compatible)
  • Kensington Lock (right)
  • TPM 2.0 (via dTPM)
  • Windows (Hello via webcam)

230 watts (155 x 75 x 25 mm | 675 g incl. EU power cable)

  • changeable 73 Wh Li-Poly-battery (internally screwed)
  • different battery charging profiles settable in control center or BIOS (FlexiCharger)
  • display lid and bottom case made of aluminium
  • display frame and top case made of plastic
  • 130° display opening angle
  • PH 0 screw heads
  • one-hand opening
  • ca. 2.56 kg

359,5 x 273 x 19.9 mm (W x D x H)

  • laptop (incl. battery)
  • power supply
  • driver USB stick

In the download portal of our company headquarters Schenker Technologies GmbH we continuously provide you with the latest driver versions.
