XMG PRO & XMG NEO 16 (2026): Extended product information

Deep Dive
August 25, 2026

In this post, you will find current information and technical details on our flagship model XMG NEO 16 (A25/M26) and its sister models XMG PRO 16 and XMG PRO 16 Value Edition (M25). Important updates are marked with the date.

Delivery status

August 25, 2026: XMG NEO 16 (M26) launched; table has been updated.

The XMG NEO 16 (M26) can be ordered with either an OLED or an IPS display. These display variants are now fully available in all configurations – with 5070 Ti, 5080 and the NVIDIA GeForce RTX 5090 Laptop GPU.

The new Mini-LED panel cannot be ordered yet. Availability is targeted for October 2026 and depends on successful validation of NVIDIA G-SYNC and NVIDIA Advanced Optimus. We will only make this display option available once validation has been completed. Until then, we will not provide a binding order or delivery date.

The XMG NEO 16 (A25), XMG PRO 16 (M25) and XMG PRO 16 Value Edition (M25) remain unchanged in the line-up. We plan to add the NVIDIA GeForce RTX 5070 (non-Ti) with 12 GB to the XMG PRO 16 Value Edition (M25) before the end of the year. A new XMG PRO 18 is scheduled to be introduced by the end of September.

The following table summarises the current time frames for the various configurations.

	Information
XMG NEO 16 (M26) with IPS and OLED	Fully available. IPS only with RTX 5070 Ti; OLED with all GPUs.
XMG NEO 16 (M26) with Mini LED	Planned for October.
XMG NEO 16 (E25)	Only remaining stock left available is with IPS and RTX 5090; other variants are already sold out. See remark below.
XMG NEO 16 (A25)	Fully available.
XMG PRO 16 (M25)	Fully available.
XMG PRO 16 Value Edition (M25)	Fully available.

Remarks:

The XMG NEO 16 (E25) with Intel Core Ultra 9 275HX is no longer being produced. Variants with IPS and RTX 5090 are available only while stocks last.
Availability of the XMG NEO 16 (M26) with Mini-LED depends on the progress of NVIDIA validation.

What’s new in the XMG NEO 16 (M26)?

The XMG NEO 16 (M26) is the direct successor to the previous E25-generation of XMG NEO. The AMD-based XMG NEO 16 (A25) remains unchanged in the line-up alongside its new, Intel-based counterpart.

The chassis, motherboard architecture, cooling system and I/O layout of the M26 are largely based on the predecessor. The refresh focuses on the components for which a relevant upgrade is actually available in 2026:

The Intel Core Ultra 9 290HX Plus replaces the Core Ultra 9 275HX.
For the first time, the XMG NEO 16 is available with a 240 Hz HDR1000 OLED display.
The more affordable 300 Hz IPS panel now covers DCI-P3 as well as sRGB in full, although it is now only available with the GeForce RTX 5070 Ti.
OLED and IPS support Variable Refresh Rate via NVIDIA Optimus.
The sustained combined CPU and GPU power limit with XMG OASIS increases from 280 to 300 watts (RTX 5080/5090 only).

The selection of NVIDIA graphics cards remains unchanged. The cooling system with two large main fans, a third fan for the memory and support for XMG OASIS is also carried over from the E25 and A25 models.

Intel Core Ultra 9 290HX Plus in detail

More performance on an existing architecture

The Intel Core Ultra 9 290HX Plus fundamentally remains based on the familiar Arrow Lake HX architecture. Like the Core Ultra 9 275HX, it has a total of 24 cores, consisting of 8 Performance and 16 Efficiency cores.

Compared with the Core Ultra 9 275HX in the XMG NEO 16 (E25), the maximum CPU clock increases from 5.4 to 5.5 GHz. The biggest technical improvement, however, comes from the combination of lower system latencies and further refinements within the existing platform. Compared with the previous generation, Intel particularly highlights a 900 MHz increase in die-to-die frequency. This interconnect is involved, among other things, in communication between the CPU, uncore and memory controller.

A higher frequency on this path reduces latency within the processor system. This particularly benefits workloads that frequently exchange data between CPU cores, cache, memory controller and system memory. In games, the advantage is most apparent in CPU-limited scenarios and at high frame rates. Support for the Intel Binary Optimization Tool adds another factor, allowing supported titles to achieve further frame-rate improvements through additional optimisations.

Intel Binary Optimization Tool

The Intel Binary Optimization Tool, unofficially abbreviated as IBOT, is part of Intel’s extended optimisation framework. It is activated through the Advanced Mode of Intel Application Optimization and only works with supported applications and games.

IBOT is not an overclocking mechanism. Instead, the tool adds another optimisation layer for program code. It uses Intel compiler and profiling technologies to optimise libraries and executable code and reduce architectural bottlenecks.

Intel Binary Optimization Tool Screenshot

The XMG NEO 16 (M26) supports IBOT as well as Intel Application Optimization and the Intel Platform Performance Package. Supported games therefore gain an additional performance uplift. Unsupported applications continue to run normally while still benefiting from the processor’s hardware improvements.

What does this mean for gaming performance?

Across 32 games, Intel reports up to 8% higher average gaming performance for the Core Ultra 9 290HX Plus compared with the Core Ultra 9 285HX – and therefore somewhat more compared with the 275HX in the XMG NEO 16 (E25). The tests were performed at Full HD resolution with an RTX 5090 Laptop GPU; IBOT was only active in a small number of selected titles.

In practice, the advantage is strongest when the CPU is the limiting factor:

E-sports titles at very high frame rates
Strategy games and simulations with high CPU load
Games with particularly large numbers of draw calls
Scenarios with lower resolution or reduced graphics settings
CPU-heavy 1% low and frame-time scenarios

Independent measurements in numerous press reviews have also confirmed these performance gains.

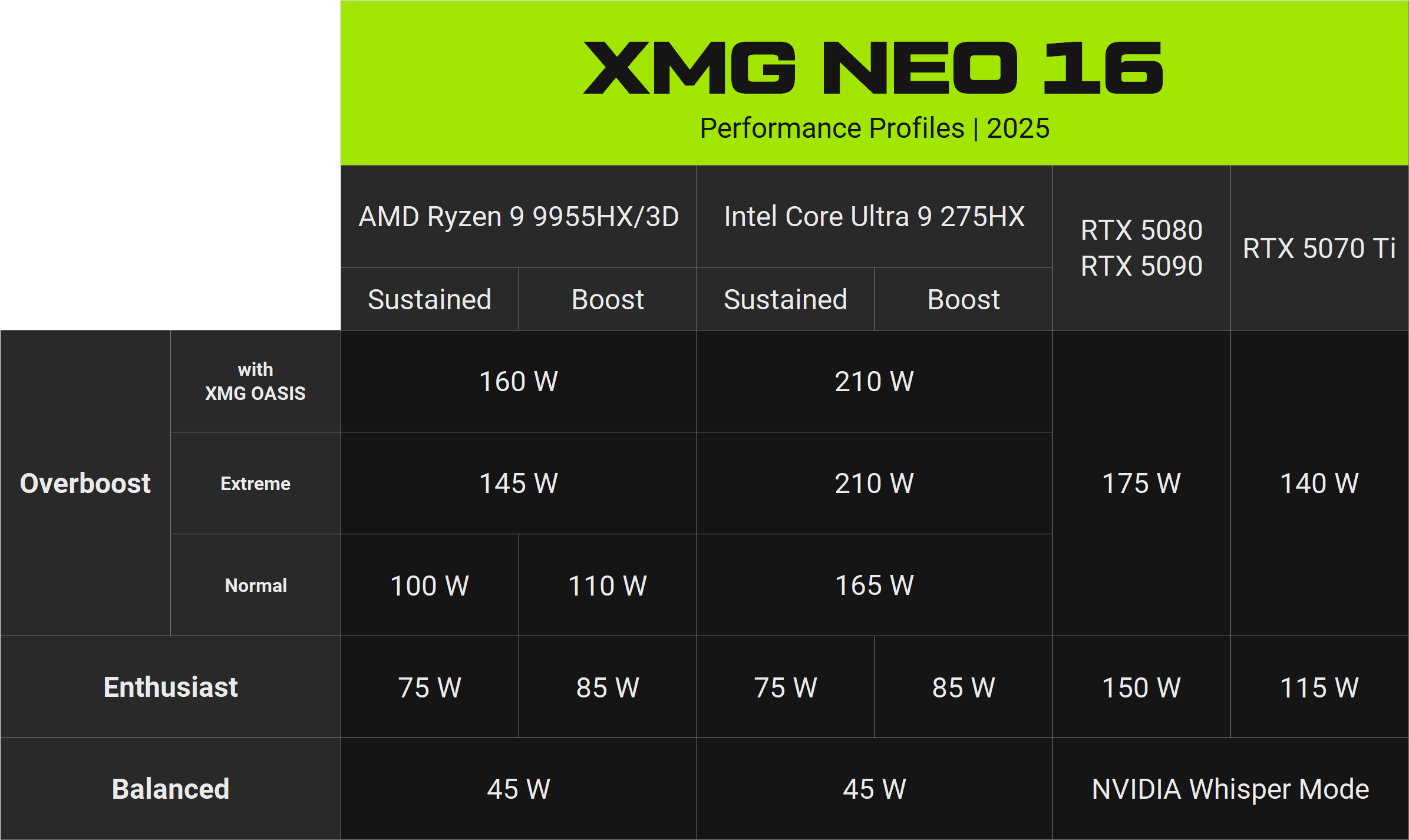

Performance profiles

Our laptops can generally be operated with a number of performance profiles. Profiles with lower power limits enable more efficient operation and thus reduce system noise. The following table provides an overview of the preconfigured performance profiles and their impact on CPU and GPU power limits.

This is related to the factor of ‘diminishing return’, where silicon at the top of its power curve may not get much more performance per watt, no matter how much you push the power limit. The same can be said about the efficiency of a cooling system in relation to fan speed. At a certain point, higher fan speed gets you more noise, but not neccessarily more cooling (or only in minute amounts).

The reverse is also true: As power consumption decreases, performance does not decline proportionally. A moderately reduced power limit can significantly lower noise and temperatures while only slightly reducing actual application or gaming performance. CPU and GPU power limits and fan curves can also be adjusted manually.

Mini-LED or OLED: two high-end options with different strengths

The XMG NEO 16 (M26) offers a degree of choice that is rare in the current high-end segment. Many powerful gaming laptops are offered with either OLED or Mini-LED, but rarely with both. With the XMG NEO 16, both technologies are available within the same platform.

XMG NEO 16 M26 LP Feature 02 GPU DESKTOP

OLED: perfect blacks and precise HDR highlights

On an OLED display, every pixel generates its own light. A black pixel is completely switched off. This produces virtually unlimited contrast, very clear dark scenes and pixel-precise separation between bright and dark areas of the image.

The OLED panel in the XMG NEO 16 (M26) offers:

2560×1600 pixels
240 Hz
500 nits with SDR content
up to 1000 nits with HDR content
100 % sRGB and DCI-P3
Variable Refresh Rate from 60 to 240 Hz via NVIDIA Optimus
glossy surface
a total laptop weight of only approx. 2.6 kg

OLED is particularly well suited to games and movies with dark scenes, HDR content with clearly defined light sources, and applications where black levels and pixel-level contrast are a priority.

Mini-LED: higher sustained brightness and a matte surface

Note: The Mini-LED panel planned for the M26 generation cannot currently be ordered. It will only be introduced once validation of G-SYNC and NVIDIA Advanced Optimus has been successfully completed.

Technically, the planned Mini-LED panel remains an IPS LCD. However, its backlight is divided into around 1000 individually controllable zones. This allows the display to selectively dim dark areas while simultaneously displaying very bright content.

The Mini-LED panel planned for the XMG NEO 16 (M26) is identical to the panel in the E25 predecessor and in the XMG PRO 16 and XMG APEX 16 MAX. Its specifications are:

2560×1600 pixels
300 Hz
750 nits with SDR content
1000 nits with HDR content, including large bright image areas
100 % sRGB and DCI-P3
matte surface
Local Dimming can be disabled
a total laptop weight of approx. 2.8 kg, making it 200 grams heavier than the OLED panel
Planned: NVIDIA G-SYNC and NVIDIA Advanced Optimus

Mini-LED is the stronger choice for very bright working environments, consistently bright SDR content, large white areas and users who prefer a matte surface. The panel also reaches 300 rather than 240 Hz.

Because a Mini-LED zone is significantly larger than an individual pixel, it cannot achieve the pixel-level black separation of an OLED display. In particularly high-contrast scenes, slight halos can appear around bright objects. In return, high brightness is maintained even with full-screen bright content, and its 750 nits in SDR mode – Windows, Office and web content – surpasses the OLED panel’s 500 nits.

As with the 2025 models, Local Dimming can be disabled in Control Center without rebooting. This is particularly useful for colour-critical image editing, as brightness and colour reproduction then depend less on the surrounding image content. Since Control Center 5.57.51.60 (January 2026), the user-selected setting is also retained reliably after a cold boot or after waking from hibernation. This applies to all XMG models with Mini-LED since the E25 generation.

IPS in the base configuration

Configurations with the GeForce RTX 5070 Ti are also available with a conventional IPS panel. It reaches 500 nits and 300 Hz and fully covers both sRGB and DCI-P3. The surface is matte. This is the same panel that is also used in the XMG PRO 16 (M25).

An IPS panel with a conventional LED backlight offers neither the black levels of an OLED panel nor the superior SDR brightness of Mini-LED, but its specifications are still very solid for gaming, content creation and general use as a desktop replacement.

The OLED display in detail

Comparison with the OLED panel in XMG FUSION 16

The OLED display in the XMG FUSION 16 (M25) offers 2880×1800 pixels, 120 Hz and 400 nits. It does not support an extended HDR brightness range. A small white area therefore remains limited to around 400 nits, just like a large white image.

	XMG FUSION 16 (M25)	XMG NEO 16 (M26)
OLED panel model name	Samsung ATNA60CL10	Samsung ATNA60HU01
Resolution	2880×1800	2560×1600
Refresh rate	120 Hz	240 Hz
SDR brightness	400 nits	500 nits
HDR brightness	400 nits	1000 nits
Color gamut coverage	100 % DCI-P3	100 % DCI-P3

The new OLED panel in the XMG NEO 16 (M26) doubles the refresh rate to 240 Hz and introduces proper HDR operation with up to 1000 nits. Its 2560×1600 resolution is slightly lower, but better suited to the native gaming performance of current laptop graphics cards. SDR brightness also increases to 500 nits, meaning the new OLED panel also surpasses the previous panel in the XMG FUSION 16 with non-HDR content such as web, Office and multimedia.

Brightness ratings by OPR (On-Pixel Ratio)

With many OLED displays, the maximum achievable brightness depends on the size of the bright area on screen. A small HDR highlight, a large bright scene and a completely white test image place different demands on an OLED panel.

OLED pixels generate their own light. A large number of pixels emitting very bright light at the same time increases both power consumption and the thermal load on the panel. The display therefore gradually reduces maximum brightness with particularly large white areas.

This is normal behaviour and is also seen in many smartphone and TV OLED displays. To describe this behaviour transparently, we use the industry-standard metric of “On-Pixel Ratio”, or OPR. It indicates the proportion of pixels that are “on” – specifically: “on” at full brightness.

OPR20 means that 20 % of the display area is white.
OPR50 means that 50 % of the display area is white.
OPR80 means that 80 % of the display area is white.
OPR100 corresponds to a completely white screen.

A 16:10 test image with an OPR of 50% looks exactly like this:

For the OLED panel in the XMG NEO 16 (M26), we specify the following HDR brightness levels:

	Available HDR brightness
OPR20	1000 nits
OPR50	950 nits
OPR80	700 nits
OPR100	550 nits

The OPR50 figure is particularly noteworthy. Even when half of the display is showing pure white, brightness remains at 950 nits, still very close to peak brightness. It only drops more substantially with even larger bright areas.

HDR content requires more than setting Windows to HDR “enabled”

Brightness values above the specified SDR brightness of 500 nits apply exclusively to HDR content. With normal SDR content, the OLED panel supports only 500 nits. This limitation is also fairly common. OLED laptop panels exceeding 500 nits in SDR do exist, but they either have lower refresh rates or are extremely expensive.

This means that the Windows desktop, Office applications, normal websites and conventional SDR images are not automatically displayed at 1000 nits. Even with Windows HDR enabled, the operating system treats SDR and HDR content as separate brightness ranges.

HDR applications can deliberately render individual areas of the image above the normal SDR white point. Typical examples include:

sunlight and reflections in a game
headlights, fire or explosions
bright light sources in a dark scene
appropriately mastered HDR videos
HDR images in compatible image viewers, for example HDR + WCG Image Viewer

A normal white background in Word, Excel or a browser, however, remains SDR content. Windows does not provide a general user setting that simply boosts every white SDR pixel to the maximum HDR peak brightness.

Windows and the Intel graphics driver provide various contrast, brightness and power-saving functions, but no universal “1000-nit SDR mode”. Actual use of the HDR range depends on the operating system, application, graphics pipeline and content.

To see the 1000 nits in action, you need to:

Enable Windows HDR.
In games, use the native HDR mode provided by the respective game engine.
Adjust HDR brightness and tone mapping in the game to match the display.
For videos and images, make sure that both the content and the application being used actually support HDR.

The OLED panel shows its greatest advantages in games and videos that control their own HDR output path. In conventional desktop applications, the main benefits remain the high SDR brightness of 500 nits and the characteristic OLED black level.

OLED in everyday use

The OLED panel has a glossy surface. This contributes to the clear, high-contrast image, but it also reflects light sources more strongly than a matte IPS or Mini-LED display. In bright rooms, the position of windows and lamps should therefore be taken into account.

Because each OLED pixel generates its own light, power consumption increases with the overall brightness of the displayed image. Conventional LCD panels, by contrast, use a continuously active backlight and create black by blocking as much of that light as possible. Therefore, in OLED, dark surfaces reduce power consumption, meaning that consistently using “Dark Mode” in the operating system, applications and web browser can indeed improve battery life.

What about OLED burn-in?

As with any OLED display, there remains a residual risk of permanent image retention (“burn-in”) if bright, static content is displayed at the same position for extremely long periods of time. Modern notebook OLED panels are considerably more robust in this respect than earlier generations, however, and protection does not rely solely on careful user behaviour.

The Samsung OLED panels used in our current XMG laptops incorporate internal compensation and mitigation mechanisms designed to reduce uneven pixel aging. These mechanisms operate autonomously inside the panel and do not require support from Windows, BIOS, GPU drivers or Control Center. Samsung considers the exact algorithms proprietary and therefore does not disclose the individual functions.

These panel-internal safeguards substantially reduce the practical risk, but they might not make OLED completely immune to uneven aging under every conceivable usage pattern.

Therefore, despite the much reduced risk compared with older OLED generations, we generally advise for an abundance of caution. Our recommendations for suitable Windows settings and additional measures for reducing unnecessary static pixel stress can be found here:

Important information about the OLED display

Our recommendations include measures such as:

automatically switch off the display when idle
use Dark Mode in Windows and frequently used applications
consider to automatically hide the taskbar
use a brightness level appropriate for the environment
when away from the laptop: manually switch off the display via Fn+F8 or lock the screen with Win+L. When the screen is locked, the display also switches off after a short time, independently of the timer configured in the operating system

Exactly where to find those settings is documented in our compaion reader linked above. The document also includes recommendations for a number of third party apps that help reduce static pixel content even more:

	Description
Dark Reader Website · Edge · Chrome · Firefox	Applies a dark theme to most websites while preserving readability. Individual websites can be excluded if needed.
AutoHideDesktopIcons Website	Automatically hides desktop icons after a configurable delay, reducing permanently static elements.
OLEDShift GitHub	Slightly shifts window positions over time so that static interface elements do not continuously stress exactly the same pixels.
Lively Wallpaper Website	Provides animated or dynamic wallpapers. We’d recommend some of the darker, more subtle designs.

If you have any further questions about the OLED panel in your XMG gaming laptop, please contact us.

Why isn’t the OLED display available with AMD?

The fact that we can only offer the new OLED panel in the Intel-based XMG NEO 16 (M26) is related to validation by the CPU manufacturer and OLED panel maker.

Laptop display panels have to be validated separately for each platform so that HDR/SDR behaviour, stability and power efficiency are reproducible across all intended operating modes. OLED has historically been somewhat more complicated in this respect.

One example of such platform-specific differences concerns HDR-related brightness and panel control via eDP. In practice, both a standardised VESA implementation and an Intel-specific proprietary implementation exist. Depending on what a panel – and its TCON – expects or best supports in a given generation, this can affect whether the panel can be integrated into other platforms.

In addition, modern OLED panels are developed in very high volumes for standardised platforms. Custom firmware branches for individual laptop models and smaller production volumes are not readily offered, particularly by large panel manufacturers such as Samsung. Without support from the panel manufacturer, a second platform-specific integration will be impossible to implement.

The limitation is therefore not artificial product segmentation. We will continue to watch this space for future panel generations. As soon as an OLED panel can be integrated flawlessly across platforms, we would be very happy to offer OLED on AMD platforms as well. At present, however, there are no such plans – there simply is no OLED panel available to us that is both suitable in all respects and compatible with AMD.

Selected sample images and videos for HDR1000 displays

HDR is difficult to convey through words or conventional screenshots. After all, the key difference is that an HDR display can reproduce significantly brighter areas of an image than a conventional SDR screen. Anyone viewing the same content on an SDR display will inevitably see a correspondingly tone-mapped version instead.

For owners of HDR-capable displays, we have therefore compiled a selection of genuine HDR image files and videos. These samples are suitable not only for the OLED and Mini-LED displays of the XMG NEO 16 (M26), but also for other HDR-capable laptops and monitors in general.

Description	File format	Recommended media viewer	Links
OPR test images from OPR1 to OPR100 in HDR1000	JXR (JPEG XR), scRGB, up to 1000 nits	HDR + WCG Image Viewer	Download
HDR sample wallpaper images from Microsoft	JXR (JPEG XR), scRGB, wide gamut, approx. 770–1380 nits	HDR + WCG Image Viewer	Download, Source
Ultra HDR Samples by Mishaal Rahman	JPEG_R (Ultra HDR JPEG with gain map)	Google Chrome	Download, Source
Sol Levante (2020)	QuickTime MOV / Apple ProRes 4444 XQ, 4K/24p, BT.2020/PQ (ST 2084), 1000-nit HDR10 master	VLC media player	Download (35 GB; Right-click → Save link as…), Source (Netflix Open Content)
Chimera (2014)	MP4, DCI 4K/60p, P3/PQ (ST 2084)	VLC media player	Download (10 GB; Right-click → Save link as…), Source (Netflix Open Content)

Our OPR test images are freely available under CC0 1.0 (public domain). They originate from our own display testing procedure and consist of white areas of different sizes against a black background. Their purpose is to measure maximum HDR brightness at different On-Pixel Ratios.

The five Microsoft sample images are not normalised to a common HDR peak. Our analysis of the decoded scRGB pixel values shows maximum luminance levels ranging from around 770 to 1380 nits, depending on the image. No licensing information is included; we assume that linking to the files here with proper attribution to the source is permissible.

The final three entries in the table above are available under CC BY 4.0. They may therefore also be used and redistributed commercially. If you republish them yourself, the respective attribution requirements must be observed.

The table indicates which image viewer or video player we recommend for each file. Not every Windows application reliably supports all of the HDR formats and colour spaces used here. Built-in Windows applications such as Photos and Movies & TV can generally open these files, but may not necessarily reproduce their HDR content correctly (as of August 2026).

For correct playback in the recommended media viewers, HDR must also be enabled in Windows Display settings for the respective display.

There is also a popular Reddit thread containing additional sample images. These are JXR snapshots from various demo reels shared by panel manufacturers with their partners. Since the licensing terms of these demo reels are unclear – and they should therefore be assumed not to be licence-free – we do not link directly to these test images.

Incidentally, Windows now also supports the JXR HDR format for desktop wallpapers (sources: Neowin, Windows Blog). That’s where the HDR sample wallpaper images come from.

If you would like to try HDR in games as well, NvTrueHDR can enable NVIDIA’s RTX HDR conversion at driver level for many DirectX games, including titles without native HDR support. The tool is an alternative to the RTX HDR feature in the NVIDIA App and provides additional controls for image quality and HDR behaviour.

Hybrid graphics, MUX switch and variable refresh rate

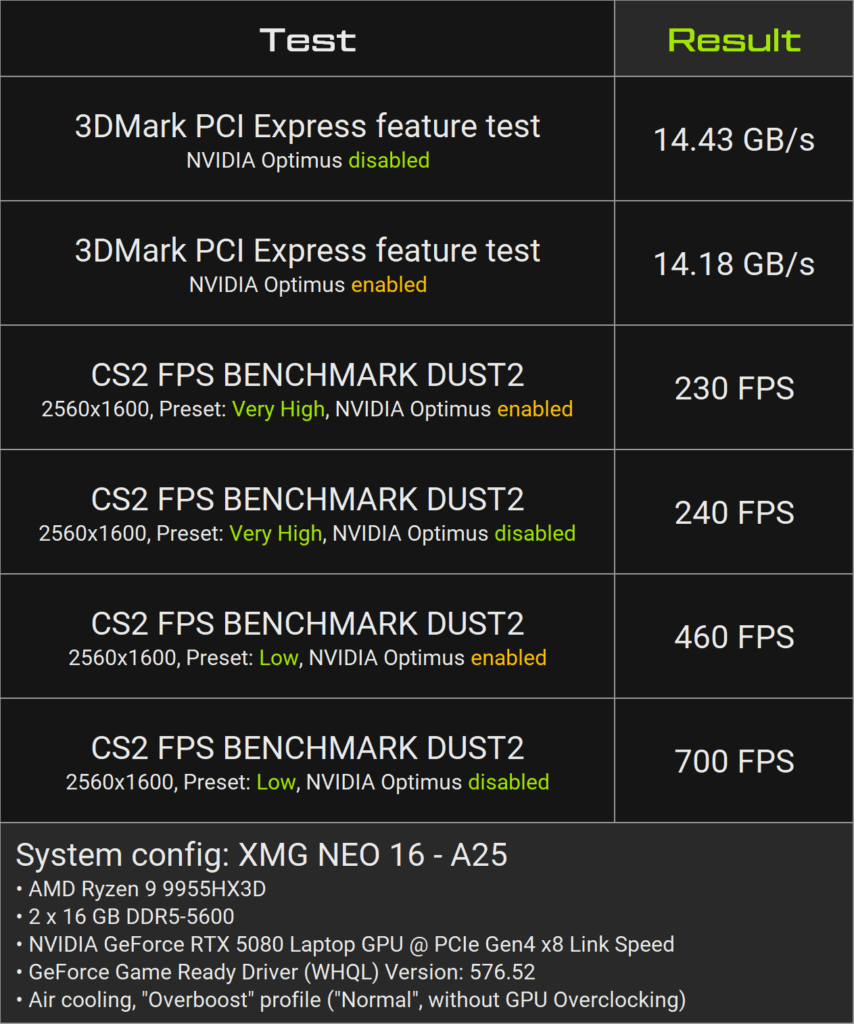

NVIDIA Optimus and the MUX switch

All current XMG laptops with dedicated graphics have a MUX switch – including the XMG PRO 16 and XMG NEO 16. This allows the internal display to be driven either through the processor’s integrated graphics or directly through the NVIDIA graphics card. See our FAQ article:

In which XMG laptops can NVIDIA Optimus be disabled?

With NVIDIA Optimus enabled, the NVIDIA GPU renders demanding applications while display output is handled by the more efficient iGPU. This reduces power consumption in everyday use and allows the NVIDIA GPU to switch off completely at low load.

In dGPU mode, the internal display is connected directly to the NVIDIA graphics card. This eliminates the additional transmission path through the iGPU. It reduces latency and allows the 300 Hz panels to operate at their full maximum refresh rate.

Switching between the two modes is done through the Control Center or BIOS. On models without Advanced Optimus, a restart is required.

Variable Refresh Rate on OLED and IPS

The OLED and IPS displays in the XMG NEO 16 (M26) support Variable Refresh Rate through the Intel iGPU when NVIDIA Optimus is enabled.

On the OLED panel, VRR operates between 60 and 240 Hz. Below 60 FPS, the display can no longer match its refresh rate directly to every rendered frame. Without V-Sync, this results in “screen tearing”: parts of two consecutive frames may briefly appear on screen at the same time, usually as a horizontal break in the image.

This is normal behaviour rather than a fault, and how noticeable it is depends heavily on the game and camera movement. In practice, sustained frame rates below 60 FPS are also a good reason to reduce a few graphics settings.

The 300 Hz IPS panel also supports VRR via NVIDIA Optimus. Due to its connection through Intel’s iGPU, however, it is limited to 240 Hz. The VRR range on the IPS panel is between 100 and 240 Hz. Disabling NVIDIA Optimus allows the panel to operate at 300 Hz with slightly lower latency – but without VRR.

External monitors are independent of this. HDMI 2.1 and Mini DisplayPort 2.1 are connected directly to the NVIDIA GPU and support compatible G-SYNC and FreeSync monitors. The two USB-C outputs run through the Intel iGPU and, depending on the connected display, can also support VRR or Adaptive Sync.

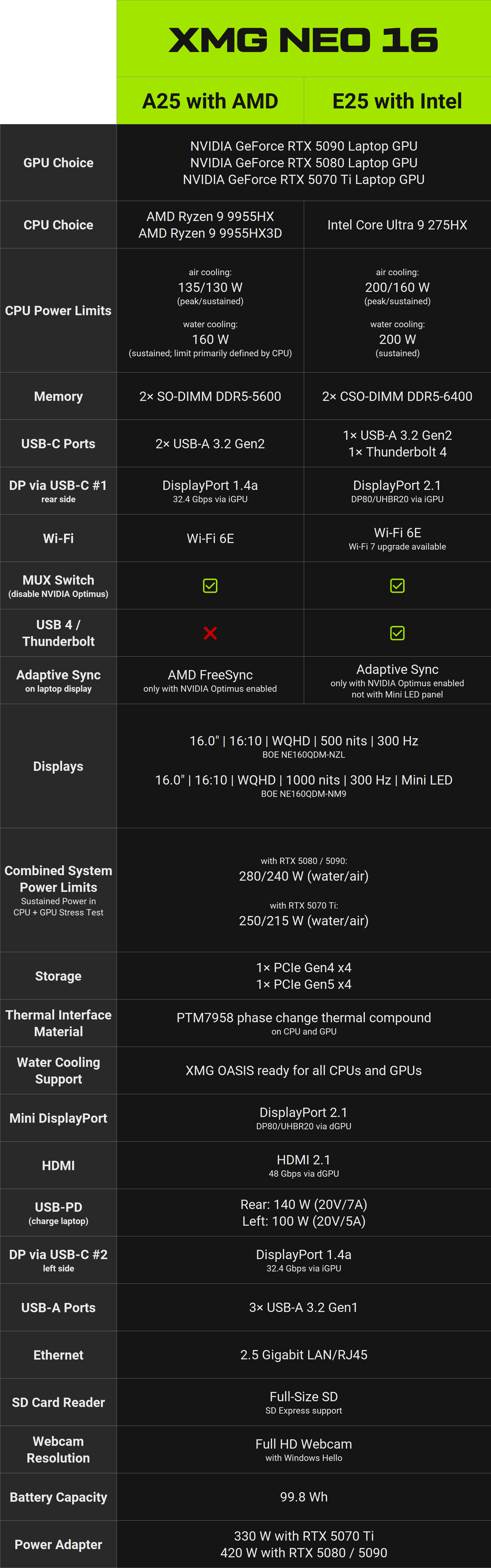

Differences between XMG PRO and XMG NEO

The XMG PRO 16 and XMG NEO 16 share many of the same fundamentals: powerful HX-series processors, NVIDIA graphics up to the GeForce RTX 5070 Ti – or beyond in the case of the XMG NEO – upgradeable memory, two M.2 slots and a comprehensive selection of I/O ports.

With further similarities in chassis design, keyboard layout and connectivity, the obvious question is: what actually sets these two flagship series apart?

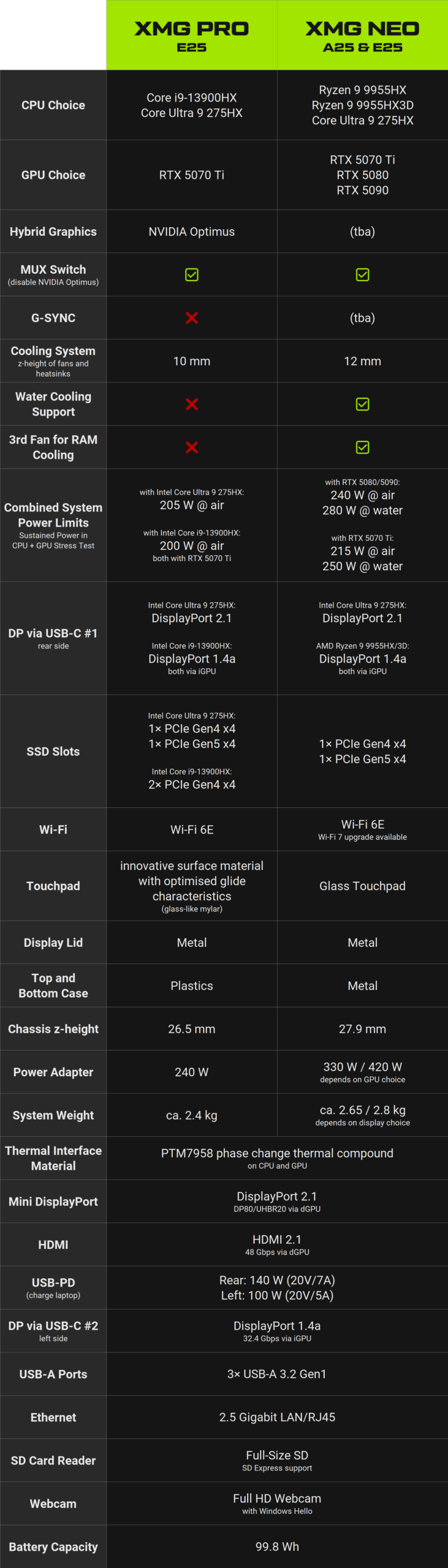

The following table summarises all relevant similarities and differences:

For further information, we recommend reviewing the spec sheets and shop configurators:

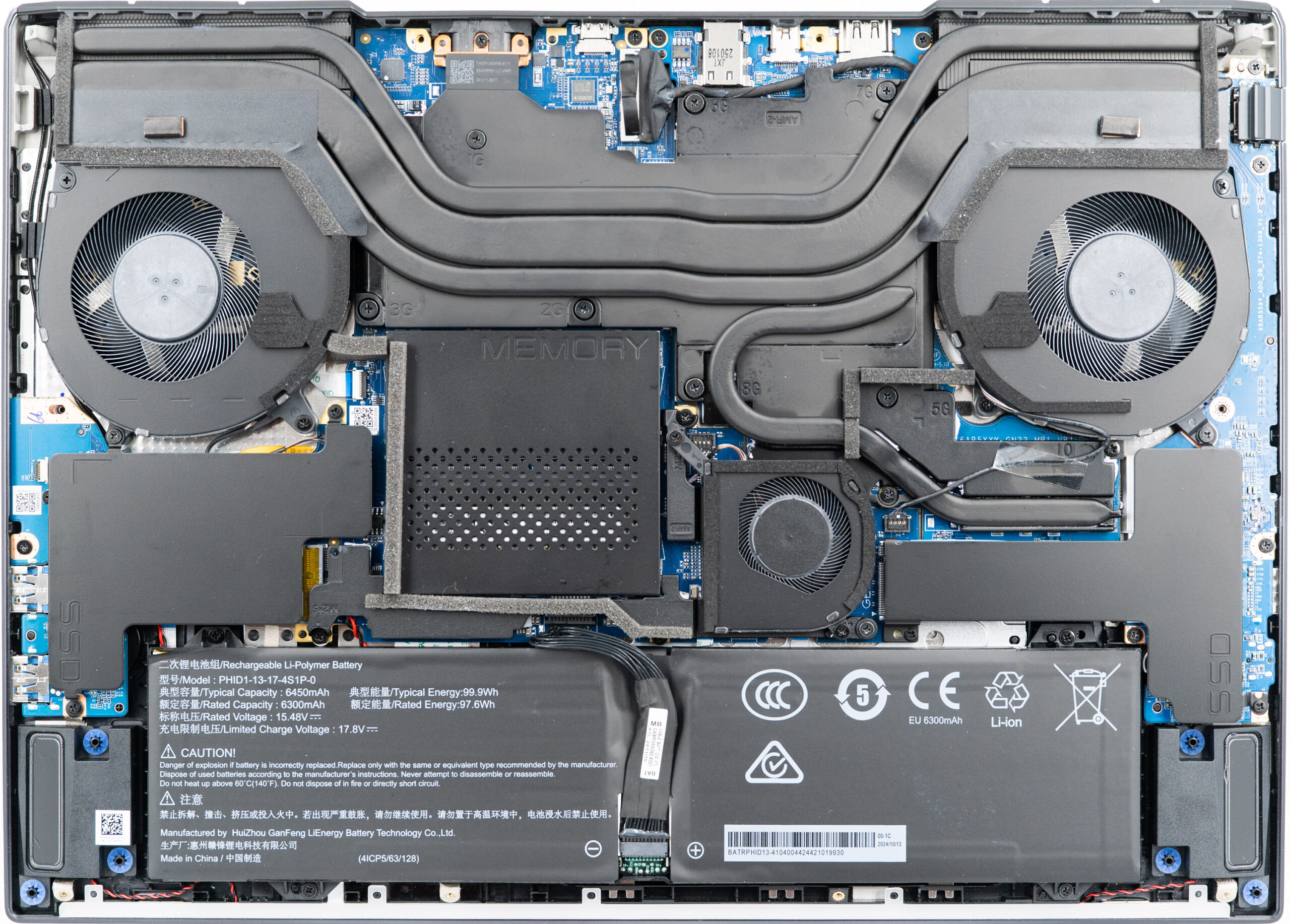

Look inside

The internal layout of the XMG NEO 16 with Intel and AMD is largely identical, so a single photo is sufficient:

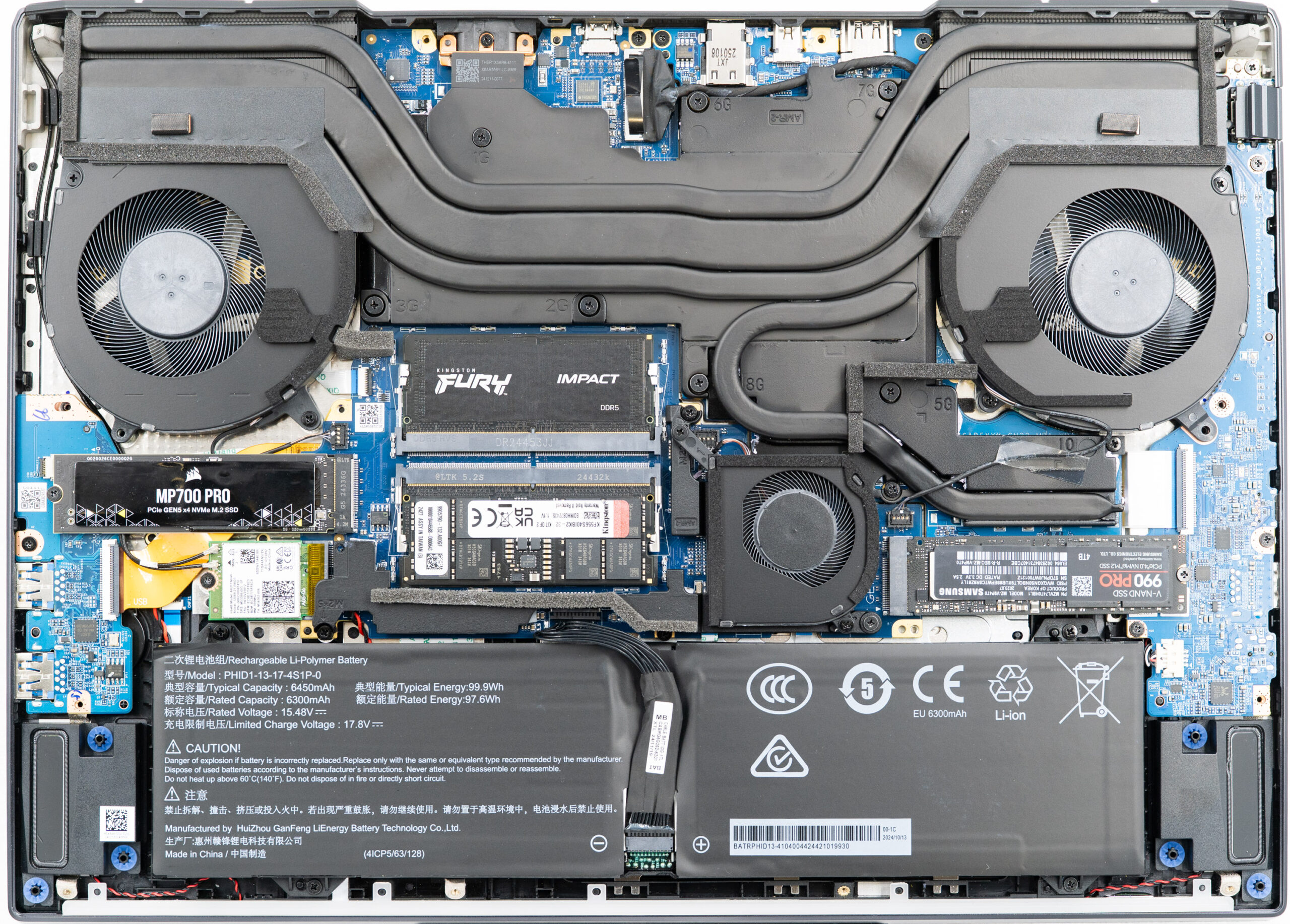

An additional photo with the RAM and SSD heat shields removed is available here. Instructions for removing these heat shields can be found on the respective product pages in our download portal.

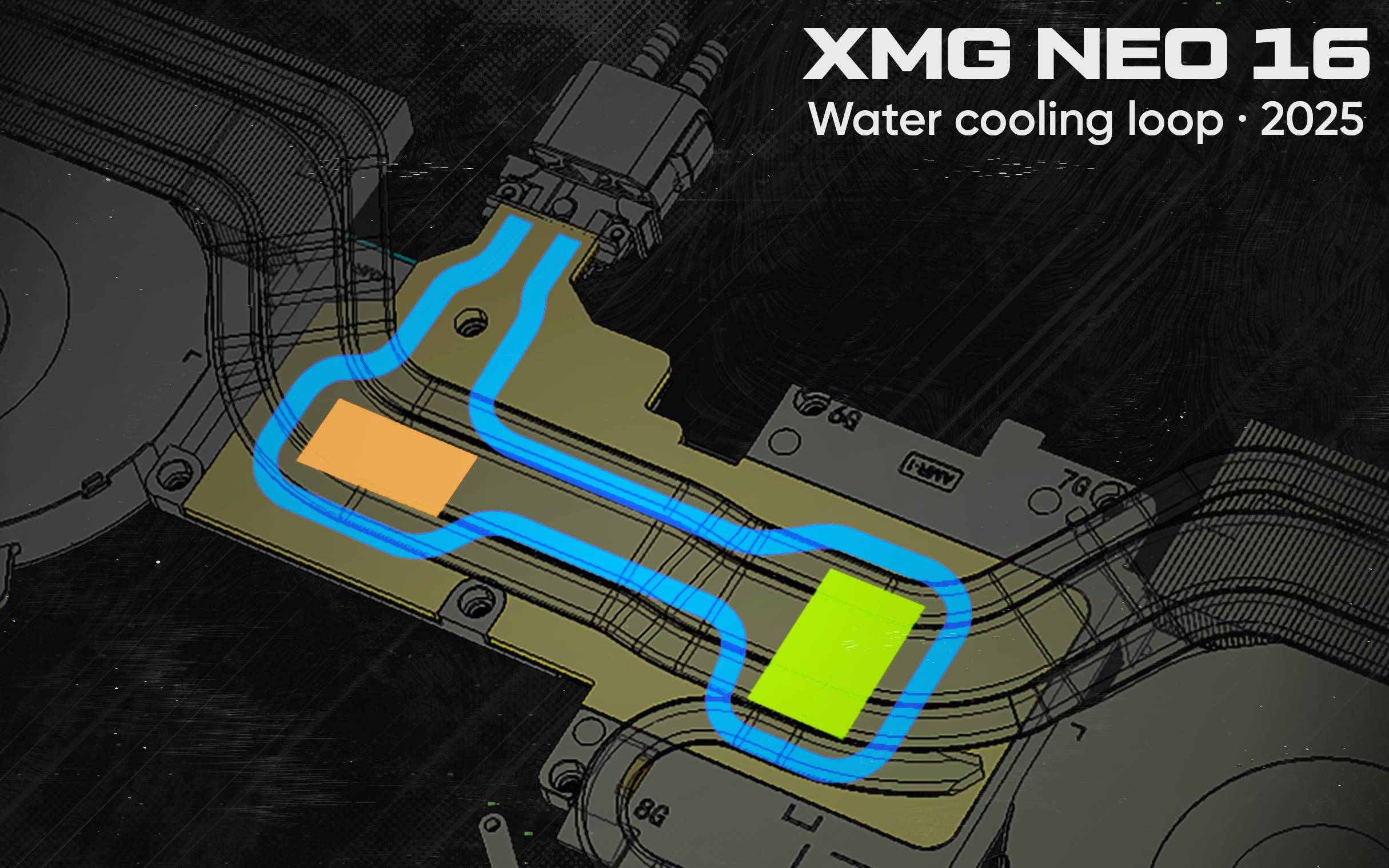

The channel inside the thermal module for the optional XMG OASIS liquid cooling system can be illustrated as follows:

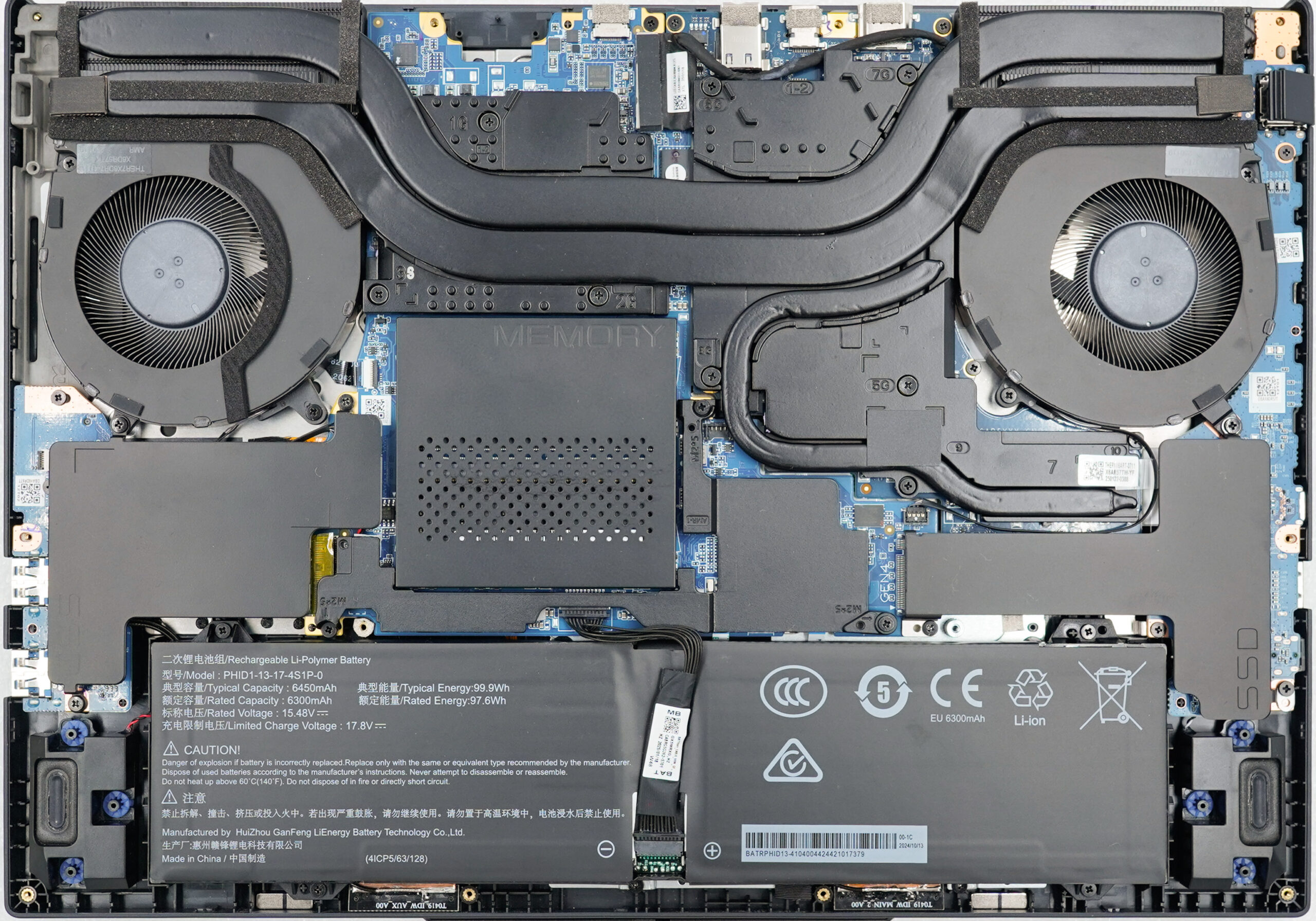

By contrast, the XMG PRO 16 uses a different thermal module – without a water channel:

The fans and heatsinks in the XMG NEO 16 are 12 mm tall, while the XMG PRO 16 – which is also slightly slimmer overall – uses 10 mm components. This also results in slightly different power limits for CPU-only and combined CPU+GPU load.

Also, since the E25 generation of XMG PRO and XMG NEO, the GPU board is separate from the mainboard:

This semi-modular approach supports our product development and is one of the reasons why we can offer XMG PRO and XMG NEO in so many variants. A dedicated article on this motherboard design is available here:

Clarification on the separate motherboard design in XMG NEO 16 (2025)

XMG OASIS: liquid cooling solution for XMG NEO 16

What is the XMG OASIS?

XMG OASIS is an external liquid cooling system for the XMG NEO 16. It supplements the laptop’s internal air cooling with an additional liquid cooling loop: a pump circulates distilled water through a cooling channel integrated into the laptop’s cooling system. The heat absorbed there is then transferred to the surrounding air through the radiator and fan of XMG OASIS.

Even without XMG OASIS, the XMG NEO 16 remains a fully-capable air-cooled laptop, designed to sustain the full GPU performance of all available graphics cards. With the top-end GeForce RTX 5080 and 5090, all variants of the XMG NEO 16 already sustain a combined CPU and GPU power of 240 watts on air cooling alone.

XMG OASIS adds another layer of cooling and primarily takes load off the internal fans. With XMG OASIS connected, the XMG NEO 16 (M26) raises its sustained combined power limit to as much as 300 watts while simultaneously reducing temperatures and system noise.

Performance, temperatures and noise levels

How much additional cooling performance XMG OASIS provides depends on the workload. In the following comparisons, we showcase the XMG NEO 16 (A25) with Ryzen 9 9955HX3D alongside the XMG NEO 16 (E25) with Core Ultra 9 275HX, whose design is largely identical to that of the new M26 model. Both systems are equipped with the top-end GPU and are tested with air cooling as well as with XMG OASIS.

Disclaimer: In the tables below, “CPU temperature” always refers to the average across all 16 or 24 CPU cores. In other contexts, CPU temperature is often reported as the hotspot value instead, meaning the hottest measurement point at any given moment.

CPU-only

Under CPU-only load, the benefit varies depending on the platform:

In the sustained Cinebench R23 test, CPU power on the AMD system increases from 135 to 159 W. At the same time, the average CPU temperature drops from 91 to 87 °C, while the Cinebench score increases by only 5%.

xmg neo air vs water 2026 cpu only intel en 1

On the Intel system, sustained CPU power increases more significantly from 159 to 199 W. Rather than using the additional thermal headroom to lower temperatures, the CPU converts it into additional performance: the average core temperature remains at 95 °C in both cases, while the Cinebench score rises by around 13% to 40,268 points.

These two results also illustrate why additional electrical power does not translate proportionally into additional computing performance. At 135 W, the Ryzen 9 9955HX3D is already relatively high on its efficiency curve and therefore gains comparatively little extra performance from another 24 W. In this workload, the Core Ultra 9 275HX is able to convert the additional power and thermal headroom into a larger performance gain.

CPU+GPU stress test

The advantage of XMG OASIS becomes even more apparent under simultaneous maximum CPU and GPU load. For this worst-case test, we combine Prime95 with the 3DMark Steel Nomad Stress Test.

Even on air cooling alone, the GeForce RTX 5090 sustains around 173 W in both systems. With XMG OASIS connected, this GPU power is fully maintained while significantly more headroom becomes available for the processor.

xmg neo air vs water 2026 cpu plus gpu amd en

On the AMD system, sustained CPU power increases from 65 to 110 W. At the same time, GPU temperature drops from 82 to 70 °C, while the average CPU temperature decreases from 77 to 75 °C.

xmg neo air vs water 2026 cpu plus gpu intel en

On the Intel system, CPU power likewise increases from 65 to 110 W – an increase of almost 70%. The GPU continues to sustain 173 W while its temperature drops from 81 to just 71 °C. The average CPU temperature rises only slightly from 83 to 85 °C, despite the substantially higher CPU power consumption.

The 3DMark score changes only marginally in this combined test because it continues to primarily reflect GPU performance. The main benefit here is the significantly greater amount of CPU performance available at the same time. This is relevant, for example, for workloads that heavily utilise both CPU and GPU in parallel.

Noise levels

In addition to performance and temperatures, acoustics are a major advantage of XMG OASIS. Even on air cooling alone, the XMG NEO 16 uses large fans with a comparatively low-frequency and therefore more pleasant acoustic profile.

xmg neo air vs water 2026 gpu only fan noise amd en

With XMG OASIS connected, a substantial share of the heat is dissipated through the external radiator. This allows the internal fans to run at lower speeds, further reducing the laptop’s noise output.

In our Steel Nomad noise test, for example, the measured maximum noise level in Overboost Extreme drops from 52.4 to 47.4 dB. Noise levels decrease further with XMG OASIS in the lower performance profiles as well.

XMG OASIS on video: setup, operation and FAQs

Our latest video provides a detailed walkthrough of how XMG OASIS is connected, filled and used in everyday operation. Among other things, we cover the self-sealing connectors of the current generation, control via the XMG Control Center, disconnecting and transporting the laptop, and the recommended steps for maintaining the liquid cooling loop. We also show and explain the benchmark and noise measurements summarised above in greater detail.

XMG FAQ OASIS V1 2 — (German audio with English subtitles.)

You can find further information in our Help Center:

What do I need to know about XMG OASIS before buying?

Other tidbits and fun facts

SSD cooling with PCI Express 5.0

PCI Express 5.0 SSDs are no longer a novelty – even a slim ultrabook such as the SCHENKER ELEMENT 16 now supports these extremely fast drives.

Keeping temperatures low on such flagship SSDs is still as vital today as it was when Gen5 was first introduced. This is why all of our models that support Gen5 SSDs include thermal conductors and connect the SSDs to the inner chassis surfaces using generously sized thermal pads.

In the XMG NEO 16, for example, heat from a Gen5 SSD is transferred via thermal pads and a heat shield to the aluminium bottom case. This spreads the heat across a larger surface area and reduces localised hot spots at the SSD controller. The XMG PRO 16 works similarly, except that its thermal module interfaces with a surface on the inside of the plastic bottom case.

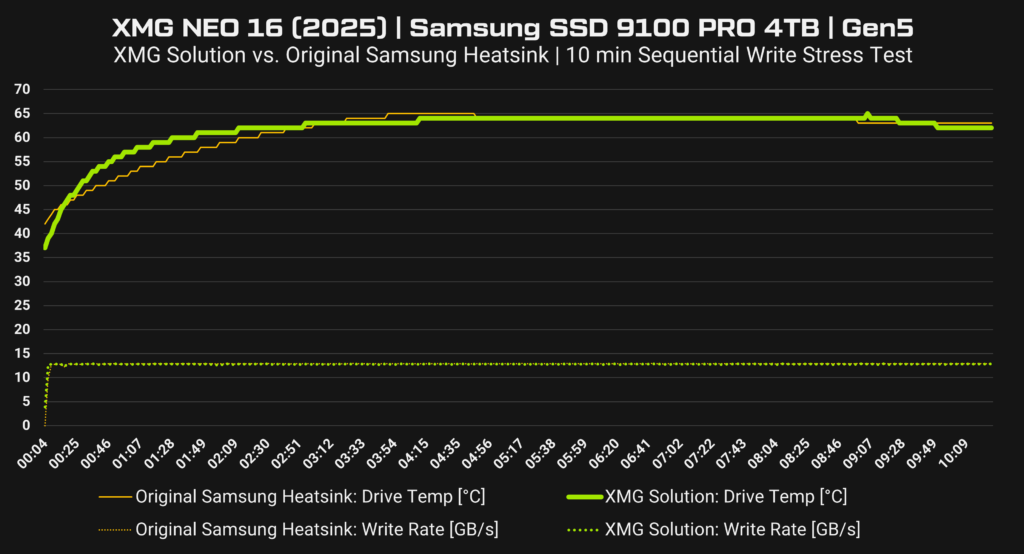

In a ten-minute sustained write test with the Samsung SSD 9100 PRO, our solution maintains a constant write speed without thermal throttling:

The green graph shows the SSD variant without the Samsung heatsink, but with our own cooling solution inside the closed laptop chassis.

The result: our solution performs on par with the manufacturer’s own solution. Both variants maintain consistently stable write speeds within PCI Express 5.0 specifications without any throttling. The temperature curves converge after just a few minutes and stabilise at an SSD temperature of approx. 64 °C.

Since the CPU generates very little load in this scenario, the laptop fans also remain relatively quiet. Further information is available in this FAQ article:

Is there any space for additional RAM and SSD heatsinks?

Tuning options

The XMG PRO 16 and XMG NEO 16 support the following features across all currently available laptop variants:

Preconfigured performance profiles from Balanced to Overboost.
Creation of a manual performance profile with user-defined CPU and GPU power limits, including adjustment of PL1, PL2 and PL4, or SPL, sPPT and fPPT.
Manual control of the MUX switch, switching between MSHybrid, iGPU-only and dGPU-only.
Option to disable TPM 2.0.
Option to disable Secure Boot.
Automatically enabled support for virtualisation technologies.
Setup of hardware encryption with compatible SSDs.

Those features apply to both AMD and Intel. The following table, however, shows the options in which the Intel and AMD platforms differ:

XMG NEO (A25) with AMD

XMG PRO (M25) and XMG NEO (M26) with Intel

Supported:
✅ Factory-level optimization of PBO (Precision Boost Overdrive) in cooperation with AMD, including tuning of TDC and EDC.
✅ Standard frequency/voltage curve in compliance with AMD guidance.
✅ Automatic support for DDR5-5600 CL46 (SO-DIMM).
✅ Options to disable the second CCD (Core Chiplet Die).
✅ Options to disable SMT (Simultaneous Multithreading).
✅ Manual adjustment of the CPU Curve Optimizer (undervolting).*
✅ Options to adjust memory clock speeds and latencies*

_{*marked options are only available since BIOS N.1.12A10 with AMD.}

Not available:
❌ Options to to load XMP/EXPO profiles.
❌ Manual tuning of PBO, TDC, or EDC.
❌ RAID setup.

Supported:
✅ Manual undervolting via BIOS setup.
✅ Option to disable Undervolt Protection to allow undervolting via Windows software.
✅ Manual tuning of memory clock speeds and latencies.
✅ Manual loading of XMP profiles.
✅ Individual core configurations, e.g., disabling specific E/P cores or all E cores.
✅ Predefined profiles with AC Loadline tuning.
✅ Automatic support for DDR5-5600 CL46 (SO-DIMM).
✅ Automatic support for DDR5-6400 CL52 (CSO-DIMM).*
✅ Setup of RAID arrays, especially RAID 1.

_{*marked options only apply to variants with Intel Core Ultra 9 HX-series, i.e. not to the i9-14900HX in XMG PRO 16 (M25).}

Length of power cable

The XMG NEO with RTX 5080 and RTX 5090 is supplied with a 420-watt power adapter. This power level is required with RTX 5080 and RTX 5090 to cover the maximum intended combined power limits when using XMG OASIS, as liquid cooling enables higher power consumption when the CPU and GPU are under load simultaneously.

This charger has a relatively short cable of only 80 cm length, spanning from the power brick the the laptop’s power input port. The AC cable on the other side of the brick is modular and variable – we ship with a 1.8 m cord out-of-the-box.

The shorter DC cable is required to ensure sufficiently stable current delivery. This is particularly necessary because the cable is effectively extended when used together with XMG OASIS:

The 420-watt power adapter connects to XMG OASIS.
A DC extension cable connects XMG OASIS to the XMG NEO.
Power from the 420-watt adapter is delivered through XMG OASIS to the laptop.

Alternatively, we offer smaller power adapters with lower wattages and longer DC cables. The following table compares all recommended and supported chargers:

	Model Number	Dimensions	Weight (with AC cord)	DC cable length
150 W USB-C	FSP150-APDBR01	113.5 x 64.5 x 23 mm	466 g	1.5 m
240 W	FSP240-ACBU3 FSP250-ACBU3	127 x 71 x 25.6 mm	611 g	1.2 m
330 W	FSP330-ACAU3	165 x 75.6 x 25.8 mm	751 g	1.2 m
420 W	FSP420-ACAU3	178.5 x 81.6 x 27 mm	834 g	80 cm

Remarks:

With air cooling, the smaller 330-watt power adapter is 100% sufficient under full CPU and GPU load – including in “Overboost” mode.
The even smaller 240-watt power adapter should instead be used in “Enthusiast” mode. In Overboost mode under full CPU and GPU load, it would be overloaded and switch off, causing the laptop to switch to battery power. In “Enthusiast” mode, however, the adapter can be fully utilised.

Our recommendation:

Install the original 420-watt charger permanently at your main workstation with a sufficiently long AC cord.
Buy a second power adapter with lower wattage, lower weight and a longer cable for mobile use.

Further information is available in this article:

Can I use a smaller/lighter power adapter or charger for travelling?

Wi-Fi 7 and the XMG NEO 16 with AMD

The XMG NEO 16 (M26) comes with Wi-Fi 7 out-of-the-box. On the Intel-based variants of the XMG PRO 16, Wi-Fi 7 is available as an upgrade depending on the configuration.

The XMG NEO 16 (A25), by contrast, supports Wi-Fi 6E, including the 6 GHz band. An upgrade to Wi-Fi 7 is not supported on this model generation. This limitation does not only apply to the factory-installed wireless module; replacing it with a Wi-Fi 7 module is not supported either:

The AMD platform does not boot with Intel Wi-Fi 7 BE200.
Modules based on MediaTek MT7925 do not achieve the intended Wi-Fi 7 operation on this platform.

This limitation stems from the specific platform integration and regulatory certification of the wireless solution. Consequently, we do not plan to introduce Wi-Fi 7 support for the XMG NEO 16 (A25). Its existing Wi-Fi 6E solution remains more than capable for current routers and high-speed internet connections.

Frequently asked questions

Is there also a refresh planned for the XMG NEO 16 (A25)?

There is no refresh planned for the XMG NEO 16 (A25) within the current product generation.

The model will remain unchanged in the line-up and continue to be produced as-is. It will not receive a new generational designation or be rebranded.

The reason is simple: AMD has not announced a successor or refresh for the Ryzen 9 9955HX and Ryzen 9 9955HX3D. Both processors remain AMD’s current flagship CPUs in this class. The available NVIDIA graphics cards are also identical to those in the XMG NEO 16 (M26).

The Intel-based M26 introduces two specific changes:

the new Core Ultra 9 290HX Plus
the new OLED display, which is only compatible with the Intel platform

Neither can be carried over to the AMD model. The XMG NEO 16 (A25) therefore remains the current AMD variant – there will be no purely cosmetic rebranding to a 2026 generational designation. The XMG NEO 16 (M26) exclusively replaces the previous Intel-based E25 model.

Why is there no XMG NEO 17 anymore?

The feature set and performance class of the XMG NEO will remain exclusive to the 16-inch chassis for the foreseeable future, as this is globally the chassis size most in demand among customers for high-performance laptops. For users who prefer a larger display and do not mind the additional weight, however, we are now planning to launch a new XMG PRO 18. All information:

Computex 2026: XMG presents new XMG PRO 18, NEO 16 and other laptops

Technically, the model is largely based on the XMG PRO 16 platform, but combines it with a larger chassis and several additional features. The regular version is planned with an Intel Core Ultra 9 290HX Plus, GeForce RTX 5070 Ti and a 300 Hz IPS display with 2560×1600 pixels. A Value Edition with a Core Ultra 7 270HX Plus, GeForce RTX 5070 with 12 GB VRAM and a 180 Hz display is also in development. Both variants feature, among other things, a larger four-speaker sound system, a larger glass touchpad, a 99 Wh battery and a comparatively slim chassis for the 18-inch class.

Pricing and the final availability date will only be announced at the official launch – expected before the end of September 2026.

Configure and buy

XMG NEO 16 (2025) with AMD and Intel can be configured and ordered at bestware:

Configure now: XMG PRO 16 (M25)
Configure now: XMG PRO 16 Value Edition (M25)
Configure now: XMG NEO 16 (A25)
Configure now: XMG NEO 16 (M26)

The following content documents the status of previous product, firmware, and driver phases from 2025. It is retained for transparency purposes but is no longer relevant for current purchasing decisions.

Distribution of pre-orders: GPU and CPU configurations

10 April 2025: The following graphic illustrates the approximate quantity ratio of our current pre-orders for XMG NEO 16 (2025) in two pie charts. These values represent a snapshot in time and will likely shift in the coming weeks and months.

xmg neo 16 2025 pre order share 2025 04 09

On the left side, you can see how the orders are distributed across the available GPU options. Currently, the RTX 5090 is in the lead – a typical picture at the start of a new generation. Many early adopters had been specifically waiting for the top-tier model and planned their purchase accordingly. As the product cycle progresses, the ratio often shifts in favour of the ‘mid-range’ models.

The diagram on the right shows the share of the various CPU variants in the pre-orders to date. If you add both AMD options together, AMD is currently in the lead overall. However, since the AMD Ryzen 9 9955HX3D is not yet shipping, Intel has a slight lead in the current production batch. The quantity ratios also have a corresponding effect on the production planning at our ODM partner. We expect the ratio to shift further once all variants are consistently available. A more detailed breakdown of the combinations of CPU and GPU variants is not intended for publication – we apologise for any inconvenience.

Current status of G-SYNC and NVIDIA Advanced Optimus

Last update: August 29, 2025

What has happened so far

Since late 2024, we have been working with NVIDIA to make G-SYNC and NVIDIA Advanced Optimus (DDS) available for the current XMG NEO generation. Due to the shared components, there were also plans to extend support to XMG PRO.

After a long debugging phase on NVIDIA’s part, we received working drivers and firmware for extended validation testing for the first time in July 2025.

At the same time, we checked whether the features could also be transferred to devices that had already been delivered. This would require BIOS, VBIOS, driver and additional panel firmware updates. Upgrading the LCD panel firmware is a key requirement for supporting G-SYNC and NVIDIA Advanced Optimus.

Major obstacle

Unfortunately, the firmware update mechanism for LCD panels proved to be unreliable in practice. Transmission errors occurre too often via the eDP upstream channel and are able to cause displays to become unusable due to corrupt firmware. In internal tests, this occurred so frequently that this update method cannot be approved for end-user use.

Background: Firmware updates for laptop panels are not normally intended, as the microcontrollers on the panels are usually only supposed to perform very narrowly defined basic tasks, which should no longer require firmware updates after series production. More complex tasks and variables, on the other hand, are handled by the laptop’s control system (or its motherboard) and its graphics driver. Because firmware updates for eDP panels are virtually unheard of in practice, the panel manufacturer currently in use unfortunately does not offer a particularly robust software-based update mechanism.

A hardware-based update (removing the panel and writing to the EEPROM chip built into the panel using an SPI tool) would be theoretically possible, but is not practical in the field – and is not supported by the panel manufacturer for security reasons.

We discussed many potential ways with the panel manufacturer to make the update process via software (via the eDP cable) more reliable, but did not come up with a practical solution.

This made it clear that retroactive activation on existing devices would not be responsible.

Decision

This left us with two options:

Option A: Introduce G-SYNC and Advanced Optimus only for newly manufactured laptops.
Option B: Refrain from doing so altogether as long as there is no solution for existing customers.

Option A would have had several disadvantages:

XMG PRO and XMG NEO exist in numerous variants (with different CPU, GPU and display combinations), which are reproduced at different times. Introducing it only for individual newly produced models would have led to a very confusing and difficult to coordinate process.
With two different equipment levels (devices with and without G-SYNC), hardware and firmware variants and possible error patterns would have almost doubled. This would have complicated support and warranty handling, and increased the risk of delays or failures for all customers.
All buyers who purchased their XMG NEO before this date would have been permanently excluded from the feature, while later customers would have benefited from it. We felt this would be unfair, especially to those who placed their trust in us by making an early purchase decision.

After lengthy internal discussions, we therefore decided on option B.

This means that there will be no rollout of G-SYNC and Advanced Optimus for the 2025 generation of XMG PRO and XMG NEO – neither for devices already delivered nor for future new orders. We will continue to evaluate these features for future generations with new CPU or GPU architectures, but they are no longer planned for this year.

We did not take this decision lightly. We regret the delays and any inconvenience this may cause. Customers who placed orders between February and March with G-SYNC applications have already been compensated. Nevertheless, we would like to apologise to all those who had hoped until the very end that there would still be a subsequent G-SYNC upgrade for XMG NEO (2025). We hope that this update will at least provide clarity.

Fundamental difficulties

The validation of G-SYNC and NVIDIA Advanced Optimus has always been challenging in recent years. NVIDIA only begins the approval process once the final hardware samples are available. For us as an OEM, this means that the process often starts very late and is difficult to plan due to bottlenecks in NVIDIA’s validation pipeline. As a result, we have repeatedly had to delay the start of production of a new product generation simply because the required firmware for G-SYNC and Advanced Optimus was not yet available.

This year, the situation was particularly difficult: not only did validation start late, but it was also hampered by unexpected compatibility and reliability issues. This significantly prolonged the entire process.

We are learning from these experiences: in future, we will rely less heavily on proprietary features that are still undergoing third-party certification or validation at the time of launch being available on time. This will be particularly the case when we have little insight into the third-party provider’s schedules.

Review / Chronicle

27 February 2025: Launch of the XMG NEO 16 (A25/E25) including promotion of NVIDIA G-SYNC and NVIDIA Advanced Optimus
28 March 2025: Promotion of G-SYNC and Advanced Optimus was cancelled before the first units were shipped, and previous pre-order customers were informed by email. A discount or cancellation was offered. The background to the situation was explained here in this article.
10 April 2025: Launch of the XMG PRO 16 (E25) – we never advertised this model with G-SYNC and we never made any public statements suggesting that subsequent support was planned.
April to June 2025: We confirmed at regular intervals that work on the feature was still ongoing. In the meantime, we expressed confidence that validation would be possible in principle, but at the same time emphasised that we could not give a formal guarantee before validation was complete.
July 2025: We received a working firmware update package from NVIDIA for the first time. In the course of this, tests began to determine the extent to which already produced units could be updated retrospectively. In the course of this, it became apparent that the firmware update process on the LCD panel was becoming a seemingly insurmountable bottleneck.
29 August 2025: Final rejection – G-SYNC and Advanced Optimus will no longer be introduced for XMG NEO.

What difference will G-SYNC still make in 2025?

All 2025 generation XMG laptops are equipped with fast displays ranging from 240 to 300 Hz.

Compared to older 60 or 144 Hz displays, the difference with or without Adaptive Sync is much less significant at such high refresh rates. The higher refresh rate ensures that the image is updated much more frequently and that each scene is displayed with very low latency (almost no delay). This reduces input lag – the time between input and visible response.

Tearing (the visible splitting of the image, see Wikipedia article) can still occur even at high refresh rates. However, this artefact is much less noticeable on 300 Hz panels – you only see the image fragments for an extremely short time because each refresh cycle is so short.

Even if the frame rate drops (e.g. to 40-50 FPS in demanding games, which is about the lower limit of playability), the gaming experience on a 240- to 300-Hz display still feels stable and relatively smooth compared to older monitors.

Technologies such as G-SYNC remain technically useful optimisations, but at 300 Hz, the lack of VRR is noticeably less distracting.

Tips and tricks

Disable Optimus

For the best possible gaming experience on your laptop monitor, we recommend disabling NVIDIA Optimus. This can be done either via the Control Center or the BIOS setup. Disabling requires a restart.

With Optimus enabled, the image output runs through the iGPU, which usually limits refresh rates to 240 Hz due to bandwidth constraints.
With Optimus disabled, output runs directly through the NVIDIA GPU, allowing the full 300 Hz of the laptop screen to be utilised. In addition, the overall latency of the system is reduced because the screen content does not have to be routed through the iGPU first, thus measurably reducing input lag, especially in fast-paced games.

External monitors

NVIDIA G-SYNC and AMD FreeSync are supported on external monitors by all XMG laptops, regardless of the model generation and whether the screen in the laptop itself supports G-SYNC. For an optimal gaming experience with NVIDIA G-SYNC, we recommend connecting an external monitor to one of the laptop I/O ports that are connected to the NVIDIA dGPU. In the case of XMG PRO and XMG NEO (2025), this applies to the HDMI and Mini DisplayPort I/O ports. For monitors with DisplayPort input, we offer a corresponding adapter.

Important information about DDR5 memory

Caution with DDR5-5600 Kingston FURY Impact for AMD Ryzen 9 9955HX/3D

6 June 2025: added new picture link.
26 May 2025: initial publication.

We normally offer Kingston FURY Impact with 5600 MT/s CL40. However, it has since become apparent that Kingston uses different DRAM ICs on these modules without changing the primary part number.

Explanation of terms:

IC = Integrated Circuit: This refers to the square components on the RAM modules.
DRAM = Dynamic Random Access Memory: a general term for the architecture of these components.

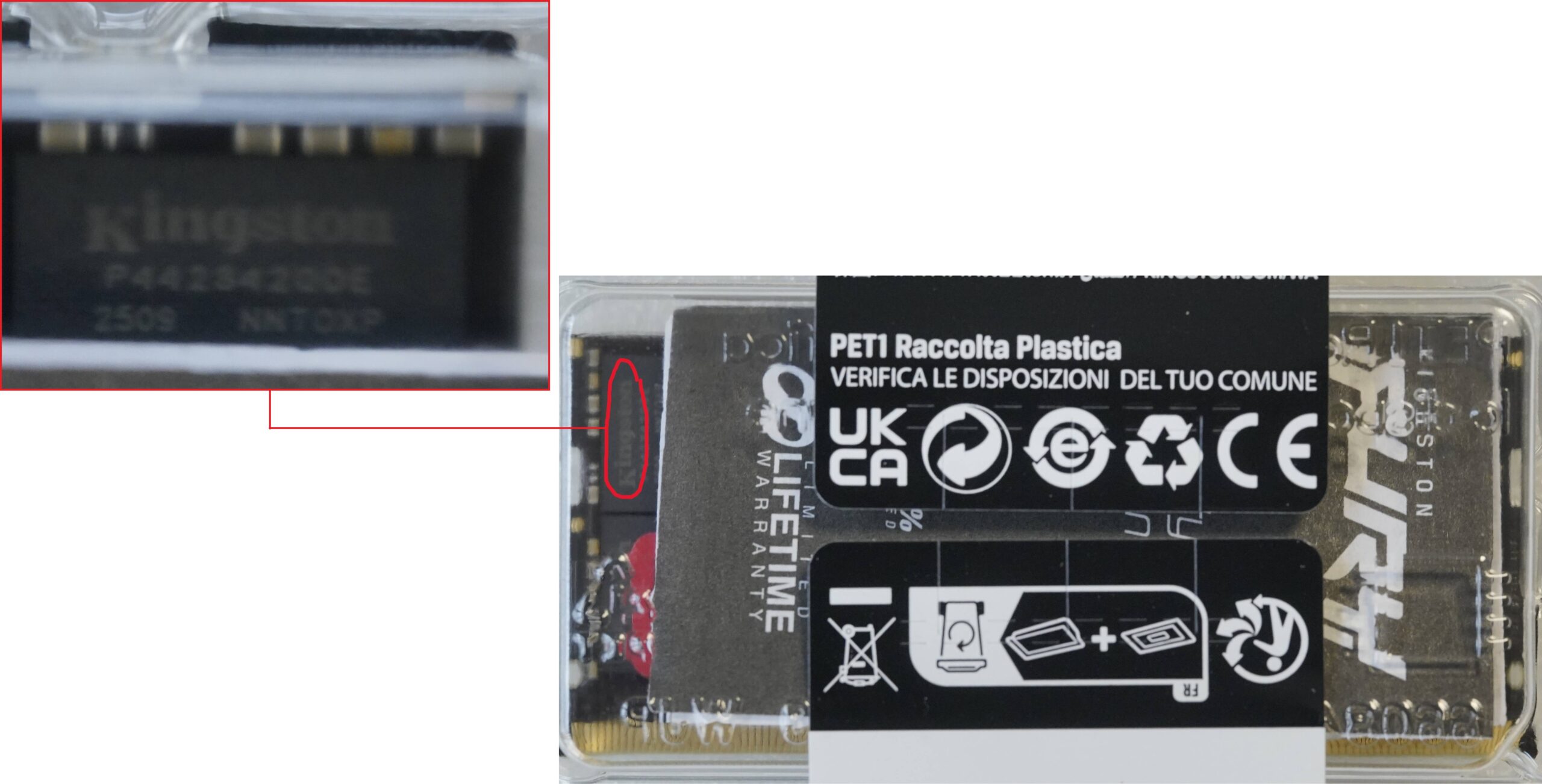

Visual difference:

The modules with Kingston ICs can often be identified before unpacking by a logo on the DRAM components. See picture:


The following part numbers are affected, among others:

16 GB / KF556S40IB-16
32 GB / KF556S40IB-32

Compatibility:

If these modules are equipped with DRAM ICs from SK Hynix, they will work perfectly in all tested models.
However, if they are equipped with DRAM ICs from Kingston, they will not work in XMG NEO 16 (A25) with AMD Ryzen 9 9955HX/3D. With these modules, the laptop cannot start at all (screen remains black).
They will still work with Intel or other AMD platforms (e.g. the Ryzen 9 8845HS in XMG CORE 15), but not with AMD Fire Range.

Since the modules with Kingston ICs use the same part number, it is not easy for distributors and suppliers to store these modules separately.

We have reported this incompatibility to both Kingston and AMD. However, we cannot predict whether there will be a solution, such as through an AGESA/BIOS update. This incompatibility will likely need to be resolved between Kingston and AMD first.

In practice, this means:

For all orders of XMG NEO 16 (A25) with Kingston FURY Impact memory, we ensure that only modules with SK Hynix ICs are installed.
Due to current difficulties in obtaining sufficient supplies of Kingston FURY Impact with SK Hynix ICs, we have removed out-of-stock capacities from XMG NEO 16 (A25/AMD) configurator.
Customers who wish to upgrade the RAM in their XMG NEO 16 (A25/AMD) themselves should exercise caution. Before installation, check whether Kingston ICs are installed on the modules. If this is the case, we recommend returning the memory.

For clarification: Kingston FURY Impact modules with Kingston ICs are not defective. According to our tests, they are currently simply not compatible with the AMD Ryzen 9 9955HX/3D series. They are still perfectly suitable for models with other CPUs, regardless of whether they have ICs from SK Hynix or Kingston. We also assume that the performance will be identical with established compatibility, as both DRAM IC types follow the same specifications.

Availability of DDR5-6400 CSO-DIMM for Intel Core Ultra 9 275HX

Sometimes we have minor bottlenecks in the CSO-DIMM supply for Intel Core Ultra 275HX. But RAM supply is generally a moving target and not related to the general availability of XMG PRO and XMG NEO. In other words: RAM shipments are small and frequent, usually arriving just-in-time. If you see any notice in our only ship regarding DDR5 CSO-DIMM availability, these notices most likely apply only to new orders, not to previously placed pre-orders. In the unlikely case that a DRAM bottleneck affects a previous order, we would inform individual customers by e-mail.

Memory upgrade to 128 GB with Intel Core Ultra

10 April 2025: For XMG NEO 16 (E25) with Intel Core Ultra 9 275HX, we now offer the option of expanding the memory to up to 128 GB DDR5-5600.

As we currently only have a limited number of these memory modules available, allocation will be in the order in which upgrade requests are received. Customers are kindly requested to inform us of their upgrade request by email – simply reply to our last email or to your order confirmation. The difference in price can be found in the configurator in the shop.

Possible upgrade	Current status
2 × 64 GB DDR5-5600 with Crucial CT64G56C46S5	Validation in XMG NEO 16 (E25) with Intel is complete. Upgrades can be ordered immediately. The availability of the modules is still limited, but we will be able to serve the first customers with these modules.
2 × 64 GB DDR5-6400 with Crucial CT64G64C52CS5	We have requested samples from Crucial but do not yet have a timeline for when they will arrive. From a technical standpoint, there are currently no known issues that would prevent future compatibility. However, we will only be able to give a specific outlook as soon as we have sufficient samples. We do not offer this configuration at the moment.

Are RAM configuration higher than 96 GB foreseeable with AMD Ryzen?

30 April 2025: AMD has now responded to our enquiry. We have provided AMD’s development partners with 2 × 64 GB module samples. However, it is currently unclear whether these efforts will lead to official 128 GB support in the future.

28 March 2025: These upgrades are not foreseeable with AMD Ryzen 9 9955HX(3D) because AMD specifies the maximum memory capacity of the CPU as 96 GB. Source: spec sheet (open link, click ‘Expand all’, Ctrl+F: 96). An attempt to install our 2 × 64 GB modules resulted in the system failing to boot (‘no boot’ situation). A request to AMD as to whether the previously validated 96 GB configuration really represents the actual maximum for this CPU generation Ryzen 9055 series (‘Fire Range’) has so far remained unanswered.

Inconsistent write speed with SSD Samsung 9100 PRO on AMD Ryzen 9 9955HX/3D

19 June 2025: Issue has been fixed with BIOS N.1.12A10 for XMG NEO 16 (A25) with AMD, see download portal.
6 June 2025: BIOS update is currently in the testing phase. Release is planned for the next 1–2 weeks.
26 May 2025: We are working on a solution in the form of a BIOS update.
19 May 2025: Initial publication.

In write stress tests with single files larger than 1GB, the Samsung 9100 PRO showed reduced write speeds (~2 GB/s) on Fire Range platforms. Read speeds were unaffected. Daily tasks like gaming, app installs, file browsing, and smaller file transfers performed normally. Even in the worst case scenarios, file transfers write speeds at 2 GB/s were still pretty usable.

This issue has been fixed via BIOS N.1.12A10 for XMG NEO 16 (A25) with AMD, see download portal. XMG NEO 16 (E25) with Intel was never affected by this issue in the first place. The rest of this paragraph remains published for archival purpose.

Test Conditions:

Samsung 9100 PRO Gen5 SSD on AMD Ryzen 9 9955HX / 9955HX3D (Fire Range)
Windows 11 24H2
Various AMD chipset drivers, both older and latest
BIOS default settings, RAID off
BitLocker on/off – no impact

Notes:

Issue only appeared in synthetic write benchmarks and large file copies, usually starting at 1GB file size.
No temperature issues – SSD remains cool under load.
Performance peaked near 14 GB/s in some scenarios, confirming no hardware bottleneck.
Reproduced across multiple units and SSDs.
Did not occur with other Gen5 SSDs, nor on Intel platforms.

Status:

Issue has been fixed via BIOS update.

Maximum performance for you
