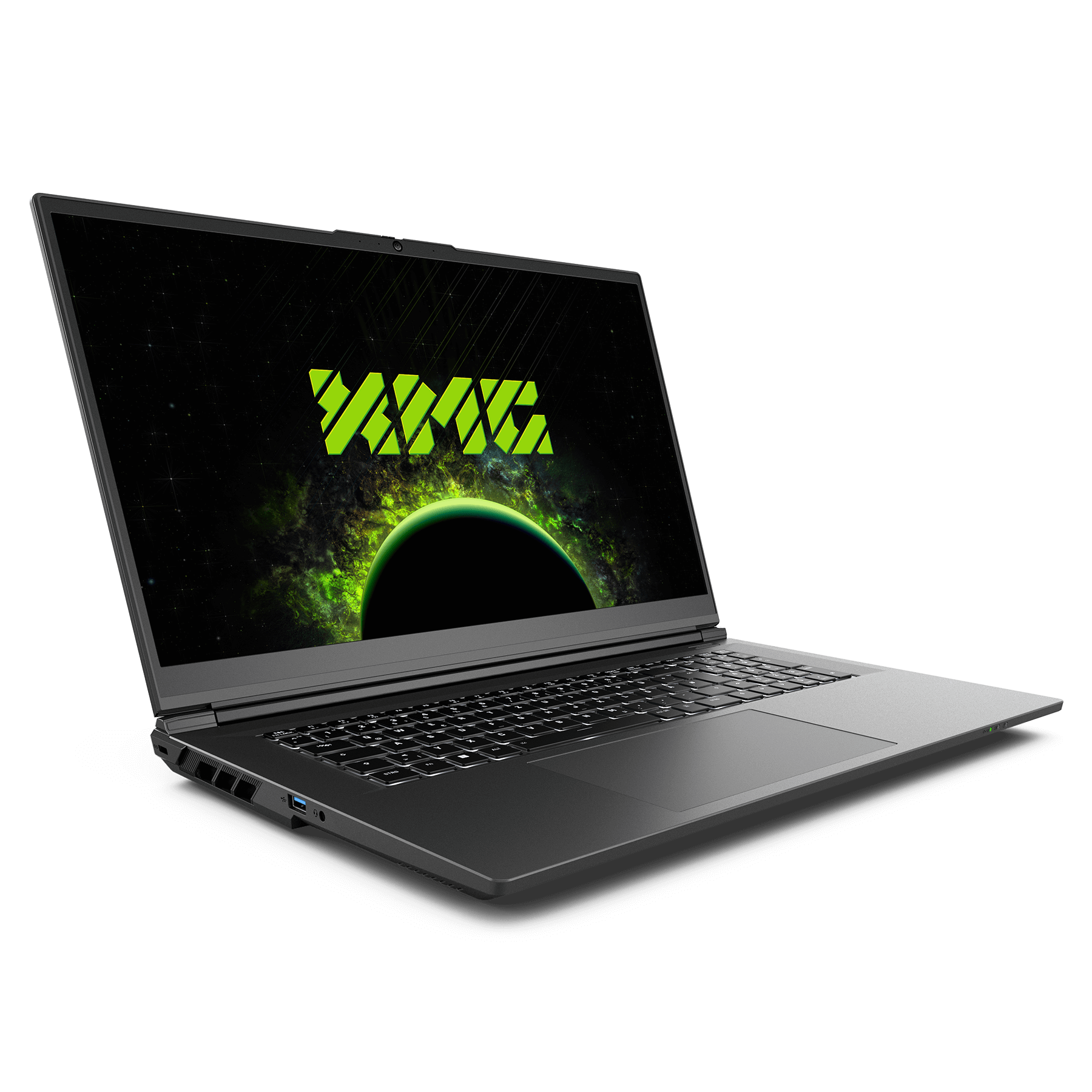

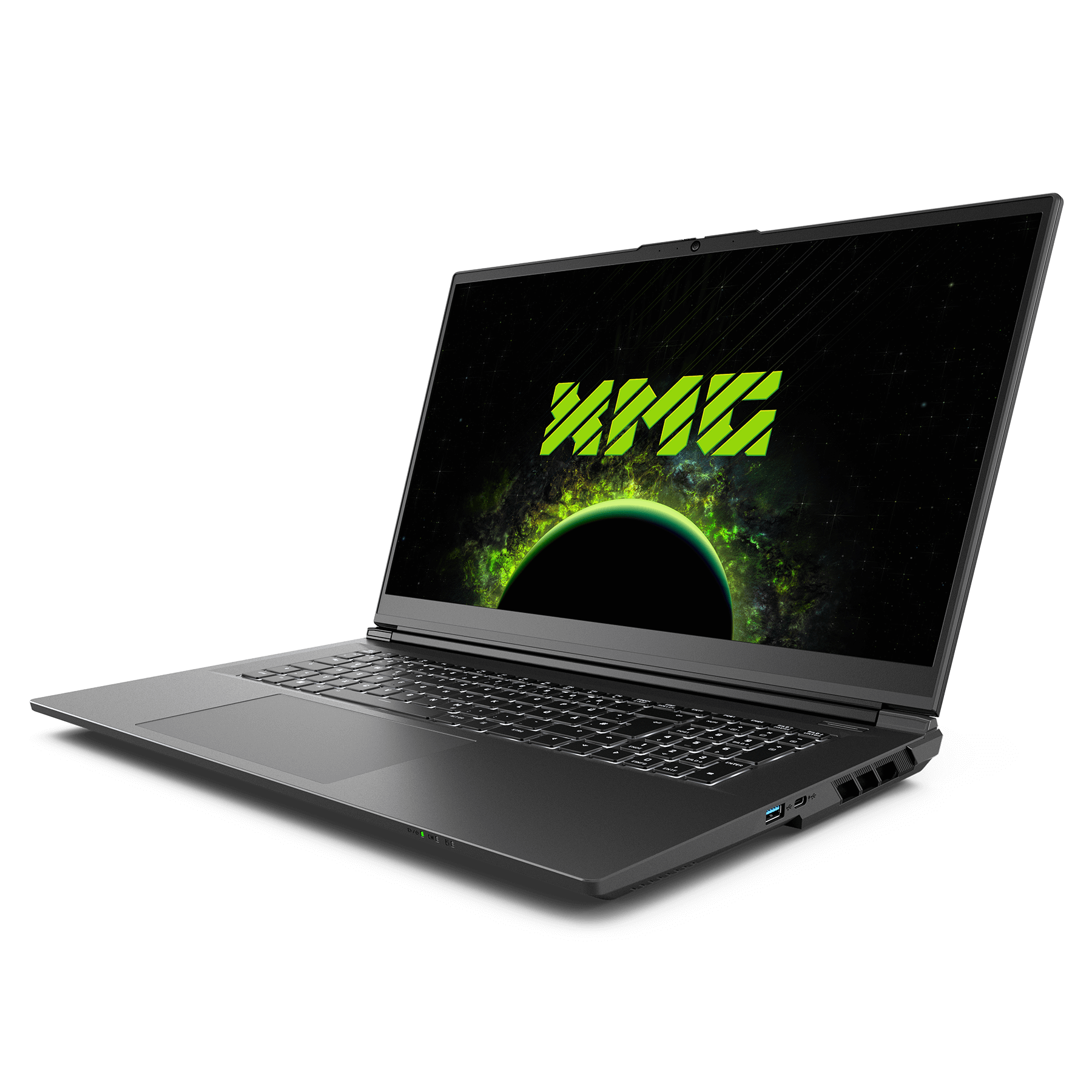

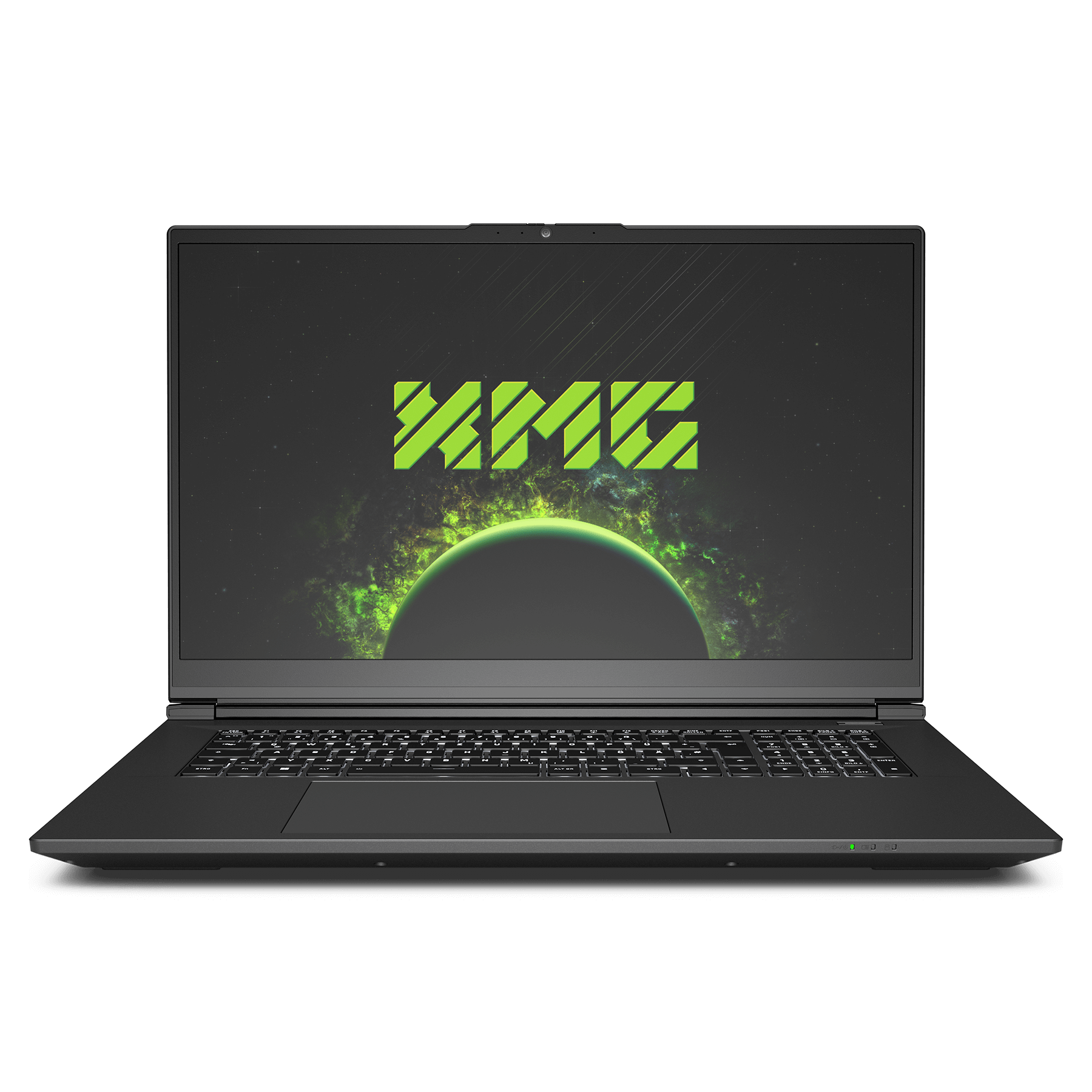

XMG APEX 17

KING OF THE HILL

Massive CPU power and good gaming performance: featuring an AMD Ryzen 9 9955HX, an NVIDIA GeForce RTX 5060, a razor-sharp, fast WQHD display, and cleverly arranged ports, the XMG APEX 17 truly delivers.

With its 17.3-inch panel in an immersive 16:9 format, this laptop offers everything you need for a superb gaming experience. Highlights include a precise full-size keyboard with a clearly defined actuation point and full numeric keypad, as well as the versatile upgrade options typical of XMG – supporting fast PCI Express SSDs and high-capacity RAM configurations.

With its 17.3-inch panel in an immersive 16:9 format, this laptop offers everything you need for a superb gaming experience. Highlights include a precise full-size keyboard with a clearly defined actuation point and full numeric keypad, as well as the versatile upgrade options typical of XMG – supporting fast PCI Express SSDs and high-capacity RAM configurations.

Wähle Deinen Pfad
GAMER
CREATOR
Kraftvolles, cleanes Design

Stabiles Aluminium-Gehäuse mit RGB-Akzenten

Gaming auf Desktop-Niveau

Der schnellste 16-Zoll-Laptop der Welt

AMD Ryzen 9 1
GeForce RTX 1 1
Das schnellste Display seiner Klasse

300 Hz schnelles Mini-LED-
Display mit 1000 Nits

Noch leiser, kühler, schneller mit XMG OASIS

Optionale Wasserkühlung für anspruchsvolle Nutzer

Bereit für alle Aufgaben

Mächtiges Kühlsystem für dauerhafte Höchstleistung

Immer der Erste auf dem Server

Die schnellsten SSDs und Arbeitsspeicher

Maximale Präzision in Millionen Farben

Anti-Ghosting, N-Key-Rollover, Per-Key-RGB

Deine voll ausgestatte Anschlusszentrale

Smarte Platzierung vieler Ports an der Rückseite

Zuverlässiger Dauerläufer

Riesiger 99,8-Wh-Akku mit einstellbarem Verschleißschutz

Dein Laptop - Deine Freiheit

Control Center mit umfangreichen
Individualisierungs-Optionen

Hochwertig, elegant, kompakt

Präzise gefertigtes, robustes Aluminium-Gehäuse

Grenzenloses Kreieren

Der schnellste 16-Zoll-Laptop der Welt

AMD Ryzen 9 1
GeForce RTX 1 1
100-prozentige Farbgenauigkeit

Entspiegeltes Mini-LED-
Display mit 1000 Nits

Noch leiser, kühler, schneller mit XMG OASIS

Optionale Wasserkühlung für anspruchsvolle Nutzer

Bereit für alle Aufgaben

Mächtiges Kühlsystem für dauerhafte Höchstleistung

Endlich keine Einschränkungen mehr

Bis zu 96 GB RAM und 16 TB SSD für die komplexesten Projekte

Fokus auf Ergonomie und Funktionalität

Konkave Keycaps, abgesetzte Pfeiltasten, Fn-Lock

Goodbye Dongle Life

Alle Anschlüsse, die Du brauchst – inklusive pfeilschnellem SD-Kartenleser

Zuverlässiger Dauerläufer

Riesiger 99,8-Wh-Akku mit einstellbarem Verschleißschutz

Dein Laptop - Deine Freiheit

Control Center mit umfangreichen Individualisierungs-Optionen

AMD Ryzen 9955HX
Maximum Performance with 16 Cores
XMG APEX 16 MAX M25 LP Feature 01 CPU Desktop
XMG APEX 16 MAX M25 LP Feature 01 CPU Mobile
Desktop DNA Inside

With the powerful AMD Ryzen 9 9955HX (Fire Range), the XMG APEX 17 delivers uncompromising CPU performance. This high-end processor features 16 full cores and 32 threads and belongs to the HX series – designed on the same architecture as AMD’s most powerful desktop processors.

NVIDIA GeForce RTX 5060
Smart Features for High FPS
Fast WQHD Gaming

NVIDIA’s GeForce RTX 5060 offers ample gaming performance at a reasonable price. Thanks to modern AI features like DLSS 4 with Multi-Frame Generation, you can enjoy stable FPS at high-quality settings. Integrated fifth-generation tensor units further boost performance, accelerating your content creation workflows with AI-enhanced processing.

Impressive Memory Configuration
Up to 128 GB RAM & 16 TB SSD
XMG APEX 17 M25 LP Feature 03 Speicher Desktop
XMG APEX 17 M25 LP Feature 03 Speicher Mobile
Upgradeable at Any Time

With two SO-DIMM slots supporting up to 128 GB of DDR5 RAM and space for two fast PCI Express 4.0 SSDs, the XMG APEX 17 allows you to configure your memory and storage exactly as needed for your data and games. Even future upgrades are straightforward: the laptop’s interior can be accessed quickly and easily via the screw-fastened bottom shell, enabling you to upgrade the RAM and SSDs yourself at any time.

Fast, High-Resolution, True Colour
Premium Display Quality in 17 Inch
XMG APEX 17 M25 LP Feature 04 Display Desktop
XMG APEX 17 M25 LP Feature 04 Display Mobile

Lightning-fast and razor-sharp: With a resolution of 2,560 × 1,440 pixels and a refresh rate of 240 Hz, the generous 17.3-inch display in an immersive 16:9 format is the perfect choice for gamers. Thanks to its connection to an integrated MUX switch, you get maximum performance for your games. Additionally, with 100 % coverage of both the sRGB and DCI-P3 colour spaces, the display meets the extended needs of creatives in fields such as graphic design, photography, and video editing.

Versatile Connectivity
All Ports on Board
XMG APEX 17 M25 LP Feature 05 Ports Desktop
XMG APEX 17 M25 LP Feature 05 Ports Mobile
Cleverly Arranged Connections

The XMG APEX 17 has all your connectivity needs covered. Two USB-C ports with integrated DisplayPort and an additional HDMI port allow you to connect up to three external monitors natively. One of the USB-C and the HDMI port are directly connected to the powerful NVIDIA dGPU. Additionally, you will find 2x USB-A ports, Gigabit Ethernet and a 2-in-1 connector for both headset and microphone. A Full HD webcam with noise cancellation and a physical privacy shutter complete the functionality of the APEX 17.

Optimised Headset Sound
Immersive & Powerful

With Creative’s latest Sound Blaster technology, the XMG APEX 17 delivers powerful, high-resolution audio to your gaming headset. The Sound Blaster Studio+ app lets you personalise the sound to your liking, offering features such as the ability to fine-tune multiple sound profiles for different scenarios. Since audio requirements vary between gaming, music, and video playback, this customisation ensures you get the best possible sound from your headset!

VIDEOS & TESTS
TECHNICAL DETAILS


XAP17M25

  • 17.3″ IPS | 2560×1440 px | 16:9 | 240 Hz | 300 Nits | AMD FreeSync | 100 % sRGB/DCI-P3 | non-glare
  • alternatively 60 Hz settable
  • AMD Ryzen 9 9955HX | 16 cores/32 threads | up to 5.4 GHz | 64 MB L3 Cache

integrated (iGPU):
AMD Radeon 610M | 2 cores | up to 2.2 GHz

dedicated (dGPU):
NVIDIA GeForce RTX 5060 Laptop | 8 GB GDDR7 | 100 W TGP (+ 15 W Dynamic Boost)

internal display connection:
iGPU with NVIDIA Optimus or dGPU (via MUX switch)

DisplayPort 1.4a via USB-C (rear) connection:
iGPU with NVIDIA Optimus

DisplayPort 2.1 via USB-C (right) and HDMI 2.1 connection:
dGPU

three external displays directly addressable
additional external displays possible with docking station/adapter
VR Ready

  • composite cooling system with copper heatpipes
  • two fans, each 60 mm in diameter, 11 mm in height and with 80 fan blades
  • four air outlets with a total of 221 copper cooling fins
  • PTM7950 phase change thermal compound on CPU and GPU
  • Control Center with customisable fan curves, battery charging profiles, keyboard macros etc.
  • three pre-configured performance profiles (quickly changeable with Fn+F3)
  • Windows installation without additional third-party software (for configurations with operating system)
  • 2x DDR5 SO-DIMM | Dual Channel | max. 128 GB | max. 5600 MT/s | max. 1.1 V
  • 2x M.2 2280 SSD via PCI Express 4.0 x4
  • supports RAID 0/1
  • stereo speakers
  • Creative SoundBlaster Studio+
  • microphone with noise cancellation
  • Full HD webcam
  • backlit keyboard with fully-fledged numeric keypad and full-size arrow keys
  • 15 colour options
  • Microsoft Precision Touchpad, two integrated buttons | 150 x 90 mm (W x D)
  • innovative surface material with optimised glide characteristics
  • automatic palm detection to avoid false inputs
  • supports scrolling, tapping, swiping and other multi-finger gestures as defined by operating system

Left:

  • 2-in-1-audio (headphone + mic)
  • USB-A 3.2 Gen1 (5 Gbps)

Rear:

  • USB-C 3.2 Gen2 (10 Gbps | DisplayPort 1.4a | no Power Delivery)¹⁾
  • DC-in (5.5/2.5 x 12.5 mm; IEC 60130-10)
  • HDMI 2.1 (48 Gbps | HDCP 2.3 | VRR/G-SYNC)
  • RJ45 Port (Gigabit)


Right:

  • USB-C 3.2 Gen2 (10 Gbps | DisplayPort 2.1 (DP40/UHBR10) | 100 W Power Delivery)2⁾
  • USB-A 3.2 Gen2 (10 Gbps)


¹⁾ details:
power supply for peripherals: max. 5V/3A (15 watts)
DisplayPort 1.4a with three DisplayPort streams and a total of 32.4 Gbps

²⁾ details:
USB Power Delivery: exclusively with 20V/5A (100 watts)
power supply for peripherals: max. 5V/3A (15 watts)
DisplayPort 2.1 with three DisplayPort streams and a total of 40 Gbps

  • Wi-Fi 6E + Bluetooth 5
  • Gigabit LAN (supports Wake on LAN and LAN/PXE boot)
  • Kensington Lock (left side)
  • TPM 2.0 (via fTPM)
  • Secure Boot
  • physical webcam shutter
  • support for hardware encryption with compatible SSDs
  • 230 watts (155 x 75 x 25 mm | 675 g incl. EU power cord)
  • power cable socket: C6
  • replaceable 73 Wh Li-poly battery (internally screw-mounted)
  • different battery charging profiles selectable in Control Center or BIOS (FlexiCharger)
  • display lid made of aluminium
  • display frame, top and bottom case made of plastic
  • 130° display opening angle
  • one-hand opening
  • PH 1 screw heads

ca. 2.8 kg

402 x 265 x 28.6 mm (W x D x H)

  • Laptop (inkl. Akku)
  • Netzteil
  • Treiber-USB-Stick
