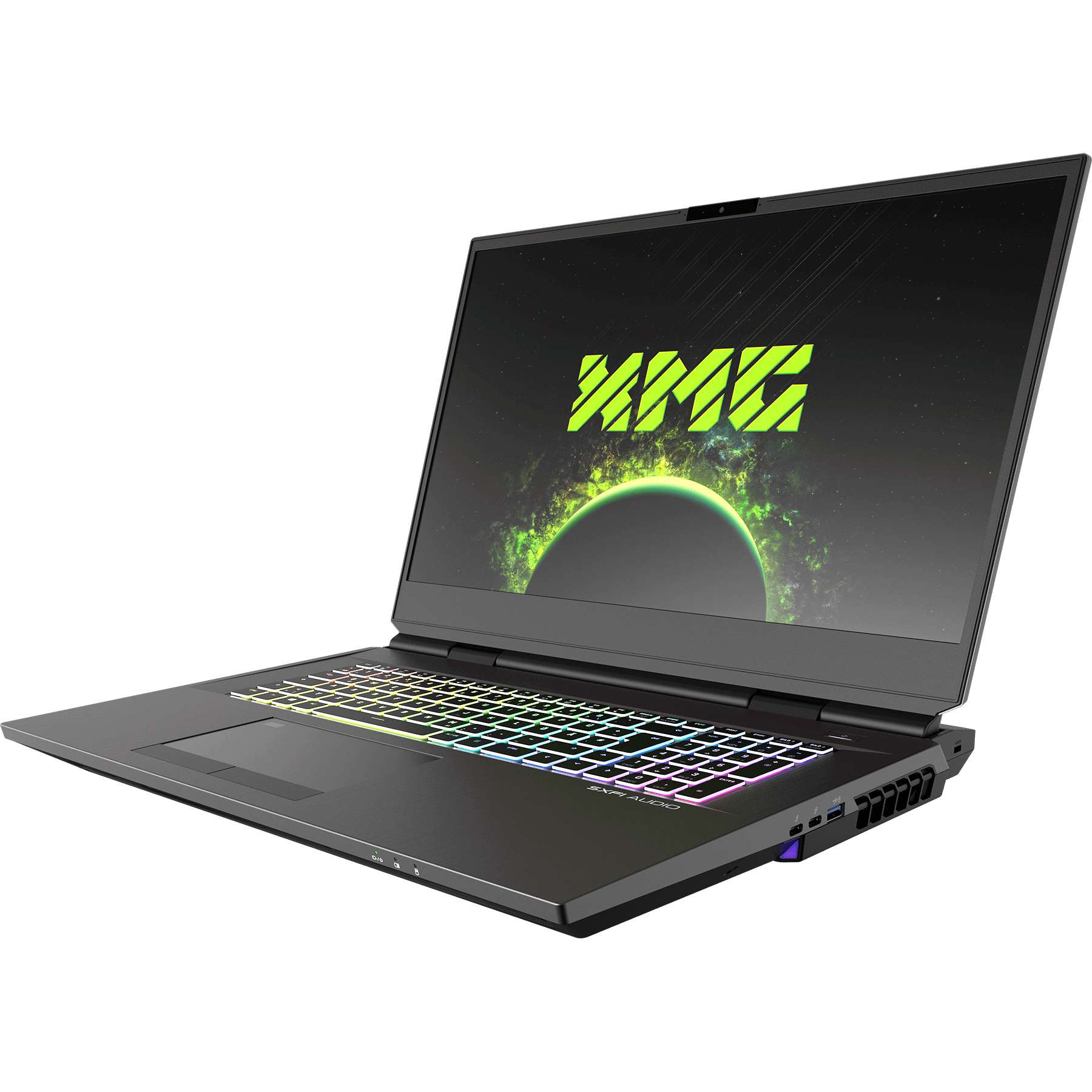

XMG ULTRA 17 Gaming-Laptop Key Visual

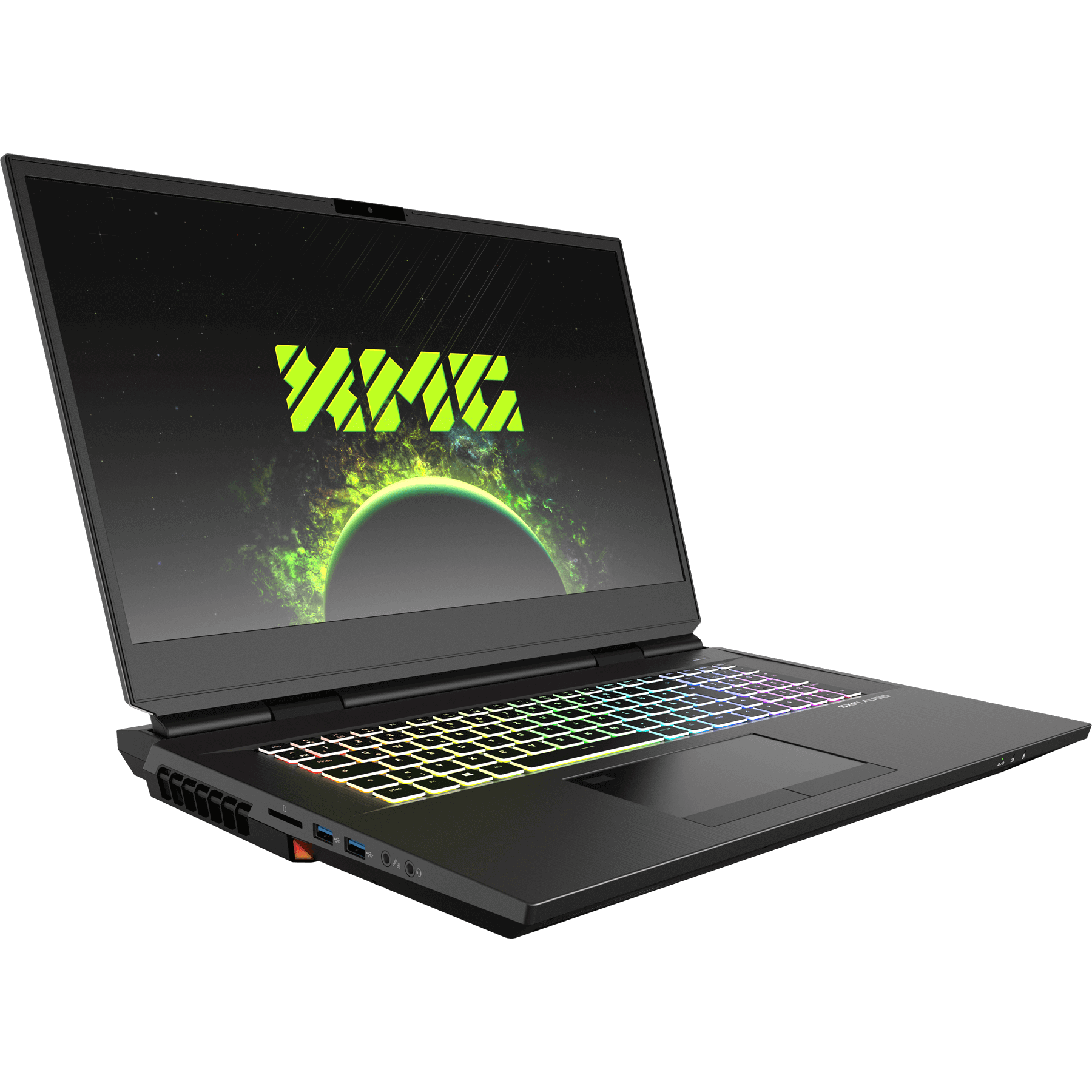

XMG ULTRA 17

BASICALLY ROCKET SCIENCE

Fierce gaming performance – no ifs or buts; the XMG ULTRA 17 combines the uncompromising performance of Intel’s 11th generation desktop processors with NVIDIA graphics cards designed specifically for this class of laptop up to the GeForce RTX 3080. These cards, designed in the special discrete MXM format, work faster than anything else used in the mobile sector. Need the blistering extreme performance of a high-end desktop PC without being desk-bound? Then the portable XMG ULTRA 17 is the tailor-made solution for your needs. Up to 128 GB of DDR4 memory, four M.2 slots for fast PCI Express SSDs and an outstanding range of connections make for an outstanding set of features to compliment the core components.

Extreme performance focus:

Intel desktop processors

With Intel’s desktop processors from the 11th Core generation (Rocket Lake), the XMG ULTRA 17 keeps all mobile CPUs at bay. The new top model Core i9-11900K offers 8 cores, 16 threads and works with the full TDP of 125 watts. As such, the processor delivers unbridled performance at high-end desktop PC level. This is made possible by a mainboard with a well-equipped Intel Z590 Express chipset – the current flagship for Socket 1200 systems. Whether simultaneously gaming and streaming, or working with massive multitasking workloads, the XMG ULTRA 17 offers nothing less than the maximum of what is possible.

XMG ULTRA Gaming-Laptop Intel Prozessor
XMG ULTRA Gaming-Laptop Intel Prozessor

High-end in a double pack:

THUNDERBOLT 4

With two fast Thunderbolt 4 ports, the XMG ULTRA 17 is in no way inferior to even current top-level ATX mainboards in terms of connectivity. The interface, with a data throughput of up to 40 Gbit/s, allows the connection of the most powerful external drives or modern docking stations. At the same time, the connection functions as an additional DisplayPort output and is already compatible with the latest external monitors with groundbreaking 8K resolution.

XMG ULTRA 17 Geforce RTX
XMG ULTRA 17 Geforce RTX
300 Hz fast
IPS display with G-SYNC

With a refresh rate of 300 Hz, the Full HD IPS panel (1920 x 1080 pixels) is one of the fastest gaming displays on the market. G-SYNC ensures exact synchronisation of the graphics card’s image output with the display – for a smooth gaming experience without tearing and with ultra-fast response times. The high refresh rate makes it possible to react significantly faster and with professional precision to the gaming action. In addition, the high-quality IPS panel impresses with bright, intense colours, first-class black levels and contrasts, high viewing angle stability and 100% coverage of the sRGB colour space.

XMG ULTRA 17 E21 LP FEAT 03 300Hz wqhd EN 4
High resolution & true colour
UHD display with G-SYNC

At 3840 x 2160 pixels, the Ultra HD display’s impressive resolution and pixel density delivers a breathtaking gaming graphics experience – but the panel doesn’t only cater for gamers. In addition, thanks to 100% coverage of the extended Adobe RGB colour space, the IPS panel uncompromisingly serves the demands of content creation professionals: the exceptionally high colour fidelity is exactly the right starting point for professional photo, image and video editing. Outstanding black levels, excellent contrast, brilliant colours and G-SYNC support all ensure maximum immersion even in games.

XMG ULTRA 17 E21 LP FEAT 03 UHD OLED wqhd EN 1
300 Hz fast
IPS display with G-SYNC

With a refresh rate of 300 Hz, the Full HD IPS panel (1920 x 1080 pixels) is one of the fastest gaming displays on the market. G-SYNC ensures exact synchronisation of the graphics card’s image output with the display – for a smooth gaming experience without tearing and with ultra-fast response times. The high refresh rate makes it possible to react significantly faster and with professional precision to the gaming action. In addition, the high-quality IPS panel impresses with bright, intense colours, first-class black levels and contrasts, high viewing angle stability and 100% coverage of the sRGB colour space.

XMG ULTRA 17 E21 LP FEAT 03 300Hz wqhd mobile EN 4
High resolution & true colour
UHD display with G-SYNC

At 3840 x 2160 pixels, the Ultra HD display’s impressive resolution and pixel density delivers a breathtaking gaming graphics experience – but the panel doesn’t only cater for gamers. In addition, thanks to 100% coverage of the extended Adobe RGB colour space, the IPS panel uncompromisingly serves the demands of content creation professionals: the exceptionally high colour fidelity is exactly the right starting point for professional photo, image and video editing. Outstanding black levels, excellent contrast, brilliant colours and G-SYNC support all ensure maximum immersion even in games.

XMG ULTRA 17 E21 LP FEAT 03 UHD OLED wqhd mobile EN 3

High-end in a double pack

THUNDERBOLT 4

With two fast Thunderbolt 4 ports, the XMG ULTRA 17 is in no way inferior to even current top-level ATX mainboards in terms of connectivity. The interface, with a data throughput of up to 40 Gbit/s, allows the connection of the most powerful external drives or modern docking stations. At the same time, the connection functions as an additional DisplayPort output and is already compatible with the latest external monitors with groundbreaking 8K resolution.

Thunderbolt 4
40  Gbit/s
XMG ULTRA Gaming-Laptop Thunderbolt 4

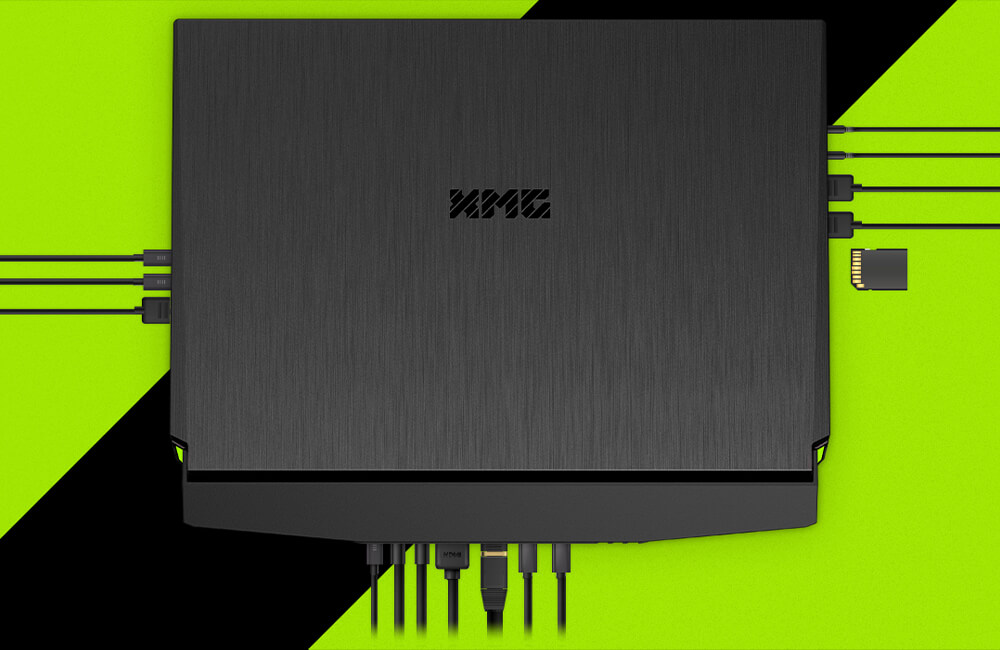

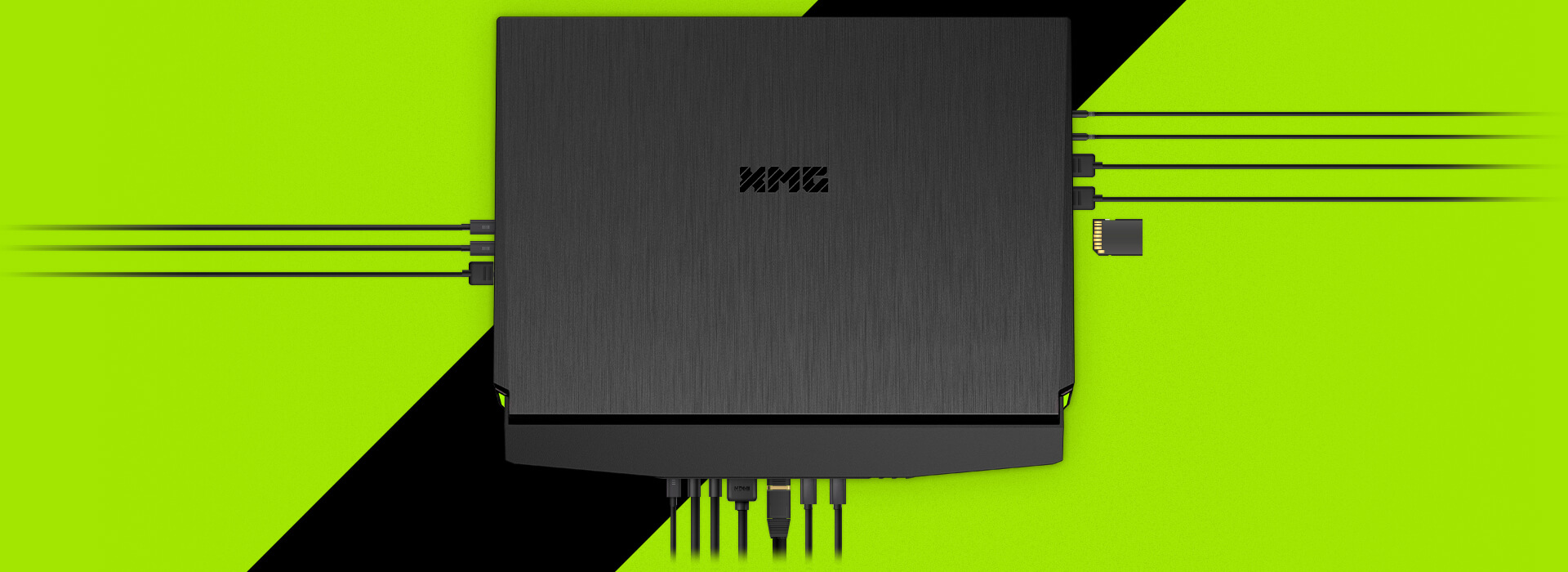

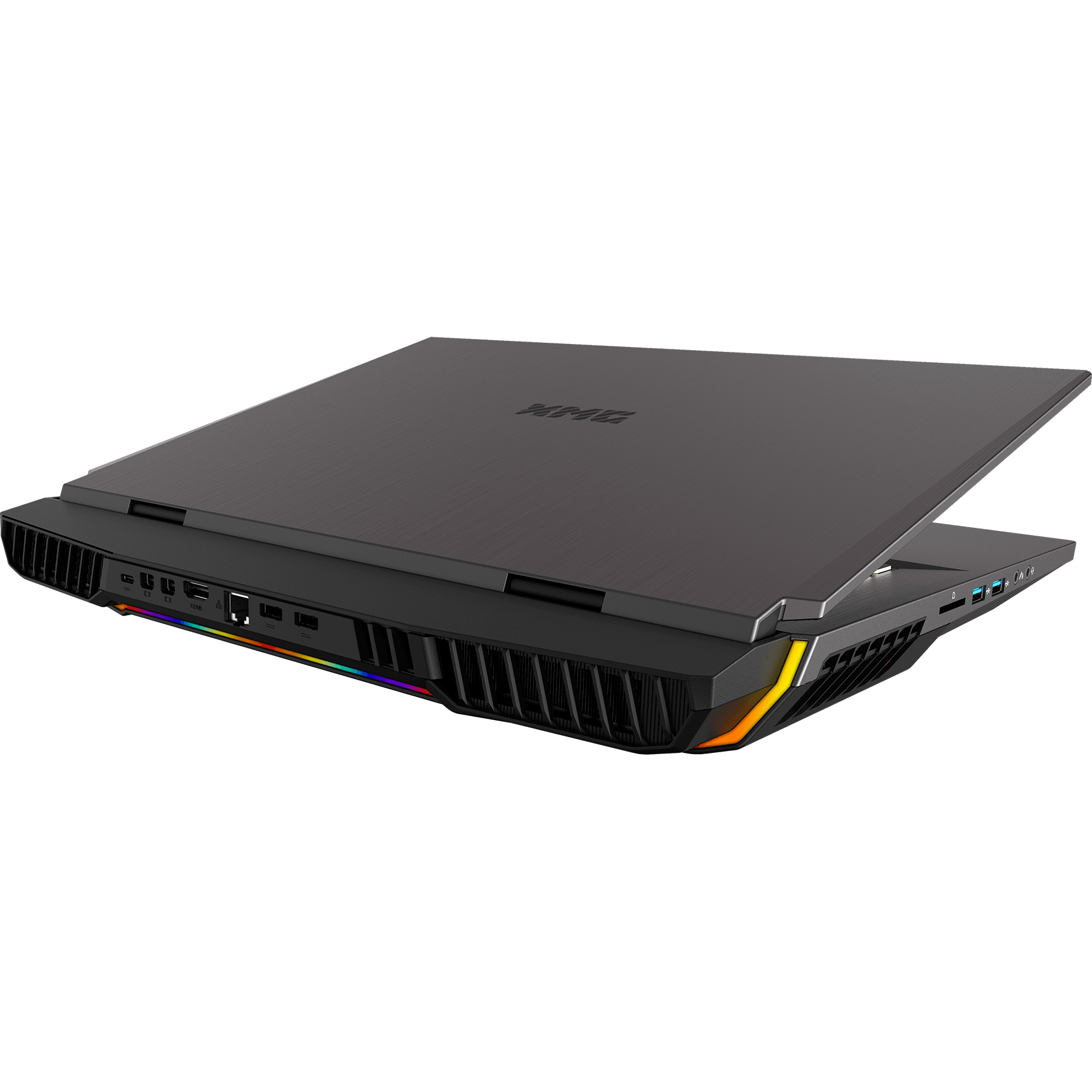

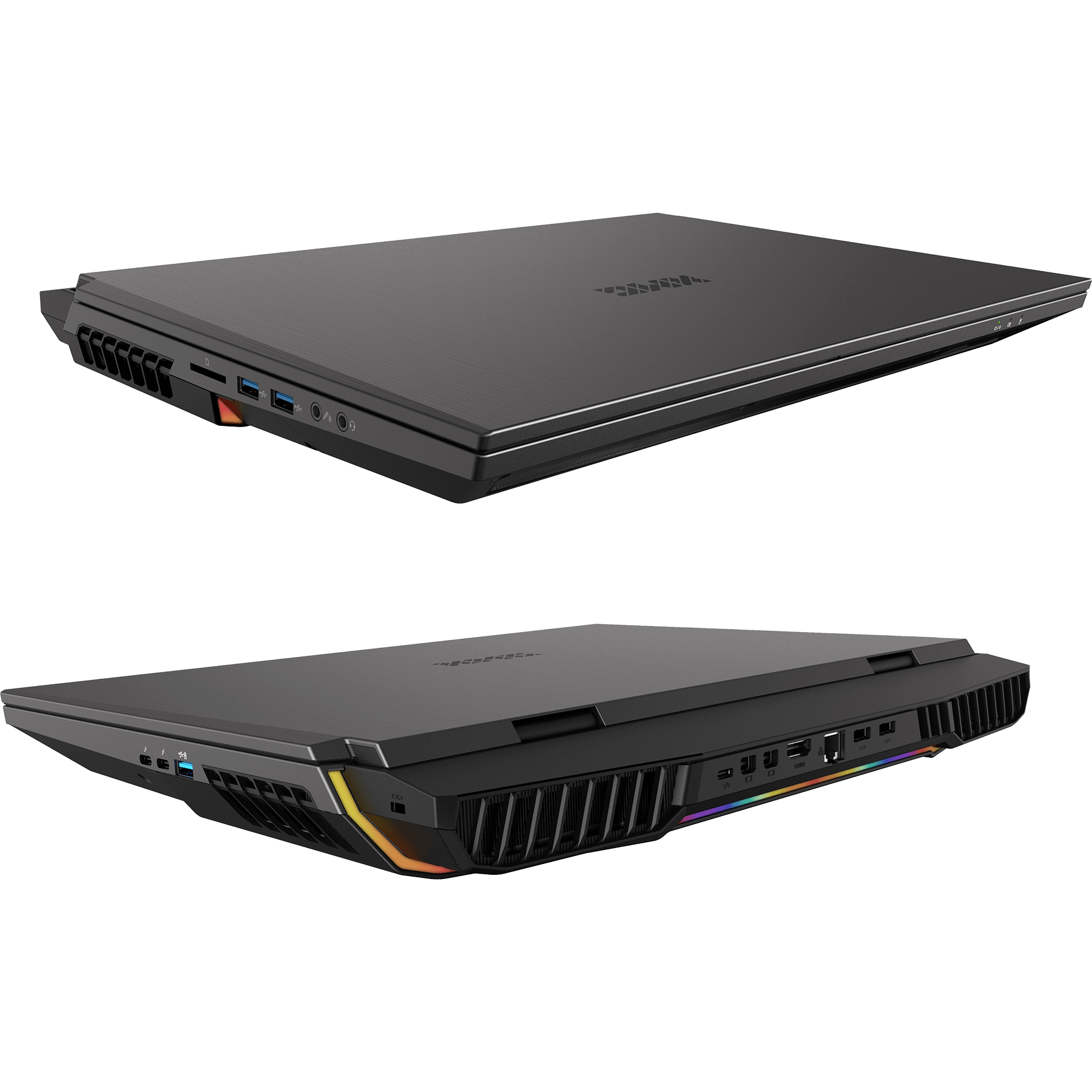

As flexible as a desktop PC:

Optimal connectivity

The XMG ULTRA 17 comes with an impressive range of connectivity options: USB-C 3.2 Gen2, three USB-A 3.2 Gen2 ports, a full-format SD card reader connected via UHS-III and a microphone input and headphone output leave nothing to be desired. The latter is fully headset-compatible, so no additional splitter is needed. In addition, there is a cutting-edge 2.5 Gigabit Ethernet port from Killer and fast Wi-Fi 6. If an optional Killer WLAN module is installed, you can activate Killer Doubleshot Pro to prioritise network traffic and run your games exclusively via the Ethernet port, while all other applications communicate via WLAN.

The XMG ULTRA 17 comes with an impressive range of connectivity options: USB-C 3.2 Gen2, three USB-A 3.2 Gen2 ports, a full-format SD card reader connected via UHS-III and a microphone input and headphone output leave nothing to be desired. The latter is fully headset-compatible, so no additional splitter is needed. In addition, there is a cutting-edge 2.5 Gigabit Ethernet port from Killer and fast Wi-Fi 6. If an optional Killer WLAN module is installed, you can activate Killer Doubleshot Pro to prioritise network traffic and run your games exclusively via the Ethernet port, while all other applications communicate via WLAN.

3x USB-C    3x USB-A    2x Mini DP    HDMI 2.1
2x Thunderbolt 4                            3.2 Gen2                            DisplayPort 1.4a                          HDCP 2.3
3x USB-C
2x Thunderbolt 4
3x USB-A
3.2 Gen2
2x Mini DP
DisplayPort 1.4a
HDMI 2.1
HDCP 2.3
XMG ULTRA Gaming-Laptop Anschlüsse
XMG ULTRA Gaming-Laptop Anschlüsse

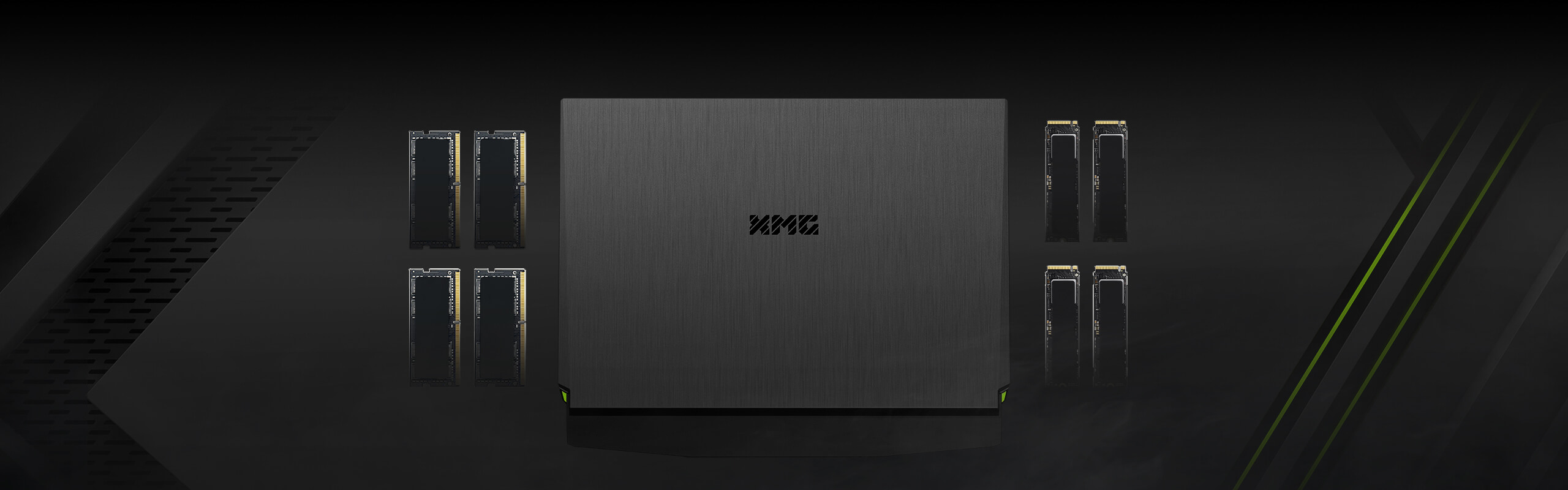

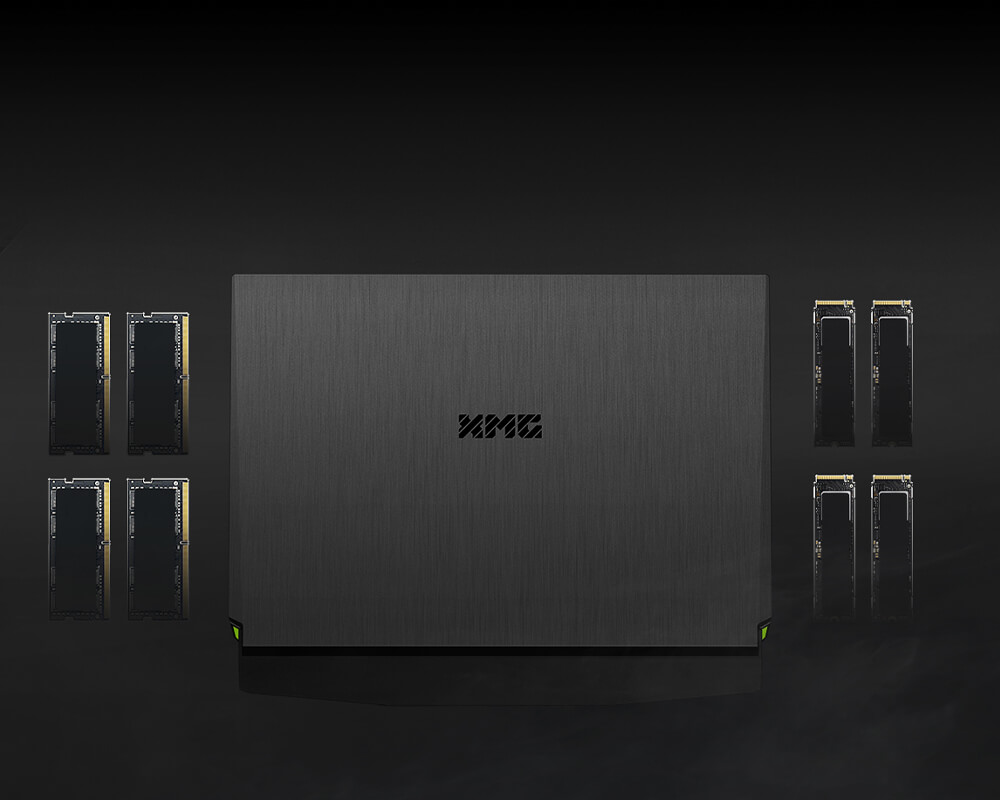

Monstrous memory expansion

Up to 128 GB of DDR4 RAM

“There’s no substitute for RAM – except more RAM!” Following this mantra, the XMG ULTRA 17 is equipped with four instead of just the more common two SO-DIMM slots, holding up to 128 GB of DDR4 RAM with a high clock frequency of up to 3200 MHz. When it comes to demanding, high-resolution video editing projects, setting up a RAM disk or multitasking with a large number of programs open at the same time, you shouldn’t have to settle with “almost enough RAM” – with the XMG ULTRA 17, you don’t have to!

The XMG ULTRA 17 has four M.2 slots for blazing-fast PCI Express SSDs and holds up to 32 TB of local high-performance storage. In combination with Intel’s latest Rocket Lake CPUs, one of the interfaces already communicates via PCI Express 4.0, thus exploiting the full potential of the world’s fastest storage drives. The remaining M.2 slots are connected via PCI-E.

XMG ULTRA 17 Gaming-Laptop Speicher
XMG ULTRA 17 Gaming-Laptop Speicher
XMG ULTRA Gaming-Laptop SuperX Fi

Immersive surround sound

Creative Super X-Fi UltraDSP

Creative’s Super X-Fi UltraDSP chip brings extraordinary surround sound to any headset. A customisable, AI-based room sound simulation tailors the sound reproduction exactly to you. For an optimal result, you can measure the shape of your head and ears in advance using a smartphone app, and the software will then take care of the fine-tuning. In terms of technical key data, the sound chip features crystal-clear 24 bit sound reproduction and a DAC with a powerful, integrated headphone amplifier.

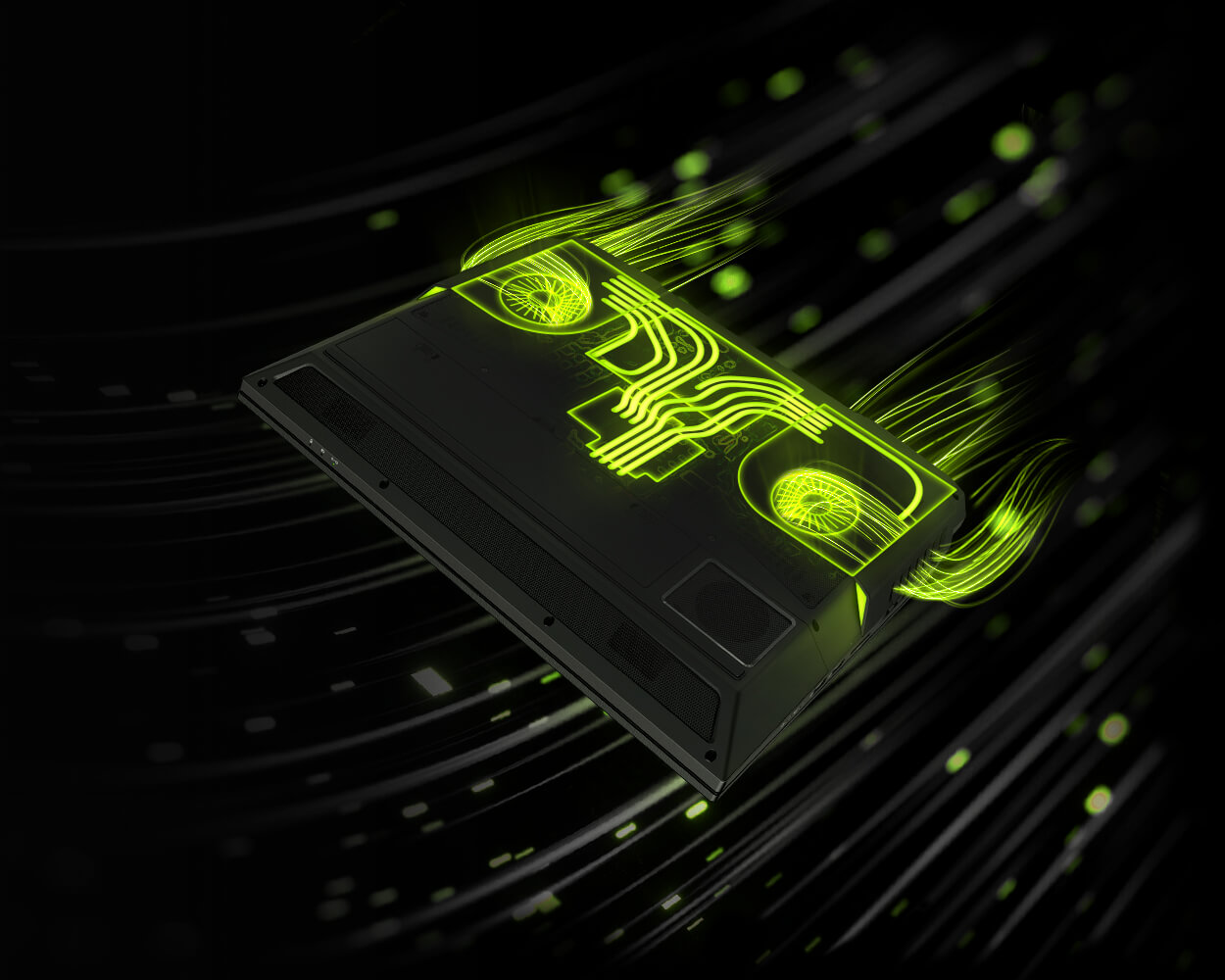

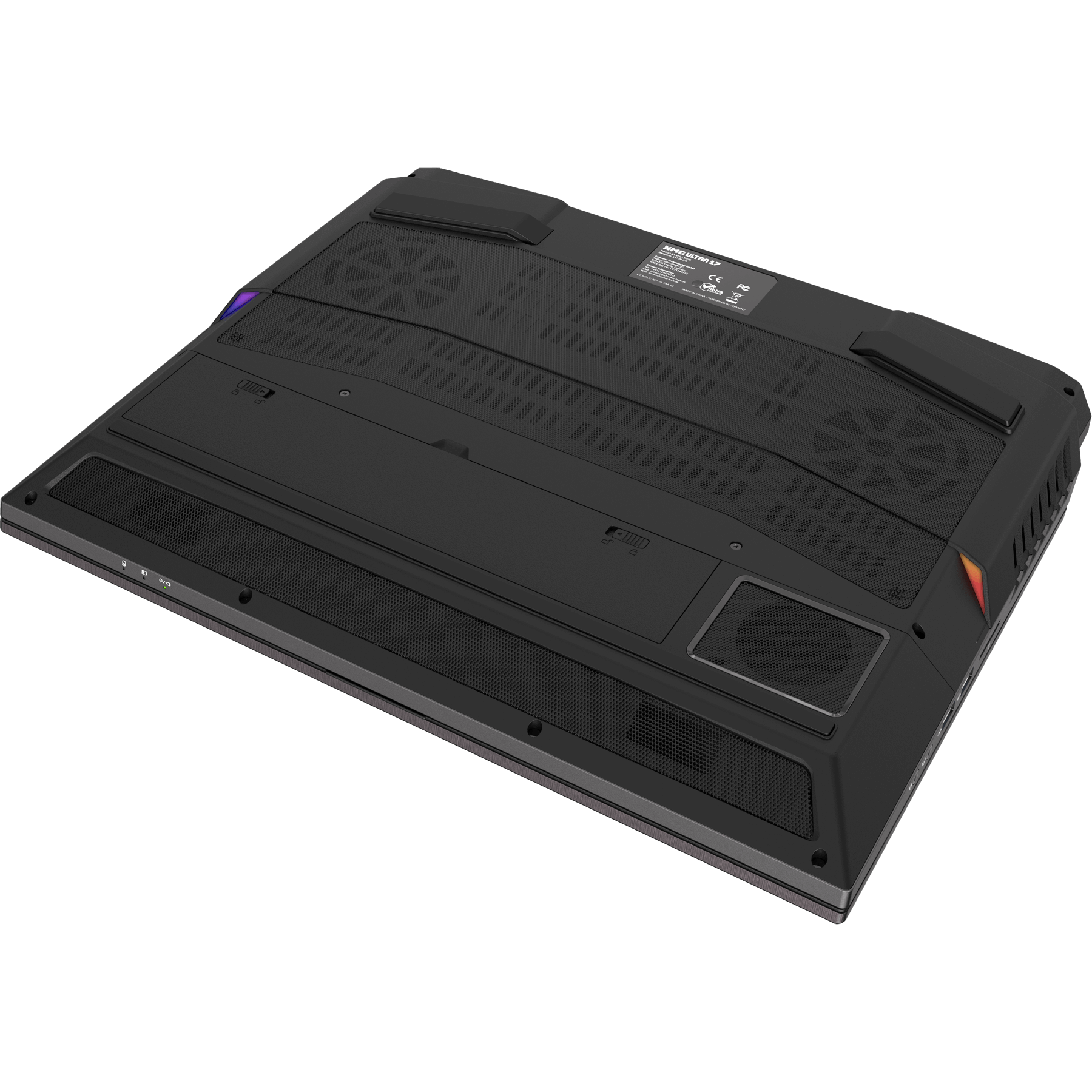

Performance - on the Rocks

Tailor-made cooling system

The key to lasting high performance lies in a cooling system that is specially tailored to the components. The XMG ULTRA 17 meets this requirement with flying colours and is effortlessly able to keep the temperatures of both the genuine desktop CPU and the performance-enhanced graphics chip in check. A smart self-cleaning function directs penetrating dust directly out of the case by means of an anti-dust tunnel. In addition, the fans have a reverse function that ensures that no dirt particles get stuck between the fins of the heat sinks – minimum maintenance, maximum performance!

XMG ULTRA Gaming-Laptop Cooling
XMG ULTRA 17 Gaming-Laptop Touchpad

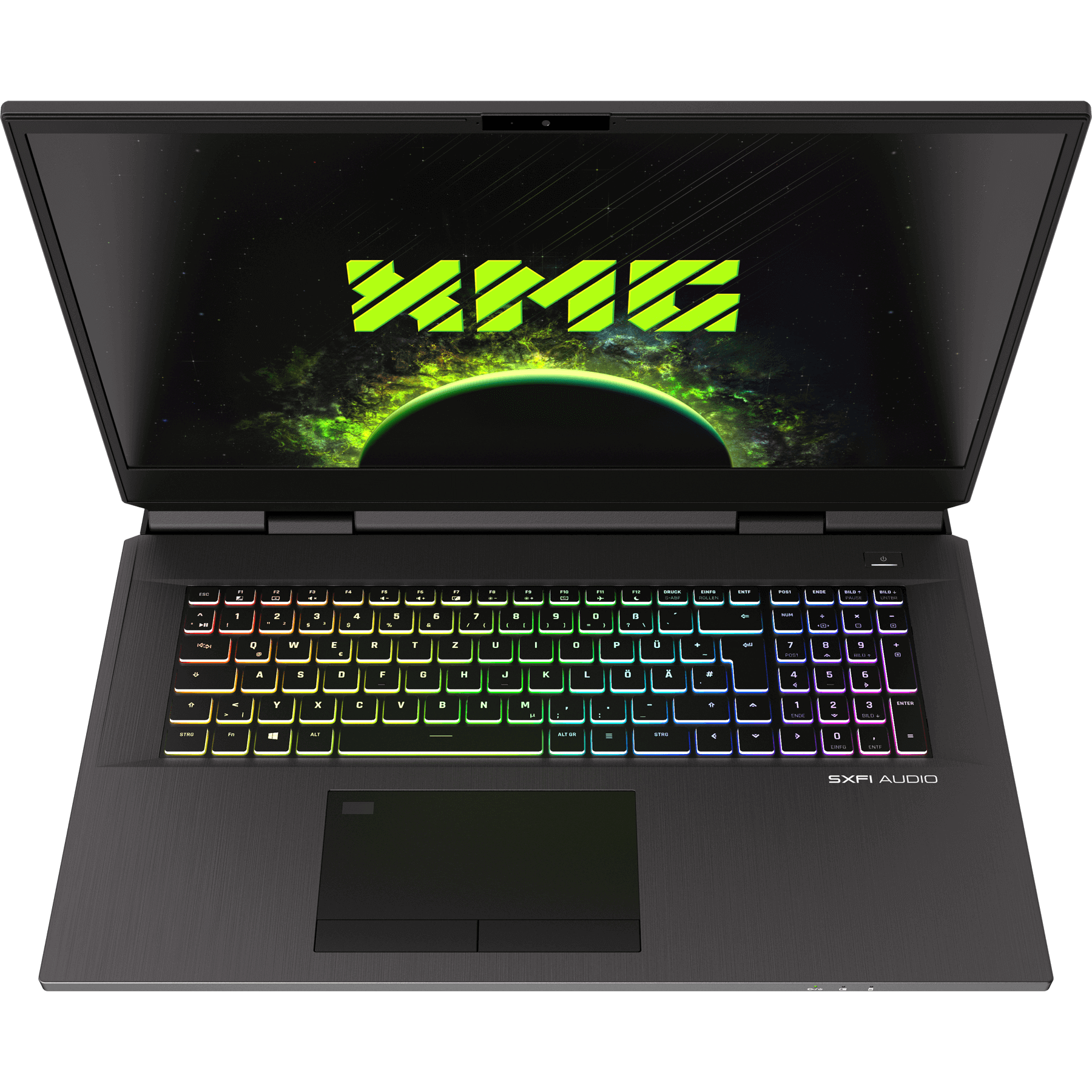

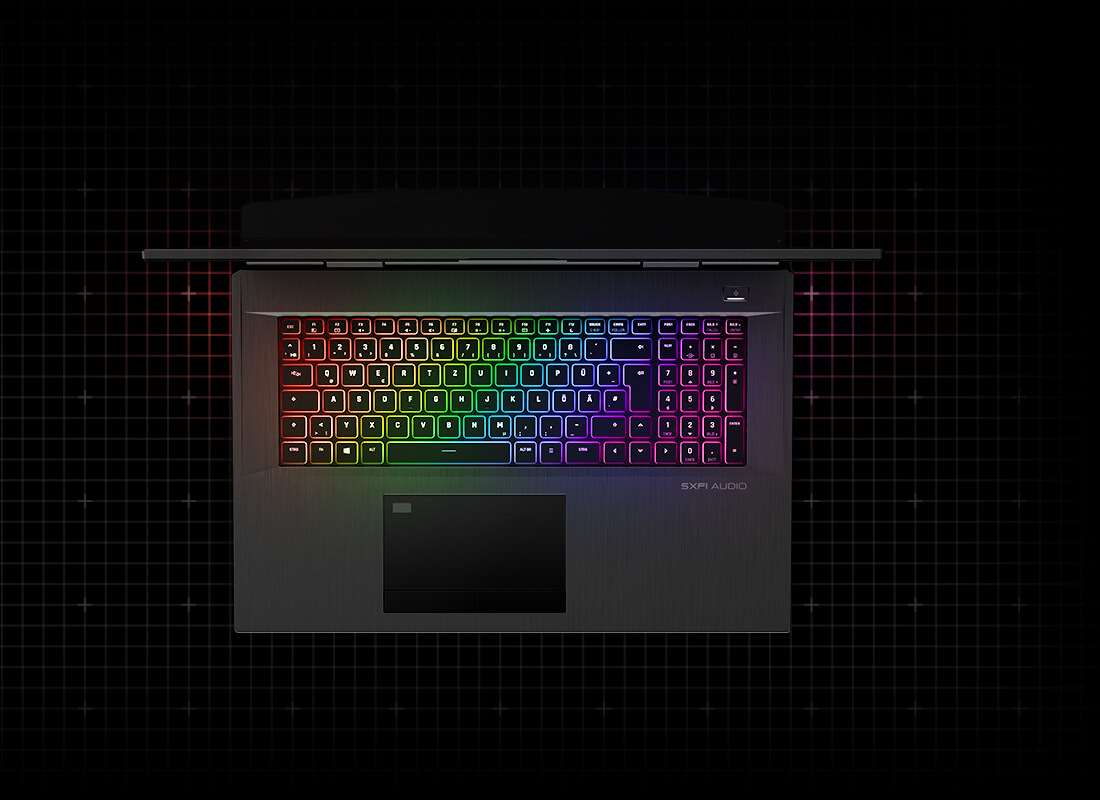

RGB, anti-ghosting and NKRO

Precise gaming keyboard

The keyboard of the XMG ULTRA 17 offers all the features that not only gamers count on: from the freely configurable RGB individual key illumination and fully comprehensive anti-ghosting, as well as N-key rollover and a first-class pressure point and precise response behaviour, the keyboard has everything you need for maximum control over the gaming action. An additional RGB LED bar on the back of the laptop shows off an even more distinct gaming look if desired.

VIDEOS & TESTS
Play Video
TECHNICAL DETAILS

XUL17E21

  • 17.3″ IPS | 1920×1080 px | G-SYNC | 300 Hz | 300 nits | 100 % sRGB | non-glare
  • 17.3″ IPS | 3840×2160 px | G-SYNC | 60 Hz | 400 nits | 100 % Adobe-RGB | non-glare

Intel Z590

10th and 11th generation Intel Core desktop processors
max. Intel Core i9-10900K | 3.7 – 5.3 GHz | 10 cores/20 threads | 20 MB cache | 125 watts
max. Intel Core i9-11900K | 3.5 – 5.3 GHz | 8 cores/16 threads | 16 MB cache | 125 watts

NVIDIA GeForce RTX 3060 | 6 GB GDDR6 | 115 W TGP (+ 15 W Dynamic Boost) | dedicated
NVIDIA GeForce RTX 3070 | 8 GB GDDR6 | 125 W TGP (+ 15 W Dynamic Boost) | dedicated
NVIDIA GeForce RTX 3080 | 16 GB GDDR6 | 150 W TGP (+ 15 W Dynamic Boost) | dedicated

Display connection: direct (no NVIDIA Optimus)
HDMI, Mini DisplayPort, DP via USB-C connection: direct
Up to 4 displays natively addressable (3x external + internal or 4x external)

VR Ready

4x DDR4 SO-DIMM, Dual Channel, up to 128 GB and 3200 MHz

1x M.2 2280 SSD via PCI Express 4.0 x4 (only usable with Intel Core i-11000)
1x M.2 2280 SSD via PCI Express 3.0 x4
2x M.2 2280 SSD via PCI Express 3.0 x4 or SATA III
RAID support (0/1/5)
RAID 0 and 1 also parallel to each other (e.g. RAID 0 on NVMe and RAID 1 on SATA)

High Definition Audio
S/PDIF-Out (optical)
Microphone with noise cancelling
2.1 speaker system
TI Smart Amp
Creative Super X-Fi UltraDSP chip
Creative Sound Blaster Atlas

Keyboard with per-key RGB backlight, numeric keypad, N-key rollover and anti-ghosting

Microsoft Precision Touchpad, two soft-touch-buttons

2x Thunderbolt 4/USB-C 4.0 Gen3x2 (DisplayPort 1.4a: yes, G-SYNC compatible | Power Delivery: no)
1x USB-C 3.2 Gen2 (DisplayPort: no | Power Delivery: no)
3x USB-A 3.2 Gen2 (1x powered)
2x Mini DisplayPort 1.4a (G-SYNC compatible)
1x HDMI 2.1 (with HDCP 2.3)
1x Headphone-Out (smartphone-headset compatible)
1x 2-in-1-Audio (Mic-In + S/PDIF optical)
1x RJ45 Port 2.5 Gbit (LAN)
1x UHS-III card reader (SD/SDHC/SDXC)

Killer E3000 2.5 GBit LAN
Killer DoubleShot Pro (in combination with Killer WiFi module)
WiFi 802.11a/b/g/n/ac/ax + Bluetooth 5
HD webcam

Kensington Lock
TPM 2.0 (Hardware)
Area Fingerprint Reader

2x 280 watts (each: 181 x 55 x 35 mm | 1.11 kg incl. EU power cable)
Incl. power supply rack

Changeable 97 Wh Li-ion battery

Display lid and top case made of metal
Display frame and bottom case made of plastic
130° display opening angle
One-hand opening
configurable RGB LED bar

Ca. 4.6 kg

399 x 319 x 43.5 mm (W x D x H)

Laptop (incl. battery), power supply, driver CD/USB-Stick, manual
