XMG PRO 17

UNCHAIN YOURSELF

As an all-around convincing gaming workstation with precise high-resolution displays, the XMG PRO 17 comes equipped with everything that demanding gamers and creatives need – from the latest high-end components to maximum connectivity.

As an all-around convincing gaming workstation with precise high-resolution displays, the XMG PRO 17 comes equipped with everything that demanding gamers and creatives need – from the latest high-end components to numerous ports. With a larger and more powerful cooling system compared to its predecessor, the laptop unleashes the performance potential of the fastest Intel processors and NVIDIA graphics cards at a very high level. With up to 64 GB of plugged-in memory and two M.2 slots for fast NVMe SSDs connected via PCI Express 4.0, you’ll be ready for any task. The sturdy, part-aluminium chassis gives the PRO 17 a first-class finish.

Temperatures down, performance up!
Liquid Metal Pad cooling

In addition to its fundamentally revised cooling system, the new XMG PRO 17 has been finely tuned – representing the first XMG model series to use liquid metal pads for cooling both the processor and the graphics chip. Thanks to their high thermal conductivity, the pads enable excellent heat transfer compared to conventional thermal conductors – and also provide significantly higher durability in long-term use.

XMG PRO E22 LP Feature 01 Liquid Metal 1
XMG PRO E22 LP Feature 01 Liquid Metalmobile 1
XMG PRO E22 LP Feature 02 Intel 1
Intel Core i7 & i9 CPUs

With 14 cores and 20 threads, Intel’s Core i9-12900H and Core i7-12700H in the XMG PRO 17 belong to the new elite of mobile processors. The hybrid CPUs from the 12th Core generation (codename: Alder Lake) combine six performance cores with eight efficiency cores and achieve a marked performance increase of around 20 % compared to the previous generation in demanding multi-core applications.

XMG PRO E22 LP Feature 02 RTX
RTX 3000 now with Ti

NVIDIA’s GeForce RTX 3080 Ti with 16 GB, the 3070 Ti with 8 GB and the 3060 with 6 GB GDDR6 memory form the technological spearhead among laptop GPUs. The new XMG PRO 17 moves away from the original Thin&Light approach, upgrading the cooling system to allow the graphics cards to operate within higher power limits and draw more performance – perfect for GPU acceleration of your professional, creative applications and for gaming in high resolutions at maximum graphics detail.

Accurate colour reproduction & G-SYNC capable

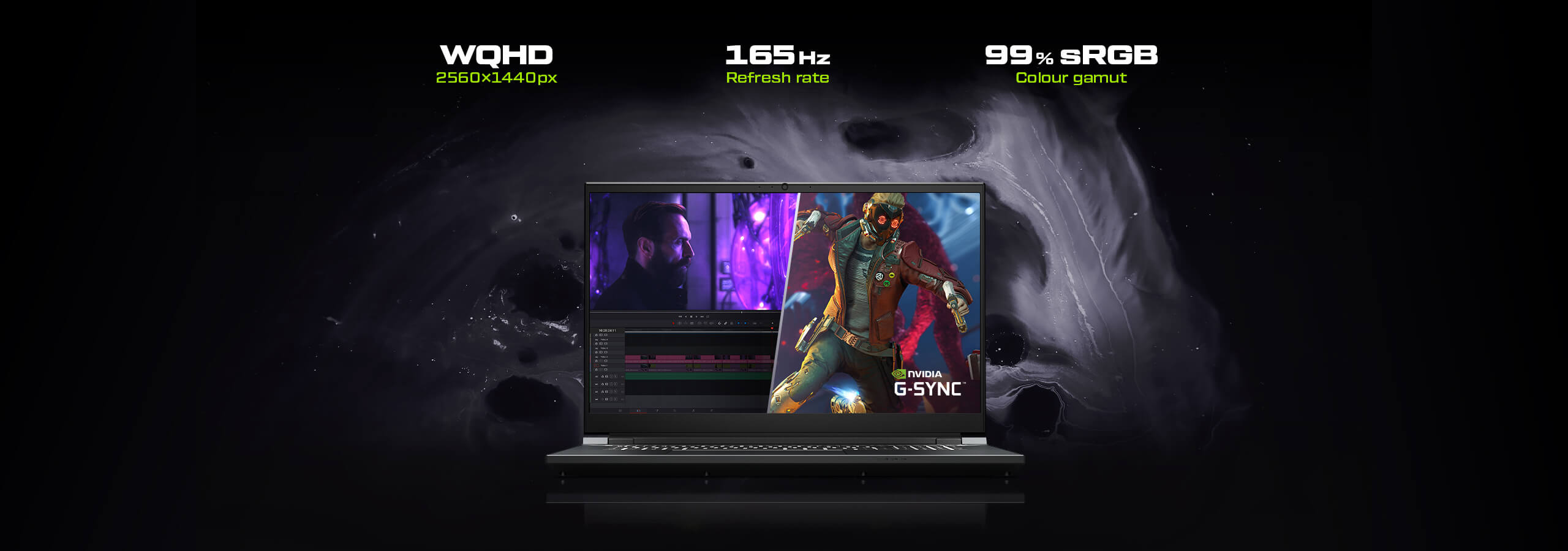

WQHD-Display with 165 Hz

Optimal for gamers and creative tasks: The 17.3 inch high-resolution WQHD display (2560 x 1440 pixels) combines a refresh rate of 165 Hz with NVIDIA G-SYNC and Advanced Optimus for maximum smooth, crisp gaming with minimal input lag and without annoying tearing effects. Thanks to almost 100 % sRGB and DCI-P3 colour space coverage, the high-contrast IPS panel, with its intensive colour display, is also ideally suited for colour-conscious work.

XMG PRO 17 E22 LP Feature 03 Display WQHD EN
Precision in maximum resolution
4K-IPS-Display

A top-quality IPS panel running at 4K 3840 x 2160 pixel resolution and with a 100 % coverage of the extended Adobe RGB colour space: the colour-calibrated and X-Rite-certified Ultra HD display targets the critical demands of ambitious and professional users from the fields of photo, image and video editing. Additional features include a high viewing angle stability, intense colour reproduction and very good black levels paired with a high-contrast level.

XMG PRO 15 E22 LP Feature 03 Display UHD EN
Accurate colour reproduction & G-SYNC capable

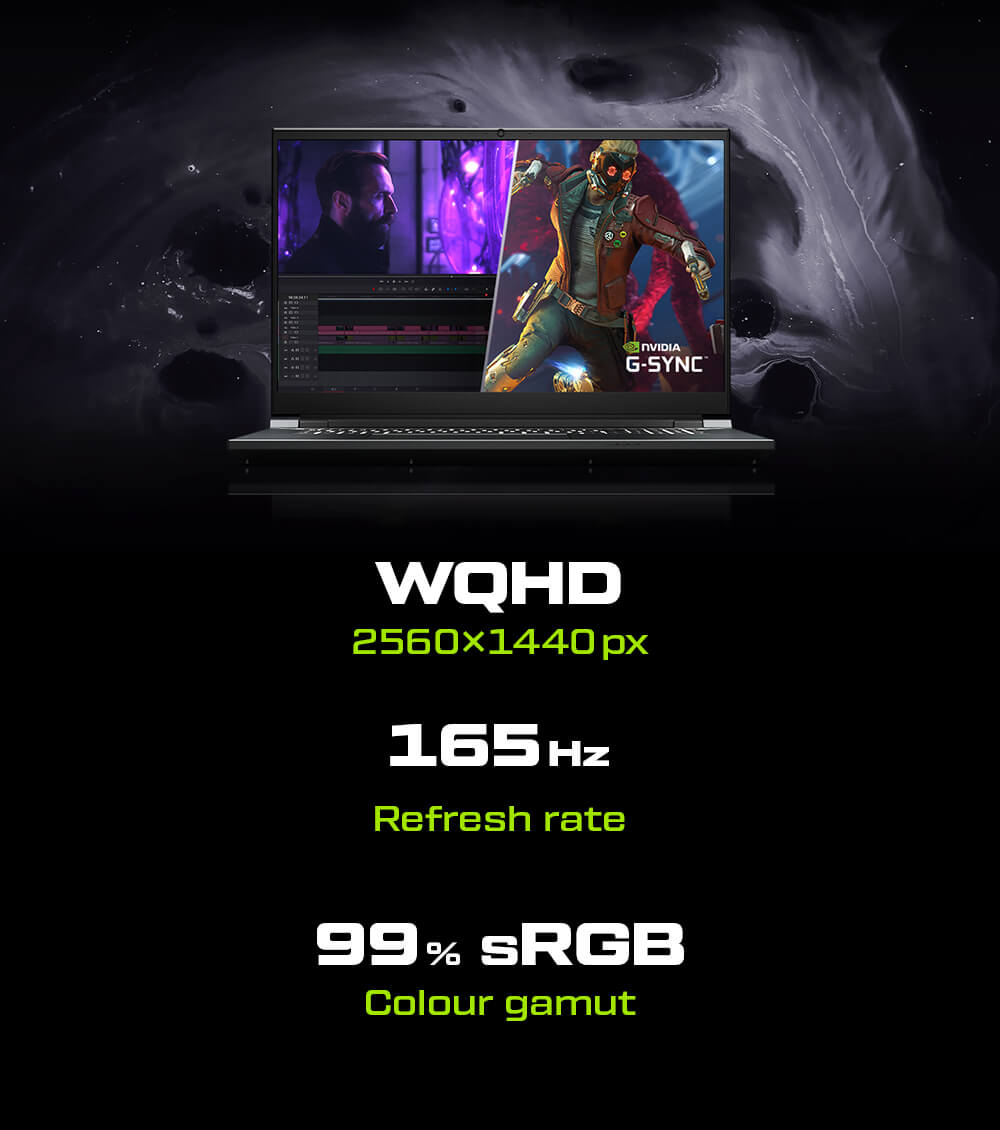

WQHD-Display with 165 Hz

Optimal for gamers and creative tasks: The 17.3 inch high-resolution WQHD display (2560 x 1440 pixels) combines a refresh rate of 165 Hz with NVIDIA G-SYNC and Advanced Optimus for maximum smooth, crisp gaming with minimal input lag and without annoying tearing effects. Thanks to almost 100 % sRGB and DCI-P3 colour space coverage, the high-contrast IPS panel, with its intensive colour display, is also ideally suited for colour-conscious work.

XMG PRO 17 E22 LP Feature 03 Display WQHD mobile EN
Precision in maximum resolution

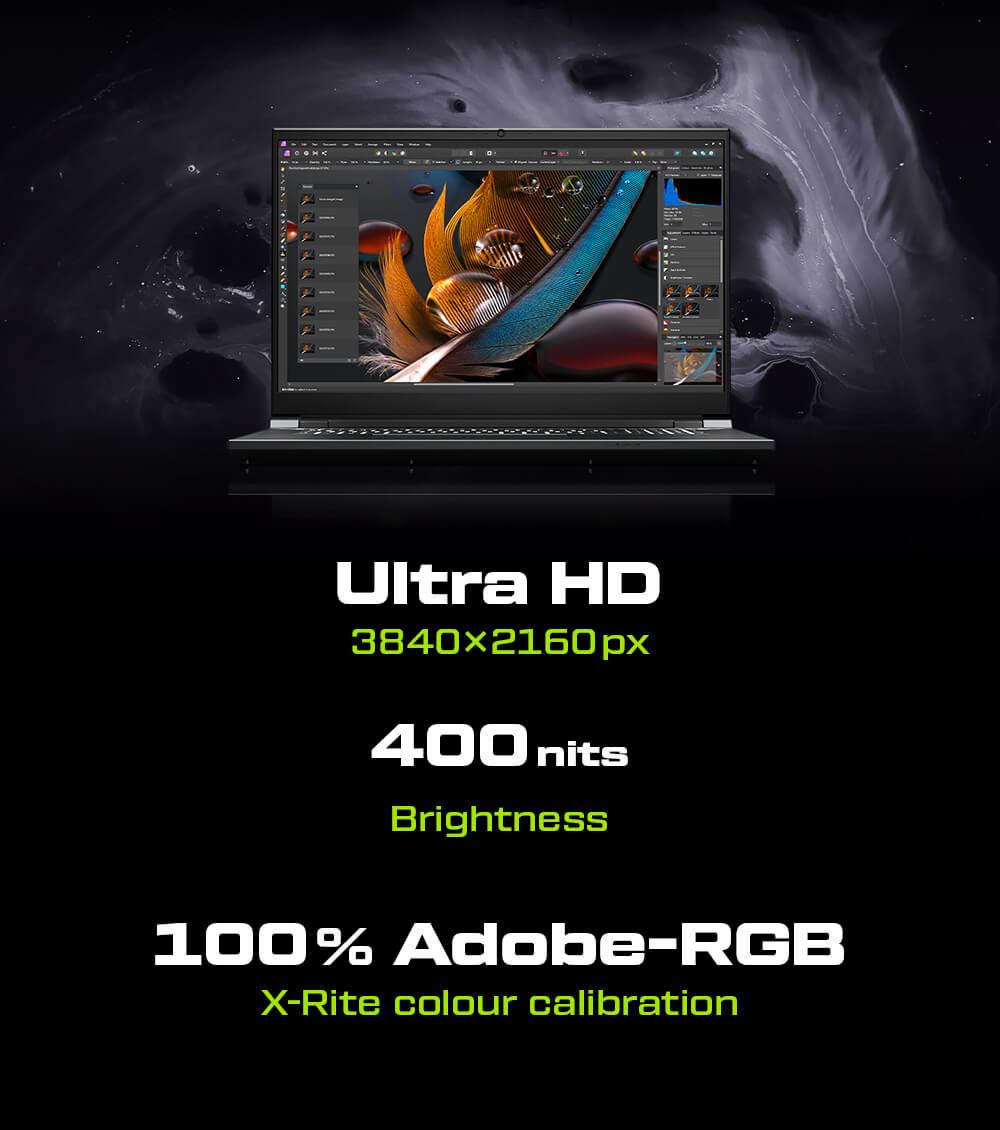

4K-IPS-Display

A top-quality IPS panel running at 4K 3840 x 2160 pixel resolution and with a 100 % coverage of the extended Adobe RGB colour space: the colour-calibrated and X-Rite-certified Ultra HD display targets the critical demands of ambitious and professional users from the fields of photo, image and video editing. Additional features include a high viewing angle stability, intense colour reproduction and very good black levels paired with a high-contrast level.

XMG PRO 17 E22 LP Feature 03 Display UHD mobile EN
XMG PRO 15 E22 LP Feature 03.1 NVIDIA Advanced Optimus
MUX-Switch & NVIDIA Advanced Optimus

Advanced Optimus is an innovative NVIDIA technology that allows fully automatic switching of the laptop display’s connection between the high-performance NVIDIA graphics chip and the processor’s efficient, integrated GPU on the fly. In games, the direct connection to the dGPU ensures more performance and the lowest possible input lag, whereas the advantage of switching to the iGPU is its higher efficiency and resulting longer battery life. NVIDIA Advanced Optimus is available on the XMG PRO 17 for the G-SYNC capable WQHD display at 165 Hz.

Native connectivity for

In the professional field, multi-monitor setups increase productivity and are also increasingly used in gaming and streaming setups. The XMG PRO 17 can natively drive up to four external displays in addition to its internal display: via HDMI 2.1, Mini DisplayPort 1.4, and a DisplayPort-enabled USB-C port, all of which connect directly to the powerful NVIDIA dGPU to support G-SYNC, NVIDIA Surround and all the latest VR headsets, as well as via a Thunderbolt 4 port coupled to Intel’s efficient iGPU.

Native connectivity for
4 external monitors

In the professional field, multi-monitor setups increase productivity and are also increasingly used in gaming and streaming setups. The XMG PRO 17 can natively drive up to four external displays in addition to its internal display: via HDMI 2.1, Mini DisplayPort 1.4, and a DisplayPort-enabled USB-C port, all of which connect directly to the powerful NVIDIA dGPU to support G-SYNC, NVIDIA Surround and all the latest VR headsets, as well as via a Thunderbolt 4 port coupled to Intel’s efficient iGPU.

XMG PRO 15 E22 LP Feature 04 Multi Monitor
XMG PRO 15 E22 LP Feature 04 Multi Monitor MOBILE
Flexible high-end interface
Thunderbolt 4

Thunderbolt 4 is the ideal interface for high-speed data transfer and functional expansion of the laptop: The record-breaking performance of the versatile port is not only used for copying large amounts of data at up to 40 Gbit/s. It is also the basis for connecting powerful, modern docking stations that connect the XMG PRO 17 to a complete work environment via just one cable – including multi-monitor setups, network connection, printer, mouse and keyboard.

Flexible high-end interface
Thunderbolt 4

Thunderbolt 4 is the ideal interface for high-speed data transfer and functional expansion of the laptop: The record-breaking performance of the versatile port is not only used for copying large amounts of data at up to 40 Gbit/s. It is also the basis for connecting powerful, modern docking stations that connect the XMG PRO 17 to a complete work environment via just one cable – including multi-monitor setups, network connection, printer, mouse and keyboard.

XMG PRO 15 E22 LP Feature 05 Thunderbolt 1
XMG PRO 15 E22 LP Feature 05 Thunderbolt mobile
Best equipped
Connectivity Champion

Complementing its Thunderbolt 4 and USB-C 3.2 interfaces, the XMG PRO 17 offers two USB-A 3.2 ports, a gigabit LAN port, fast Wi-Fi 6 for wireless network access and a microSD card reader. Separate inputs and outputs for headphones and microphone round off the complete package. The microphone port also supports an optical S/PDIF signal. A high-resolution Full HD webcam with Temporal Noise Reduction for intelligent image enhancement is available for video chats in high quality.

XMG PRO 15 E22 LP Feature 06 Ports DE
XMG_PRO-15-E22_LP_Feature_06_Ports_mobile

Complementing its Thunderbolt 4 and USB-C 3.2 interfaces, the XMG PRO 17 offers two USB-A 3.2 ports, a gigabit LAN port, fast Wi-Fi 6E for wireless network access and a microSD card reader. Separate inputs and outputs for headphones and microphone round off the complete package. The microphone port also supports an optical S/PDIF signal. A high-resolution Full HD webcam with Temporal Noise Reduction for intelligent image enhancement is available for video chats in high quality.

RGB illuminated
full-size keyboard

Style and functionality go hand in hand on the XMG PRO 17’s multi-typist keyboard. A dedicated, full-fledged numeric keypad, navigation keys and separate full-size arrow keys increase input comfort in productive use. In addition to a clearly defined pressure point for precise keystrokes, the keyboard exudes plenty of RGB charm if desired – either through various lighting effects or an own setup, thanks to the freely adjustable per-key illumination. The brightness level can be adjusted in several steps. 

XMG_PRO-15-E22_LP_Feature_07_Keyboard
XMG_PRO-15-E22_LP_Feature_07_Keyboard_mobile

Style and functionality go hand in hand on the XMG PRO 17’s multi-typist keyboard. A dedicated, full-fledged numeric keypad, navigation keys and separate full-size arrow keys increase input comfort in productive use. In addition to a clearly defined pressure point for precise keystrokes, the keyboard exudes plenty of RGB charm if desired – either through various lighting effects or an own setup, thanks to the freely adjustable per-key illumination. The brightness level can be adjusted in several steps. 

Effizient & ausdauernd
Lange Akkulaufzeit
Moderne Komponenten, ein effizientes Energiemanagement und ein großzügiger 80-Wattstunden-Akku legen im XMG PRO 15 den Grundstein für komfortabel lange Akkulaufzeiten von bis zu einem ganzen Arbeitstag. In typischen Office-Szenarien zeichnen sich etwa Intels neue Mobil-CPUs aus der 12. Core-Generation durch einen ausgesprochen effizienten Betrieb aus. Je nach Ausstattungsvariante des Laptops bieten ein MUX-Switch oder NVIDIA Advanced Optimus zusätzliches Energiesparpotenzial.
XMG PRO 15 E22 LP Feature 08 Akku
XMG PRO 15 E22 LP Feature 08 Akku mobile
Moderne Komponenten, ein effizientes Energiemanagement und ein großzügiger 80-Wattstunden-Akku legen im XMG PRO 15 den Grundstein für komfortabel lange Akkulaufzeiten von bis zu einem ganzen Arbeitstag. In typischen Office-Szenarien zeichnen sich etwa Intels neue Mobil-CPUs aus der 12. Core-Generation durch einen ausgesprochen effizienten Betrieb aus. Je nach Ausstattungsvariante des Laptops bieten ein MUX-Switch oder NVIDIA Advanced Optimus zusätzliches Energiesparpotenzial.
VIDEOS & TESTS
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
Play Video about XMG NEO 15 OASIS Jarrod
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
TECHNICAL DETAILS
XPR17E22
  • 17.3″ IPS | 2560×1440 px | 165 Hz (alternatively 60 Hz settable) | 300 nits | 99 % sRGB/DCI-P3 | G-SYNC | non-glare
  • 17.3″ IPS | 3840×2160 px | 60 Hz | 400 nits | 100 % Adobe-RGB | colour calibrated (powered by X-Rite) | non-glare
  • Intel Core i7-12700H | 6 P- & 8 E-core/20 threads | up to 4.7 GHz | 24 MB cache | 45+ W TDP
  • Intel Core i9-12900H | 6 P- & 8 E-cores/20 threads | up to 5.0 GHz | 24 MB cache | 45+ W TDP



Liquid Metal Pad ex factory

  • Intel Iris Xe Graphics | 96 Execution Units | integrated (iGPU)

  • NVIDIA GeForce RTX 3070 Ti | 8 GB GDDR6 | 110 W TGP (+ 15 W Dynamic Boost 2.0) | dedicated (dGPU)

  • NVIDIA GeForce RTX 3080 Ti | 16 GB GDDR6 | 120 W TGP (+ 15 W Dynamic Boost 2.0) | dedicated (dGPU)



Liquid Metal Pad ex factory

  • 1440p display connection: iGPU with NVIDIA Optimus or dGPU (via Advanced Optimus/MUX-Switch)
  • 2160p display connection: iGPU with NVIDIA Optimus
  • HDMI, Mini DisplayPort, DP via USB-C connection: dGPU
  • DP via TB4/USB-C connection: iGPU with NVIDIA Optimus
  • 4 external displays directly addressable (more with MST adapter via USB-C or Mini DisplayPort)



VR Ready

2x DDR4 SO-DIMM | up to 64 GB and 3200 MHz | Dual Channel | max. 1.2 V

2x M.2 2280 SSD via PCI Express 4.0 x4 (suppports RAID 0/1)

  • stereo speakers
  • smart Amplifier
  • S/PDIF-out (optical)
  • microphone with noise cancelling
  • Sound Blaster Atlas

keyboard with per-key RGB backlight, full-fledged numeric keypad and full-size arrow keys

Microsoft Precision Touchpad, two integrated buttons | 119 x 71 mm (W x D)

Left:

  • 2-in-1 audio (mic-in or S/PDIF optical)
  • headphone-out (compatible with combo jack headsets)
  • 2x USB-A 3.2 Gen1 (powered)



Rear:

  • Mini DisplayPort 1.4 (G-SYNC compatible)
    HDMI 2.1 (G-SYNC compatible | HDCP 2.3)
  • Thunderbolt 4/USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes | Power Delivery: no)
  • DC-in



Right:

  • RJ45 Port (LAN)
  • USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes, G-SYNC compatible | Power Delivery: no)
  • microSD card reader
  • Realtek Gigabit LAN
  • Wi-Fi 802.11a/b/g/n/ac/ax + Bluetooth 5
  • Full HD webcam with Temporal Noise Reduction
  • Kensington Lock
  • TPM 2.0 (via Intel PTT)

230 watts (155 x 75 x 26 mm | 720 g incl. EU power cable)

  • changeable 80 Wh Li-Poly-battery (internally screwed)
  • flexible battery charging function can be activated in BIOS (FlexiCharger)
  • display lid and bottom case made of aluminium
  • display frame and top case made of plastic
  • 135° display opening angle
  • PH 0 screw heads
  • one-hand opening
  • ca. 2,8 kg

396 x 262 x 24,9 mm (W x D x H)

  • laptop (incl. battery)
  • power supply
  • driver USB stick
