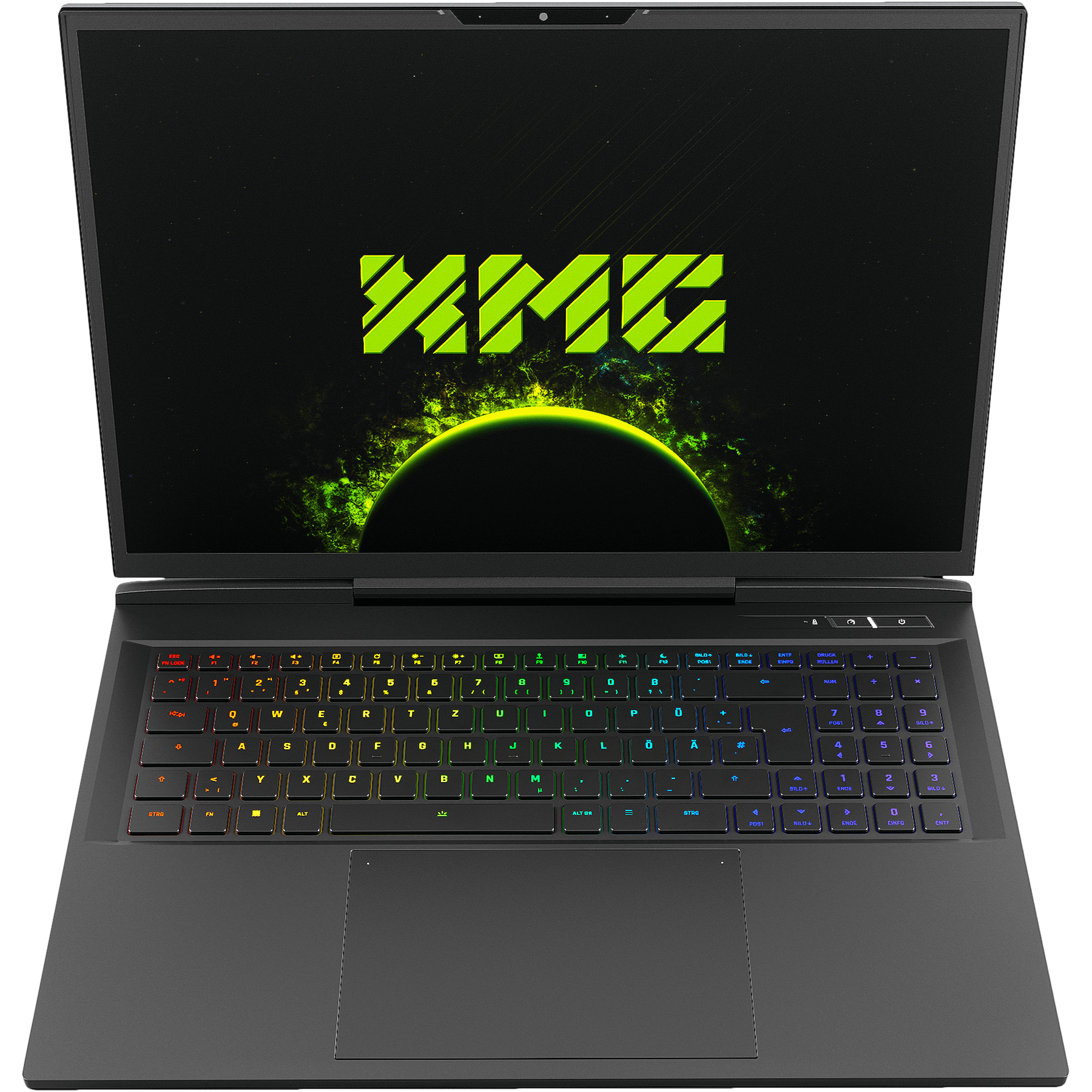

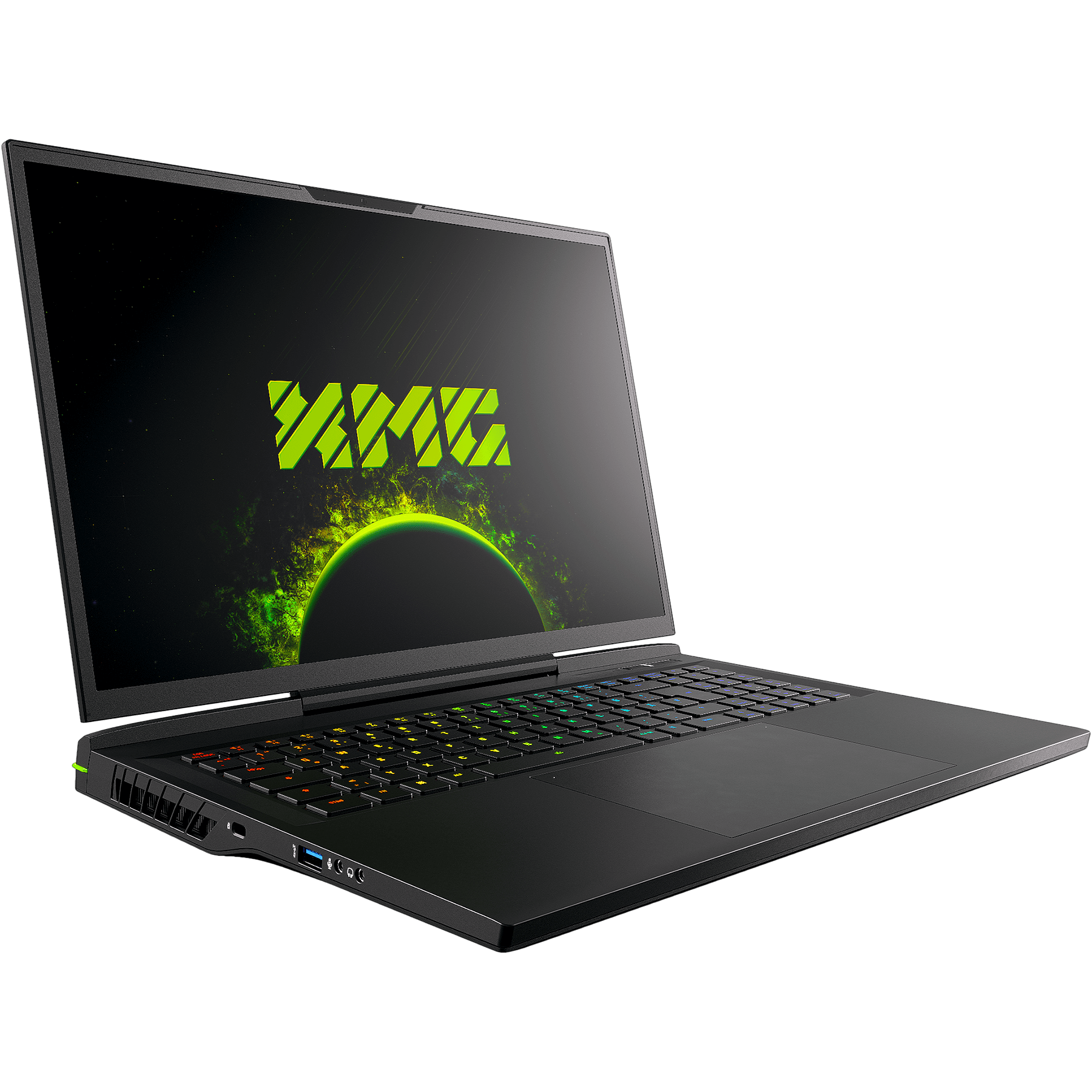

XMG NEO 17

THE ANSWER

The XMG NEO 17 represents the pinnacle of uncompromising laptop performance – with the latest high-end components, fully exploited power limits, an impressive cooling system and features that are second to none.

Boasting a high-resolution 16:10 G-SYNC display with 2,560 x 1,600 pixels, 240 Hz, and high colour accuracy, the laptop is made for gamers and creatives. The keyboard is available with a choice of a uniquely precise model with mechanical CHERRY MX ULP Tactile switches or a silent membrane keyboard. With up to 64 GB of plugged-in DDR5 memory, optional CPU undervolting and RAM tuning as well as two M.2 slots for fast PCIe 4.0 SSDs, the NEO 17 is optimally equipped. In addition, configurations with a GeForce RTX 4090 or 4080 are XMG OASIS Ready.

RTX 40 graphics cards unleashed
The World's Fastest Laptop GPUs

All graphics cards available in the NEO 17 operate within their maximum allowable power limits in order to release their full performance potential. The top-of-the-line trim features the groundbreaking NVIDIA GeForce RTX 4090, the fastest laptop GPU ever, with 16 GB of GDDR6 memory and a sustained performance of up to 175 watts for demanding ray tracing, high-resolution graphics detail, and extreme 3D acceleration: perfect for gaming and content creation. AI-based technologies such as DLSS 3.5 provide you with unprecedented FPS values even at maximum resolution settings.

Cherry Feature

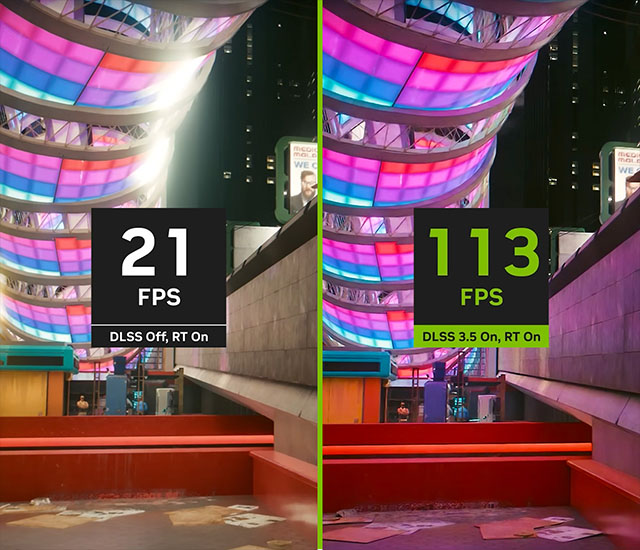

DLSS 3
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series Laptop GPUs, DLSS 3 uses AI to create additional high-quality frames.
Cherry Feature
Dynamic Boost
AI-powered Dynamic Boost now automatically optimizes power between the GPU, GPU memory, and CPU for more performance. The AI networks in Dynamic Boost manage power on a per-frame basis, so your laptop is constantly optimizing for maximum performance while you’re gaming and creating.
media
Advanced Optimus
Advanced Optimus automatically switches between your GeForce GPU and integrated graphics to drive your system’s display. This delivers maximum performance and optimal battery life while reducing system latency. Advanced Optimus also enables all the benefits of G-SYNC displays for the smoothest, tear-free, desktop-quality gameplay - right on your laptop.
Intel Core i9-14900HX
Uncompromising performance

Intel’s Core i9-14900HX is the undisputed champion of maximum mobile performance. The impressive laptop CPU with desktop DNA unleashes the limitless performance of 24 cores, 32 threads and a whopping 36 MB Intel Smart Cache in the NEO 17. Thanks to the modern Raptor Lake Refresh architecture, this truly impressive processor takes the performance crown in all single and multi-threaded applications and, with a boost clock of up to 5.8 GHz, delivers maximum power in every possible area of application.

XMG NEO 17 E24 LP Feature 02 CPU Desktop
XMG NEO 17 E24 LP Feature 02 CPU Mobile
High-end composite system
Best-in-class cooling

The highly effective cooling system of the XMG NEO 17, which is perfectly tailored to the installed components, is one of the most striking features of this gaming laptop trimmed for ultimate performance. The comprehensive composite system boasts separate heat sinks at all four air outlets, while the two smooth-running fans are characterized by an unobtrusive, low-frequency sound characteristic. This enables full utilisation of your high-end components’ performance!

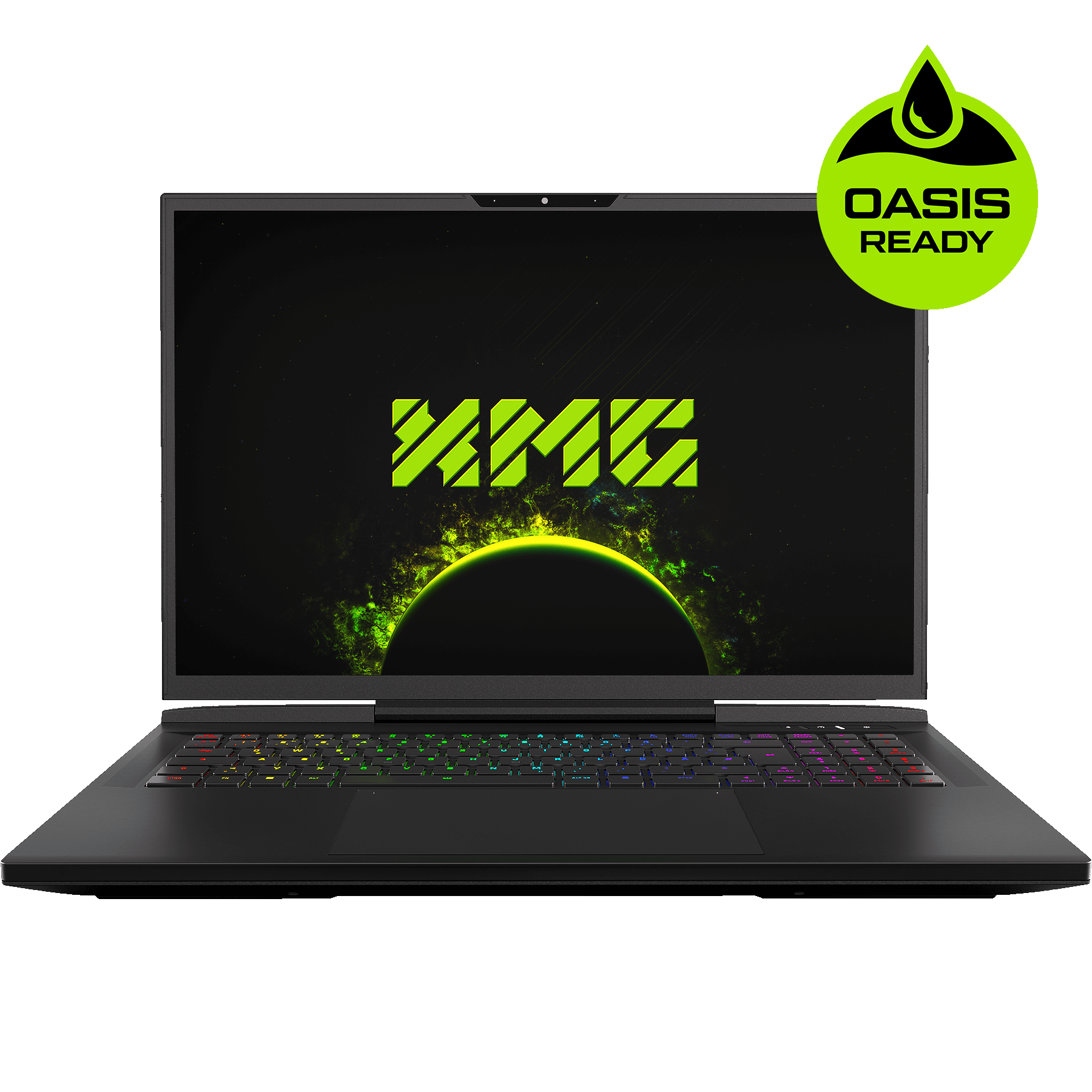

XMG OASIS Ready
Whisper-quiet gaming

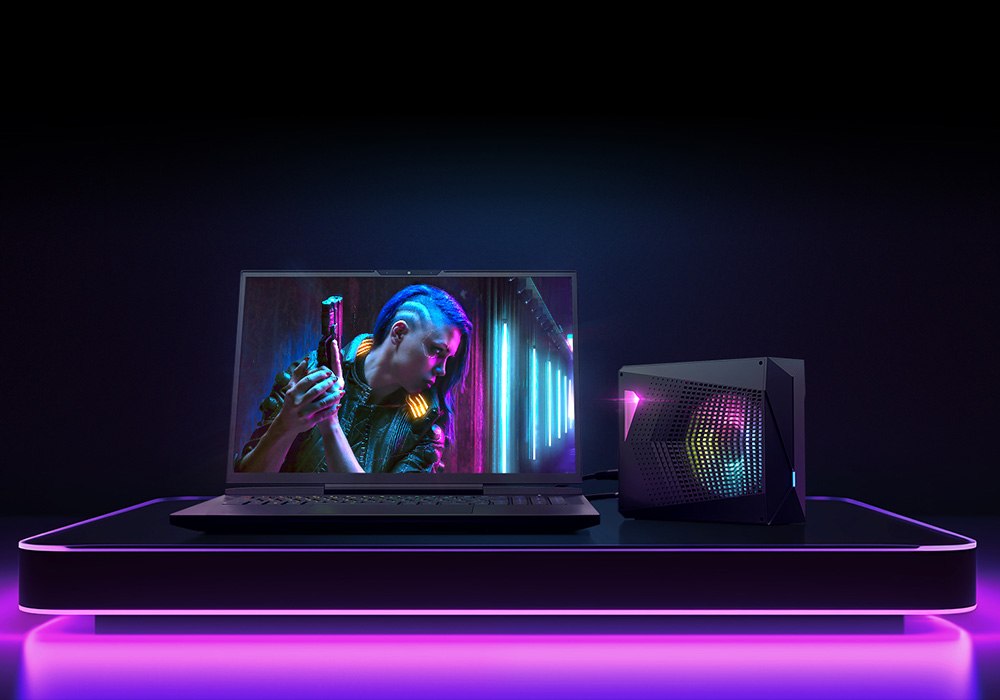

With the XMG OASIS, you can expand the possibilities of the two top configurations of the XMG NEO 17 (with RTX 4090 or 4080) with an optional external laptop liquid cooling system. While the conventional high-end cooling system of this laptop is already able to permanently get the maximum performance out of the components, an upgrade by the OASIS ensures significantly reduced CPU and GPU temperatures with unmatched quiet operation, even under full load. Additional optimisations in the laptop interior help the water cooling to dissipate the processor’s excess heat even more efficiently.



If you are interested in a laptop with RTX 4060 or 4070 and OASIS support, check out the XMG NEO 17 (E23).

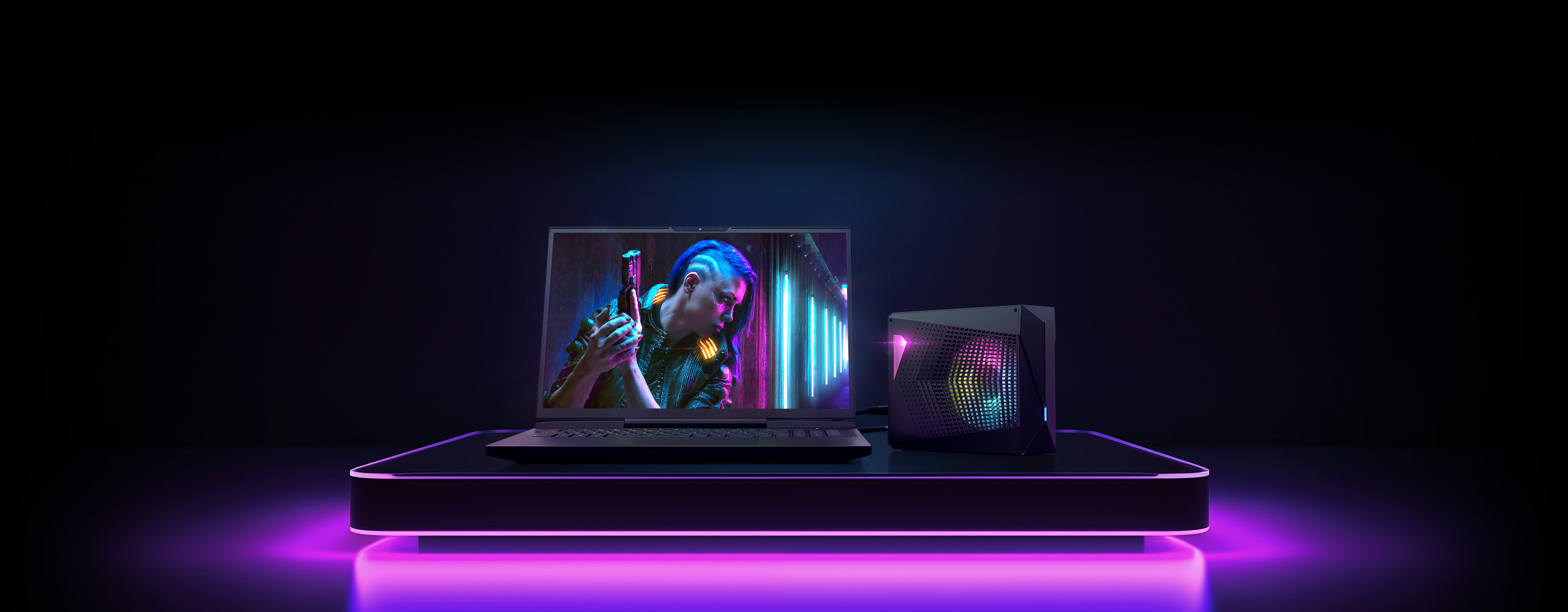

XMG NEO 17 E24 LP Feature 04 OASIS Desktop 1
XMG NEO 17 E24 LP Feature 04 OASIS Mobile 1
RGB keyboard with CHERRY MX switches
Maximum precision

The XMG NEO 17’s expansive keyboard offers everything required for precise gaming, including N-key rollover, anti-ghosting, a dedicated numeric keypad and full-size arrow keys. The high-end variant relies on CHERRY’s Ultra Low Profile Tactile Switches – the thinnest, fully mechanical switches ever designed for laptops. These feature clearly defined feedback, excellent durability and freely programmable per-key RGB illumination. Alternatively, the NEO 17 also offers a silent keyboard option with membrane switches and four-zone RGB lighting.

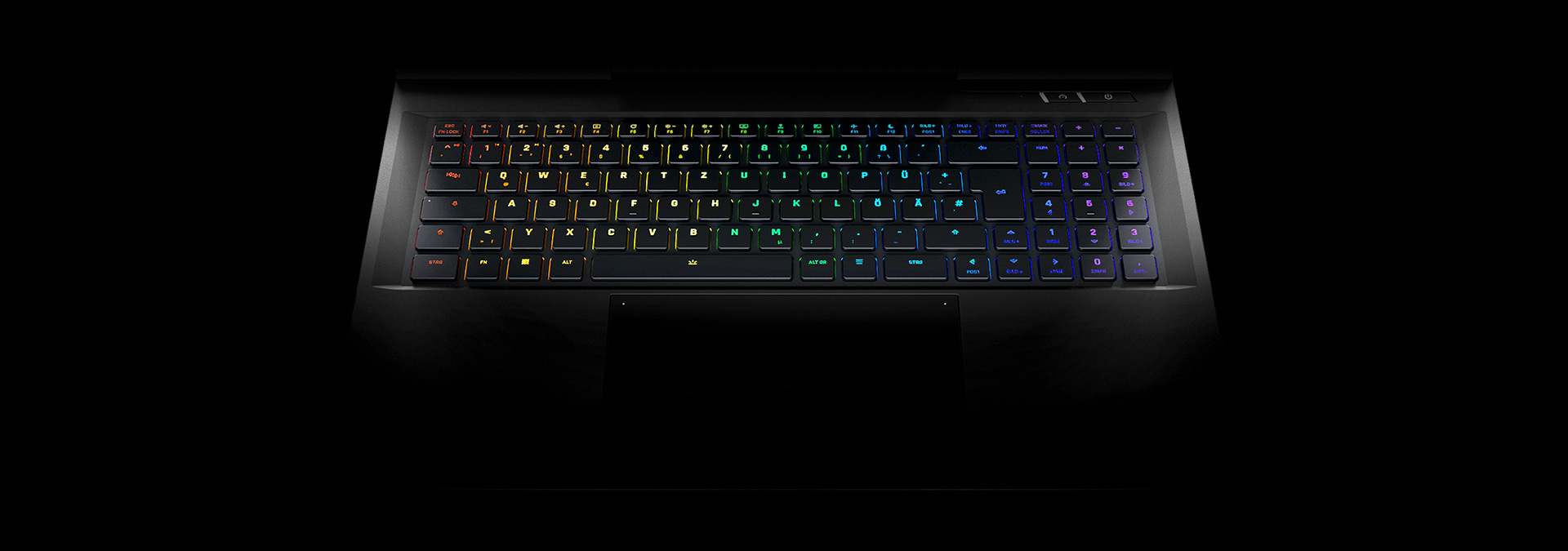

XMG NEO 17 M22 LP Feature 01 Cherry Desktop v2

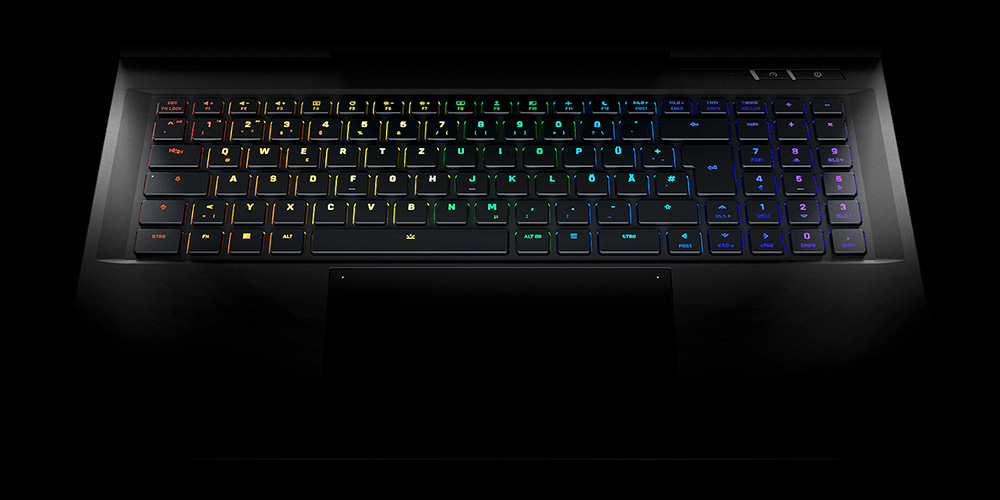

XMG NEO 17 M22 LP Feature 01 Cherry Mobile v2
United in perfection
Two established German manufacturers, known for their demand for perfection in their respective sectors and worldwide reputation in the gaming community, have come together. The XMG NEO 17 integrates CHERRY's leading MX technology - Made in Germany and the logical choice for the best esports and gaming laptop of all time.
First class durability

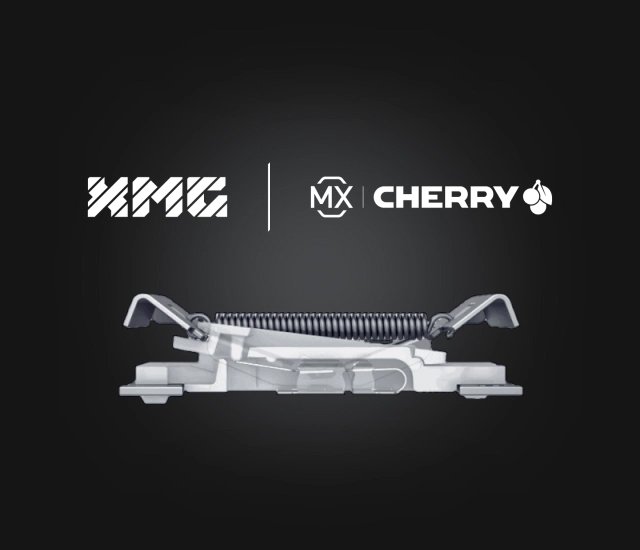

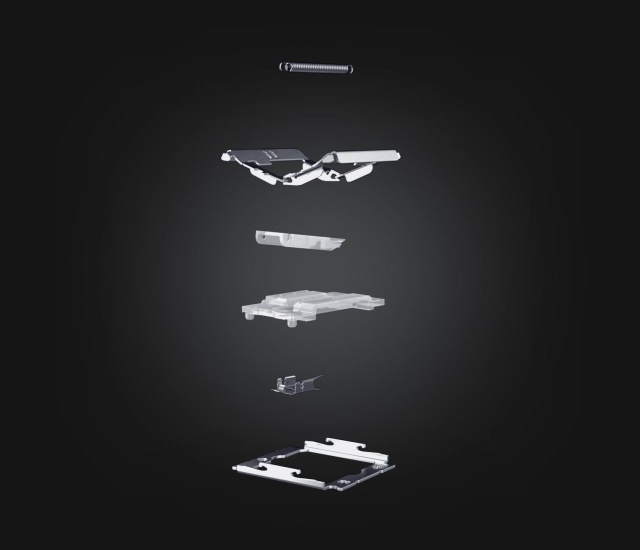

The gold-based crosspoint contact system is the heart of every CHERRY MX switch and the basis for its high reliability and durability. The triangular cross contacts meet with absolute precision at exactly right angles. This unique CHERRY innovation and the artistic gold plating make the electrical contact housing selfcleaning and give the key switch lasting protection against corrosion and an unsurpassed service life.
media
Lightning fast input

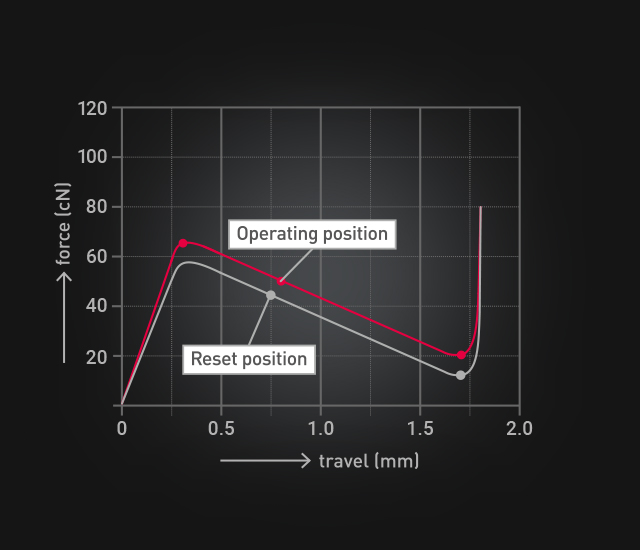

The ultra-thin switch features a tactile switching characteristic and has a pre-travel of only 0.8 millimeters. The switch then actuates directly and offers an ergonomic overtravel of 1.0 millimeters. The total travel is thus 1.8 millimeters. A force of 65 Centinewtons is required for actuation. CHERRY’s world-exclusive, high-precision gold crosspoint technology with the corrosion-resistant gold contact points ensures superior durability with consistent typing quality.
Cherry Feature
United in perfection
Two established German manufacturers, known for their demand for perfection in their respective sectors and worldwide reputation in the gaming community, have come together. The XMG NEO 17 integrates CHERRY's leading MX technology - Made in Germany and the logical choice for the best esports and gaming laptop of all time.
Cherry Feature
First class durability
The gold-based crosspoint contact system is the heart of every CHERRY MX switch and the basis for its high reliability and durability. The triangular cross contacts meet with absolute precision at exactly right angles. This unique CHERRY innovation and the artistic gold plating make the electrical contact housing selfcleaning and give the key switch lasting protection against corrosion and an unsurpassed service life.
media
Blitzschnelle Eingabe
Der ultraflache Switch weist eine taktile Schaltcharakteristik auf und hat einen Vorlaufweg von nur 0,8 Millimetern. Der Schalter löst dann direkt aus und bietet einen ergonomischen Nachlauf von 1,0 Millimetern. Der Gesamtweg liegt damit bei 1,8 Millimetern. Für die Betätigung wird eine Kraft von 65 Zentinewton notwendig. CHERRYs weltexklusive, hochpräzise Gold-Crosspoint-Technologie mit den korrosionsresistenten Gold-Kontaktpunkten sorgt für eine überlegene Haltbarkeit bei gleichbleibender Auslösequalität.
Lightning-fast IPS display
Razor-sharp

Thanks to its extended WQXGA resolution (2,560 x 1,600 pixels), the 17.0-inch, non-glare IPS display shows all content with razor-sharp clarity. A high brightness of 380 nits ensures excellent readability even in very bright environments. As is typical for IPS, the laptop display impresses with intense, brilliant colours, high contrasts and first-class black levels.

XMG NEO 17 E24 LP Feature 06 Display Desktop

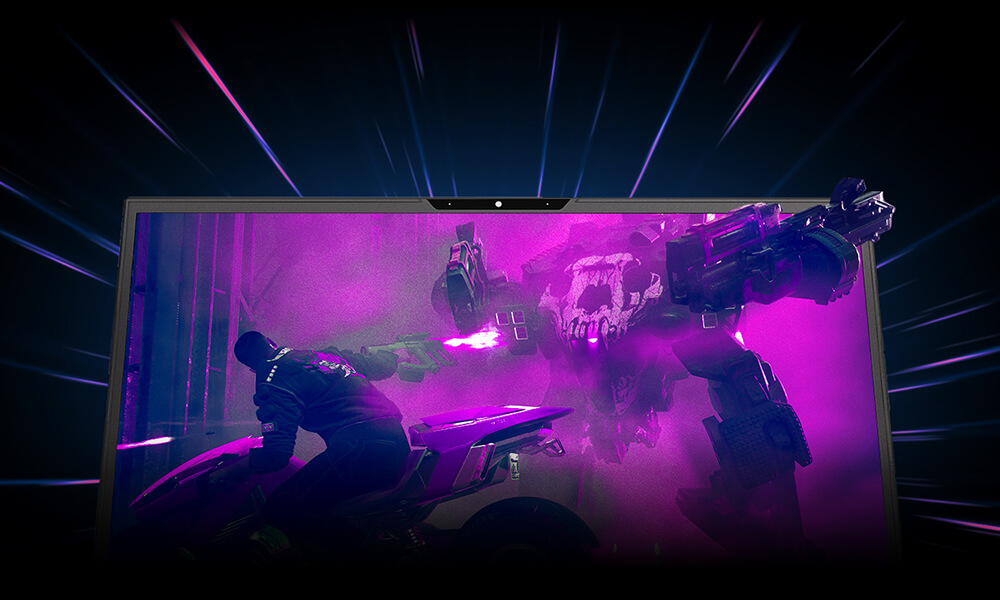

XMG NEO 17 E24 LP Feature 06 Display Mobile
XMG NEO 17 E24 LP Feature 06.1 Display Gaming
Fast gaming
at 240 Hz

Looking for an impressively smooth gaming experience? The display of the XMG NEO 17 with a fast refresh rate of 240 Hz has exactly the right features on board. The G-SYNC panel accurately synchronizes the graphics card’s image output with on-screen playback, without any screen tearing or stuttering.

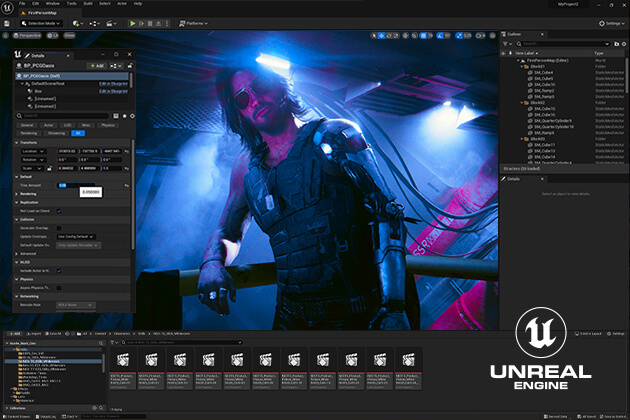

XMG NEO 17 E24 LP Feature 06.2 Display Content Creation
Professional colour fidelity in 16:10 format

Featuring a factory colour-calibrated display in a practical 16:10 format, this laptop perfectly meets the demands of creatives. Its sRGB colour gamut coverage is 99 % and the additional vertical screen area gives you a significant increase in ease of use in your photo or video editing software.

Long-lasting 99 Wh battery
Impressive runtimes

With its 99 Wh battery, the XMG NEO 17 integrates a true capacity giant with the maximum allowable for unrestricted mobile laptop use. Smart efficiency features such as NVIDIA Advanced Optimus ensure even longer runtimes: If the dedicated graphics card is not required, the display connection automatically switches to the economical, integrated Intel Xe graphics unit without rebooting. Three adjustable charging profiles can be used to determine charging speed and maximum charging capacity to minimise natural battery wear.

XMG NEO E23 LP Feature 07 Akku Mobile

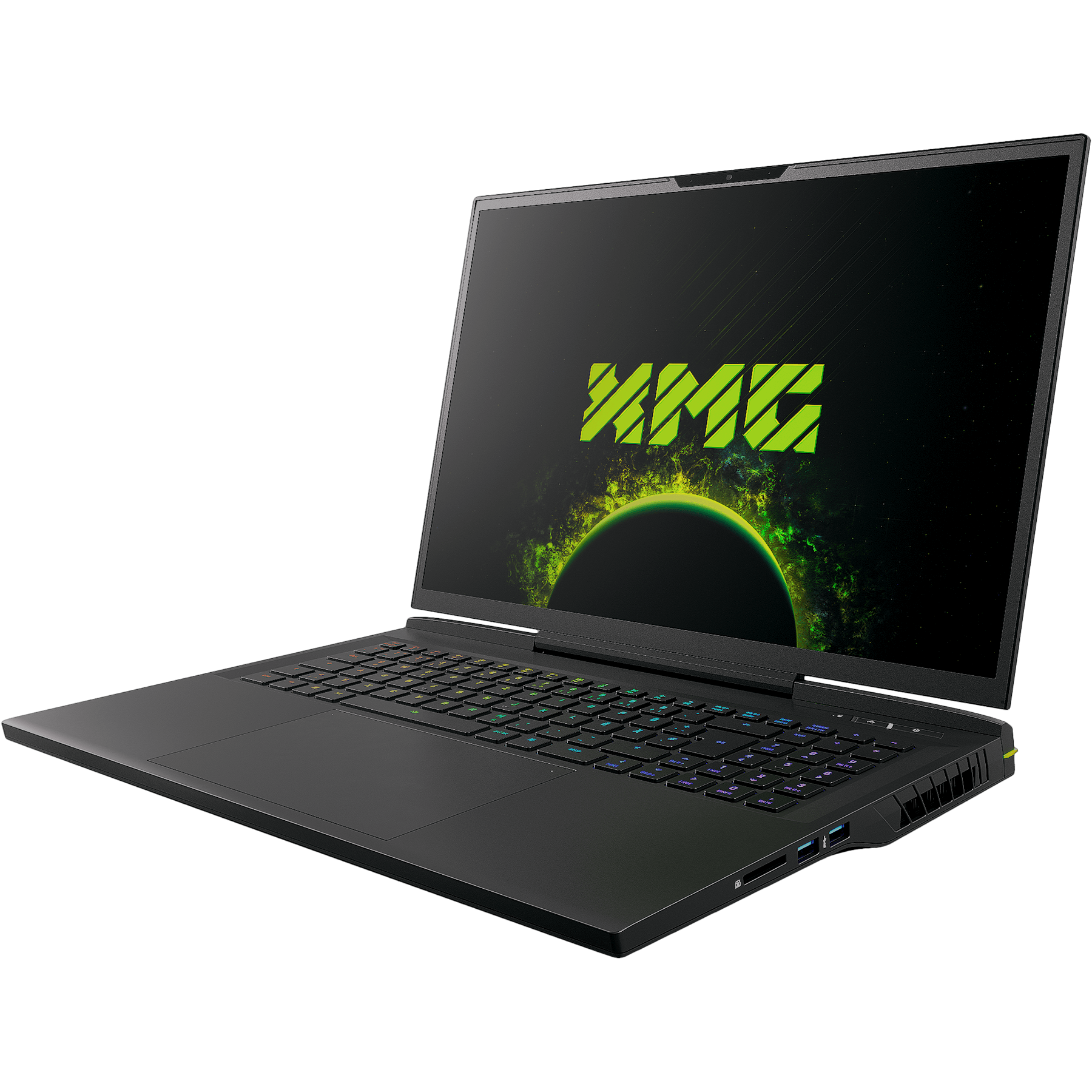

High-quality chassis with comfort touchpad
Robust & resistant

Both the display lid and bottom case of the XMG NEO 17 are constructed from torsion-resistant aluminium and, in combination with the non-slip Grip-Touch surface in the area below the keyboard, make the laptop a sturdy and comfortable companion. RGB light bars at the rear air outlets ensure a stylish gaming look if desired. The precise glass touchpad has a huge 15 x 9.5 cm sliding surface and automatic detection of placed palms to prevent accidental inputs.

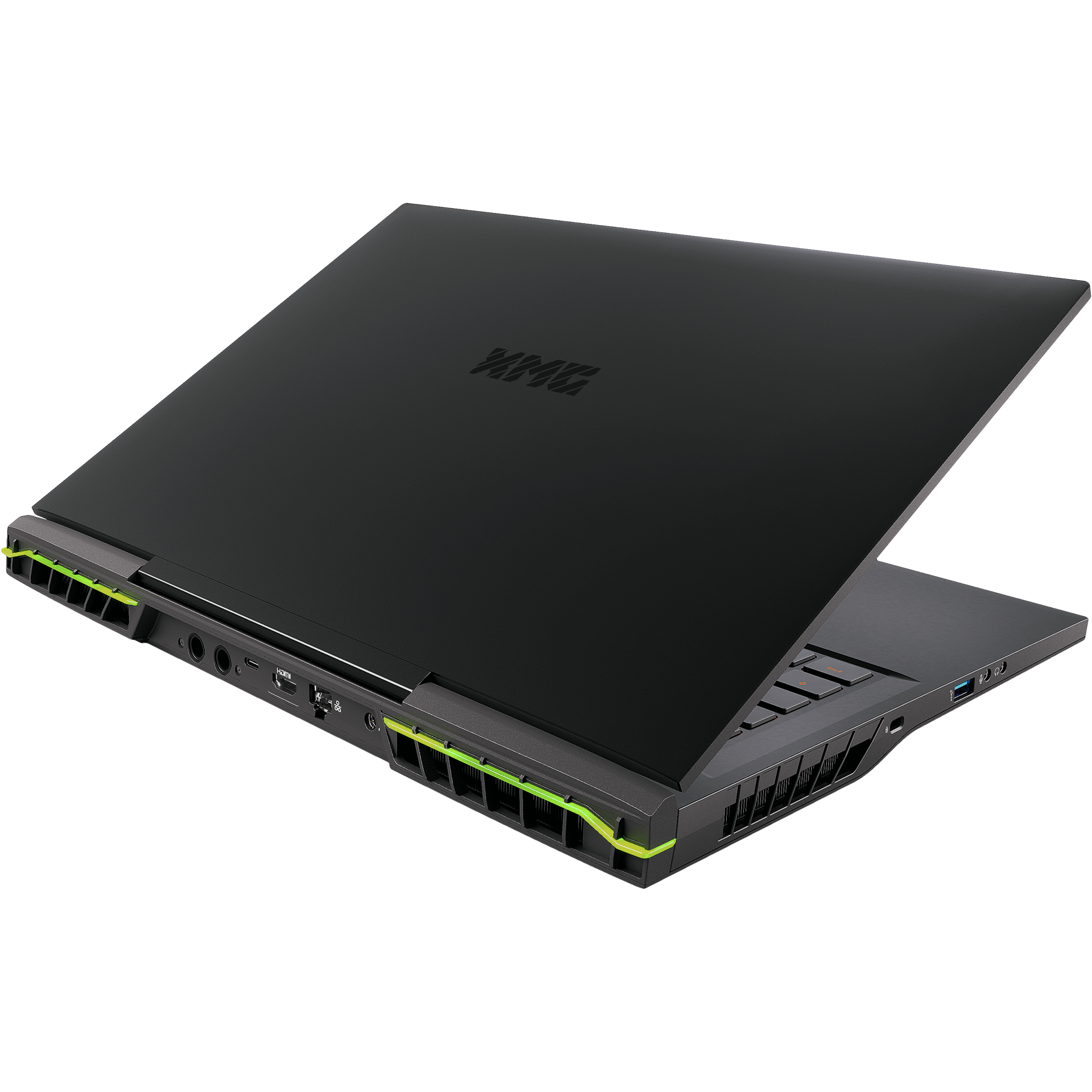

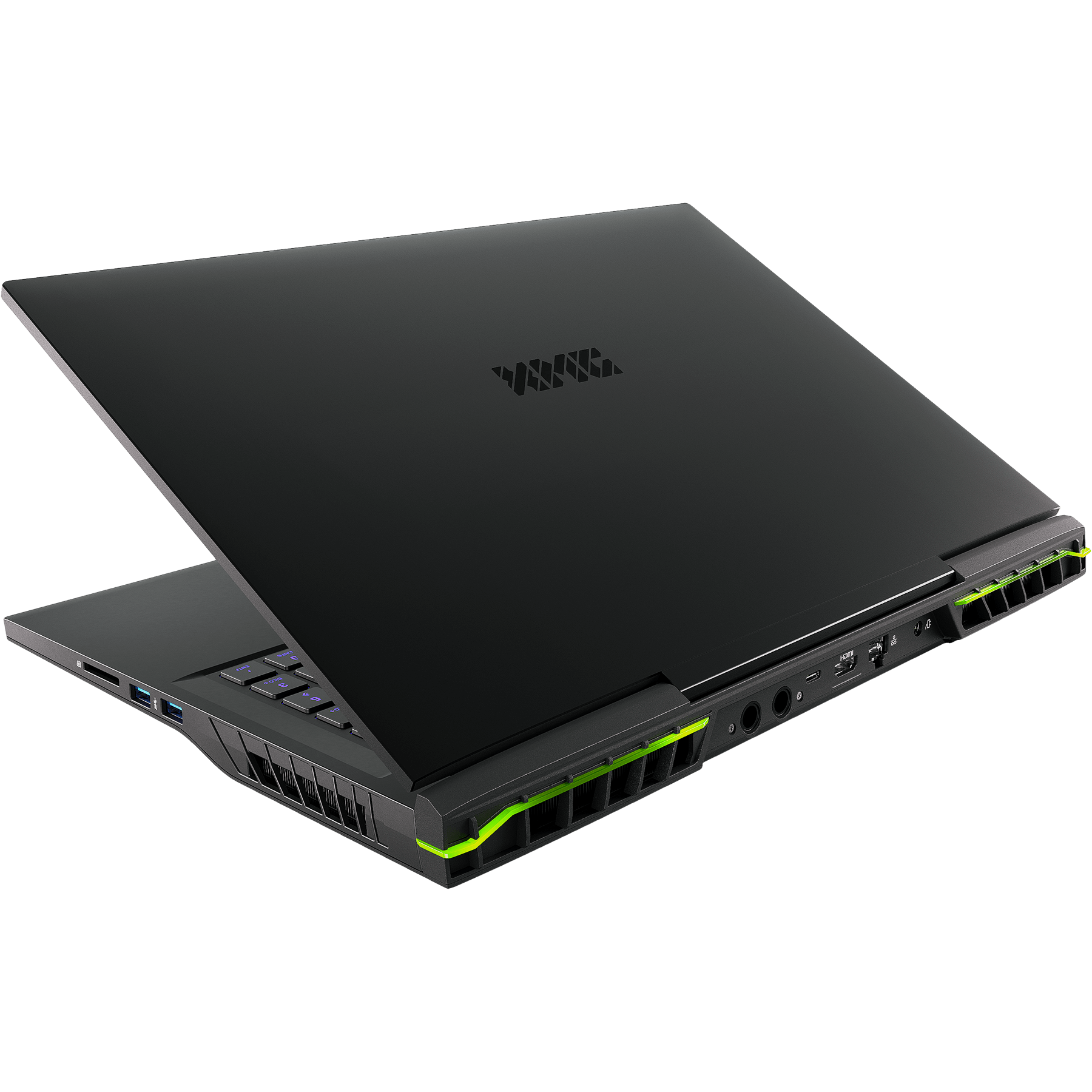

First-class connectivity
All the ports you need

The XMG NEO 17 not only offers extensive connectivity, but also distributes all external interfaces smartly. Consequently, all ports for larger connectors are located at the rear, including the power supply connection, HDMI 2.1, the 2.5 Gigabit Ethernet and the Thunderbolt 4 port, which also integrates full specification USB-C 4.0. On the sides of the chassis, you will find three USB-A slots, a full-size SD card reader and separate sockets for headset and microphone.

High-end interface with dGPU connectivity
Thunderbolt 4

Thunderbolt 4 offers state-of-the-art connectivity in the XMG NEO 17. The interface not only features Power Delivery for charging the laptop via USB-C travel power supplies with 100 watts, but also has a DisplayPort function with direct connection to the powerful NVIDIA graphics card and G-SYNC support – ideal for connecting an external monitor. In addition, Thunderbolt 4 serves as a high-speed connection for the fastest external SSDs and as a universal interface for flexible docking stations to connect your entire home setup to the laptop via just one cable.

Thunderbolt 4
40 Gbit/s
XMG NEO E23 LP Feature 10 Thunderbolt 4 Mobile
XMG Control Center
All settings under control

The XMG Control Center is a powerful tool that gives you complete control over your laptop’s performance settings. Here you will find tailor-made performance profiles to select the ideal balance of power, noise and temperatures at the touch of a button. If desired, you can access tons of expert manual tuning options to push your laptop’s high-end components to the maximum of the allowed power limits for CPU and GPU, to get the absolute most out of your setup.

VIDEOS & TESTS
Play Video
Play Video
Play Video
Play Video about XMG NEO 15 OASIS Jarrod
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
TECHNICAL SPECIFICATION

XNE17E24

17.0″ IPS | 2560×1600 px (16:10) | 240 Hz (alternatively 60 Hz settable) | 380 nits | 99 % sRGB | G-SYNC | non-glare

  • Intel Core i9-14900HX | 8 P- & 16 E-cores/32 threads | up to 5.8 GHz | 36 MB cache | 55+ W TDP
  • manual undervolting in BIOS possible
  • PTM7958 phase change compound ex factory (with RTX 4060/70)
  • Thermal Grizzly Conductonaut liquid metal compound ex factory (with RTX 4080/90)
  • Intel Iris Xe Graphics | 32 Execution Units | integrated (iGPU)
  • NVIDIA GeForce RTX 4060 Laptop | 8 GB GDDR6 | 115 W TGP¹⁾ (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)
  • NVIDIA GeForce RTX 4070 Laptop | 8 GB GDDR6 | 115 W TGP¹⁾ (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)
  • NVIDIA GeForce RTX 4080 Laptop | 12 GB GDDR6 | 150 W TGP (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)
  • NVIDIA GeForce RTX 4090 Laptop | 16 GB GDDR6 | 150 W TGP (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)
  • PTM7958 phase change compound ex factory (with RTX 4060/70)
  • Thermal Grizzly Conductonaut liquid metal compound ex factory (with RTX 4080/90)


    internal display connection: iGPU with NVIDIA Optimus or dGPU (via Advanced Optimus/MUX switch)
    HDMI 2.1, DisplayPort 1.4a via Thunderbolt/USB-C connection: dGPU
    2 external displays directly addressable
    additional external displays possible with docking station
    VR Ready

    ¹⁾RTX 4060 and 4070 can fully max out their GPU power consumption in XMG NEO 17 (E24). However, according to the NVIDIA specifications, the actual GPU power consumption depends on the type of workload. Therefore, the power consumption may be below (sometimes significantly lower) than the specified TGP and Dynamic Boost power draw values and is defined by NVIDIA.

  • 2x DDR5 SO-DIMM | Dual Channel | max. 64 GB | max. 5600 MHz²⁾ | max. 1.1 V | XMP
  • manual tuning in BIOS possible


²⁾Previously available 32 GB DDR5 modules are operated by Intel’s Core HX series with DDR5-5200 CL42 as standard.

2x M.2 2280 SSD via PCI Express 4.0 x4 (supports RAID 0/1)

  • stereo speakers
  • microphone with noise cancelling
  • Nahimic by SteelSeries software

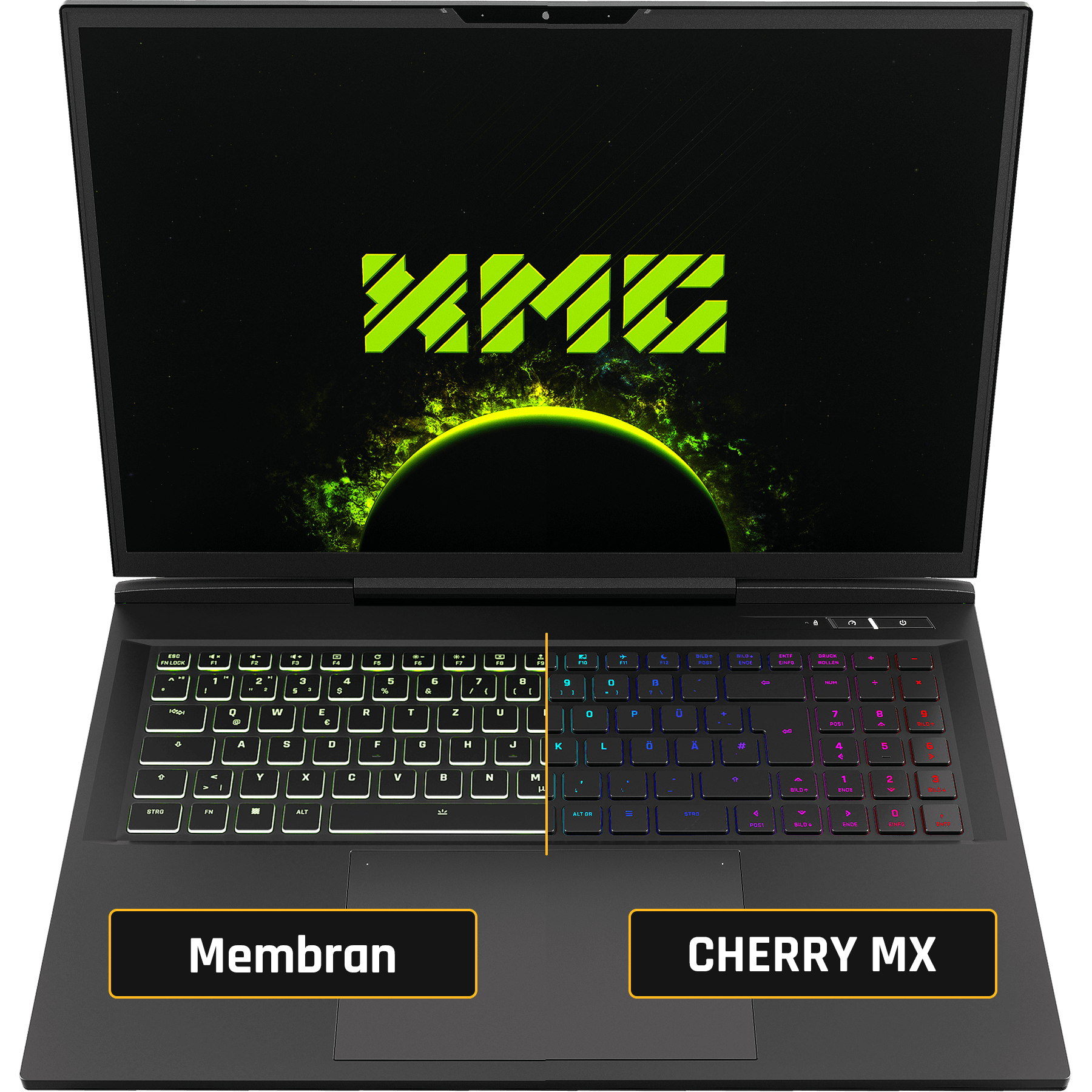

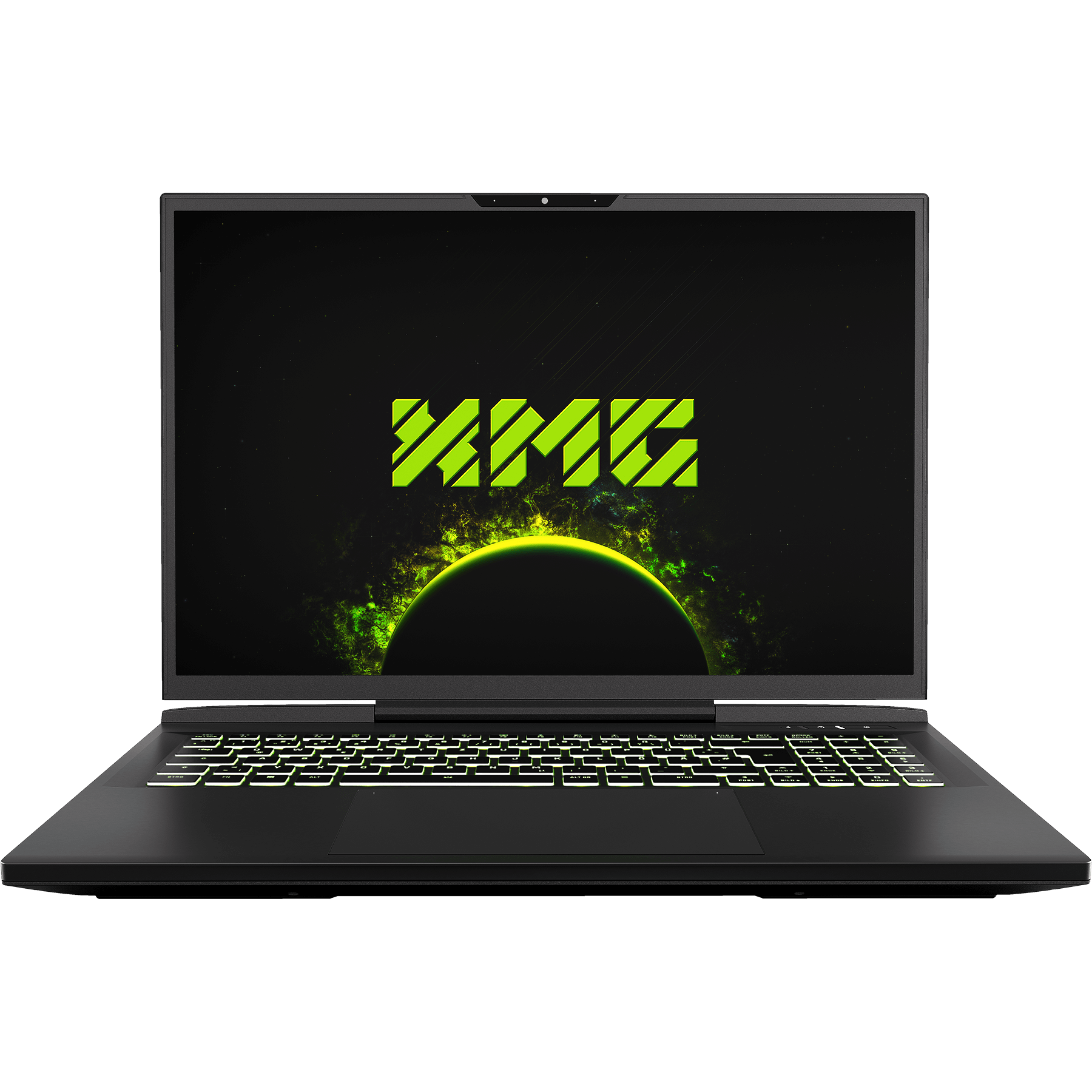

  • silent membrane keyboard with 4 RGB backlight zones
  • optional: mechanical keyboard with per-key RGB backlight and CHERRY MX Ultra Low Profile Tactile switches³⁾
  • both keyboards feature N-key rollover, anti-ghosting, a numeric keypad, full-size arrow keys, Fn lock function


³⁾keys of upper function row and numeric keypad use membrane switches

  • Microsoft Precision Glass Touchpad, two integrated buttons | 150 x 95 mm (W x D)
  • automatic palm recognition to avoid false inputs
  • quick (de)activation of the touchpad with a double tap in the upper left area

Left:

  • headphone-out (compatible with combo jack headsets)
  • mic-in
  • USB-A 3.2 Gen2×1

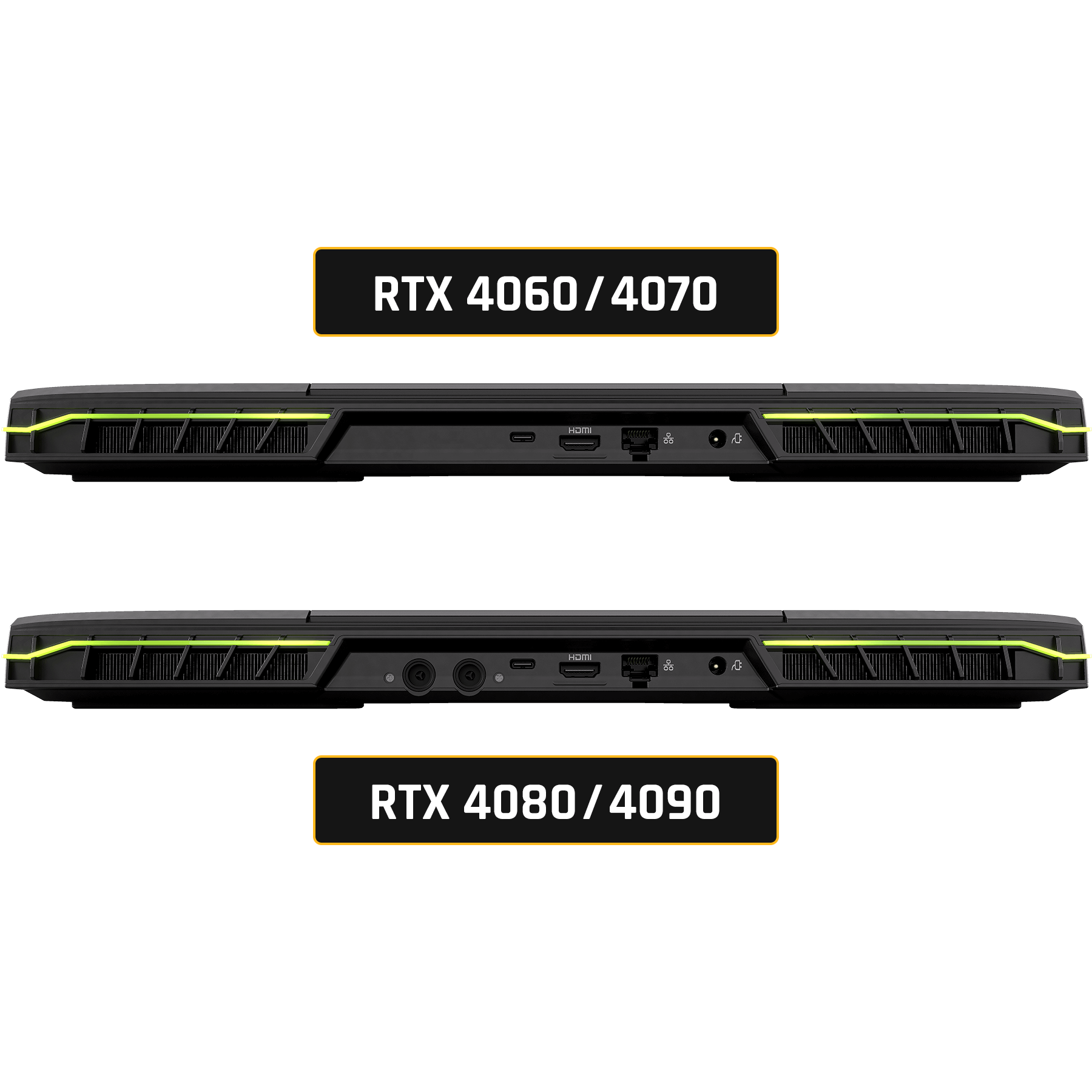

Rear:

  • DC-in
  • RJ45 Port (LAN)
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
  • Thunderbolt 4/USB-C 4.0 Gen3×1⁴⁾ (DisplayPort 1.4a: yes, G-SYNC compatible | Power Delivery: yes)
  • self-sealing connectors for XMG OASIS (with RTX 4080/90)

Right:

  • 2x USB-A 3.2 Gen1
  • card reader (SD/SDHC/SDXC)


⁴⁾details:
Thunderbolt 4 with 40 Gbit/s
USB-C 4.0 Gen3×1 with 20 Gbit/s
USB-C 3.2 Gen2×1 with 10 Gbit/s
Power Delivery: exclusively with 20V/5A (100 watts)
power supply for peripherals: max. 5V/3A (15 watts)
supports 2 DisplayPort streams with a total of 32.4 Gbps
support for NVIDIA G-SYNC and AMD FreeSync
support for VR headsets

  • 2.5 GbE LAN (with RTX 4080/90)

  • Gigabit LAN (with RTX 4060/70)

  • Wi-Fi 6E + Bluetooth 5
  • Full HD webcam (Windows Hello compatible)
  • Kensington Lock (left side)
  • TPM 2.0 (via Intel PTT)
  • 280 watts with RTX 4060/70 (160 x 69 x 25 mm | 861 g incl. EU power cable)
  • 330 watts with RTX 4080/90 (200 x 100 x 27 mm | 982 g incl. EU power cable)
  • changeable 99 Wh Li-poly battery (internally screwed)
  • different battery charging profiles selectable in control center
  • display lid and bottom case made of aluminium
  • display frame and top case made of plastic
  • Grip-Touch palm rest
  • 135° display opening angle
  • PH 0 screw heads
  • one-hand opening
  • performance mode switch button
  • RGB light bars on the two rear fan outlets (individually configurable)

ca. 2.8 kg

381.7 x 272.8 x 27 mm (W x D x H)

  • Laptop (inkl. Akku),
  • Netzteil
  • Treiber-USB-Stick

In the download portal of our company headquarters Schenker Technologies GmbH we continuously provide you with the latest driver versions.
