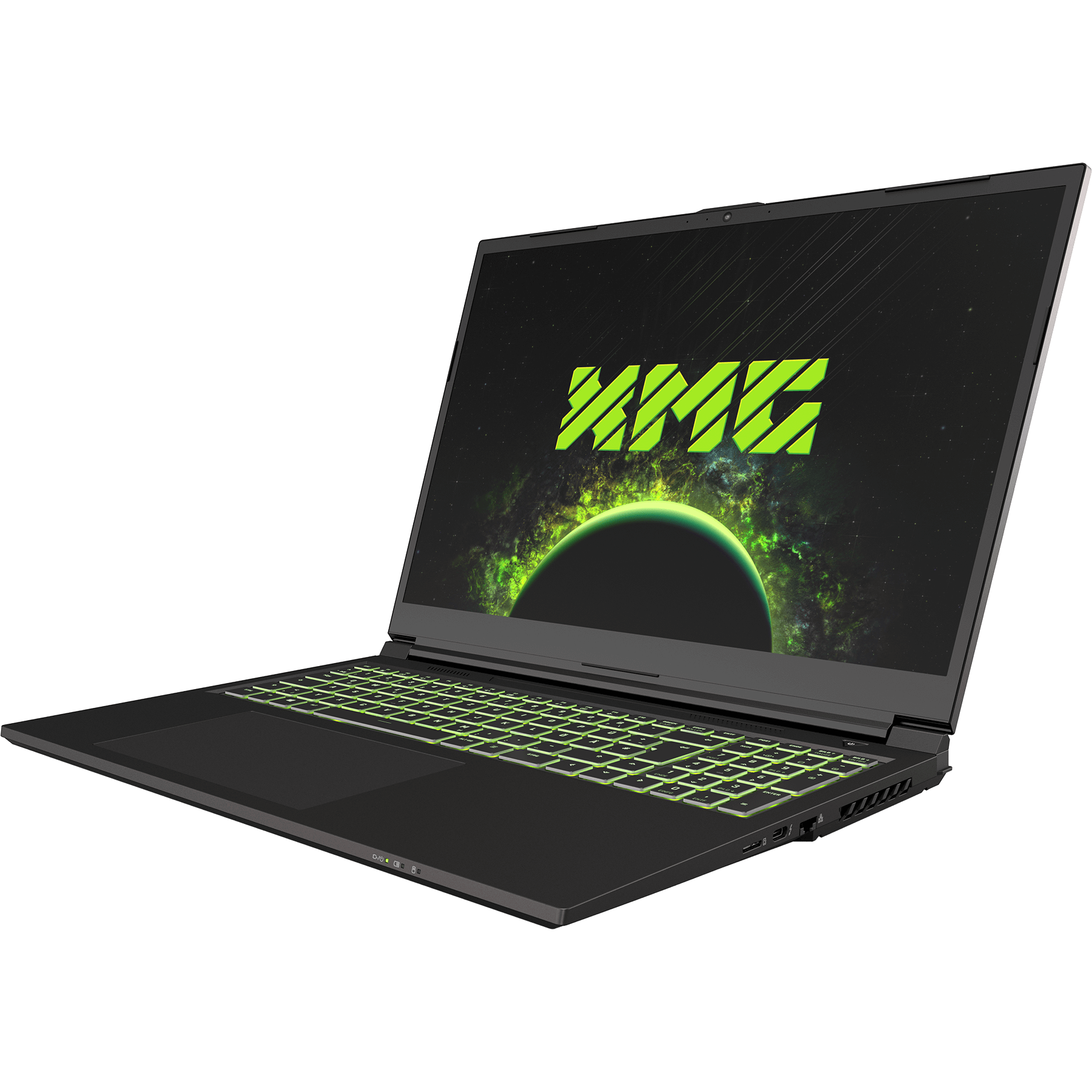

FOCUS 16

Strong performance and a smart, high-resolution 16:10 display: the XMG FOCUS 16 is equipped with the latest hardware from Intel and NVIDIA – ready for all gaming and multimedia tasks.

A Core i7-12700H with 14 CPU cores and a GeForce RTX 3060 provide you with ample performance even in demanding games – crisp and smoothly displayed on a large 16 inch panel with 2,560 x 1,600 pixels and 165 Hz technology. Nevertheless, at just 2.2 kg, the laptop is the ideal lightweight companion for on-the-go and thanks to its timeless design it blends stylishly yet unobtrusively into any environment.



Core i7-12700H
More Power with 14 Cores

Intel’s Core i7-12700H is one of the fastest mobile processors of the current generationthe smart hybrid design combines 6 performance and 8 efficiency cores – resulting in a remarkably powerful and efficient unit with a total of 14 cores and 20 threads. The modern architecture not only provides you with top performance in games, but also delivers ample headroom for simultaneous streaming or for working in demandingmultithreaded programmes.

XMG FOCUS M22 GG LP Feature 01 CPU MOBILE
GeForce RTX 3060
Raytracing unlocked

Powerful 3D performance and stunning ray tracing effects make your gaming experience with the XMG FOCUS 16 even better: NVIDIA’s GeForce RTX 3060 not only has more than enough performance for the most popular e-sports titles such as Fortnite, League of Legends or Valorant, but is also well prepared for the latest blockbuster games. NVIDIA’s DLSS 2.0 (Deep Learning Super Sampling) ensures a good balance between high FPS values, smooth gameplay and high graphic details.

XMG FOCUS M22 GG LP Feature 02 GPU MOBILE

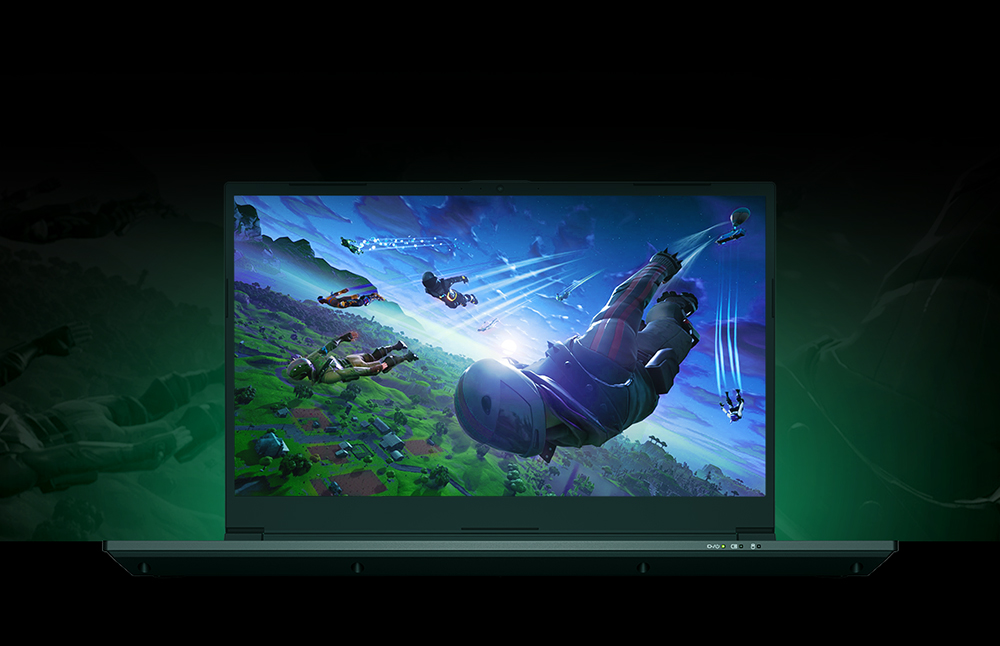

165 Hz Display with 2,560 x 1,600 Pixels
High resolution smooth gaming

The high-resolution, 16 inch IPS display of the XMG FOCUS 16 is one of the highlights of this modern laptop: with 2,560 x 1,600 pixels, the 16:10 panel displays your games or multimedia content with impressive sharpness, offers a high brightness of 400 cd/m2 and is also 165 Hz fast – top values for extremely smooth gaming with guaranteed wow effect! The extended resolution, smart format and 95% coverage of the sRGB colour space also provide the right basis for ambitious image and video editing.

16:10         165 Hz         400 nits
2560×1600 px                                 Refresh rate                                               Brightness
16:10
2560×1600 px
165 Hz
Refresh rate
400 nits
Brightness
XMG FOCUS M22 GG LP Feature 03 Display 15 DE MOBILE
Optimal headphone sound
Powerful Soundscapes

To give you the best possible sound through your headphones and maximise your immersive gaming experience, the XMG FOCUS 16 uses Creative Sound Blaster technology for optimal audio control. The Sound Blaster Cinema 6+ app gives you access to a wide range of settings, allowing you to call up the ideal sound profiles for gaming, videos or music and customise them to your personal taste.

XMG FOCUS M22 GG LP Feature 04 Sound MOBILE

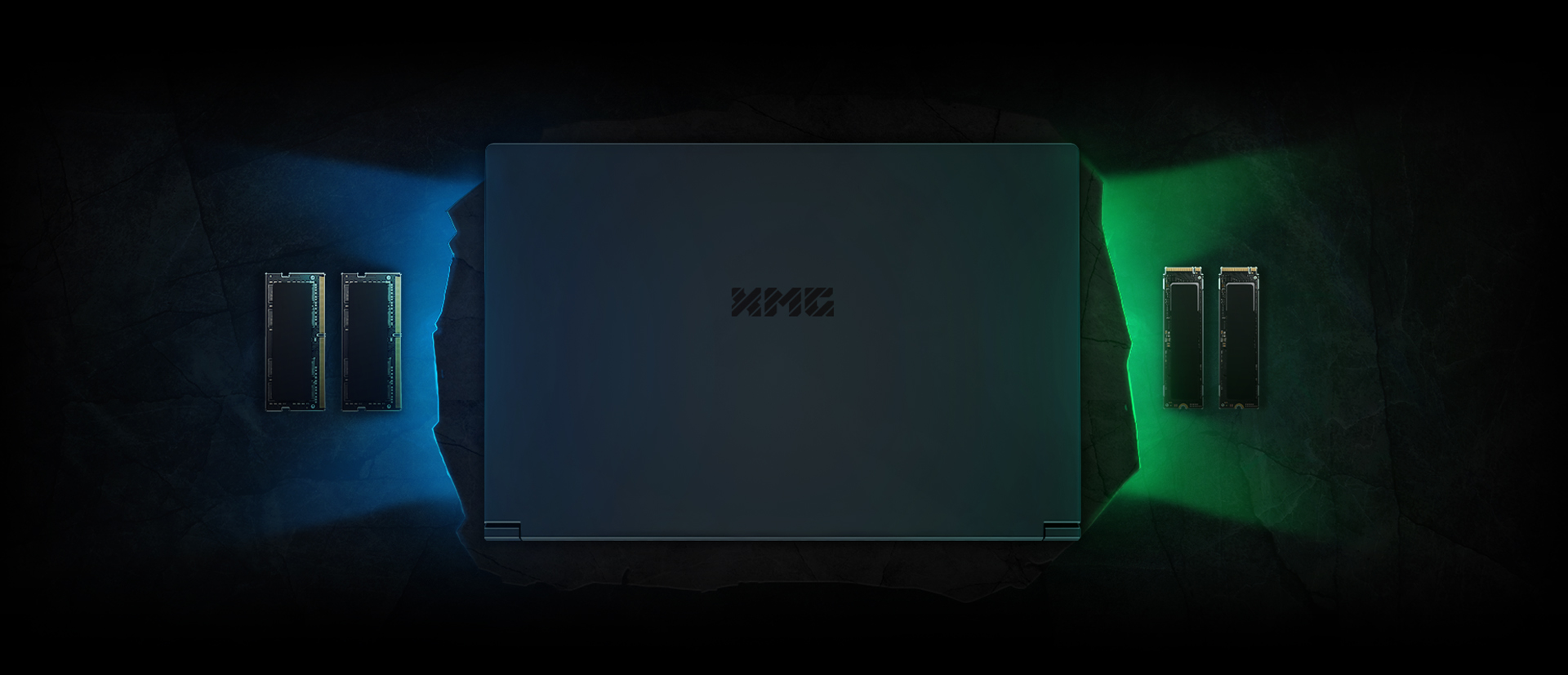

Up to 2 SSDs & 64 GB RAM
Generous memory

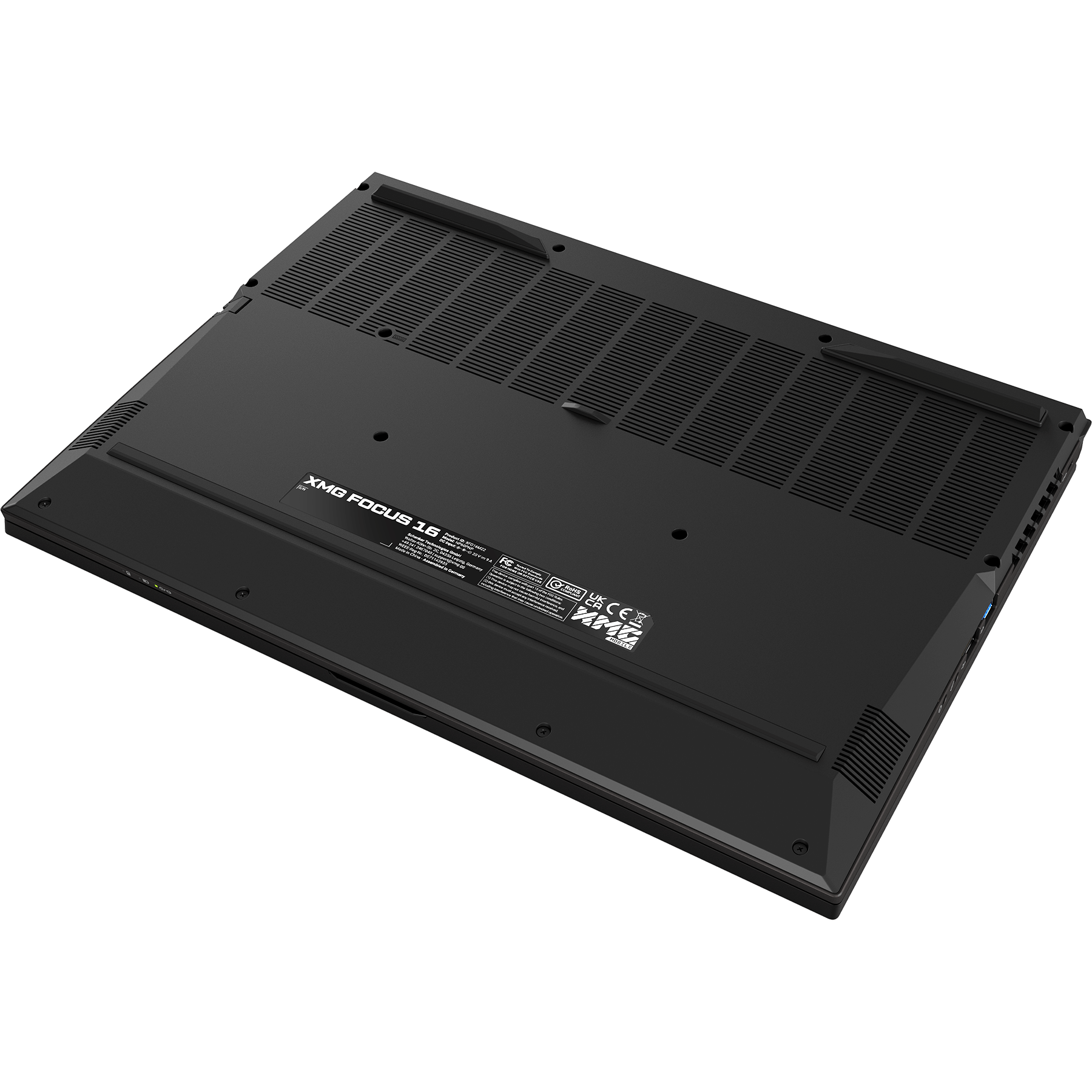

Thanks to its flexible memory options, the XMG FOCUS 16 can be perfectly tailored to your individual requirements. The laptop has two SO-DIMM slots, supporting up to 64GB of RAM. It also has room for two M.2 NVMe SSDs and with blazing-fast PCI Express 4.0 connectivity for the primary drive. Subsequent upgrading of the storage components is simple, because the inside of the chassis is easily accessible.   

XMG FOCUS M22 GG LP Feature 05 Speicher DESKTOP

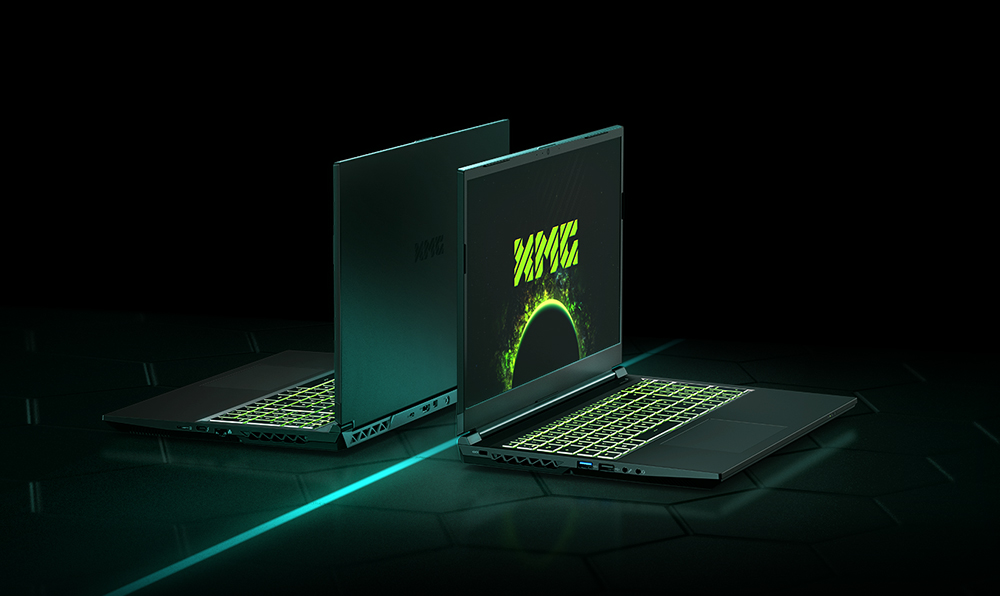

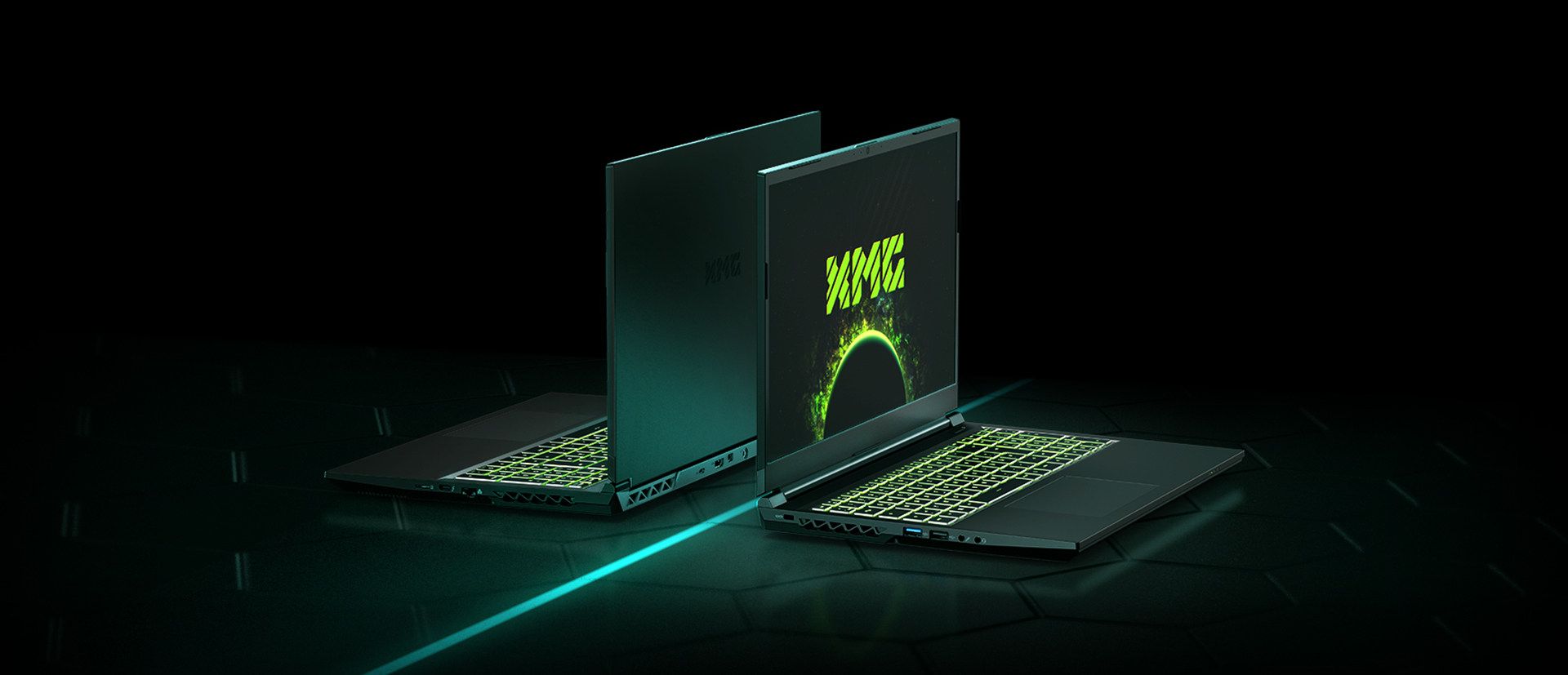

All ports on board!

Its cutting-edge connectivity makes the XMG FOCUS 16 a versatile everyday companion: two USB-A and USB-C ports, a Mini DisplayPort and HDMI for external monitors or projectors, as well as Gigabit Ethernet and optional Wi-Fi 6E give you the flexibility you need. What’s more, the laptop not only has separate audio ports for headphones (compatible with combo plug headsets) and microphone, as well as a microSD card reader, but also provides Thunderbolt 4 via one of the two USB-C ports.

XMG FOCUS (M22) connectivity
XMG FOCUS M22 GG LP Feature 06 Anschluesse MOBILE
XMG FOCUS M22 GG LP Feature 06 WiFi
WI-FI 6E

Wi-Fi 6E puts you in the wireless fast lane! Unlike older standards, your wireless network communication no longer runs exclusively in the congested 2.4 GHz and 5 GHz frequency bands. Thanks to additional 6 GHz technology, you can take advantage of a significantly higher data throughput, a more stable wireless connection and reduced latency.

XMG FOCUS M22 GG LP Feature 06 Thunderbold 1
THUNDERBOLT 4

Thunderbolt 4 is much more than a high-speed interface for data exchange with the fastest external SSDs. With its integrated DisplayPort stream, the port allows you to run two 4K-capable external monitors or even connect the most powerful, multi-functional docking stations – connecting your laptop to your entire desktop gaming setup in a flash and with just one cable.

VIDEOS & TESTS
Play Video
Play Video
Play Video
Play Video about XMG NEO 15 OASIS Jarrod
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
TECHNICAL DETAILS
XFO16M22

16″ IPS | 2560×1600 px (16:10) | 165 Hz (alternatively 60 Hz settable) | 400 nits | 95 % sRGB | non-glare

Intel Core i7-12700H | 6 P- & 8 E-core/20 threads | up to 4.7 GHz | 24 MB cache | 45+ W TDP

  • Intel Iris Xe Graphics | 96 Execution Units | integrated (iGPU)

  • NVIDIA GeForce RTX 3060 | 6 GB GDDR6 | 90 W TGP (+ 25 W Dynamic Boost 2.0) | dedicated (dGPU)



display connection: iGPU with NVIDIA Optimus or dGPU (via MUX switch)
DP via TB4/USB-C connection: iGPU with NVIDIA Optimus
HDMI, Mini DisplayPort connection: dGPU
3 external displays directly addressable (more with MST adapter via USB-C or Mini DisplayPort)

VR Ready

2x DDR4 SO-DIMM | up to 64 GB and 3200 MHz | Dual Channel | max. 1.2 V

  • 1x M.2 2280 SSD via PCI Express 4.0 x4
  • 1x M.2 2280 SSD via PCI Express 3.0 x4
  • stereo speakers
  • microphone with noise cancelling
  • Sound Blaster Cinema 6+

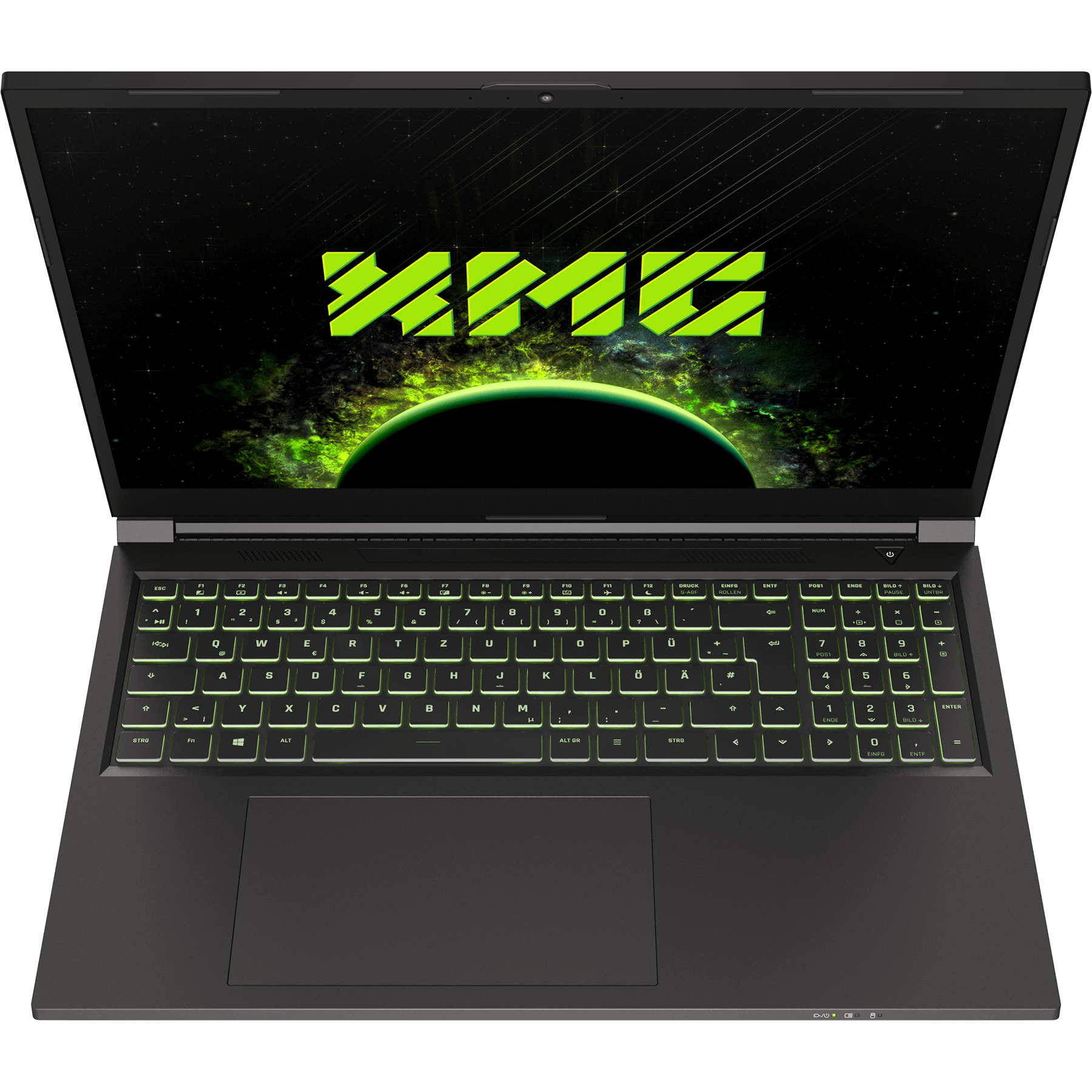

backlit keyboard with full-fledged numeric keypad and full-size arrow keys, 15 colour options

Microsoft Precision Touchpad, two integrated buttons | 150 x 90 mm (W x D)

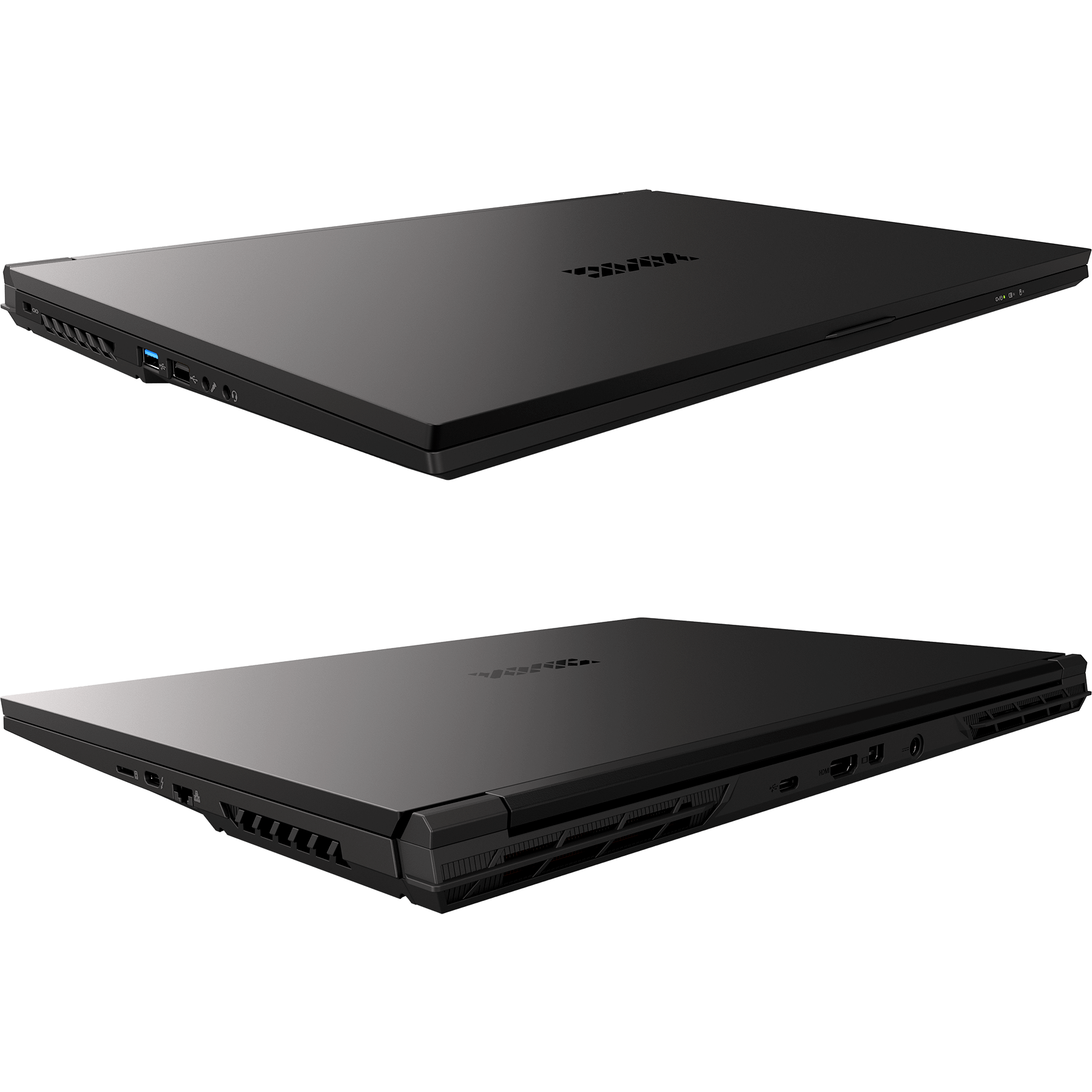

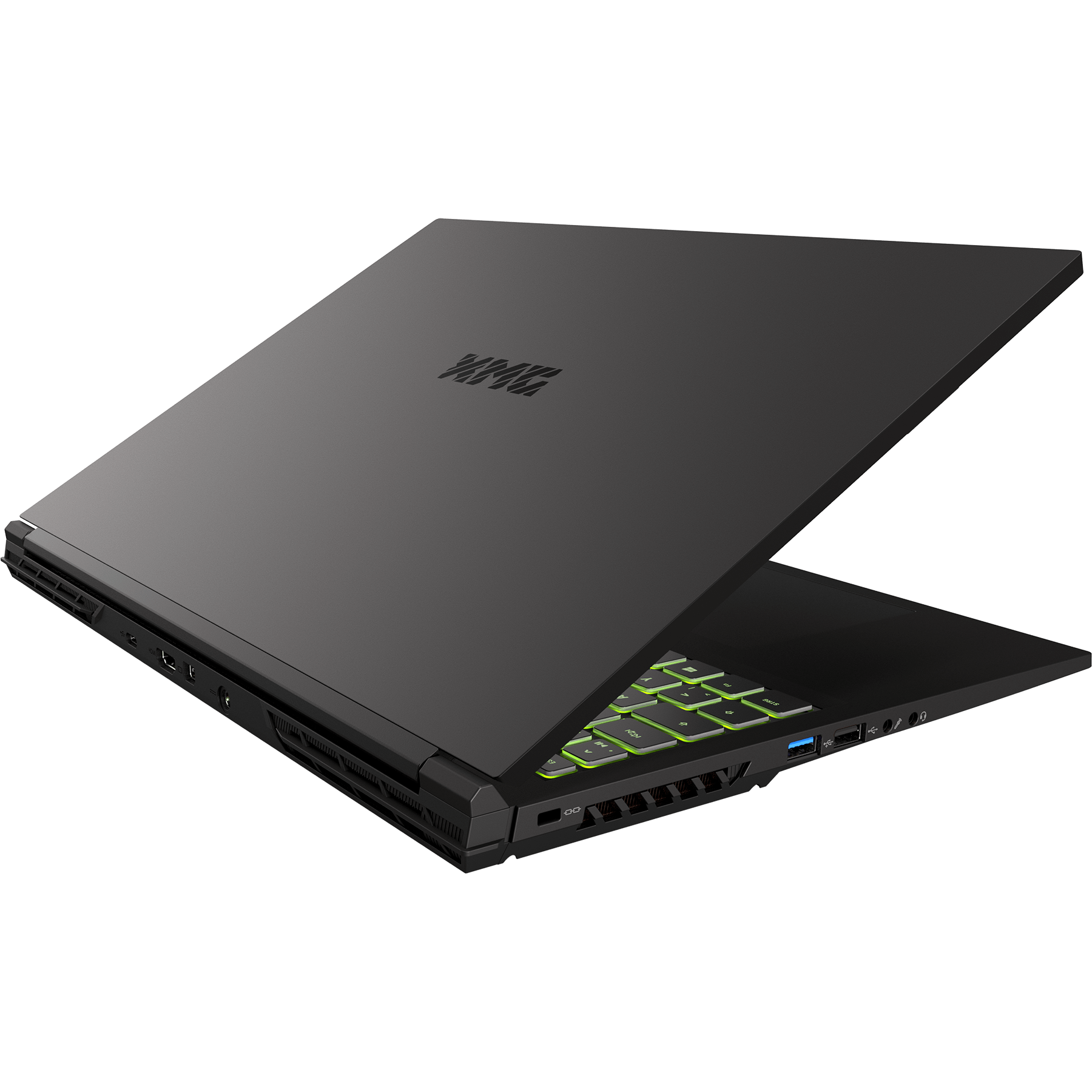

Left:

  • headphone-out (compatible with combo jack headsets)
  • mic-in
  • USB-A 2.0
  • USB-A 3.2 Gen1

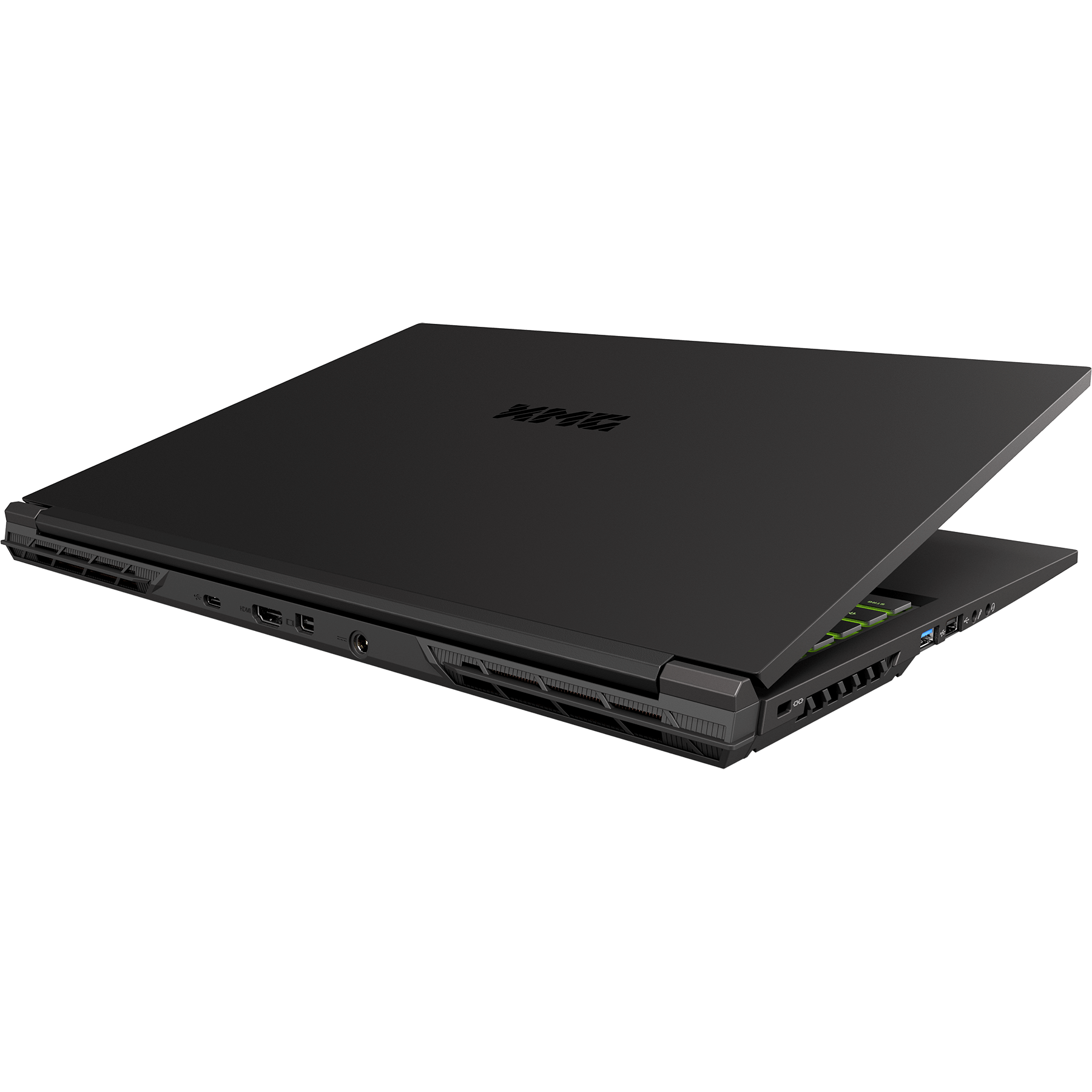

Rear:

  • DC-in
  • Mini DisplayPort 1.4
  • HDMI 2.1 (with HDCP 2.3)
  • USB-C 3.2 Gen2×1 (DisplayPort: no | Power Delivery: no)



Right:

  • RJ45 Port (LAN)
  • Thunderbolt 4/USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes | Power Delivery: no)
  • microSD card reader
  • Realtek Gbit LAN
  • Wi-Fi 6E (optional) | 802.11a/b/g/n/ac/ax + Bluetooth 5
  • HD webcam
  • Kensington Lock
  • TPM 2.0 (via Intel PTT)

180 watts (145 x 73 x 23 mm | 584 g incl. EU power cable)

  • changeable 54 Wh Li-Poly-battery (internally screwed)
  • flexible battery charging function can be activated in BIOS (FlexiCharger)
  • display lid made of aluminium
  • display frame, top and bottom case made of plastic
  • 130° display opening angle
  • PH 1 screw heads
  • one-hand opening
ca. 2.2 kg

359.5 x 263.8 x 24.3 mm (W x D x H)

laptop (incl. battery), power supply, driver USB stick
We continuously provide you with the latest driver versions in the download portal of our company headquarters Schenker Technologies GmbH. Download here
