XMG PRO 15

UNCHAIN YOURSELF

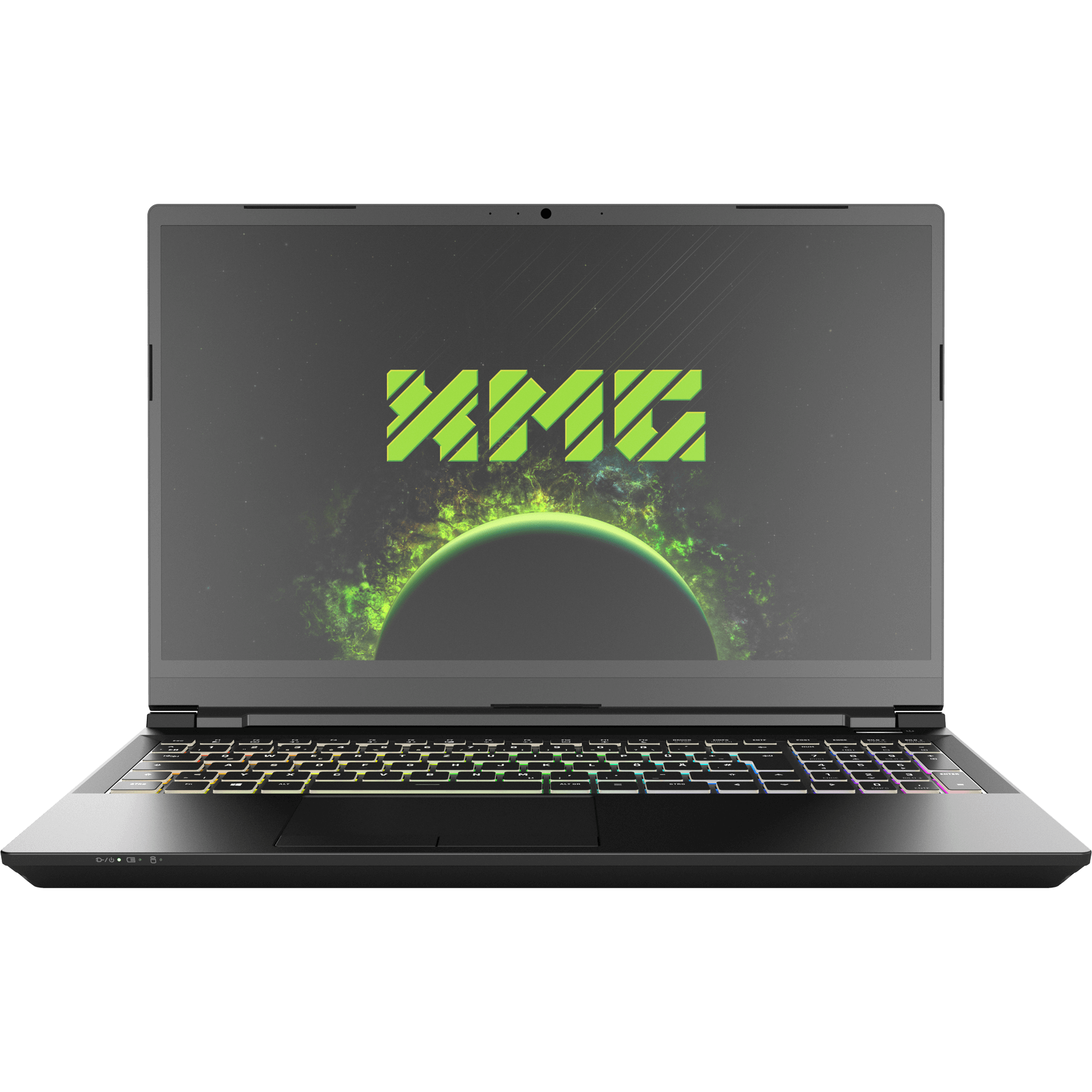

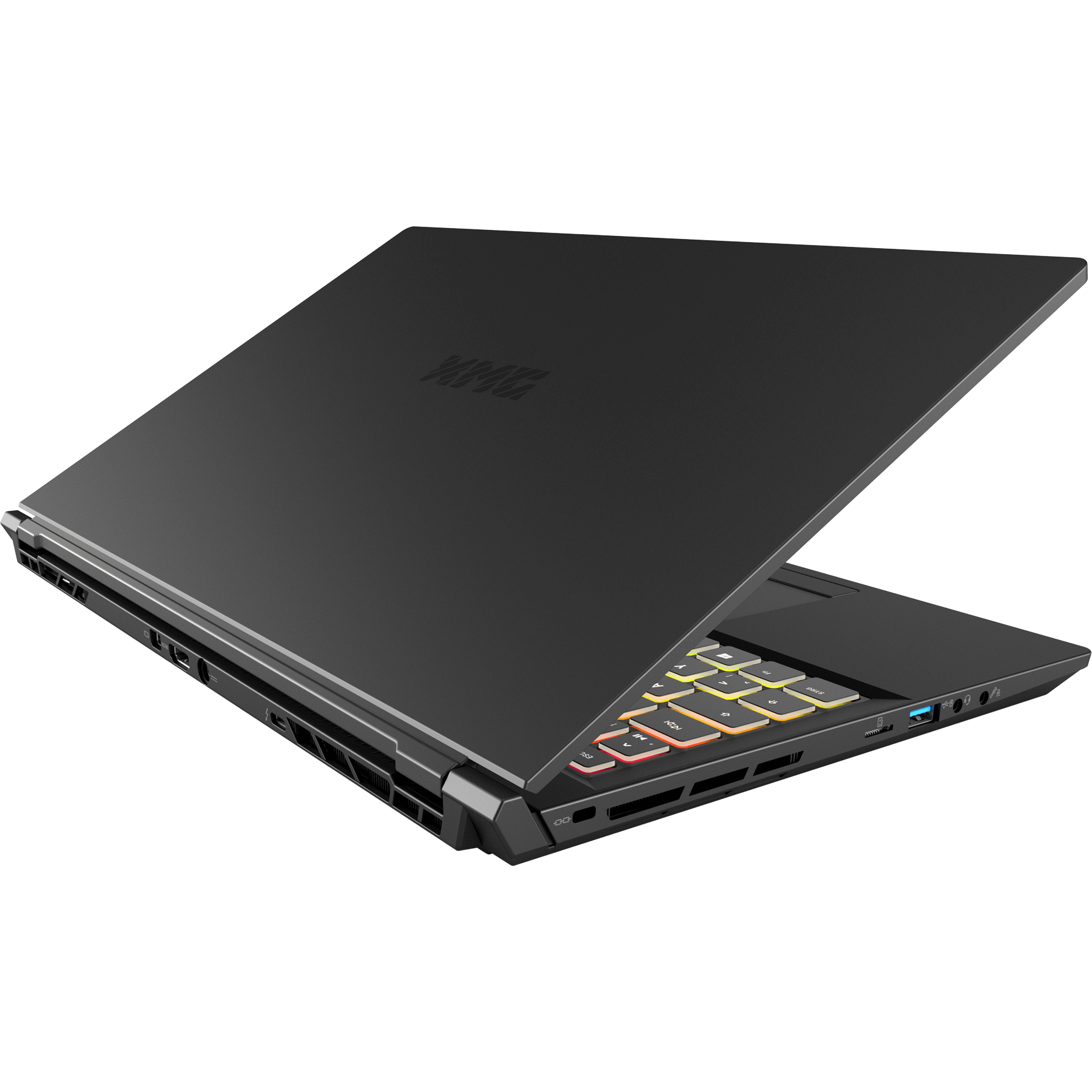

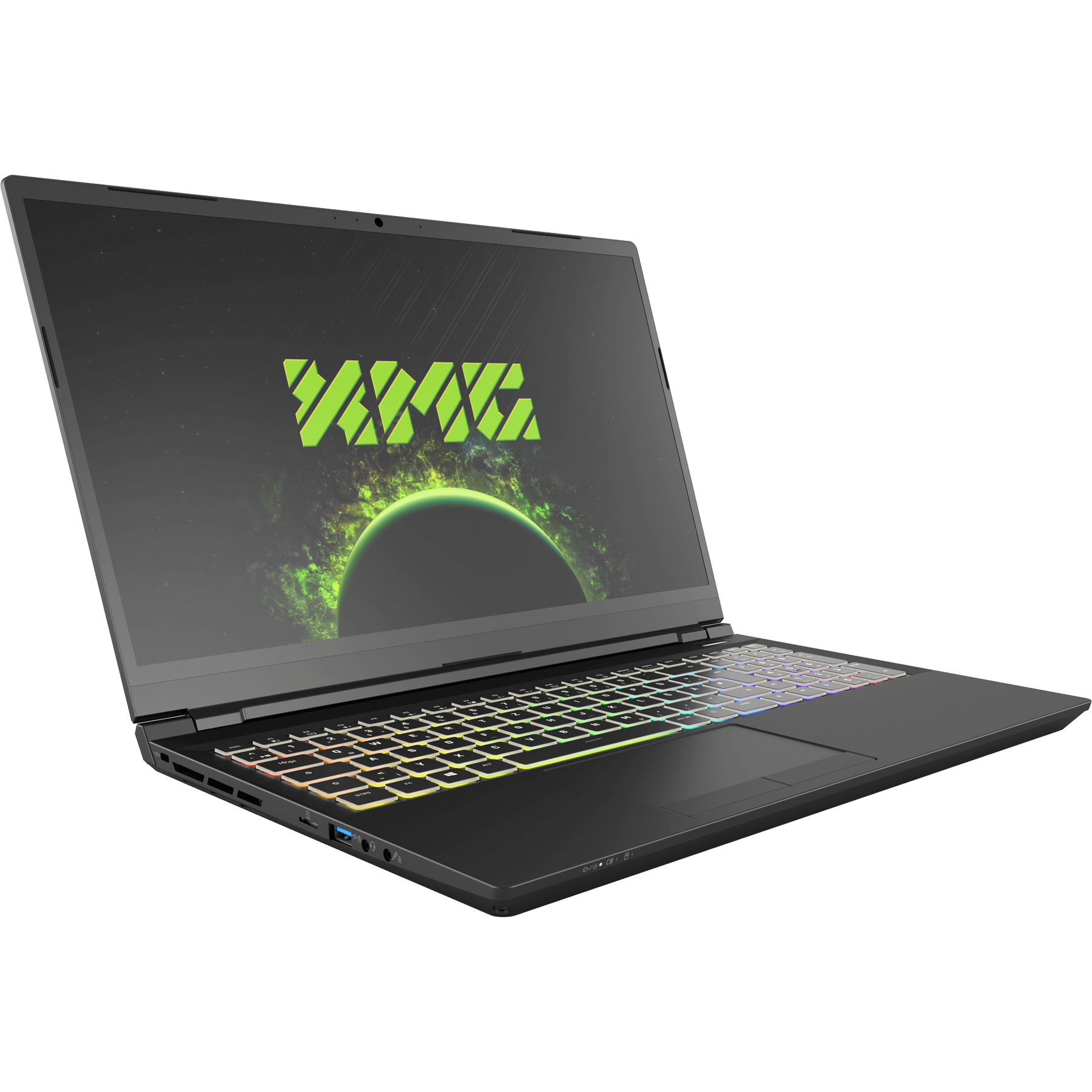

Be it as a highly portable gaming laptop or as a smart workstation for creative professionals, the sleek XMG PRO 15 offers the ideal mix of the latest high-end components, uncompromisingly versatile connectivity and high mobility. The new 15.6 inch all-rounder from XMG not only impresses with its slim yet robust aluminium chassis, but also captivates with its elegant design. A generous battery, in combination with energy-efficient high-performance components, enables long runtimes. The latest NVIDIA graphics cards up to the GeForce RTX 3080 Max-Q unleash impressive 3D and gaming performance in the notebook, which weighs less than 2 kg.

Powerful efficiency

RTX 3000 Max-Q

With the mobile GeForce RTX 3000 laptop graphics cards, NVIDIA once again takes a giant leap in mobile 3D performance. The XMG PRO 15 integrates the RTX 3080 or RTX 3070, with 16GB and 8 GB GDDR6 memory respectively. Being the most powerful graphics card models in the efficiency-optimised Max-Q design, they make a decisive contribution to the slim and portable design whilst also providing outstanding gaming performance. Not only are they fundamentally faster than comparable graphics cards from the previous generation, but they also offer significantly improved and future-proof ray tracing performance for upcoming AAA game titles, as well as groundbreaking GPU acceleration for professional applications.

XMG PRO 15 Gaming-
XMG PRO 15 Gaming-Laptop NVIDIA RTX Intel Prozessor

Powerful

Intel eight-core processor

Intel’s Core i7-10870H offers eight fast Comet Lake cores and processes up to 16 threads simultaneously. The mobile processor from the current tenth Core generation operates with a base and boost clock of 2.2 GHz and up to 5.0 GHz respectively. Thanks to its ample performance reserves, neither the latest multicore-hungry games nor highly parallelised software applications pose a challenge.

G-SYNC compatible
144 Hz IPS display

No tearing, no stuttering; NVIDIA G-SYNC certified laptop displays allow exact synchronisation of the monitor’s refresh rate with the frames per second output by the graphics card, guaranteeing an optimally smooth game display. The Full HD resolution display (1920 x 1080 pixels) is not only 144 Hz fast, but also utilises IPS technology – for rich colours, high contrast and excellent viewing angles.

XMG PRO 15 LP FEAT 02 G SYNC wqhd EN 1
Rapid
300 Hz IPS display

With a refresh rate of 300 Hz, the Full HD IPS display (1920 x 1080 pixels) is one of the fastest models currently available. For competitive esports games such as CS: GO, Rocket League or Rainbow Six Siege, it offers excellent response times and, in combination with a fast graphics card from the GeForce RTX 3000 series, offers a tangible advantage; by updating the displayed images more frequently, the display allows players to react to the action in the decisive fraction of a second. With IPS technology, the display excels with high a wide viewing angle, intense colours, good black levels and first-class contrast.

XMG PRO 15 LP FEAT 02 300hz wqhd EN 1
Razor-sharp
4K OLED display

Professional image and video editing requires a high-resolution and true-colour display. The factory pre-calibrated 4K OLED display meets these requirements without any ifs or buts; with 100% coverage of the sRGB and DCI-P3 colour gamut in addition to a very high brightness level of 400 nits, the display has the best possible characteristics for demanding, colour-accurate work. Other benefits of the groundbreaking OLED technology include true blacks, infinite contrast, vibrant intense colours and extremely fast response times.

XMG PRO 15 LP FEAT 02 UHD OLED wqhd EN 1
G-SYNC compatible
144 Hz IPS display

No tearing, no stuttering; NVIDIA G-SYNC certified laptop displays allow exact synchronisation of the monitor’s refresh rate with the frames per second output by the graphics card, guaranteeing an optimally smooth game display. The Full HD resolution display (1920 x 1080 pixels) is not only 144 Hz fast, but also utilises IPS technology – for rich colours, high contrast and excellent viewing angles.

XMG PRO 15 LP FEAT 02 G SYNC wqhd mobile EN 1
Rapid
300 Hz IPS display

With a refresh rate of 300 Hz, the Full HD IPS display (1920 x 1080 pixels) is one of the fastest models currently available. For competitive esports games such as CS: GO, Rocket League or Rainbow Six Siege, it offers excellent response times and, in combination with a fast graphics card from the GeForce RTX 3000 series, offers a tangible advantage; by updating the displayed images more frequently, the display allows players to react to the action in the decisive fraction of a second. With IPS technology, the display excels with high a wide viewing angle, intense colours, good black levels and first-class contrast.

XMG PRO 15 LP FEAT 02 300hz wqhd mobile EN 1
Razor-sharp
4K OLED display

Professional image and video editing requires a high-resolution and true-colour display. The factory pre-calibrated 4K OLED display meets these requirements without any ifs or buts; with 100% coverage of the sRGB and DCI-P3 colour gamut in addition to a very high brightness level of 400 nits, the display has the best possible characteristics for demanding, colour-accurate work. Other benefits of the groundbreaking OLED technology include true blacks, infinite contrast, vibrant intense colours and extremely fast response times.

XMG PRO 15 LP FEAT 02 UHD OLED wqhd mobile EN 1

Versatile

THUNDERBOLT 3 PORT

A modern variety of external ports is one of the undeniable strengths of the XMG PRO 15. This includes a versatile Thunderbolt 3 port, which not only enables up to 40 Gbit/s fast data exchange with external storage media, but also serves as a connection to a multifunctional docking station in addition to providing a DisplayPort 1.4 stream with NVIDIA G-SYNC support.

Thunderbolt 3
40  Gbit/s
XMG PRO 15 Gaming-Laptop Thunderbolt 3

Connection options for

3 EXTERNAL DISPLAYS

Especially in professional environments, but increasingly also in private gaming and streaming setups, multi-monitor configurations are commonplace. The XMG PRO 15 not only offers extended connectivity for additional displays via the DisplayPort stream of the Thunderbolt 3 port, but also features a native, G-SYNC-compatible Mini DisplayPort 1.4 and an HDMI 2.1 connection. These ultra-resolution display outputs mean that nothing stands in the way of comfortable couch gaming on a high-resolution 4K TV with fast 120 Hz technology.

XMG PRO 15 Gaming-Laptop Multi Monitor
XMG PRO 15 Gaming-Laptop Multi Monitor

Sleek

connectivity champion

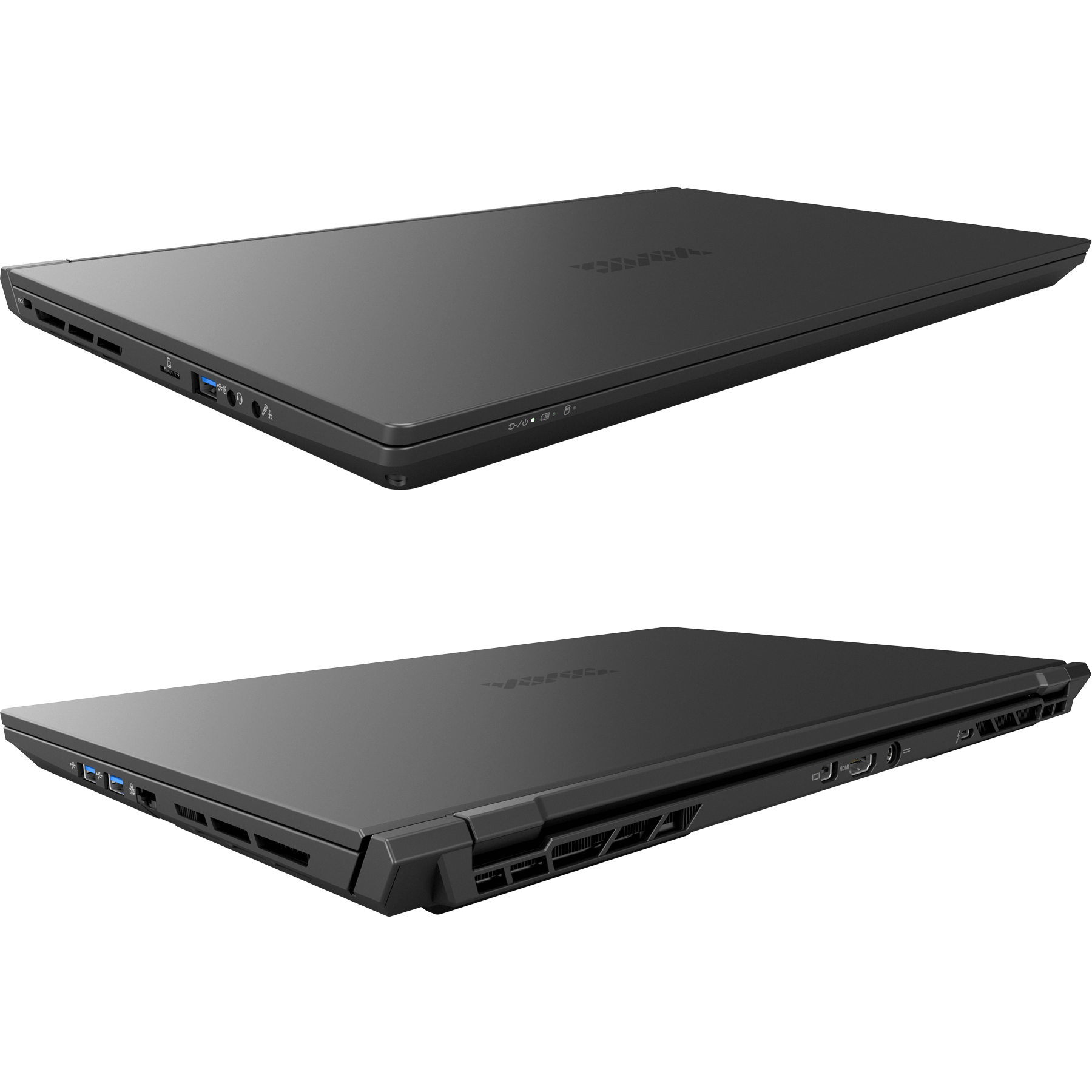

Despite its sub-20 mm chassis, the connectivity options of the XMG PRO 15 leave nothing to be desired. These include a microSD card reader with fast UHS-II support, a Gigabit LAN port, a Wi-Fi 6 wireless network connection and three USB 3.2 ports. Separate inputs and outputs for headphones and microphone allow maximum flexibility with your choice of audio peripherals; the microphone connection also supports an optical S/PDIF signal.

USB-C          3x USB-A          Mini DP
Thunderbolt 3                                    3.2 Gen1                                   DisplayPort 1.4
USB-C
Thunderbolt 3
3x USB-A
3.2 Gen1
Mini DP
DisplayPort 1.4
XMG PRO 15 Gaming-Laptop Anschlüsse
XMG PRO 15 Gaming-Laptop Anschlüsse
VIDEOS & TESTS
Play Video
TECHNICAL DETAILS

XPR15E21

  • 15.6″ IPS | 1920×1080 px | 144 Hz | 300 cd/m² | 90 % sRGB | G-SYNC | non-glare
  • 15.6″ IPS | 1920×1080 px | 300 Hz | 300 cd/m² | 100 % sRGB | non-glare
  • 115.6″ OLED | 3840×2160 px | 60 Hz | 400 cd/m² | 100 % sRGB/DCI-P3 | colour calibrated (powered by x-rite) | glare

Mobile Intel HM470 Express

Intel Core i7-10870H | 2.2 – 5.0 GHz | 8 cores/16 threads | 16 MB cache | 45 W TDP

  • Intel UHD Graphics 630 | integrated
  • NVIDIA GeForce RTX 3070 Max-Q | 8 GB GDDR6 | 90 W TGP (+ 15 W Dynamic Boost) | dedicated
  • NVIDIA GeForce RTX 3080 Max-Q | 16 GB GDDR6 | 90 W TGP (+ 15 W Dynamic Boost) | dedicated

Internal Display connection: NVIDIA Optimus
Internal G-SYNC display connection: direct or via NVIDIA Optimus (MUX switch)
HDMI, Mini DisplayPort, DP via USB-C connection: direct
Up to 3 external displays addressable

VR Ready

2x DDR4 SO-DIMM, Dual Channel, up to 64 GB and 3200 MHz

  • 1x M.2 2280 SSD via PCI Express 3.0 x4 (supports RAID 0/1) or SATA III
  • 1x M.2 2280 SSD via PCI Express 3.0 x4 (supports RAID 0/1)
  • High Definition Audio
  • S/PDIF-out (optical)
  • Microphone with noise cancelling
  • Stereo speakers
  • Sound Blaster Atlas

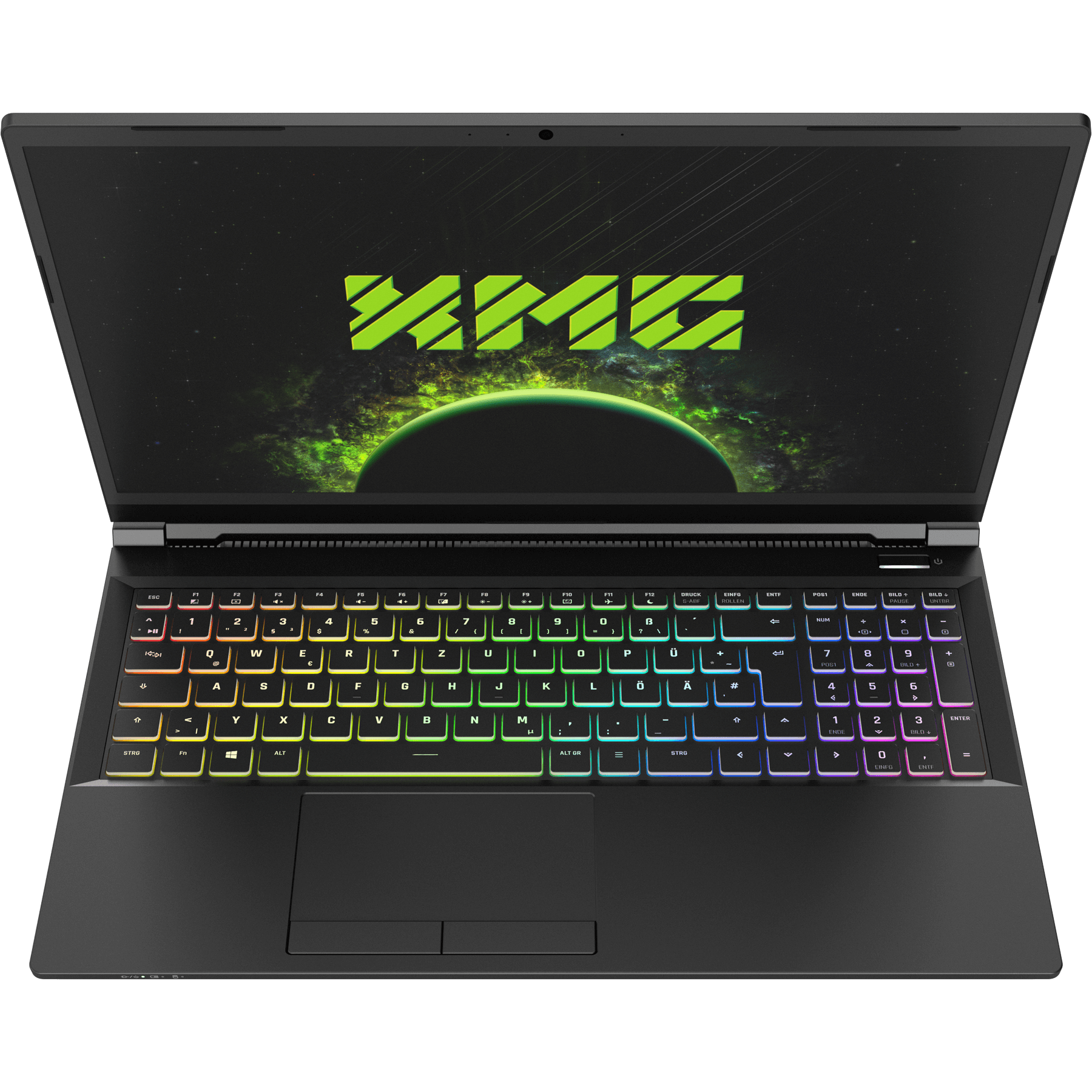

Keyboard with per-key RGB backlight and numeric keypad

  • 1x Thunderbolt 3/USB-C 3.2 Gen2 (DisplayPort: yes, G-SYNC compatible | Power Delivery: no)
  • 3x USB-A 3.2 Gen1 (1x powered)
  • 1x Mini DisplayPort 1.4 (G-SYNC compatible)
  • 1x HDMI 2.1 (with HDCP 2.3)
  • 1x Headphone-out (smartphone-headset compatible)
  • 1x 2-in-1-Audio (Mic-in + S/PDIF optical)
  • 1x RJ45 Port (LAN)
  • 1x UHS-II card reader (microSD/-SDHC/-SDXC)
  • 1x DC-in
  • Realtek Gbit LAN
  • WLAN 802.11a/b/g/n/ac/ax + Bluetooth 5
  • HD webcam
  • Kensington Lock
  • TPM 2.0 (via Intel PTT)

180 watts (145 x 75 x 23 mm | 620 g incl. EU power cable)

  • Changeable 73 Wh Li-Ion-battery (internally screwed)
  • Flexible battery charging function can be activated in BIOS (FlexiCharger)
  • Display lid, top and bottom case made of aluminium
  • Display frame made of plastic
  • 130° display opening angle
  • One-hand opening

ca. 1.99 kg

357.5 x 238 x 19.8 mm (W x D x H)

Laptop (incl. battery), power supply, driver CD/USB-Stick, manual
