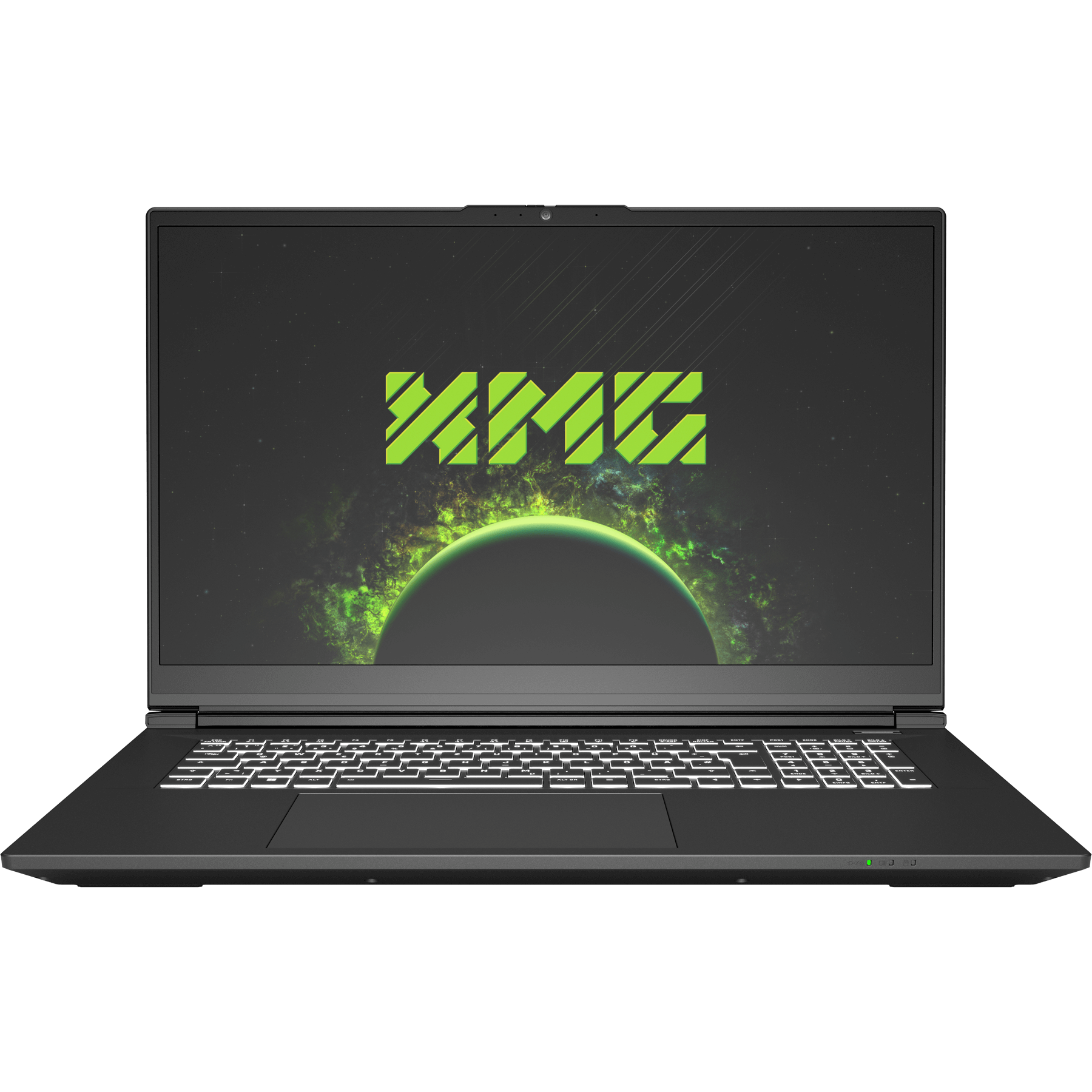

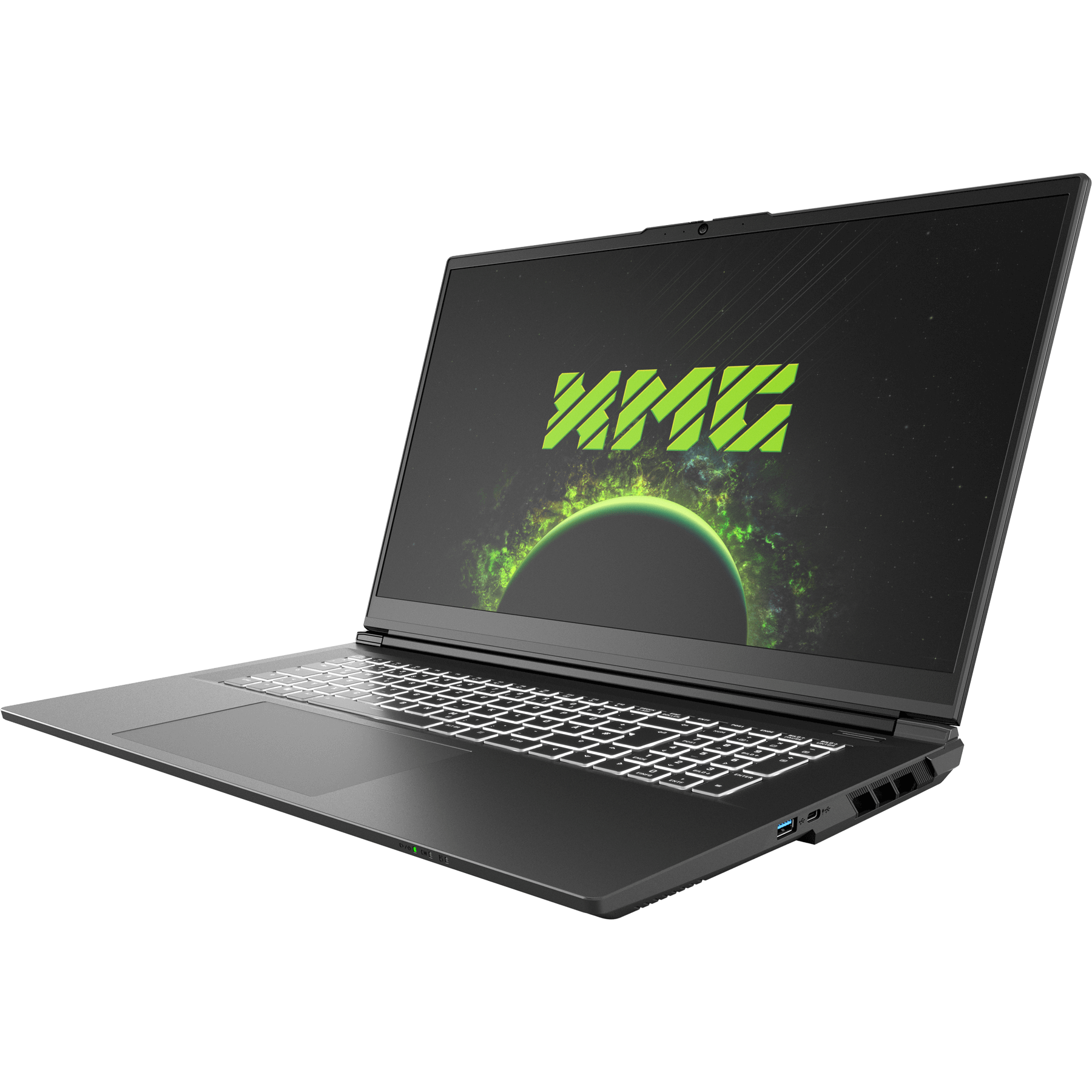

XMG APEX 17

KING OF THE HILL

Equipped with AMD’s most powerful laptop CPU from the Dragon Range series and high-performance NVIDIA graphics cards up to the GeForce RTX 4070, the superbly configured XMG APEX 17 MAX is an outstanding and versatile option for demanding power users.

This classic 17.3-inch laptop features the Ryzen 9 7945HX, based on desktop technology, paired with a fast, colour-accurate, high-resolution display. It also provides extensive memory and SSD expansion options, along with flexible connectivity. As the flagship model of the XMG APEX series, the APEX 17 MAX stands out with its particularly robust design, featuring a torsion-resistant aluminium display lid. Additionally, it boasts smart features such as a MUX switch for maximising graphics performance and a privacy shutter for the Full HD webcam.

AMD Ryzen 9 7945HX
Ultra-high-performance mobile CPU

As AMD’s flagship processor for laptops, the Ryzen 9 7945HX from the Dragon Range generation combines 16 full-fledged cores and 32 threads, making it an impressive powerhouse for both gaming and demanding content creation. The HX CPU adopts the same design as AMD’s Zen 4-based desktop processors and now, thanks to the increasingly efficient architecture, brings this performance advantage to portable notebooks.

XMG APEX 17 MAX M24 LP Feature 01 CPU Desktop
XMG APEX 17 MAX M24 LP Feature 01 CPU Mobile
NVIDIA GeForce RTX 40
Exceptional power and DLSS 3

Experience the latest in NVIDIA performance and elevate your gaming with breakthrough DLSS 3 technology for an ultra-smooth experience. The APEX 17 MAX offers a choice between two high-performance laptop GPUs: the GeForce RTX 4070 or RTX 4060. With the exclusive DLSS 3 feature, you can push the powerful graphics chips even further. Integrated AI technology generates additional high-quality frames, ensuring impressive FPS even when ray tracing is enabled.

Cherry Feature
DLSS 3
DLSS is a revolutionary breakthrough in AI-powered graphics that massively increases performance. DLSS 3 utilises the new fourth-generation Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series laptop GPUs to create additional high-quality frames using AI.

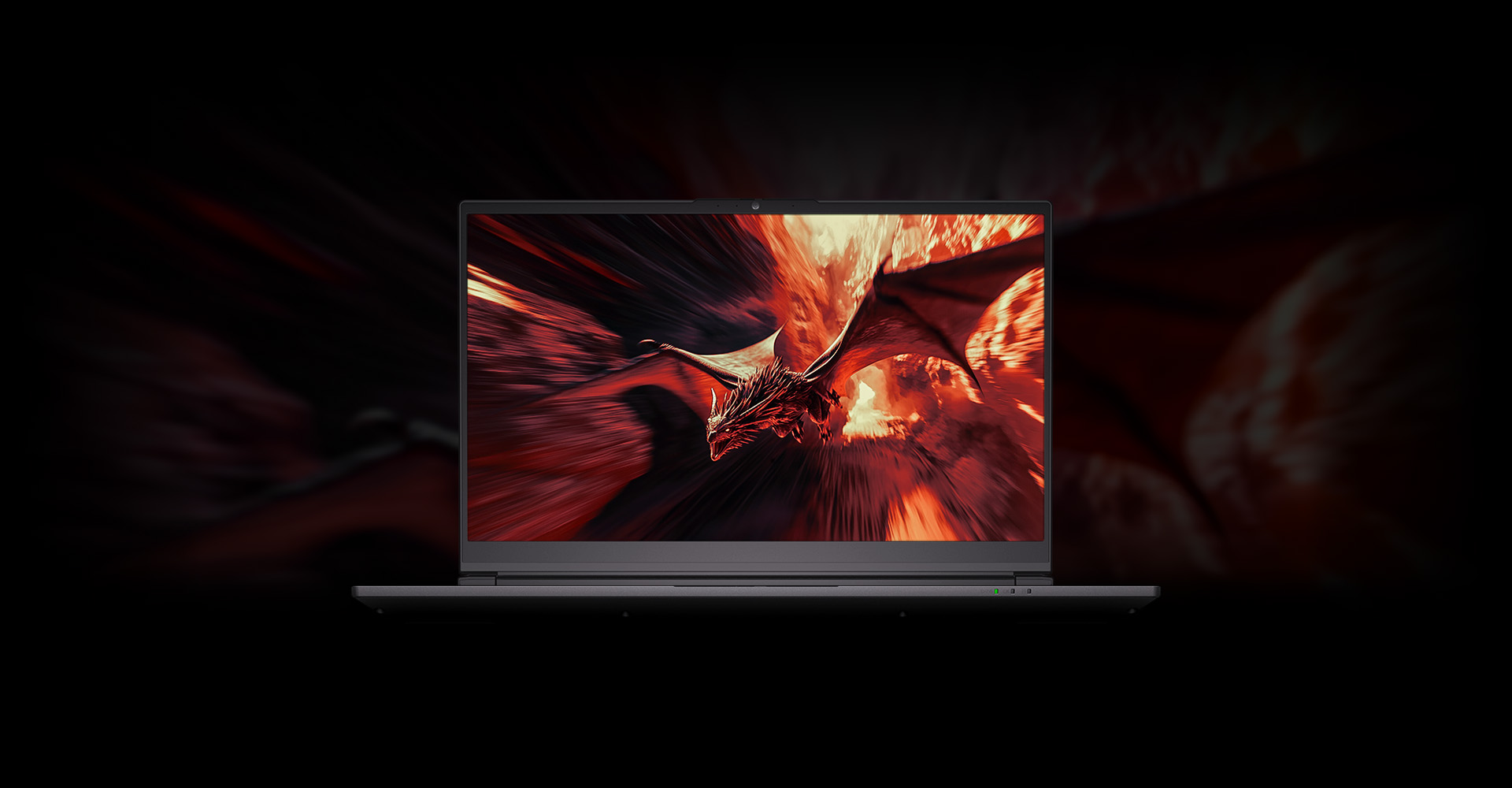

17.3“ WQHD display
Accurate, sharp, and fast

With a generous 17.3-inch screen and a classic 16:9 format, the high-resolution WQHD display (2,560 x 1,440 pixels) of the XMG APEX 17 MAX delivers razor-sharp clarity. It also includes features tailored for both gamers and creatives.

XMG APEX 17 MAX M24 LP Feature 03 Display Desktop 1
XMG APEX 17 MAX M24 LP Feature 03 Display Mobile
XMG APEX 17 MAX M24 LP Feature 03.2 Display
Smooth gaming
with 165 Hz

The laptop’s panel boasts a high refresh rate of 165 Hz, ensuring an ultra-smooth display of all game content, along with fast response times. It also supports AMD’s VRR technology, FreeSync, which prevents stuttering and screen tearing, even when frame rates fluctuate.

XMG APEX 17 MAX M24 LP Feature 03.1 Display

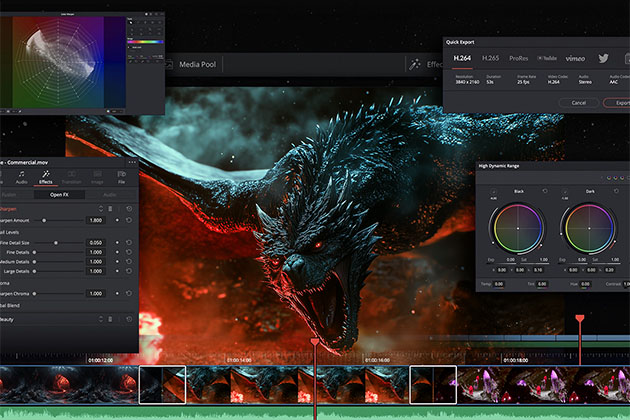

Maximum colour accuracy for creatives

For professional content creation, accurate colour reproduction is essential. The XMG APEX 17 MAX display covers 100 % of both the sRGB and extended DCI-P3 colour spaces, providing the precision required for modern video editing and image work.

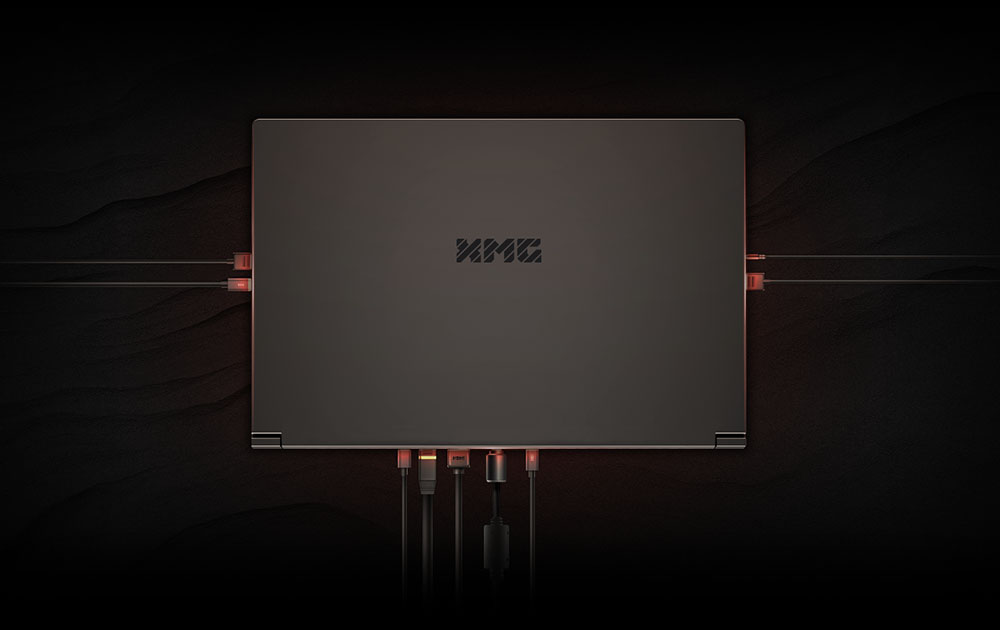

Excellent connectivity
Plenty of ports for your workflow

Need flexibility in connectivity? The XMG APEX 17 MAX natively supports up to three external monitors alongside its internal display, providing exceptional versatility. Connectivity options include two USB-A and two USB-C ports, HDMI 2.1, and Mini DisplayPort 1.4a with a direct NVIDIA dGPU connection, as well as Gigabit LAN, Wi-Fi 6E, and a 2-in-1 audio jack for headset and microphone. One of the USB Type-C ports supports Power Delivery for charging with up to 100 watts, while the second offers an integrated DisplayPort stream, connected to the efficient AMD iGPU.

XMG APEX 17 MAX M24 LP Feature 04 Anschluss Desktop
XMG APEX 17 MAX M24 LP Feature 04 Anschluss Mobile

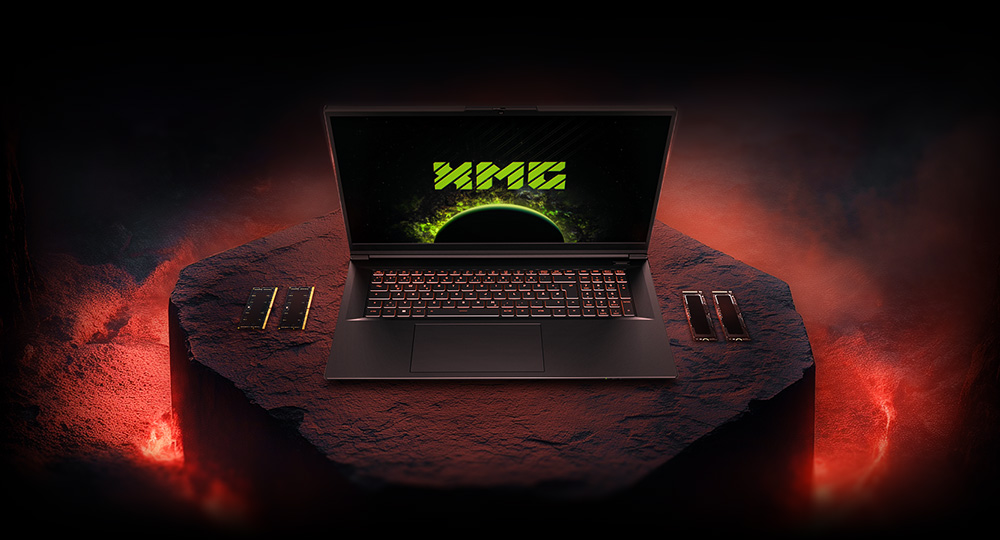

Two SSDs & up to 96 GB DDR5
Impressive memory capabilities

The XMG APEX 17 MAX is one of the few laptops that supports a maximum memory configuration of up to 96 GB DDR5 RAM, making it an excellent choice for content creation workstations. It also features two M.2 slots with thermal pads for high-speed SSDs connected via PCI Express 4.0. The RAM and storage drives are easily accessible through the laptop’s screw-fastened bottom shell, ensuring that future upgrades can be done with minimal effort.

XMG APEX 17 MAX M24 LP Feature 05 Speicher Desktop
XMG APEX 17 MAX M24 LP Feature 05 Speicher Mobile
Optimised headset sound
Immersive & powerful

With Creative’s latest Sound Blaster technology, the XMG APEX 17 MAX delivers powerful, high-resolution audio to your gaming headset. The Sound Blaster Studio+ app allows you to personalise the sound to suit your preferences. It includes features such as the ability to fine-tune multiple sound profiles for different use cases, as audio requirements vary when gaming compared to listening to music or watching videos. This way, you can get the most out of your headset!

VIDEOS & TESTS
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
Play Video about XMG NEO (E23) Unboxing
Play Video
Play Video
Play Video about XMG NEO E23 HandsOn
TECHNICAL SPECIFICATION

XAP17XM24

  • 17.3″ IPS | 2560×1440 px | 16:9 | 165 Hz | 330 nits | FreeSync | 100 % sRGB/DCI-P3 | non-glare
  • alternatively 60 Hz settable
  • AMD Ryzen 9 7945HX | 16 cores/32 threads | up to 5.4 GHz | 64 MB L3 cache

integrated (iGPU):

  • AMD Radeon 610M | 2 Compute Units



dedicated (dGPU):

  • NVIDIA GeForce RTX 4060 Laptop | 8 GB GDDR6 | 115 W TGP (+ 10 W Dynamic Boost)¹⁾
  • NVIDIA GeForce RTX 4070 Laptop | 8 GB GDDR6 | 115 W TGP (+ 10 W Dynamic Boost)¹⁾


    ¹⁾NVIDIA Dynamic Boost is controlled by NVIDIA drivers in relation to CPU power consumption.

internal display connection:
iGPU with NVIDIA Optimus or dGPU (via MUX switch)

HDMI 2.1 and Mini DisplayPort 1.4a connection:
dGPU

DisplayPort 1.4a via USB-C connection:
iGPU with NVIDIA Optimus

three external displays directly addressable
additional external displays possible with docking station/adapter
VR Ready

  • composite cooling system with copper heatpipes
  • two fans, each 60 mm in diameter, 11 mm in height and 67 fan blades
  • four air outlets with a total of 232 copper cooling fins

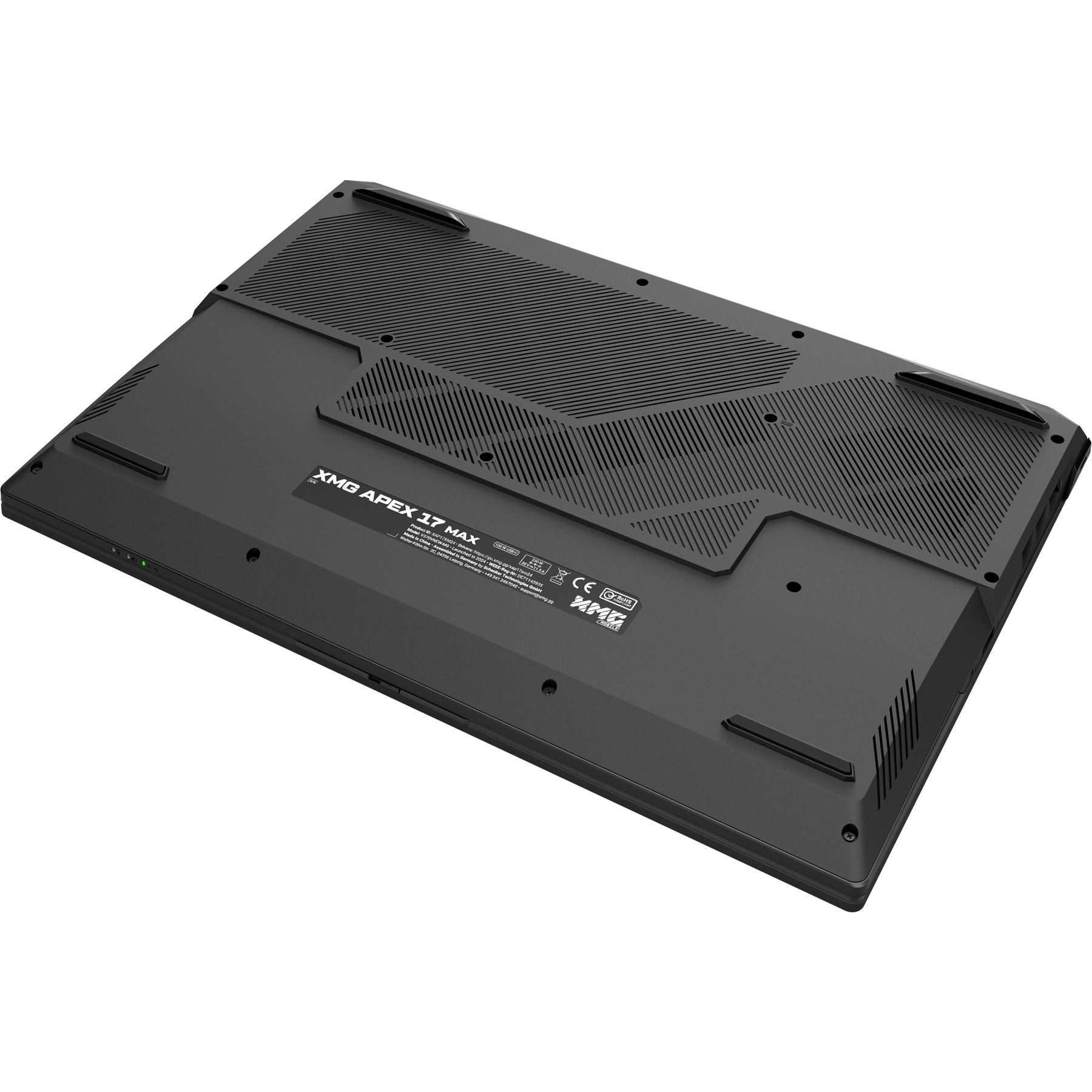

  • air intake via bottom case
  • CPU + GPU: 180/165 watts (peak/sustained)
  • GPU-only: 125/115 watts (for up to 30 seconds/sustained)
  • CPU-only: 95/70 watts (peak/sustained)


    Thermals and sustained power limits may vary with room temperature and airflow.
    Values represent average capabilities under normal conditions.

  • control center with customisable fan curves, battery charging profiles, keyboard macros etc.
  • four pre-configured performance profiles (quickly changeable with Fn+F3)
  • Windows installation without additional third-party software (for configurations with operating system)

2x DDR5 SO-DIMM | Dual Channel | max. 96 GB | max. 5200 MHz | max. 1.1 V

2x M.2 2280 SSD via PCI Express 4.0 x4 (supports RAID 0/1)

  • stereo speakers
  • Sound Blaster Studio+
  • microphone with noise cancelling
  • Full HD webcam with Temporal Noise Reduction

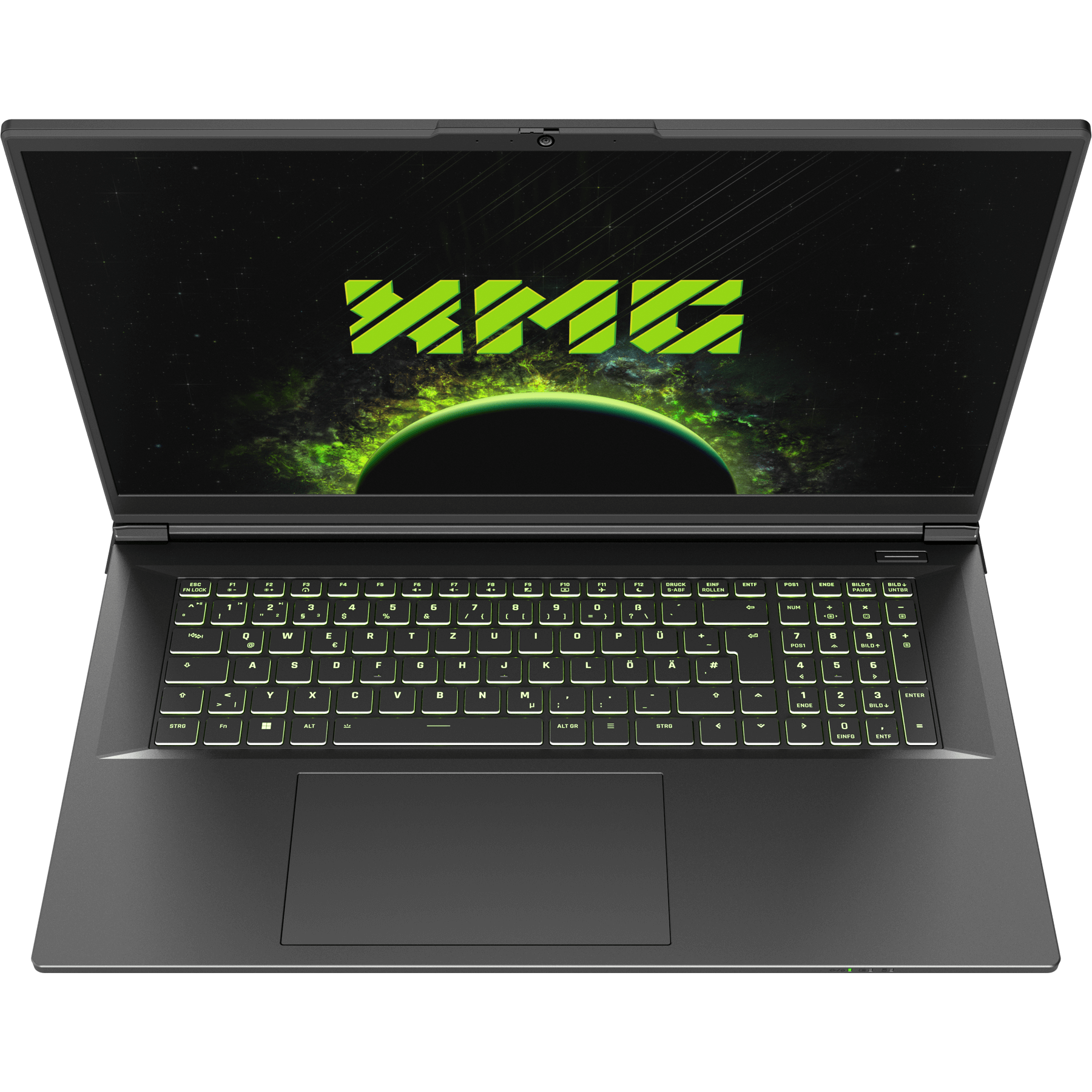

  • backlit keyboard with full-fledged numeric keypad and full-size arrow keys
  • 15 colour options
  • Microsoft Precision Touchpad, two integrated buttons | 150 x 90 mm (B x T)
  • automatic palm recognition to avoid false inputs
  • supports scrolling, tapping, swiping and other multi-finger gestures as defined by operating system

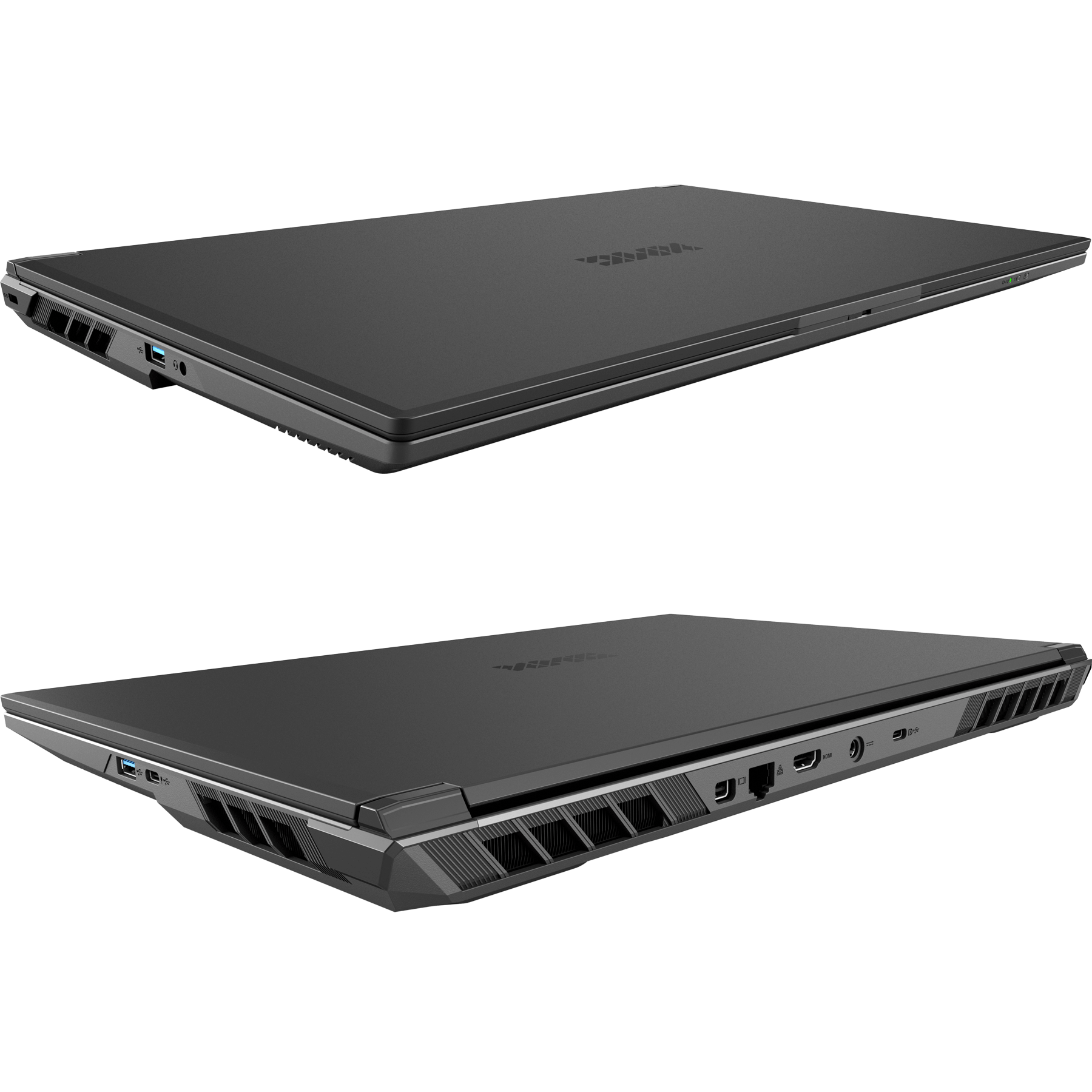

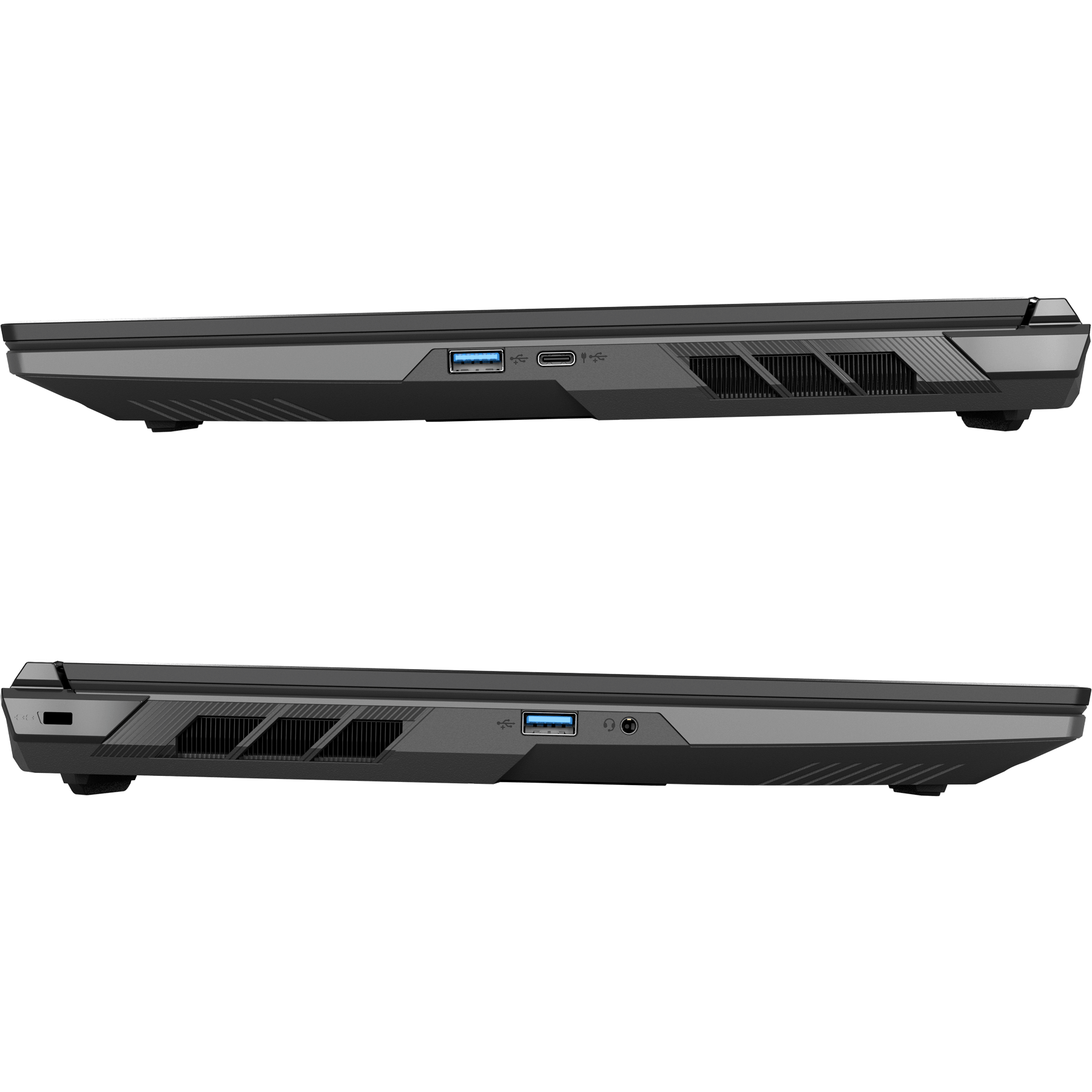

(clockwise)

Left:

  • 2-in-1-audio (headphone + mic)
  • USB-A 3.2 Gen1 (5 Gbps)

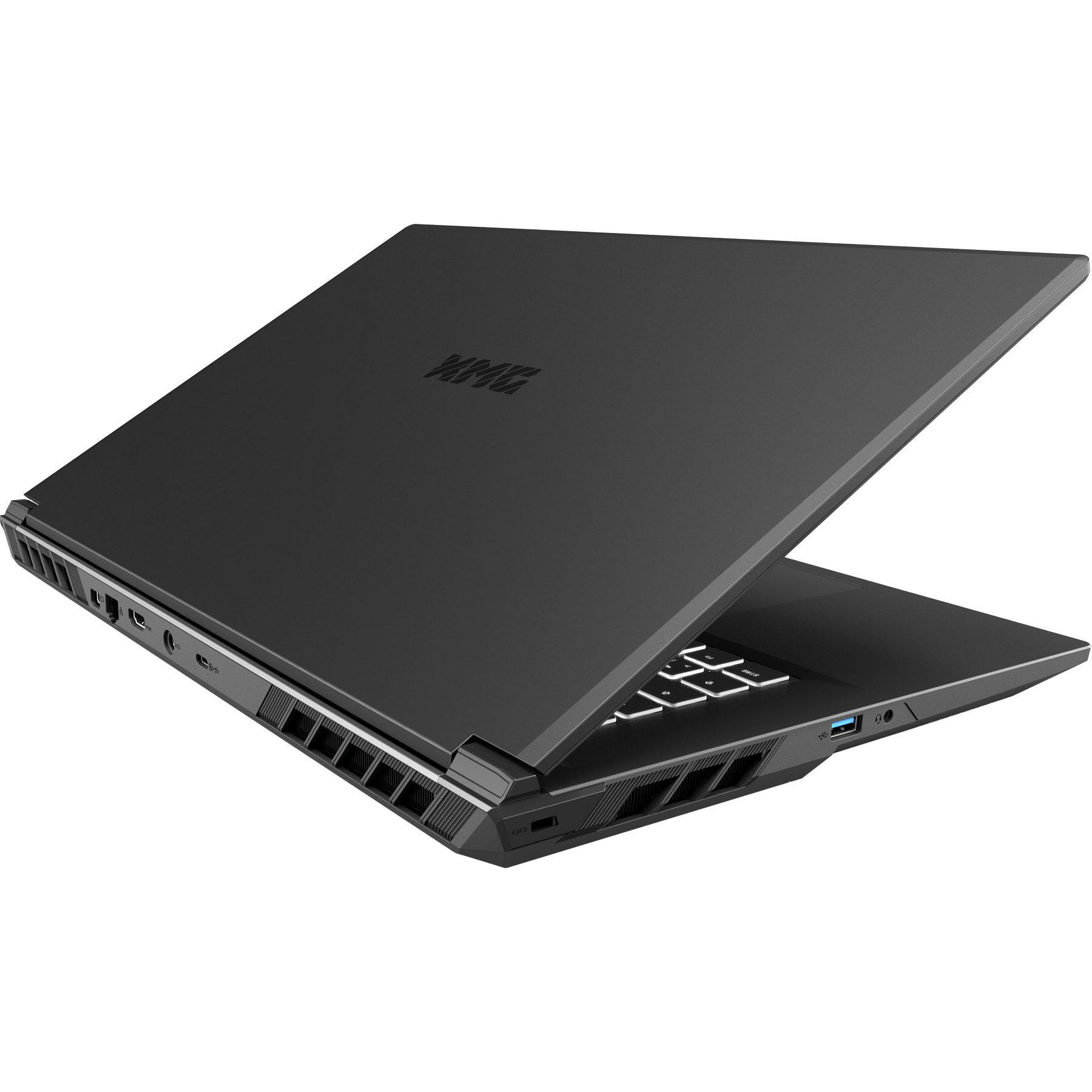

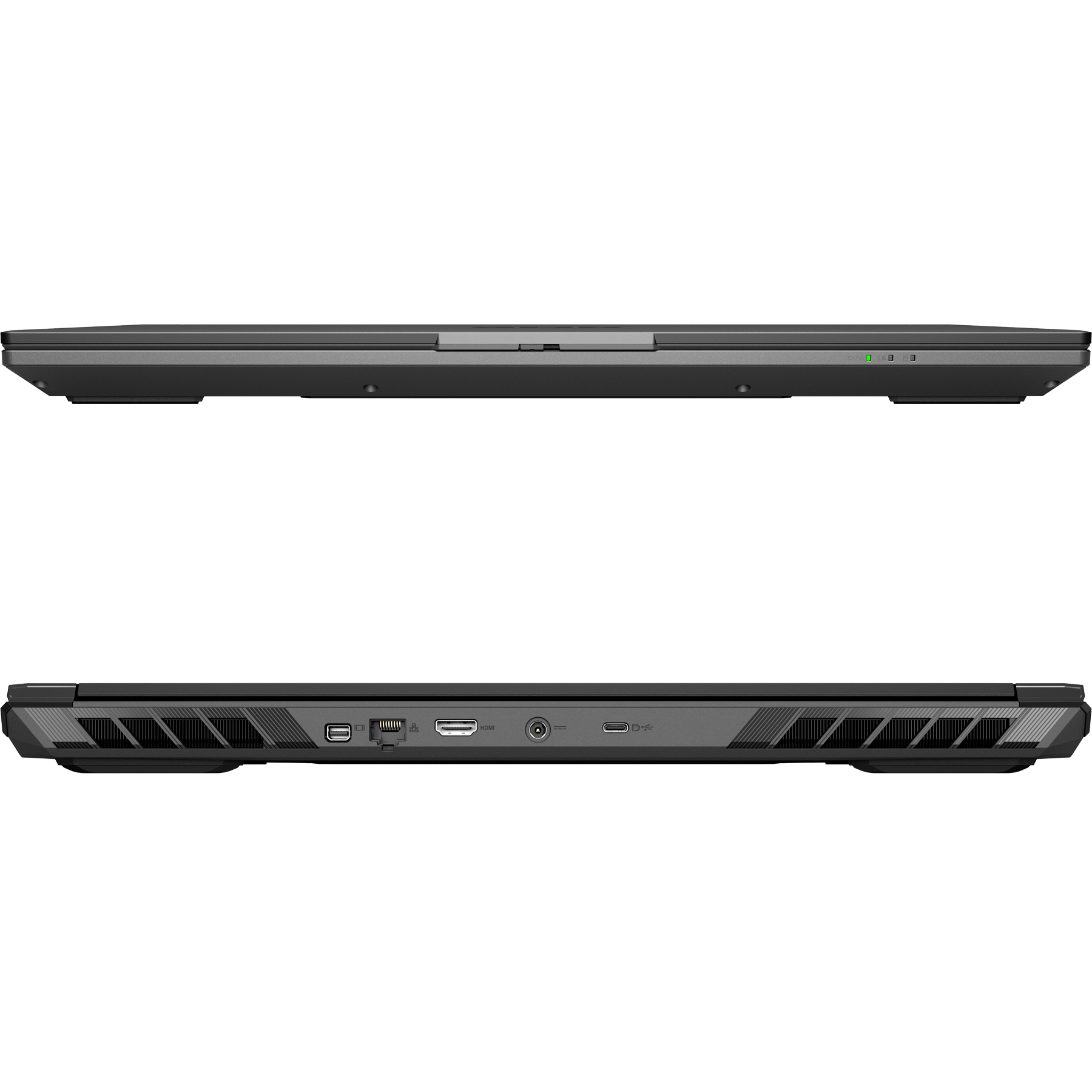

Rear:

  • USB-C 3.2 Gen2 (10 Gbps |
  • DisplayPort 1.4a | no Power Delivery)²⁾
  • DC-in (5.5/2.5 x 10 mm; IEC 60130-10)
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
  • RJ45 Port (Gigabit)
  • Mini DisplayPort 1.4a (G-SYNC compatible | 2 streams with a total of 32.4 Gbps)


Right:

  • USB-C 3.2 Gen2 (10 Gbps | 100 W Power Delivery | no DisplayPort)²⁾
  • USB-A 3.2 Gen2 (10 Gbps)


²⁾details:
power supply for peripherals: max. 5V/3A (15 watts)
right USB-C supports USB Power Delivery (exclusively with 20V/5A resp. 100 watts)
rear USB-C supports 2 DisplayPort streams with a total of 32.4 Gbps
no support for VR headsets
no support for G-SYNC (proprietary), but compatible with Adaptive Sync (incl. FreeSync and G-SYNC Compatible)

  • Wi-Fi 6E + Bluetooth 5
  • Realtek Gigabit LAN (supports Wake on LAN and LAN/PXE boot)
  • Kensington Lock (left side)
  • TPM 2.0 (via dTPM)
  • Secure Boot
  • physical webcam shutter
  • support for hardware encryption with compatible SSDs
  • 230 watts (155 x 75 x 25 mm | 675 g incl. EU power cable)
  • power cable socket: C6
  • changeable 73 Wh Li-poly battery (internally screwed)
  • different battery charging profiles selectable in control center or BIOS (FlexiCharger)
  • display lid made of aluminium
  • display lid, top und bottom case made of plastic
  • 130° display opening angle
  • one-hand opening
  • PH 1 screw heads

ca. 2.85 kg

402 x 265 x 28.6 mm (W x D x H)

  • laptop (incl. battery)
  • power supply
  • driver USB stick
