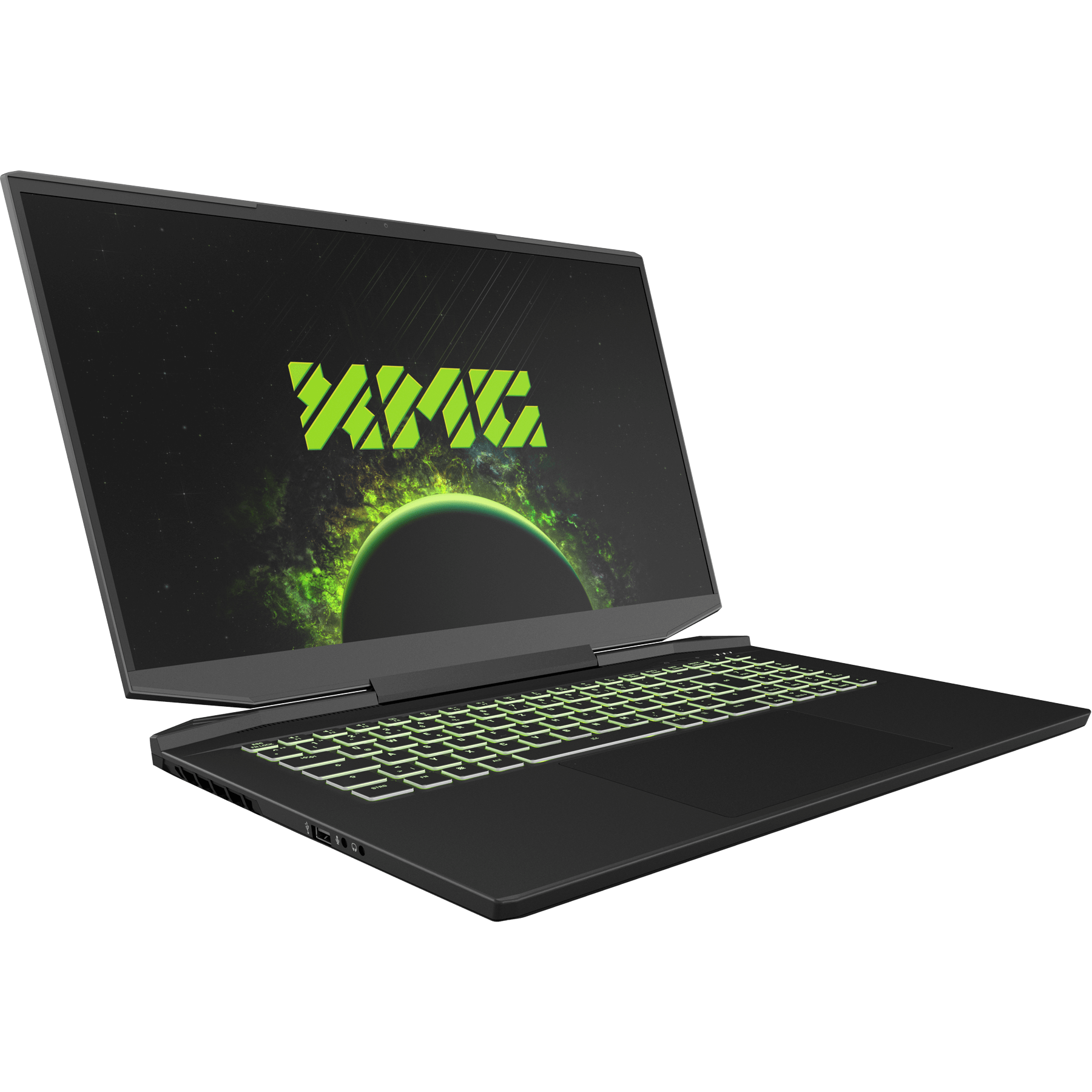

XMG APEX 17

KING OF THE HILL

Powerful mid-range performance and strong features: The XMG APEX 17 combines a fast AMD eight-core CPU with the latest NVIDIA graphics cards to create an attractively priced and versatile all-inclusive package for gamers.

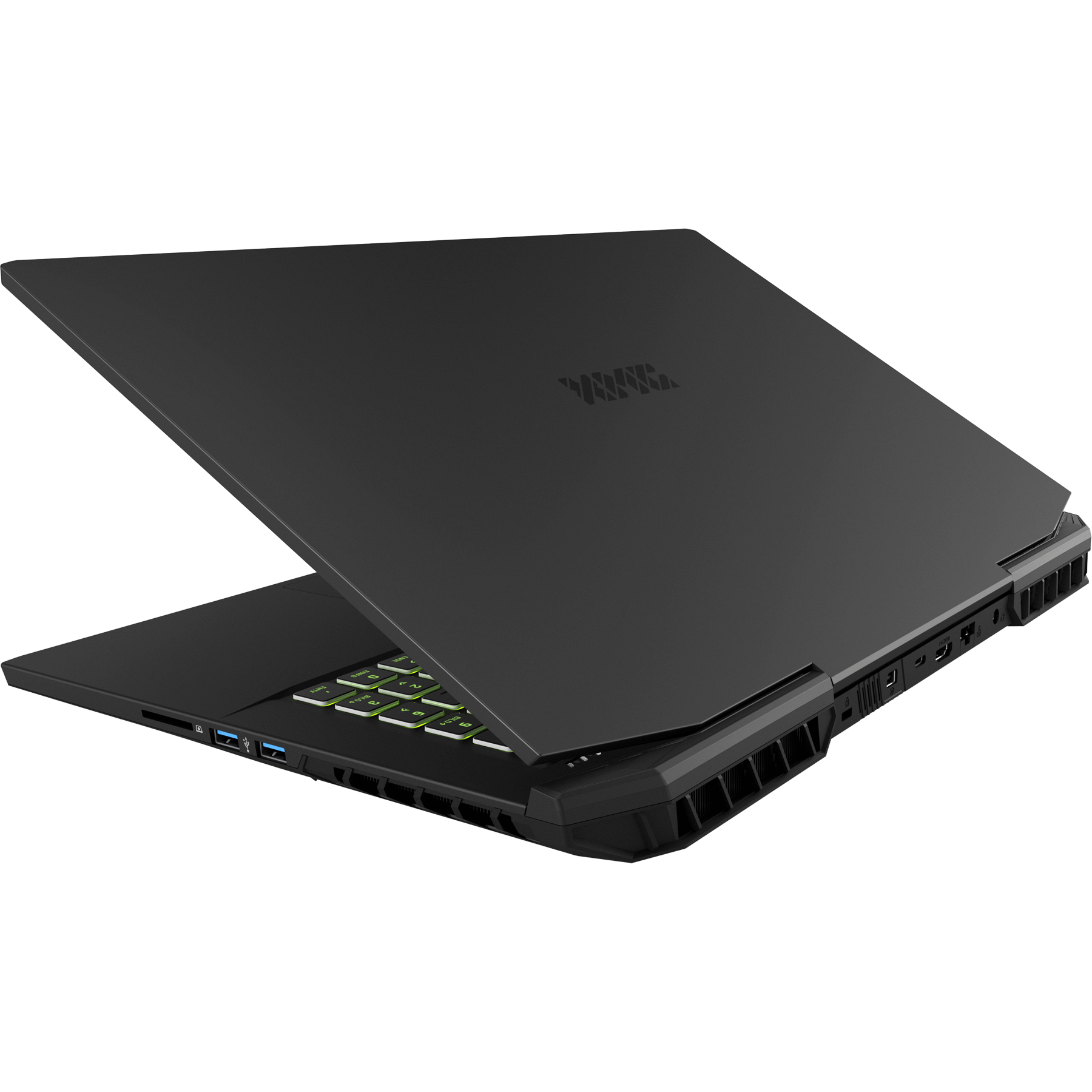

Both the design and the feature set are clearly driven by gaming DNA. This applies to the boldly designed, robust case weighing less than 2.5 kg with a torsion-resistant aluminium display lid and to many supplementary features such as a precise RGB keyboard, customised audio features for optimal headset sound and an extra-large glass touchpad with smart palm recognition function.

AMD Ryzen 7 7735HS
Strong performance, high efficiency

Powerful performance for gaming, streaming and even demanding applications: With 8 cores and 16 threads, AMD’s Ryzen 7 easily rises to any challenge. At the same time, the modern mobile processor combines its high performance with outstanding efficiency, so you can be sure of consistently high FPS even in CPU-heavy games.

XMG APEX M23 LP Feature AMD Desktop
XMG APEX M23 LP Feature AMD Mobile
NVIDIA GeForce RTX 40
Plenty of power and DLSS 3

Get the latest generation of NVIDIA performance and give your games the boost they need with breakthrough DLSS 3 technology for an ultra-smooth gaming experience. The XMG APEX 17 gives you a choice of two high-performance laptop GPUs – the GeForce RTX 4060 or RTX 4050. Thanks to the exclusive DLSS 3 feature, you get even more out of the powerful graphics chips. Integrated AI technology generates additional, high-quality frames, resulting in plenty of FPS even when raytracing is activated.

Cherry Feature

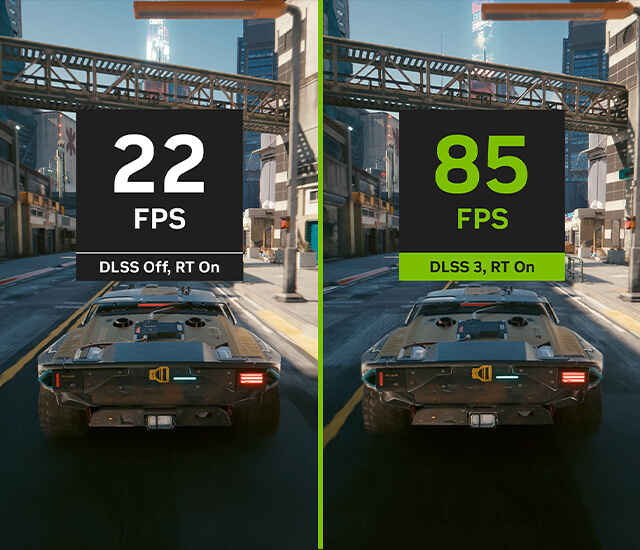

DLSS 3
DLSS ist ein revolutionärer Durchbruch bei der KI-gestützten Grafik, mit dem die Leistung massiv gesteigert wird. DLSS 3 nutzt die neuen Tensor-Recheneinheiten der vierten Generation und den Optical-Flow-Beschleuniger auf Laptop-Grafikprozessoren der GeForce RTX 40-Serie, um mithilfe von KI zusätzliche qualitativ hochwertige Frames zu erstellen.
IPS display with 144 Hz
Fast, brilliant, high-quality

Thanks to its 144 Hz IPS panel, the XMG APEX 17 guarantees fast-paced gaming action with an optimally smooth display. In addition, you can expect intensely vibrant colours, first-class black levels, high contrast and over 90 % sRGB colour space coverage, so that the images on your laptop really look the way they should. As an ideal partner for the graphics cards offered in the APEX 17, the display’s Full HD resolution (1920 x 1080 pixels) is just the right choice for high FPS.

16:10         165 Hz         500 cd/m²
2560×1600 px                                  Bildwiederholrate                                            Helligkeit
16:10
2560×1600 px
165 Hz
Bildwiederholrate
500 cd/m²
Helligkeit
XMG APEX M23 LP Feature Display Desktop

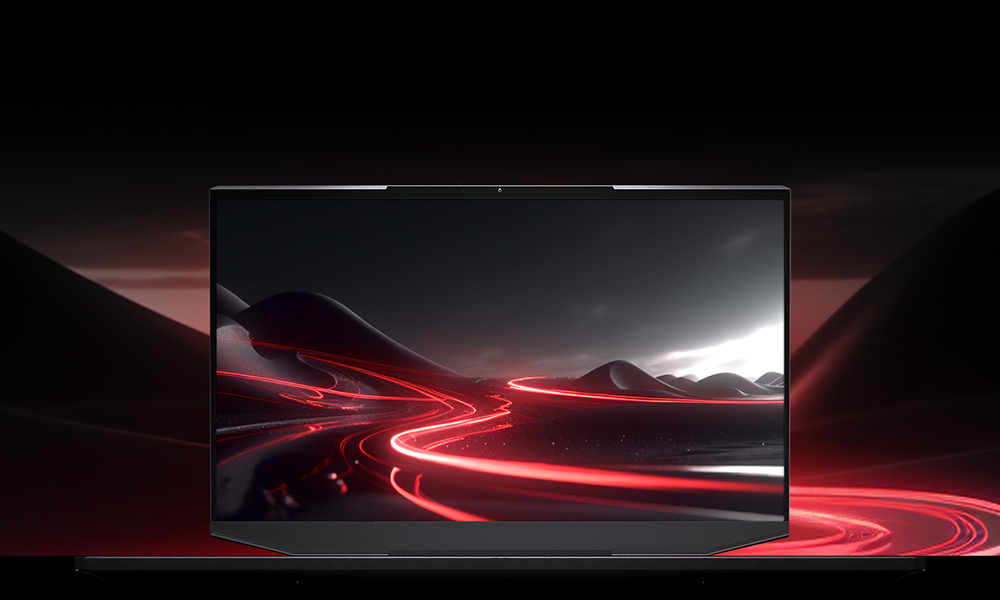

XMG APEX M23 LP Feature Display Mobile
Equipped with the latest technology

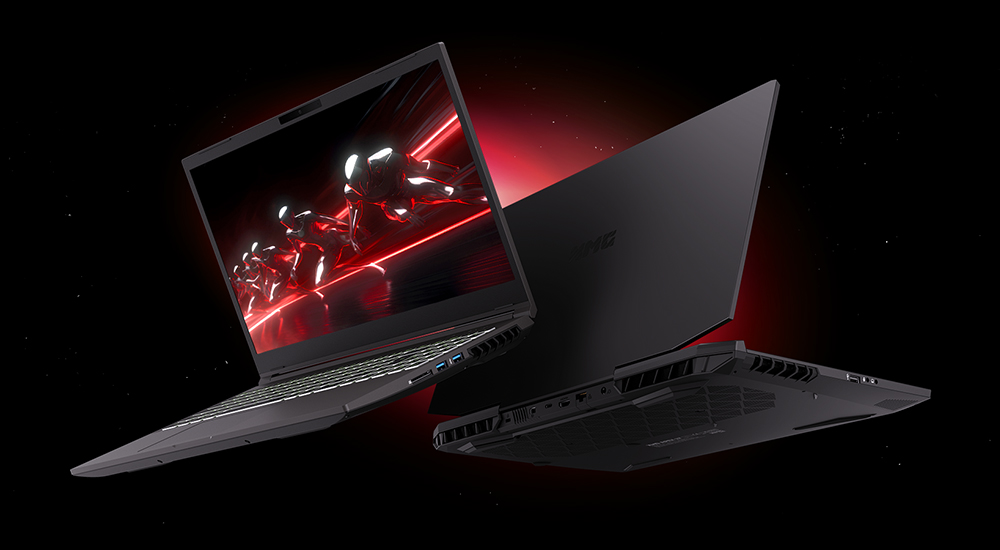

Broad port diversity

Looking for maximum flexibility and a strong variety of external ports in a gaming laptop? Then the XMG APEX 17 has everything you need! With three USB-A and one USB-C port, a card reader for full-size SD cards, a LAN port and separate audio ports for headphones (compatible with combo plug headsets) and microphone, it doesn’t stop there: An adapter-free life is also ensured by a native Mini DisplayPort and a latest-generation HDMI output – so you are absolutely future-proofed and can effortlessly connect the laptop to your G-SYNC monitor or to the TV for a comfortable session of couch gaming.

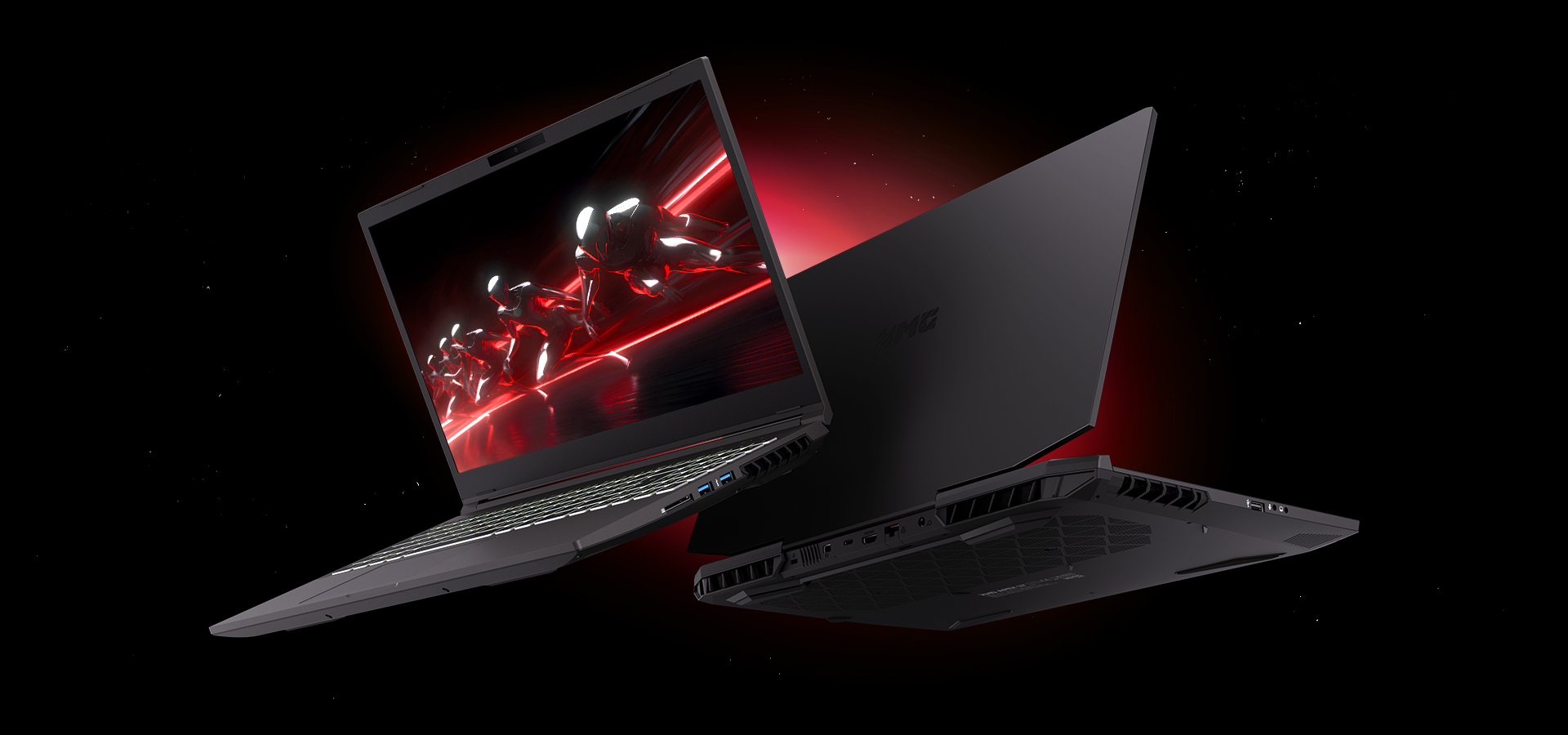

XMG APEX M23 LP Feature Ports Desktop
XMG APEX M23 LP Feature Ports Mobile
Optimised headset sound
Immersive & powerful

Thanks to Creative’s latest Sound Blaster technology, the XMG APEX 17 delivers powerful and high-resolution sound to your gaming headset. The Sound Blaster Cinema 6+ app lets you customise the sound to your individual preferences. The functions include the ability to tune multiple sound profiles for different listening usage cases – because the sound requirements differ when gaming compared to whilst listening to music or watching videos. With Cinema 6+ you get the best out of your headset!

XMG Control Center
All settings under control

The XMG Control Center is a powerful tool that gives you complete control over your laptop’s performance settings. Not only will you find customised, predefined performance profiles, but you can also create your own profiles with the optimal balance of performance, noise and temperatures – and then conveniently call them up via the mode switch button above the keyboard. Experts can also access many additional tuning options to get the most out of their setup.

VIDEOS & TESTS
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
Play Video about XMG NEO (E23) Unboxing
Play Video
Play Video
Play Video about XMG NEO E23 HandsOn
TECHNICAL SPECIFICATION

XAP17M23

17.3″ IPS | 1920×1080 px | 144 Hz | 300 cd/m² | 90 % sRGB | non-glare

  • AMD Ryzen 7 7735HS | 8 cores/16 threads | up to 4.75 GHz | 16 MB cache | 54+ W TDP
  • AMD Radeon 680M | 12 Compute Units | integrated (iGPU)
  • NVIDIA GeForce RTX 4050 | 6 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)
  • NVIDIA GeForce RTX 4060 | 8 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)


    *XMG APEX is able to max out the GPU power consumption of the RTX 40-series laptop GPUs (140 W for RTX 4050/4060) in synthetic stress tests (e.g. FurMark). However, according to the NVIDIA specifications, the actual GPU power consumption depends on the type of workload. Therefore, the power consumption may be below (sometimes significantly lower) than the specified TGP and Dynamic Boost power draw values and is defined by NVIDIA.

    display connection: iGPU with NVIDIA Optimus or dGPU (via MUX switch)
    HDMI 2.1, Mini DisplayPort 1.4a connection: dGPU
    2 external displays directly addressable

    VR Ready

2x DDR5 SO-DIMM | Dual Channel | max. 64 GB | max. 4800 MHz | max. 1.1 V

2x M.2 2280 SSD via PCI Express 4.0 x4 (suppports RAID 0/1)

  • stereo speakers
  • microphone with noise cancelling
  • Sound Blaster Cinema 6+
  • backlit RGB keyboard with keypad and full-size arrow keys
  • Fn lock function

Microsoft Precision Glass Touchpad, two integrated buttons | 154 x 100 mm (W x D)

Left:

  • headphone-out (compatible with combo jack headsets)
  • mic-in
  • USB-A 2.0 (powered)

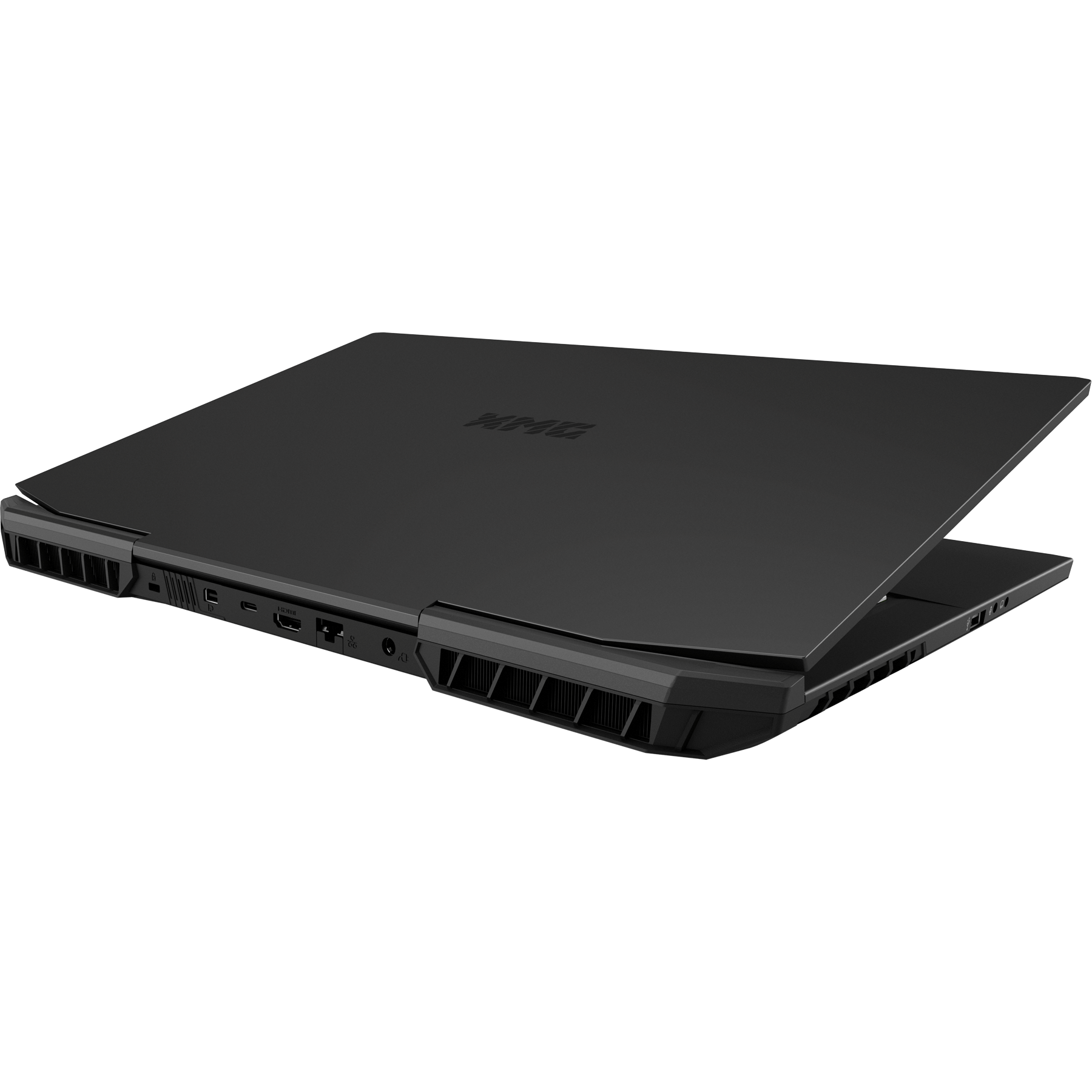

Rear:

  • DC-in
  • RJ45 port (LAN)
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
  • USB-C 3.2 Gen2×1 (DisplayPort: no | Power Delivery: no)
  • Mini DisplayPort 1.4a (G-SYNC compatible | 2 streams with a total of 32,4 Gbps)



Right:

  • 2x USB-A 3.2 Gen1 (powered)
  • card reader (SD/SDHC/SDXC)
  • Realtek Gigabit LAN
  • Wi-Fi 6 + Bluetooth 5
  • HD webcam
  • Kensington Lock (rear)
  • TPM 2.0 (via fTPM)
  • 230 watts (152 x 76 x 26 mm | 672 g incl. EU power cable)
  • changeable 62 Wh Li-Poly-battery (internally screwed)
  • different battery charging profiles settable in control center
  • display lid made of aluminium
  • display frame, top and bottom case made of plastic
  • 140° display opening angle
  • PH 0 screw heads
  • performance mode switch button

ca. 2.47 kg

392.9 x 260 x 24.9 mm (W x D x H)

  • laptop (incl. battery)
  • power supply
  • driver USB stick

We continuously provide you with the latest driver versions in the download portal of our company headquarters Schenker Technologies GmbH.
