XMG APEX 15 | Gaming Laptop
XMG APEX | Gaming Laptop
XMG APEX Keyvisual mobile

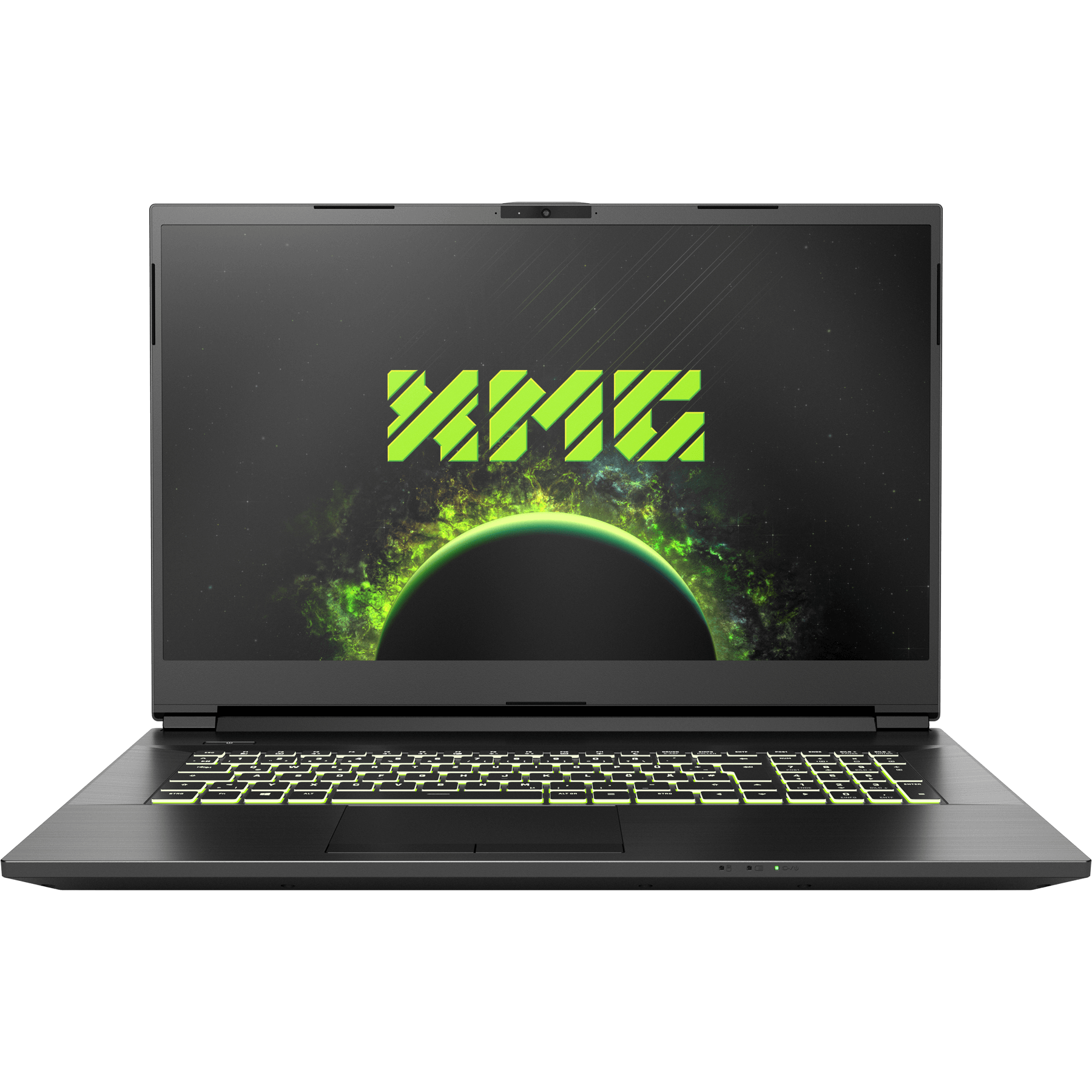

XMG APEX 17

KING OF THE HILL

Powerful, with an eye for the essentials: Thanks to NVIDIA graphics cards up to GeForce RTX 3070 and fast Ryzen 5000 eight-core processors, the XMG APEX 17 is bursting with power. The 17.3 inch gaming laptop deliberately focuses on the key features that matter most to gamers – very high performance at an attractive price. At the same time, the unmistakably gaming-designed chassis with its robust base unit offers enough room for large air outlets and a powerful cooling system. This allows the components to deliver uninterrupted performance, even under constant gaming load and creates the optimal conditions for consistent FPS rates at a high level.

XMG APEX Gaming-Laptop AMD Ryzen

Eight high-end cores

AMD RYZEN 5000 CPUs

On the processor side, the XMG APEX 17 delivers nothing less than mobile high-end performance. AMD’s Ryzen 7 5800H and the even stronger Ryzen 9 5900HX are among the fastest eight-core processors with a full 16 threads. The modern CPUs are not only characterised by optimal performance for elaborate AAA games and simultaneous streaming, but also excel with very high application performance.

Ray tracing for advanced users

FAST RTX-3000 GPUs

With the latest ray-tracing-capable graphics cards from NVIDIA, the XMG APEX 17 is ready for higher tasks. A powerful GeForce RTX 3070 with 8 GB GDDR6 graphics memory is available as the top option, while the RTX 3060 with 6 GB GDDR6 as an entry-level option already offers very high Full HD gaming performance. To call upon the maximum specified performance in each case, the graphics cards operate in the highest possible TGP expansion stage.

XMG APEX Gaming-Laptop NVIDIA RTX
XMG APEX 15 Gaming-Laptop Display

Fast gaming display:

IPS PANEL WITH 144 Hz

A high-quality IPS display reproduces your games in the best possible quality: with its intense colours, excellent black levels and contrast as well as exceptional viewing angle stability, the Full HD panel (1920 x 1080 pixels) of the XMG APEX 17 scores with first-class display characteristics. Gamers in particular benefit from the high refresh rate of 144 Hz. This allows fast action titles, among others, to run particularly smoothly.

XMG APEX 15 Gaming-Laptop Display
XMG APEX Gaming-Laptop Anschlüsse

Native connection options for

THREE MONITORS & 2.5 GBIT ETHERNET

THREE MONITORS & 2.5 GBIT ETHERNET

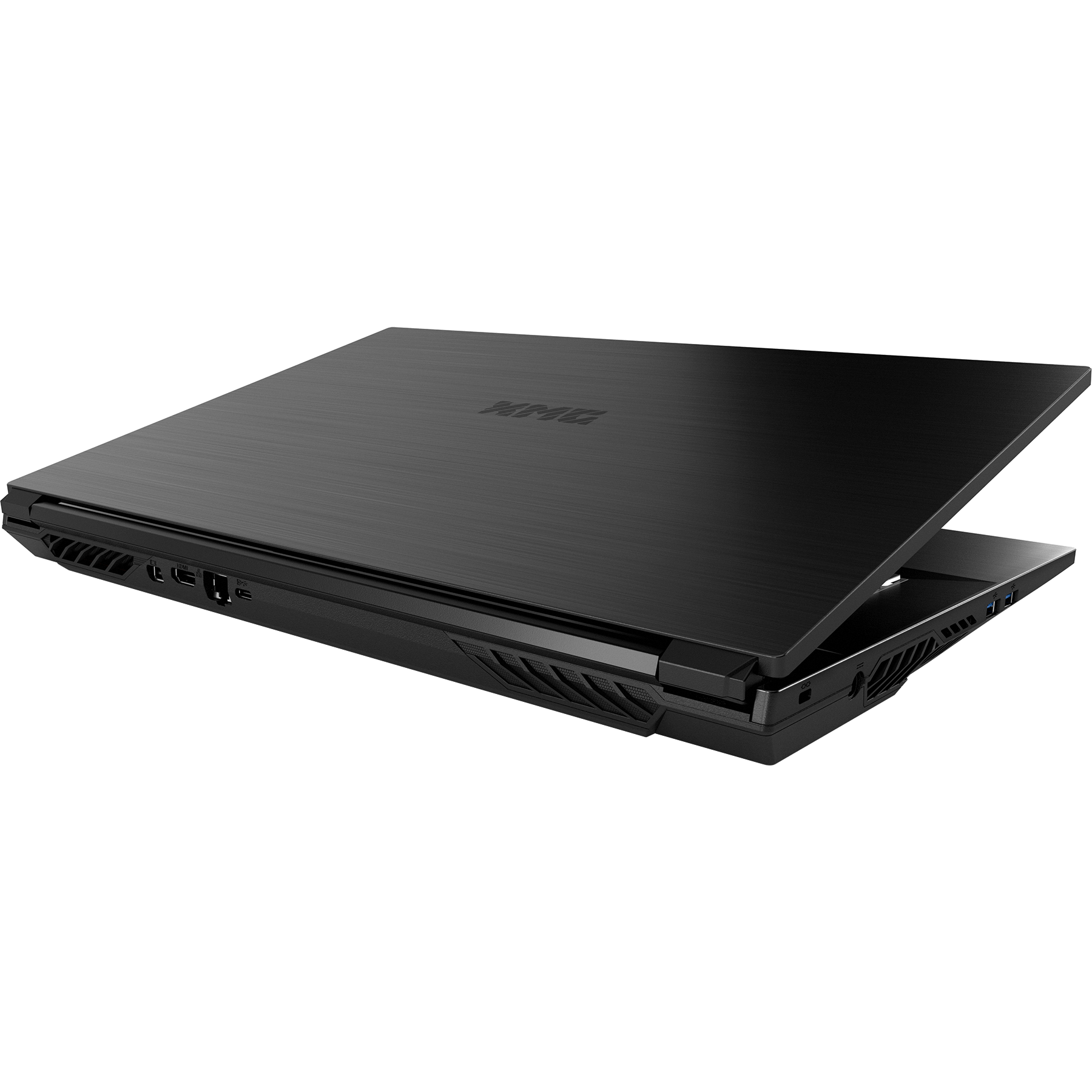

Thanks to three external graphics interfaces, the XMG APEX 17 is optimally prepared for the use of a multi-monitor setup or for connecting a VR headset. It can also simultaneously address up to three external monitors in addition to the internal display. As well as the integration of a DisplayPort stream into the USB-C port, the laptop has a Mini DisplayPort and an HDMI output. All three are directly connected to the GeForce RTX graphics card for optimal VR headset compatibility and are located at the rear of the laptop, as is the fast 2.5 Gigabit Ethernet port.

XMG APEX Gaming-Laptop Anschlüsse
XMG APEX Gaming-Laptop Speicher

Future-proof & upgradeable

UP TO TWI SSDs AND 64 GB RAM

The XMG APEX 17 allows individual RAM and SSD configurations to perfectly meet your requirements. The gaming laptop is equipped with two M.2 slots for fast NVMe SSDs with PCI Express connection. You are also well equipped for the future with up to 64 GB of DDR4-3200 RAM. The RAM modules are plugged in, not soldered, and just like the two M.2 slots are easily accessible via the removable bottom shell. This facilitates subsequent upgrade options and maintenance of the laptop.

XMG APEX Gaming-Laptop Speicher

Immersive gaming

RICH SOUND FOR THE HEADSET

For connecting your gaming headset or other audio peripherals, the XMG APEX 17 has both a headset-compatible 2-in-1 audio port and a separate microphone input. For optimal audio, Creative’s Sound Blaster technology allows you to fully customise the sound. The Sound Blaster Cinema 6 app provides a precise tool for selecting and adjusting specific sound profiles for gaming, watching videos or listening to music.

XMG APEX Gaming-Laptop Sound Blaster Cinema 6
VIDEOS & TESTS
Play Video
TECHNICAL DETAILS

XAP17M21

17.3″ IPS | 1920×1080 px | 144 Hz | 300 cd/m² | 90 % sRGB | non-glare

  • AMD Ryzen 7 5800H | 3.2 – 4.4 GHz | 8 cores/16 threads | 16 MB cache | 54 W TDP
  • AMD Ryzen 9 5900HX | 3.3 – 4.6 GHz | 8 cores/16 threads | 16 MB cache | 54 W TDP
  • AMD Radeon RX Vega 7 | integrated
  • NVIDIA GeForce RTX 3060 Laptop GPU | 6 GB GDDR6 | 115 W TGP (+15 W Dynamic Boost) | dedicated
  • NVIDIA GeForce RTX 3070 Laptop GPU | 8 GB GDDR6 | 125 W TGP (+15 W Dynamic Boost) | dedicated

Display connection: AMD Radeon RX Vega 7 (with NVIDIA Optimus)
HDMI, Mini DisplayPort, DisplayPort via USB-C connection: direct
3 external displays directly addressable (more with MST adapter via USB-C or Mini DisplayPort )

VR Ready

2x DDR4 SO-DIMM, Dual Channel, up to 64 GB and 3200 MHz

2x M.2 2280 SSD via PCI Express 3.0 x4

  • Stereo speakers
  • Microphone with noise cancelling
  • Sound Blaster Cinema 6

Backlit keyboard with numeric keypad, 15 colour options

Microsoft Precision Touchpad, two buttons

Left:

  • USB-A 3.2 Gen1
  • USB-A 3.2 Gen2×1
  • DC-in



Rear:

  • USB-C 3.2 Gen2×1 (DisplayPort 1.4: yes, G-SYNC compatible | Power Delivery: no)
  • RJ45 2.5 Gbit Port (LAN)
  • HDMI 2.1 (with HDCP 2.3)
  • Mini DisplayPort 1.4 (G-SYNC compatible)

Right:

  • USB-A 2.0
  • Headphone-out (Smartphone headset compatible)
  • Mic-in
  • Realtek Gbit LAN
  • Wi-Fi 802.11a/b/g/n/ac/ax + Bluetooth 5
  • HD webcam
  • Kensington Lock
  • TPM 2.0 (via dTPM)

230 watts (155 x 75 x 30 mm | 805 g incl. EU power cable)

  • Changeable 49 Wh Li-poly battery
  • Flexible battery charging function can be activated in BIOS (FlexiCharger)

Display lid made of aluminium
Display frame, top and bottom case made of plastic
130° display opening angle

ca. 2.5 kg

396 x 262 x 32.4 mm (W x D x H)

Laptop (incl. battery), power supply, driver CD/USB-stick, manual

We continuously provide you with the latest driver versions in the download portal of our company headquarters Schenker Technologies GmbH.

Download here
