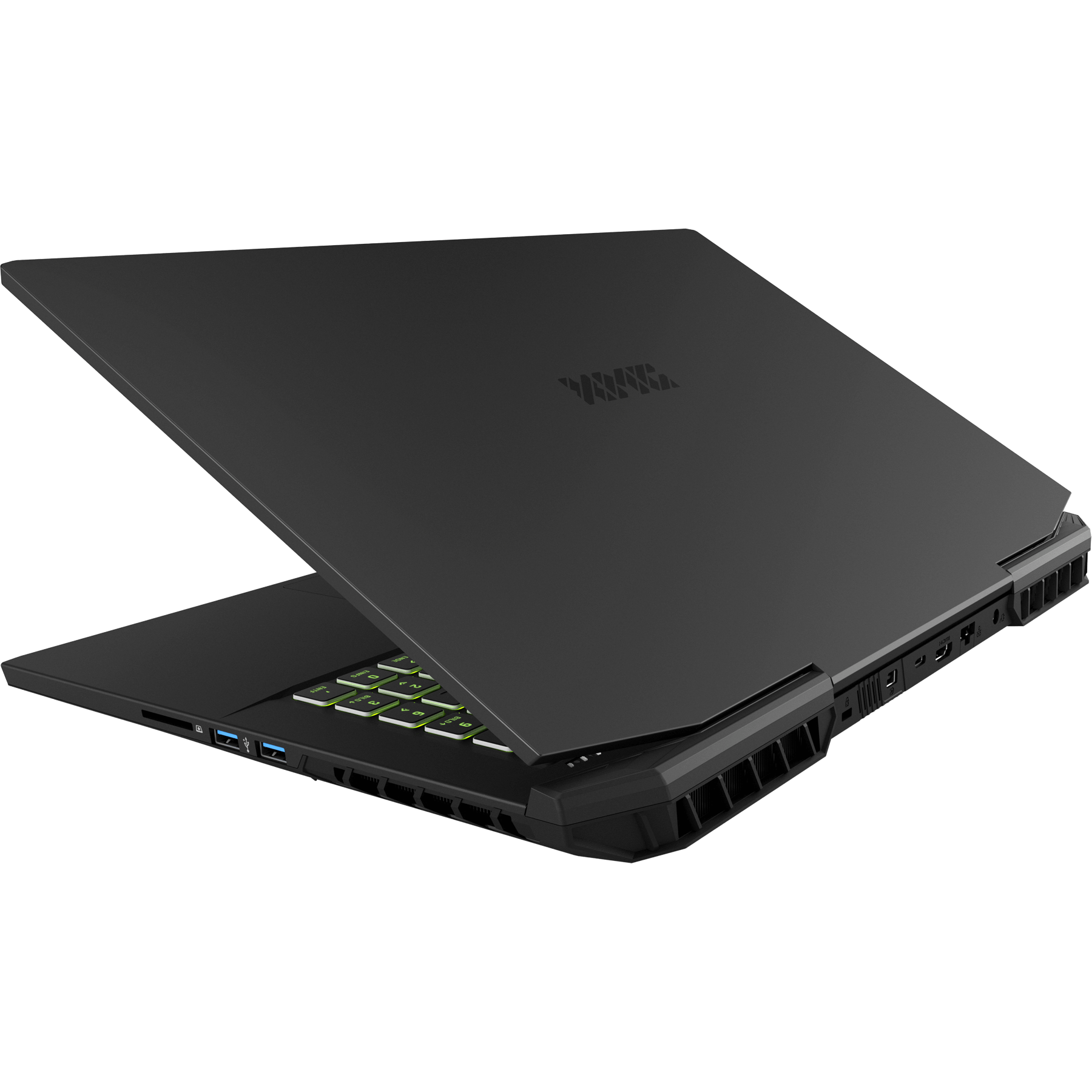

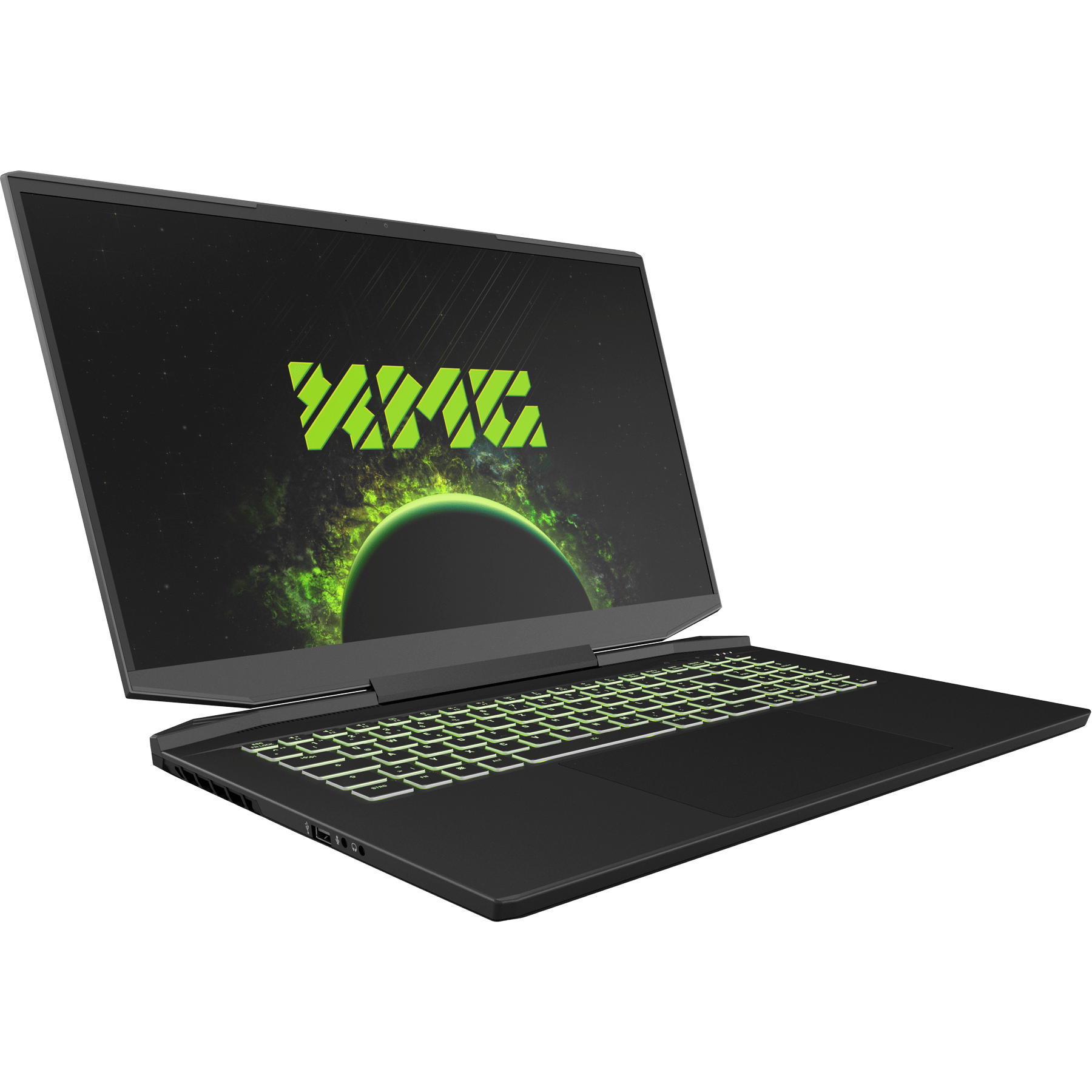

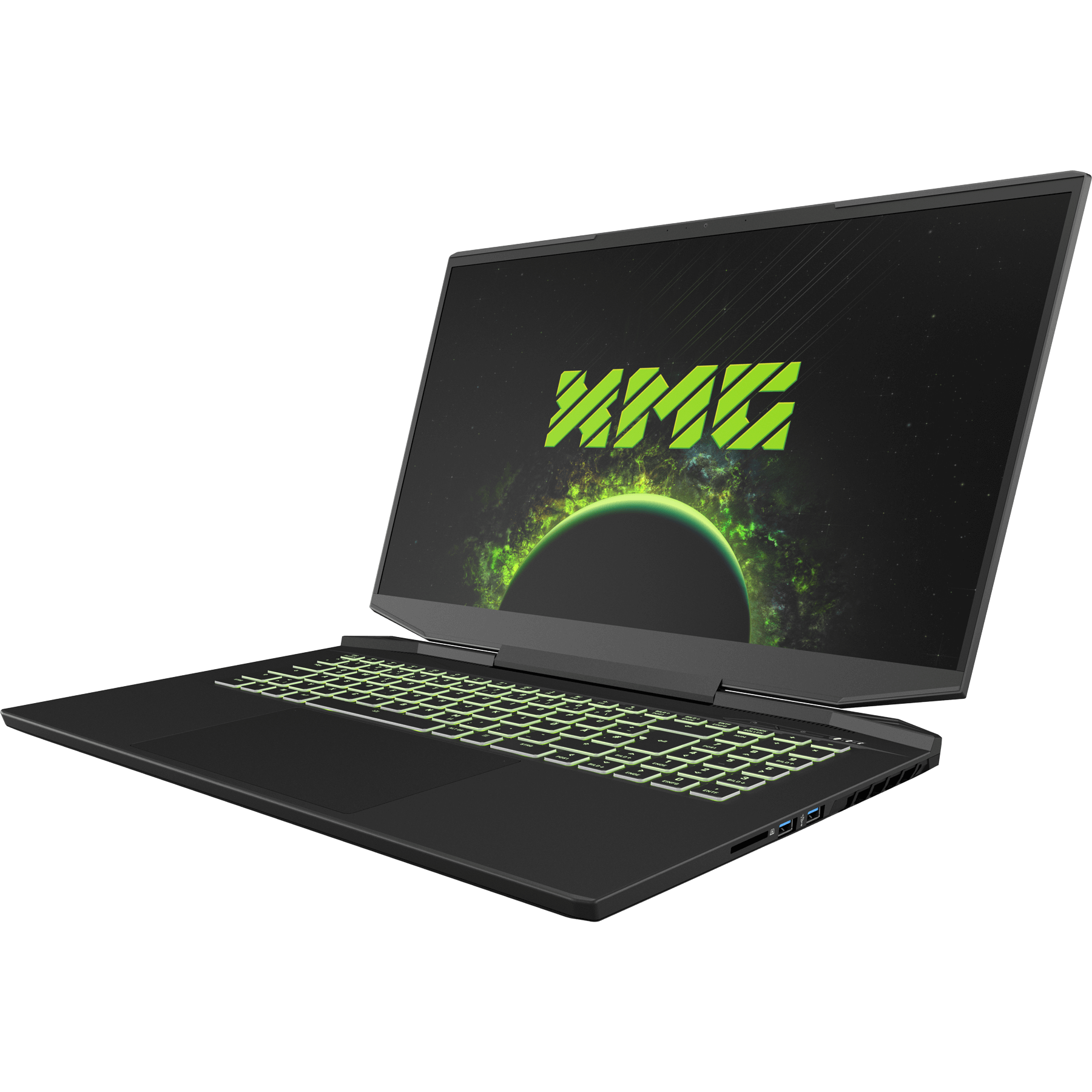

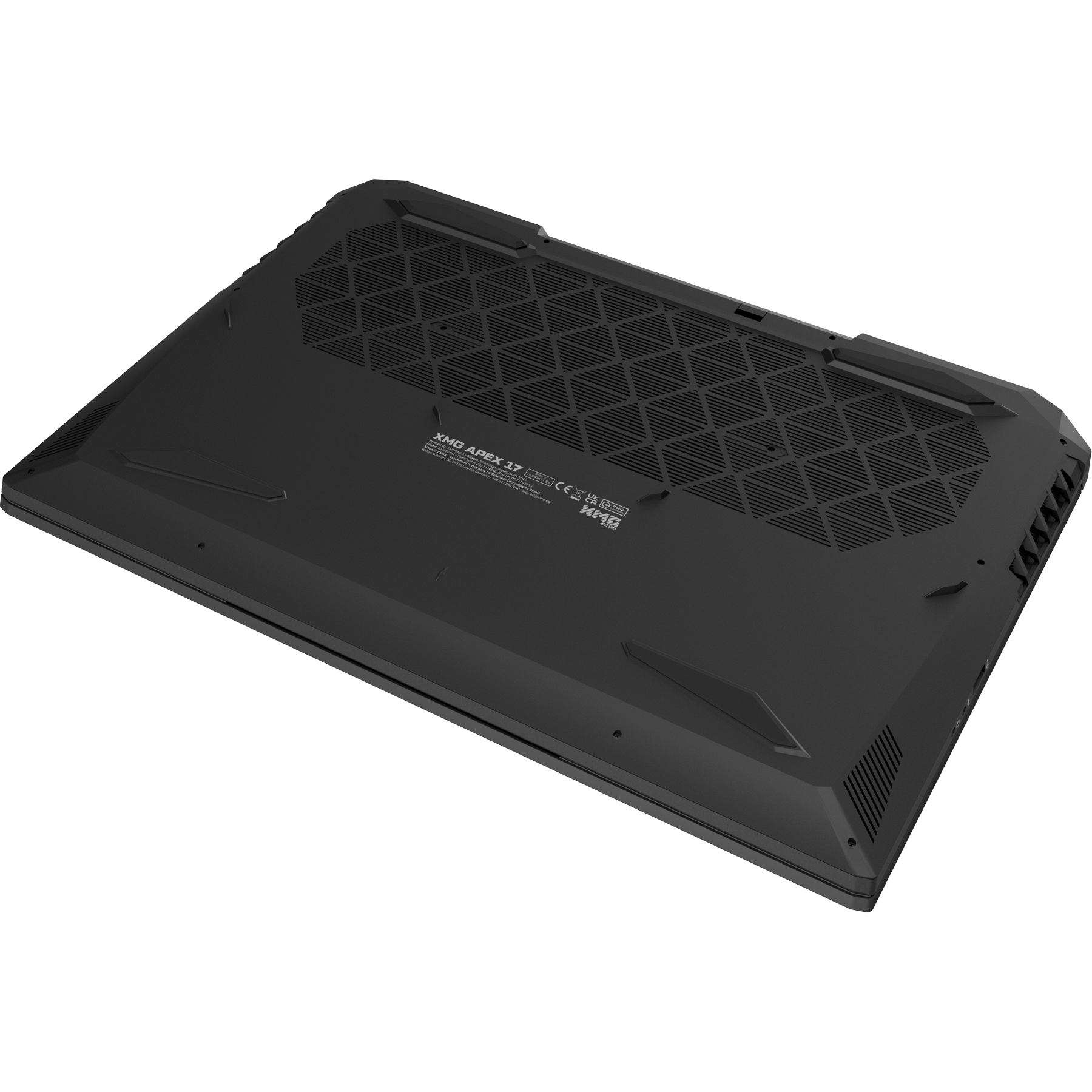

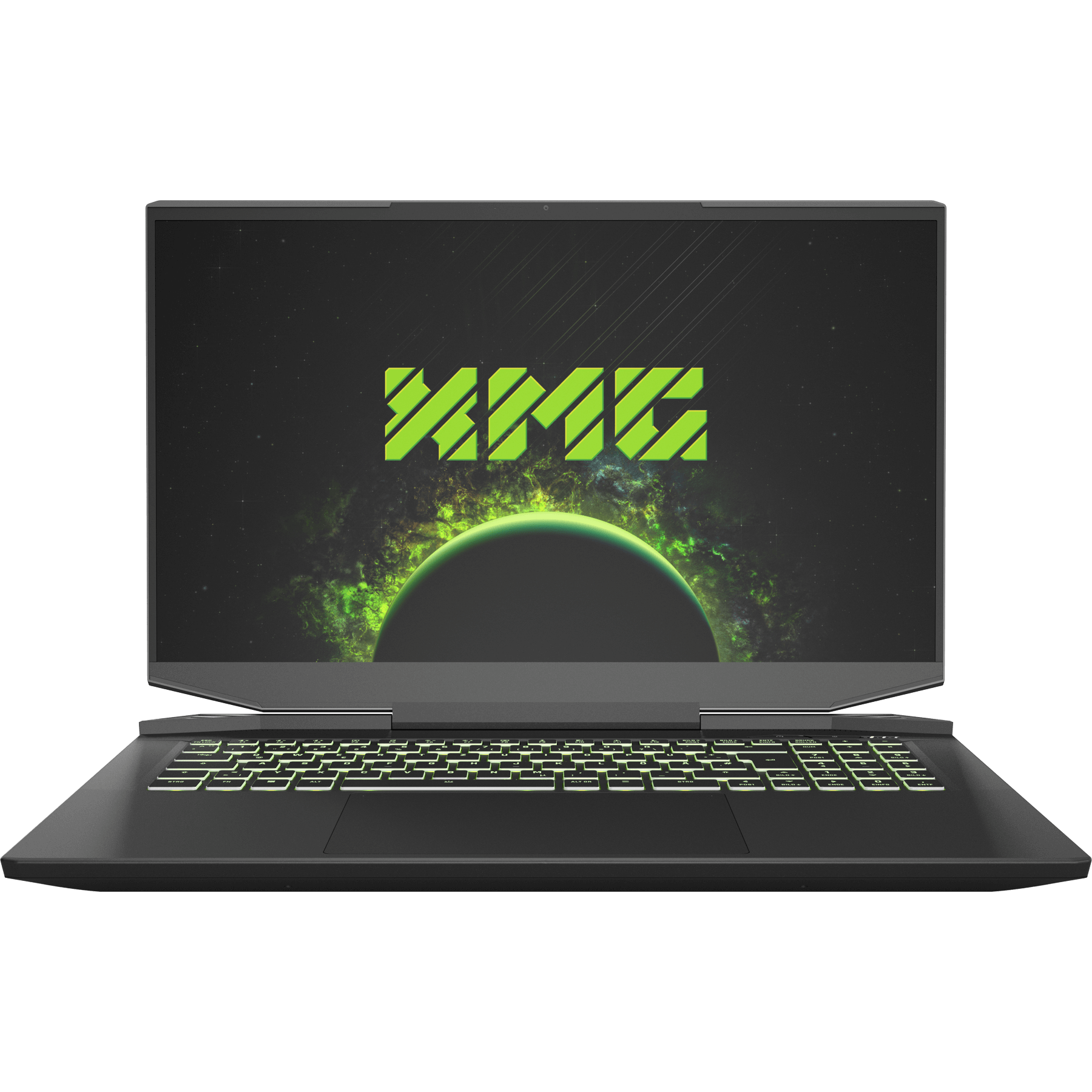

XMG APEX 17

KING OF THE HILL

Powerful mid-range performance and strong features: The XMG APEX 17 combines a fast AMD Phoenix eight-core CPU with the latest NVIDIA graphics cards to create an attractively priced and versatile all-inclusive package for gamers.

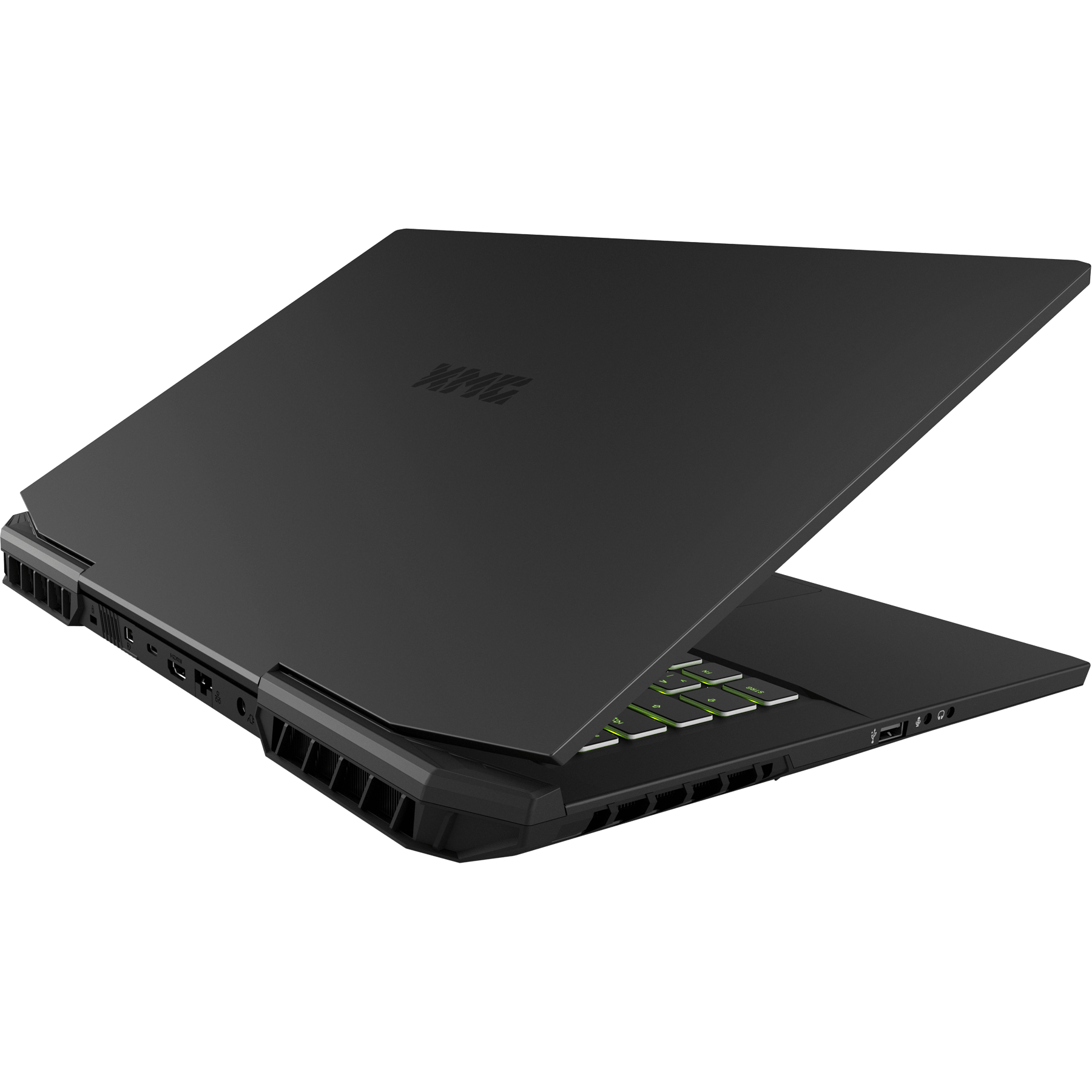

Both the design and the feature set are clearly driven by gaming DNA. This applies to the boldly designed robust chassis weighing less than 2.5 kg, with a torsion-resistant aluminium display lid, and to further features including liquid metal for cooling the processor and graphics card, a precise RGB keyboard and an extra-large glass touchpad with smart palm recognition function.

AMD Ryzen 7 7840HS
High performance, best efficiency

Powerful performance for gaming, streaming and demanding applications: AMD’s Ryzen 7 7840HS with 8 cores and 16 threads is ready for any challenge. Not only does it provide you with first-class performance, but also stands out with the best possible energy efficiency in this performance class based on the modern Zen 4 architecture. So, you can rely on consistently high FPS in CPU-heavy games as well as plenty of power for all other application areas.

XMG APEX L23 LP Feature AMD Desktop
XMG APEX L23 LP Feature AMD Mobile
NVIDIA GeForce RTX 40
Plenty of power and DLSS 3

Get the latest generation of NVIDIA performance and give your games the boost they need with breakthrough DLSS 3 technology for an ultra-smooth gaming experience. The XMG APEX 17 gives you a choice of two high-performance laptop GPUs – the GeForce RTX 4060 or RTX 4050. Thanks to the exclusive DLSS 3 feature, you get even more out of the powerful graphics chips. Integrated AI technology generates additional, high-quality frames, resulting in plenty of FPS even when raytracing is activated.

Cherry Feature
DLSS 3
DLSS is a revolutionary breakthrough in AI-powered graphics that massively increases performance. DLSS 3 uses the new fourth-generation Tensor compute units and Optical Flow Accelerator on GeForce RTX 40 series laptop GPUs to create additional high-quality frames using AI.

XMG APEX L23 GG LP Feature Display FHD Desktop

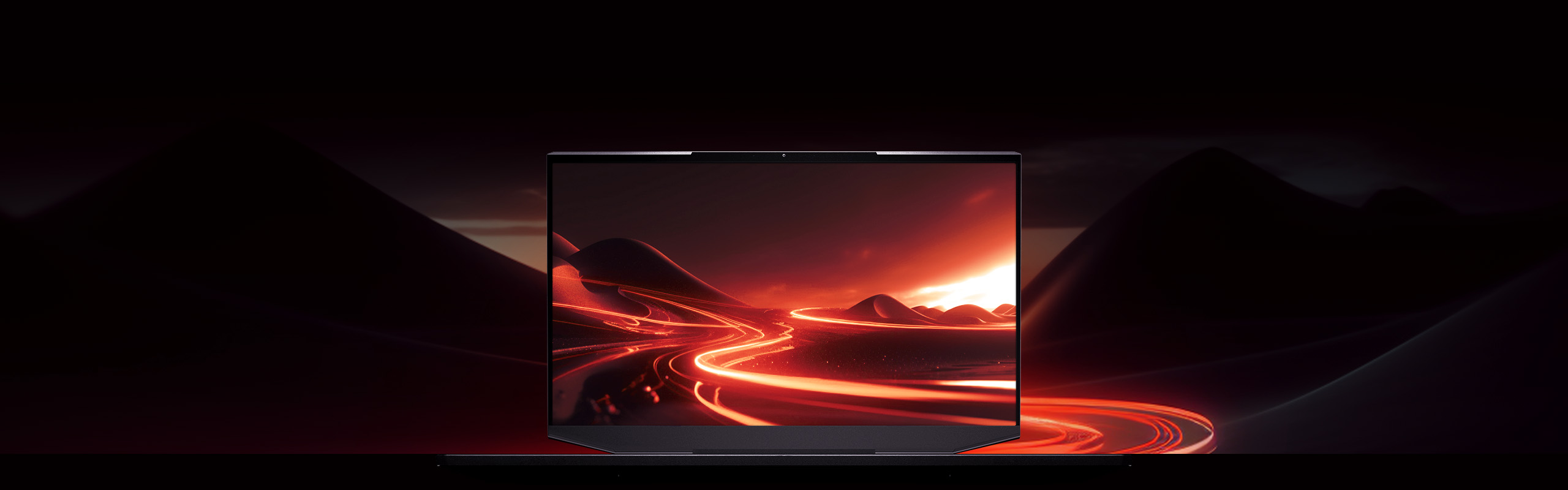

The 144 Hz fast IPS panel with Full HD (1920 x 1080 pixels) resolution guarantees fast gaming action with a smooth display. In addition, you can expect rich colours, first-class black levels, high contrast and a 90 % sRGB colour space coverage, so that the images on your laptop look like they really should. A MUX switch allows you to permanently change the display connection between the integrated AMD graphics unit and the dedicated NVIDIA graphics card to get the maximum FPS out of it.

XMG APEX L23 GG LP Feature Display WQHD Desktop 1

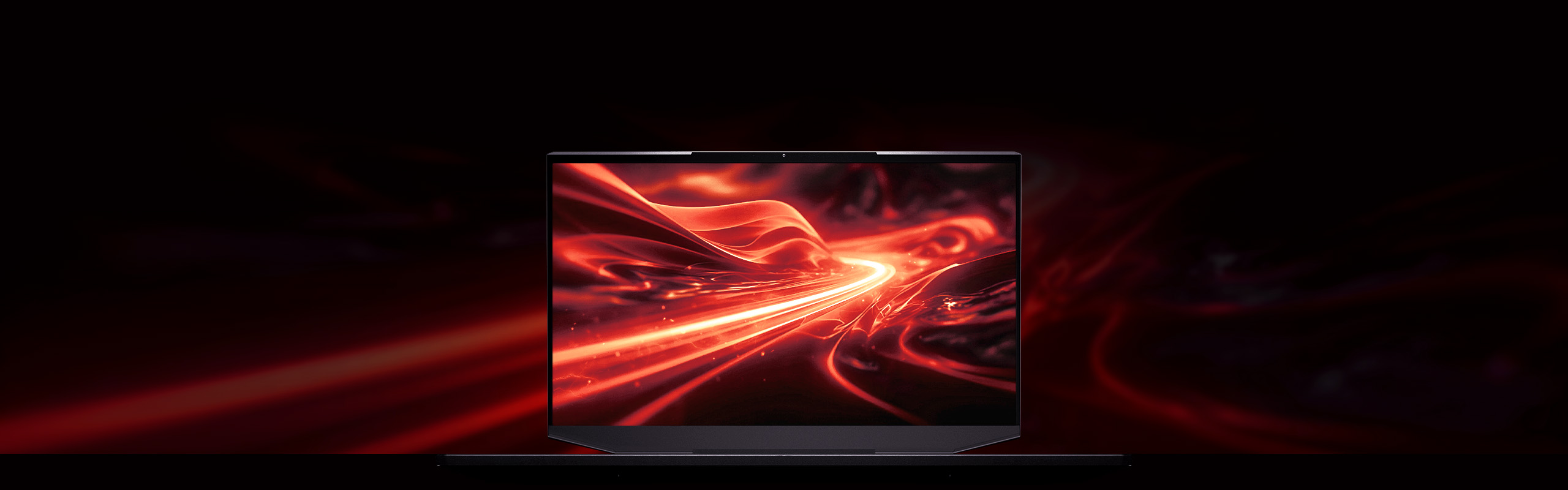

With the 240 Hz fast WQHD display (2560 x 1440 pixels) of the XMG APEX 17, you get premium features for your games. Thanks to its high resolution, the viewing-angle-stable, high-contrast IPS panel offers a razor-sharp reproduction with intensely vibrant colours and an sRGB colour space coverage of over 95 percent. A MUX switch allows you to permanently change the display connection between the integrated AMD graphics unit and the dedicated NVIDIA graphics card to get the maximum FPS out of it.

  XMG APEX L23 GG LP Feature Display FHD Mobile

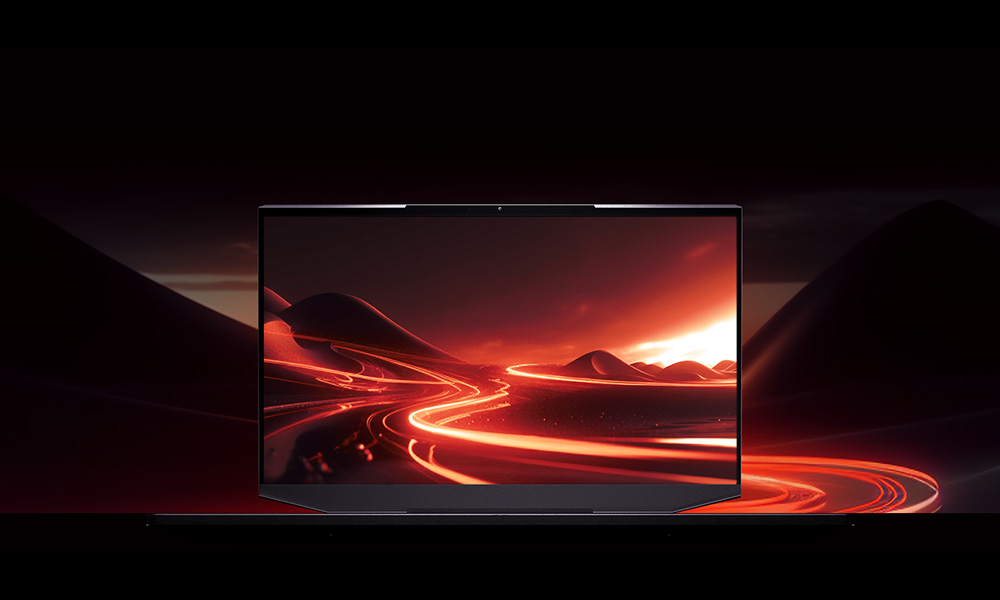

The 144 Hz fast IPS panel with Full HD (1920 x 1080 pixels) resolution guarantees fast gaming action with a smooth display. In addition, you can expect rich colours, first-class black levels, high contrast and a 90 % sRGB colour space coverage, so that the images on your laptop look like they really should. A MUX switch allows you to permanently change the display connection between the integrated AMD graphics unit and the dedicated NVIDIA graphics card to get the maximum FPS out of it.

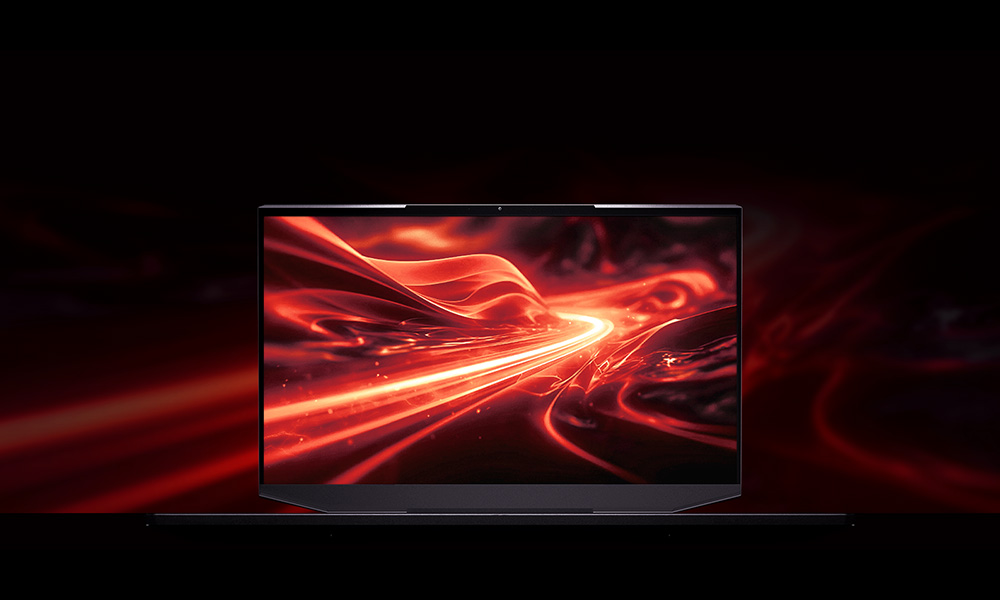

  XMG APEX L23 GG LP Feature Display WQHD Mobile 1

With the 240 Hz fast WQHD display (2560 x 1440 pixels) of the XMG APEX 17, you get premium features for your games. Thanks to its high resolution, the viewing-angle-stable, high-contrast IPS panel offers a razor-sharp reproduction with intensely vibrant colours and an sRGB colour space coverage of over 95 percent. A MUX switch allows you to permanently change the display connection between the integrated AMD graphics unit and the dedicated NVIDIA graphics card to get the maximum FPS out of it.

Equipped with the latest technology
Broad port diversity

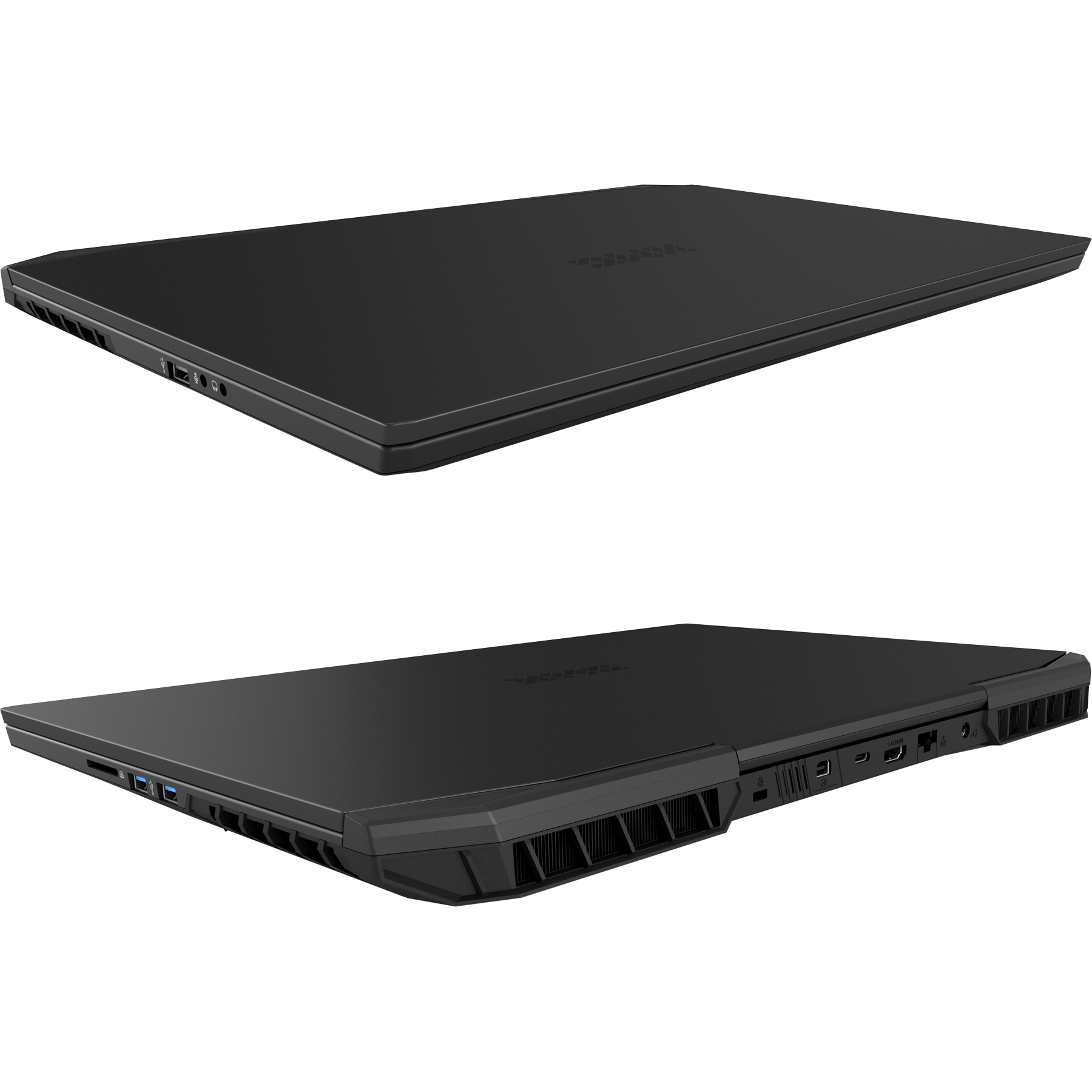

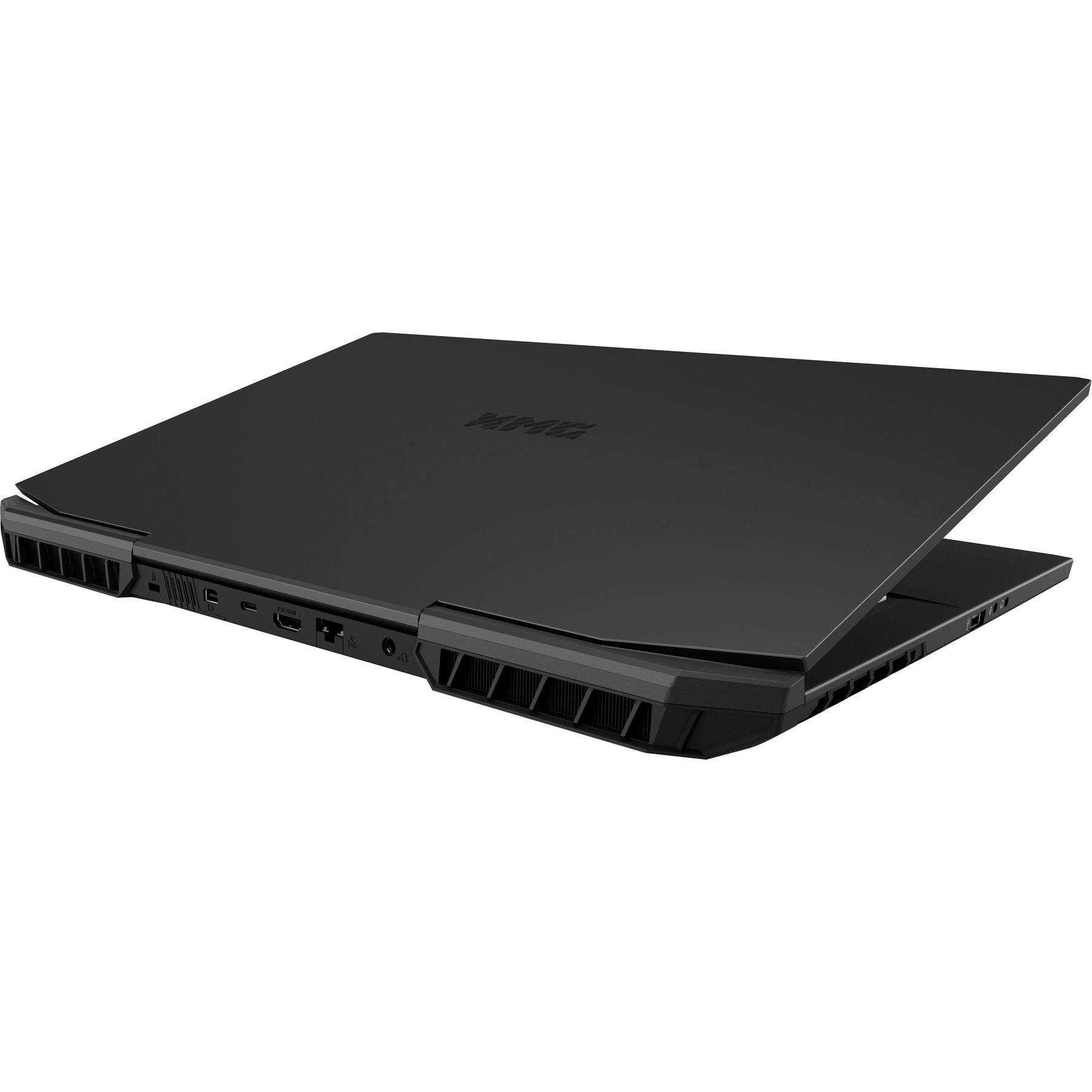

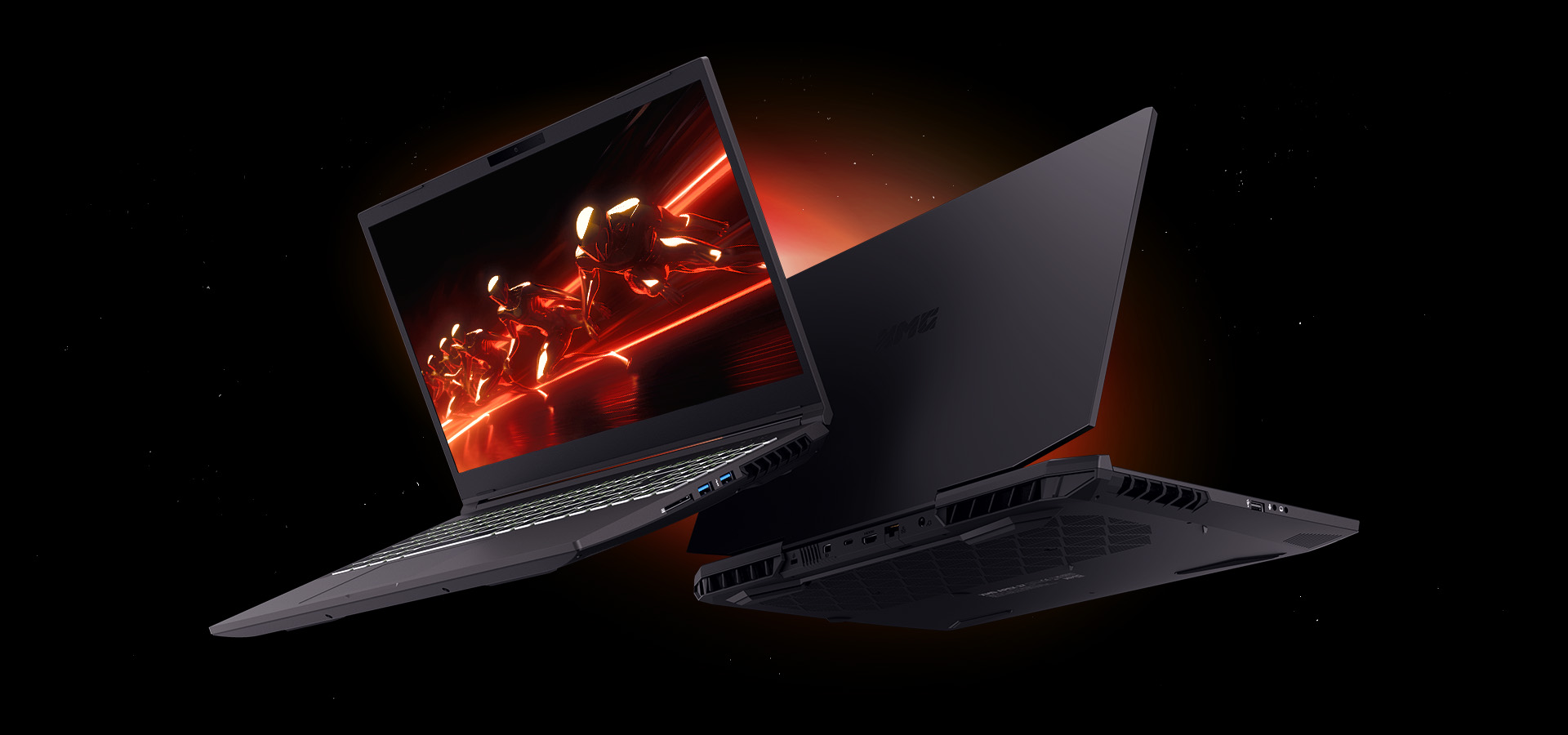

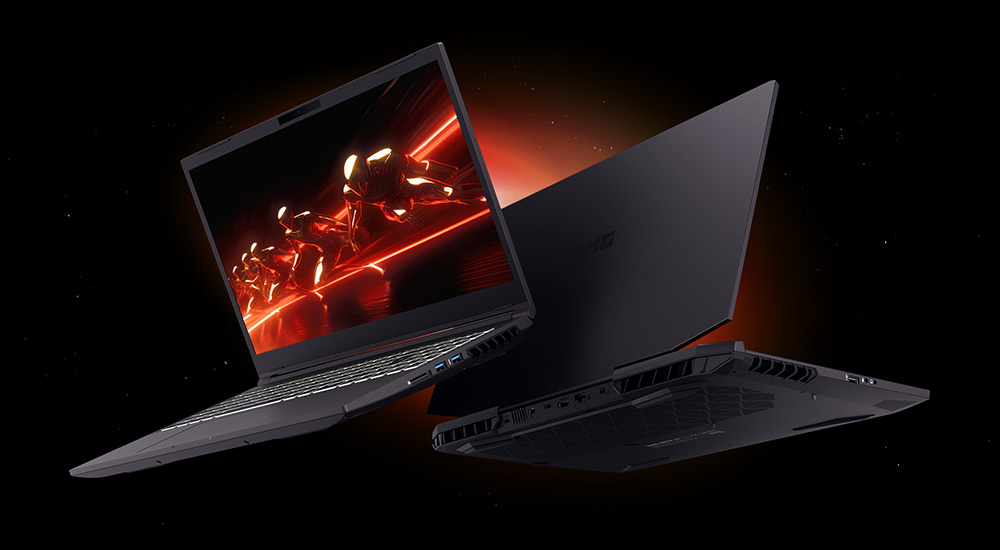

Looking for maximum flexibility and a strong variety of external ports in a gaming laptop? Then the XMG APEX 17 has everything you need! With three USB-A and one USB-C port, a card reader for full-size SD cards, a LAN port and separate audio ports for headphones (compatible with combo plug headsets) and microphone, it doesn’t stop there: An adapter-free life is also ensured by a native Mini DisplayPort and a latest-generation HDMI output – so you are absolutely future-proofed and can effortlessly connect the laptop to your G-SYNC monitor or to the TV for a comfortable session of couch gaming.

XMG APEX L23 LP Feature Ports Desktop
XMG APEX L23 LP Feature Ports Mobile
Optimised headset sound
Immersive & powerful

Thanks to Creative’s latest Sound Blaster technology, the XMG APEX 17 delivers powerful and high-resolution sound to your gaming headset. The Sound Blaster Studio app lets you customise the sound to your individual preferences. The functions include the ability to tune multiple sound profiles for different listening usage cases – because the sound requirements differ when gaming compared to whilst listening to music or watching videos. With Sound Blaster Studio you get the best out of your headset!

XMG Control Center
All settings under control

The XMG Control Center is a powerful tool that gives you complete control over your laptop’s performance settings. Not only will you find customised, predefined performance profiles, but you can also create your own profiles with the optimal balance of performance, noise and temperatures – and then conveniently call them up via the mode switch button above the keyboard. Experts can also access many additional tuning options to get the most out of their setup.

VIDEOS & TESTS
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
Play Video about XMG NEO (E23) Unboxing
Play Video
Play Video
Play Video about XMG NEO E23 HandsOn
TECHNICAL SPECIFICATION

XAP17L23

  • 17.3″ IPS | 1920×1080 px | 144 Hz | 300 nits | 90 % sRGB | non-glare
  • 17.3″ IPS | 2560×1440 px | 240 Hz (alternatively 60 Hz settable) | 300 nits | 95 % sRGB | FreeSync | non-glare
  • AMD Ryzen 7 7840HS | 8 cores/16 threads | up to 5.1 GHz | 16 MB cache | 54+ W TDP
  • Thermal Grizzly Conductonaut liquid metal compound ex factory
  • AMD Radeon 780M | 12 Compute Units | integrated (iGPU)
  • NVIDIA GeForce RTX 4050 | 6 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)
  • NVIDIA GeForce RTX 4060 | 8 GB GDDR6 | 115 W TGP* (+ 25 W Dynamic Boost) | dedicated (dGPU)
    Thermal Grizzly Conductonaut liquid metal compound ex factory


    *XMG APEX is able to max out the GPU power consumption of the RTX 40-series laptop GPUs (140 W for RTX 4050/4060) in synthetic stress tests (e.g. FurMark). However, according to the NVIDIA specifications, the actual GPU power consumption depends on the type of workload. Therefore, the power consumption may be below (sometimes significantly lower) than the specified TGP and Dynamic Boost power draw values and is defined by NVIDIA.

    display connection: iGPU with NVIDIA Optimus or dGPU (via MUX switch)
    HDMI 2.1, Mini DisplayPort 1.4a connection: dGPU
    2 external displays directly addressable

    VR Ready

2x DDR5 SO-DIMM | Dual Channel | max. 96 GB | max. 5600 MHz | max. 1.1 V

2x M.2 2280 SSD via PCI Express 4.0 x4 (suppports RAID 0/1)

  • stereo speakers
  • microphone with noise cancelling
  • Sound Blaster Studio

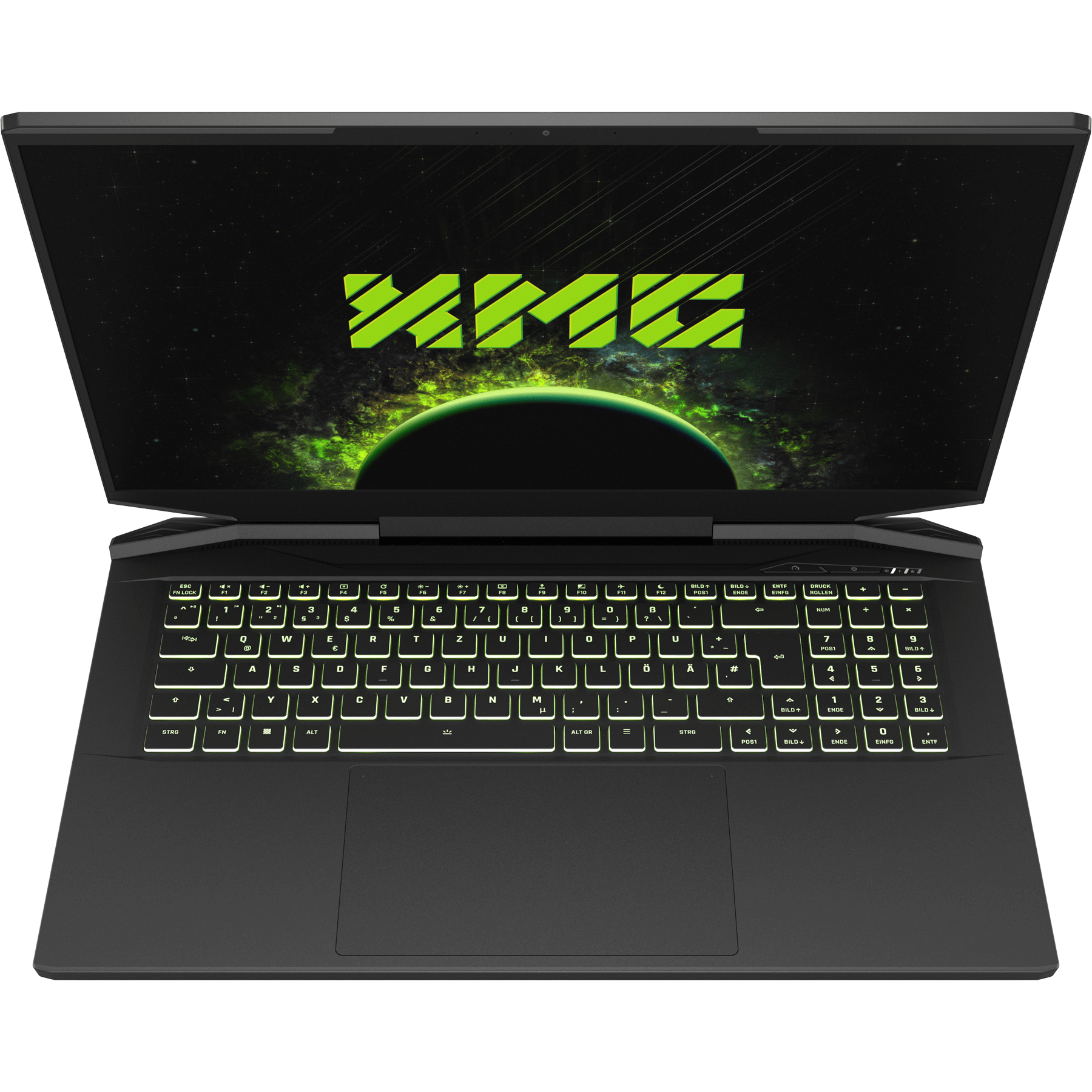

  • backlit RGB keyboard with keypad and full-size arrow keys
  • Fn lock function
  • Microsoft Precision Glass Touchpad, two integrated buttons | 154 x 100 mm (W x D)
  • automatic palm recognition to avoid false inputs
  • quick (de)activation of the complete/half touchpad with a double tap in the upper left/right area

Left:

  • headphone-out (compatible with combo jack headsets)
  • mic-in
  • USB-A 2.0 (powered)



Rear:

  • DC-in
  • RJ45 port (LAN)
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
  • USB-C 3.2 Gen2×1 (DisplayPort: no | Power Delivery: no)
  • Mini DisplayPort 1.4a (G-SYNC compatible | 2 streams with a total of 32,4 Gbps)



Right:

  • 2x USB-A 3.2 Gen1 (powered)
  • card reader (SD/SDHC/SDXC)
  • Realtek Gbit LAN
  • Wi-Fi 6 + Bluetooth 5
  • Full HD webcam (Windows Hello compatible)
  • Kensington Lock (rear)
  • TPM 2.0 (via fTPM)
  • Windows Hello (via webcam)
  • 230 watts (152 x 76 x 26 mm | 682 g incl. EU power cable)
  • changeable 62 Wh Li-Poly-battery (internally screwed)
  • different battery charging profiles settable in control center
  • display lid made of aluminium
  • display frame, top and bottom case made of plastic
  • 140° display opening angle
  • PH 0 screw heads
  • performance mode switch button

ca. 2.47 kg

392,9 x 260 x 24,9 mm (B x T x H)

  • Laptop (inkl. Akku),
  • Netzteil
  • Treiber-USB-Stick
We continuously provide you with the latest driver versions in the download portal of our company headquarters Schenker Technologies GmbH. Download here
