XMG NEO 15 – THE ANSWER





The XMG NEO 15 answers the demands of the mobile gaming community for a laptop concept optimised down to the last detail and designed for maximum performance. Pairing AMD processors up to the Ryzen 9 5900HX with NVIDIA graphics cards, all offered in the performance-focused Max-P design up to the GeForce RTX 3080, offers not only the fastest notebook components currently available, but also makes an unmistakable statement. Mobility is by no means neglected: weighing in at just 2.1 kg, the 15.6 inch XMG NEO 15 stands out as one of the lightest challengers in the mobile high-performance sector. Its robust, predominantly aluminium chassis, integrates a cooling system designed with full headroom for enduring high gaming performance. Esports enthusiasts are catered for by an input device worthy of their skills, with the impressively precise, optomechanical keyboard.

max. WQHD IPS Display

165 Hz | non-glare

max. AMD Ryzen 9 5900HX

3.3 – 4.6 GHz | 8 cores/16 threads

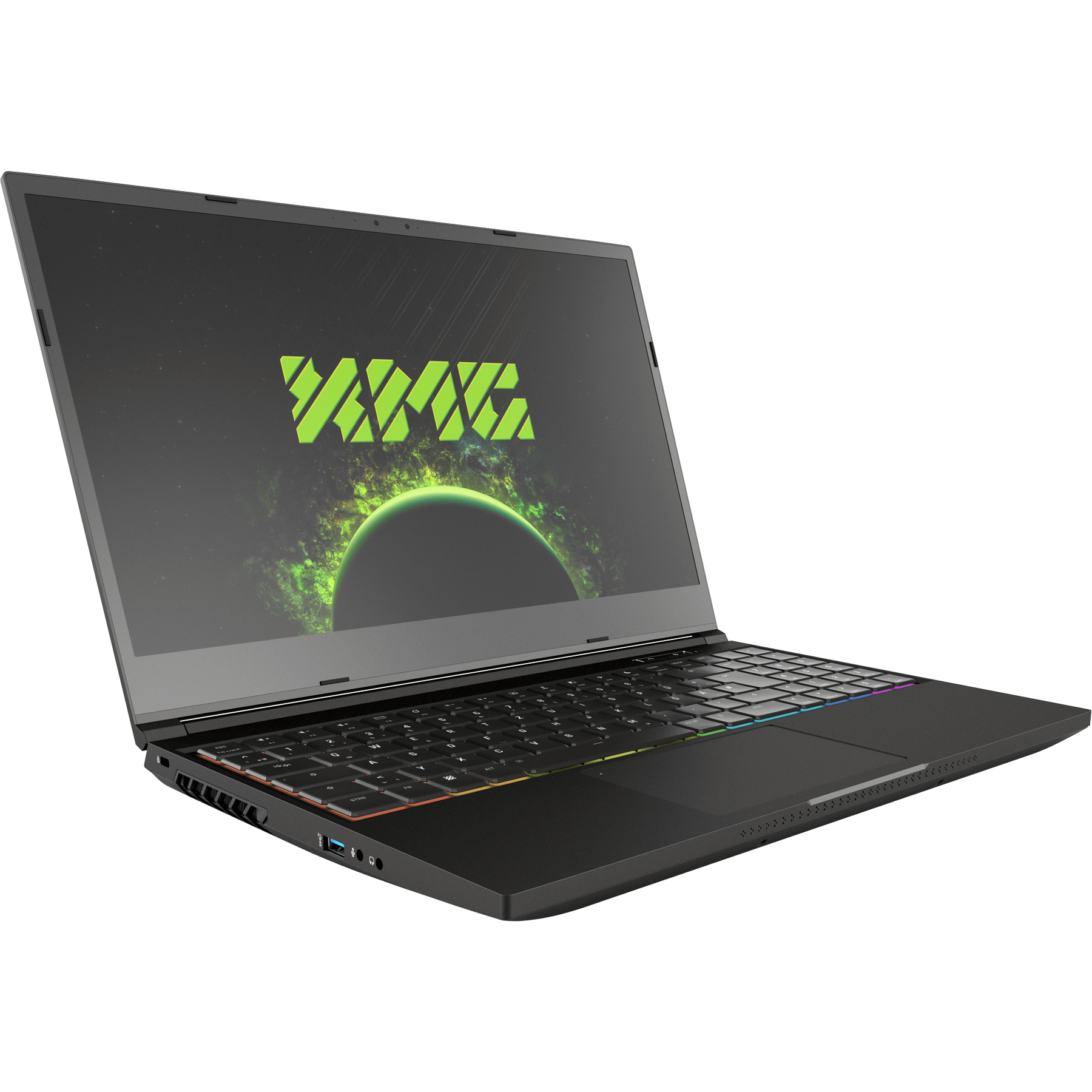

XMG NEO 15 E21 front

max. GeForce RTX 3080

16 GB GDDR6 | 150 W TGP

max. 64 GB RAM

2x SO-DIMM DDR4 | 3200 MHz

Max-P full power: RTX 3000 unleashed

The new mobile RTX 3000 graphics cards for laptops take a giant leap forward in terms of gaming performance. To ensure that you can take full advantage of the power of these new GPUs, we have equipped the XMG NEO 15 with graphics chips exclusively in the mercilessly performance-focused Max-P specification, driving them effortlessly with the maximum specified TGP. The top configuration integrates the GeForce RTX 3080 with 16 GB GDDR6 memory – currently the fastest laptop GPU in the world, and fully exploits its 165 Watt TDP performance envelope. No other model delivers higher gaming or ray tracing performance!

Mobile performance champions: AMD Ryzen processors

AMD’s new Ryzen 5000H processors currently spearhead mobile CPU performance. The XMG NEO 15 offers these processing champions up to and including the range topping Ryzen 9 5900HX. With its eight fast Cezanne cores, the CPU processes up to 16 threads simultaneously, delivering unprecedented single and multi-core performance at 3.3 GHz (base clock) and up to 4.6 GHz (boost clock) respectively. Need the fastest mobile processors for simultaneous high-end gaming and streaming, or groundbreaking application performance? Then the XMG NEO 15 is the perfect choice.

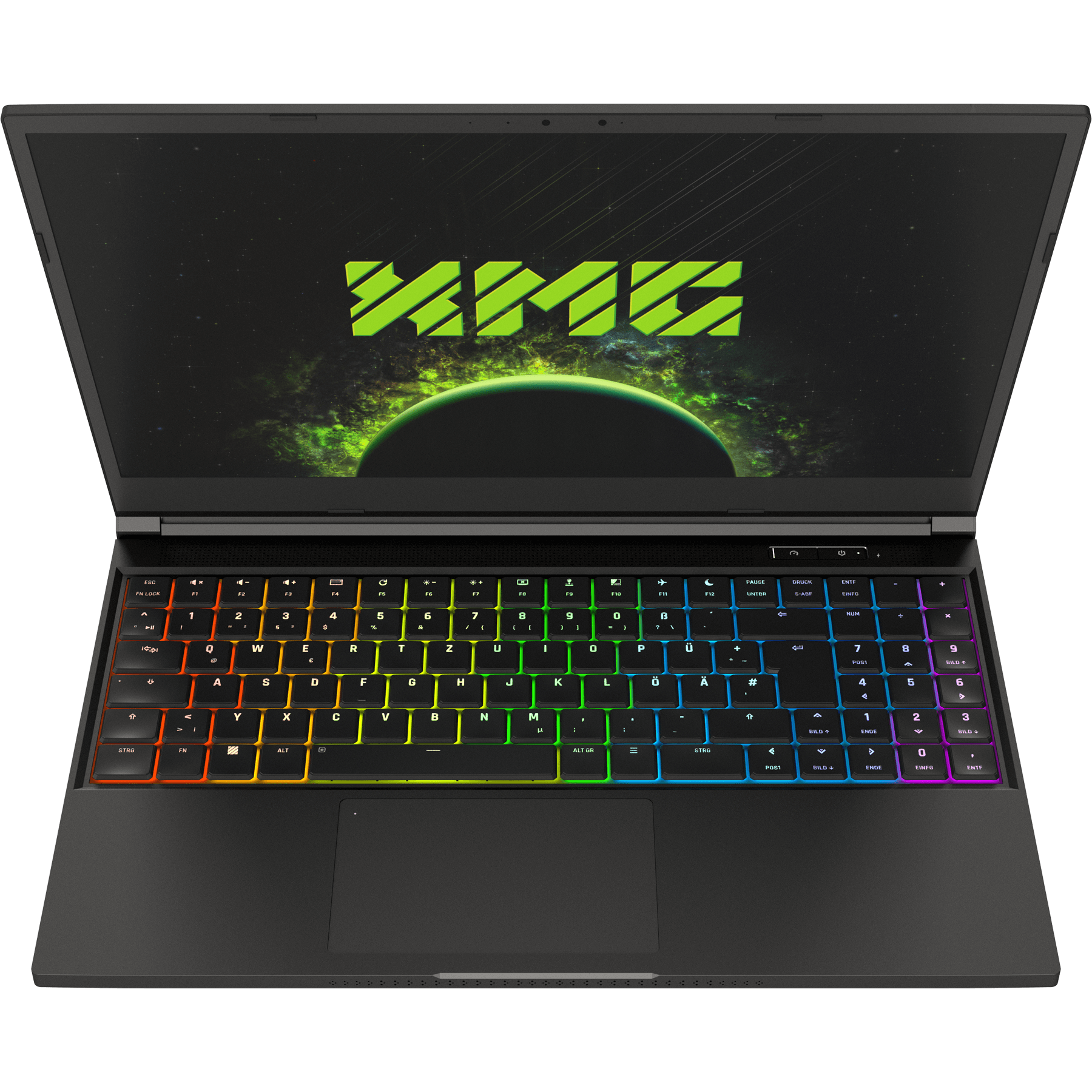

Tailor-made gaming keyboard

A clear keystroke, unrestricted N-key rollover and anti-ghosting – these are the features that make up a superb gaming keyboard; the XMG NEO 15 has them all, and more! Of course, the keyboard also comes with freely programmable per-key RGB backlighting as standard. In addition, innovative switches have been used to offer unmatched precision and maximum in-game control.

Maximum precision: Optomechanical switches

Optomechanical silent switches with precise, tactile feedback make the keyboard the ideal tool for gamers and frequent typists. Designed to a high durability standard, they are also built to last! The key travel is two millimetres, the actuation point is reached after one millimetre with an actuation force of 60 grams. These features guarantee a terrific degree of accuracy even in hectic gaming.

High-resolution WQHD IPS display with 165 Hz

Featuring a refresh rate of 165 Hz, the high-end IPS display with WQHD resolution (2560 x 1440 pixels) provides the optimum combination of high resolution, smooth gaming and fast response times. Due to the high pixel density, the display ensures a razor-sharp image. With an sRGB colour gamut of 95 percent, the panel is also ideal for image and video editing – offering excellent true-colour reproduction. IPS technology ensures these brilliant colours, superb black levels and excellent contrast, in addition to wide viewing angles.

Rapid 240 Hz IPS display

The ultra fast 240 Hz Full HD (1920 x 1080 pixels) display, with its high refresh rate, lays the foundation for blur-free playback and particularly fast response times. These features make it easier for you to aim in action packed first-person shooters, for example, enabling you to react faster and more precisely to what’s happening in the game. Just like the 165Hz WQHD option, the 240 Hz FHD panel also utilizes IPS technology, similarly providing intensive colour reproduction, very good black levels, excellent contrast and wide viewing angles.

Long-lasting battery & lightweight

A generous 93 watt hour battery helps the XMG NEO 15 achieve excellent runtimes and, given a weight of just 2.1 kg, interprets its high-performance approach into a light and portable solution. An attractive, high-quality surface finish in a matt sandblast look adds an exclusive touch. However, the chassis, which is predominantly made of aluminium, is also fully convincing in terms of stability and torsional rigidity.

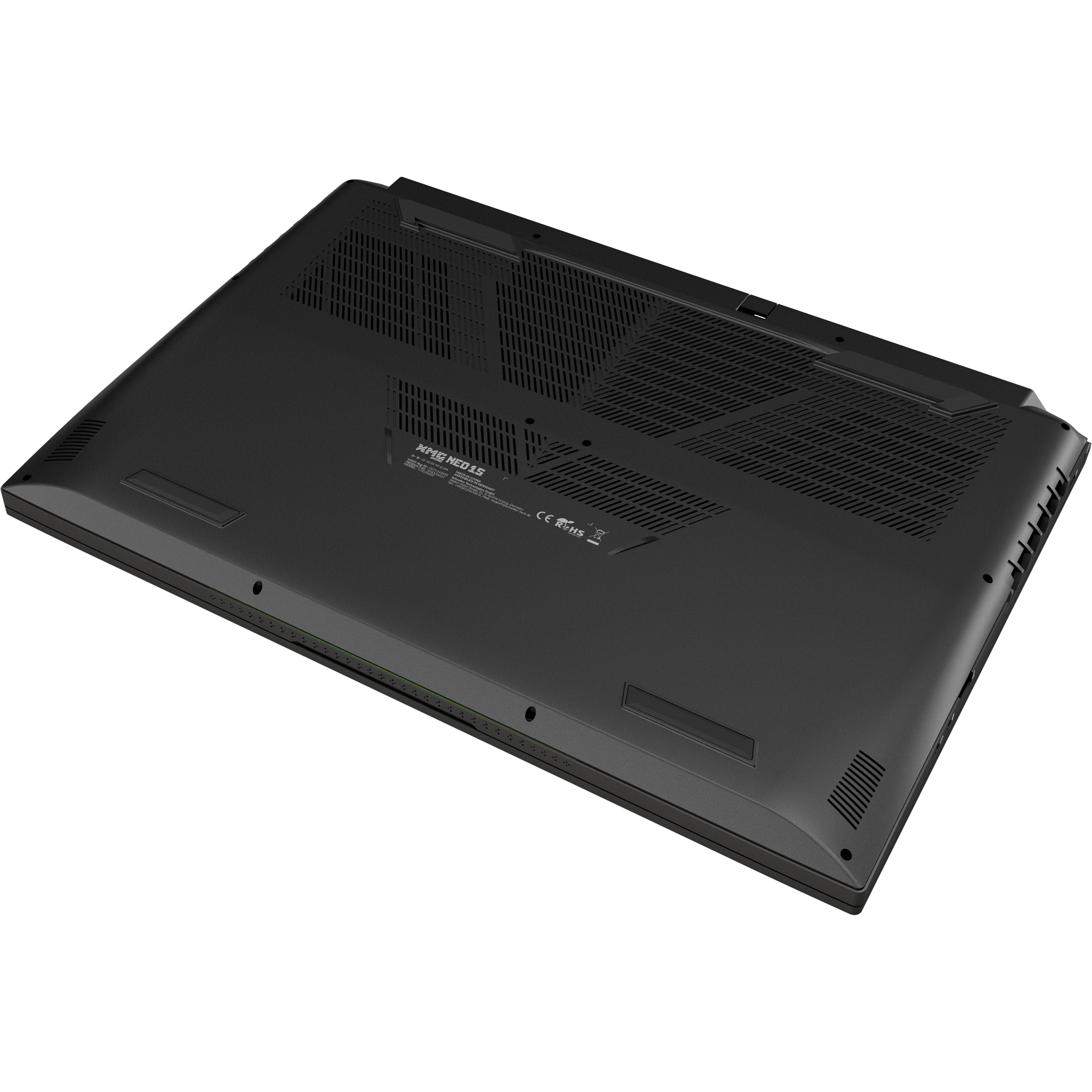

Superior cooling performance

The cooling system of the XMG NEO 15 continues to be revised and optimized, not only to meet the requirements of the currently fastest mobile processors and graphics cards, but to provide a thermal overhead and thus performance reserve. This is the only way to ensure that the maximum possible gaming performance is permanently available to you. The numerous improvements include cooling fans that have grown to 11 mm in height, providing a double benefit of hither air throughput and quieter operation. A new cooler design, compromising of a high number of powerful heat pipes in a composite layout, has been specially created with these new CPU and GPU component pairings in mind.

” The most POWERFUL laptop we have unboxed!!!
ShortCircuit
” Overall the performance here is clearly next level.
Jarrod’s Tech

TECHNICAL SPECIFICATION

Displays

15.6″ IPS | 1920×1080 px | 240 Hz | 300 cd/m² | 90 % sRGB | non-glare
15.6″ IPS | 2560×1440 px | 165 Hz | 350 cd/m² | 95 % sRGB | non-glare

Processors

AMD Ryzen 7 5800H | 3.2 – 4.4 GHz | 8 cores/16 threads | 16 MB cache | 54+ W TDP
AMD Ryzen 9 5900HX | 3.3 – 4.6 GHz | 8 cores/16 threads | 16 MB cache | 54+ W TDP

Graphics

AMD Radeon RX Vega 8 | integrated
NVIDIA GeForce RTX 3070 | 8 GB GDDR6 | 125 W TGP (+ 15 W Dynamic Boost) | dedicated
NVIDIA GeForce RTX 3080 | 16 GB GDDR6 | 150 W TGP (+ 15 W Dynamic Boost) | dedicated

Display connection: direct or via NVIDIA Optimus (MUX switch)
HDMI, DP via USB-C: connection: direct
2 external displays directly addressable (more with MST adapter via USB-C)

VR Ready

Memory

2x DDR4 SO-DIMM, Dual Channel, up to 64 GB and 3200 MHz

Storage

2x M.2 2280 SSD via PCI Express 3.0 x4 (supports RAID 0)

Sound

High Definition Audio
Stereo speakers
Microphone with noise cancelling
THX Spatial Audio

Keyboard

Optomechanical keyboard with per-key RGB backlight, numeric keypad, N-key rollover and anti-ghosting
Tactile silent switches with 2 mm travel und 1 mm actuation point
Project Aurora compatible

Touchpad

Microsoft Precision Glass Touchpad, two integrated buttons

Communication

Realtek 2.5 Gbit LAN (RTL8125BG)
WLAN 802.11a/b/g/n/ac/ax + Bluetooth 5
HD webcam (Windows Hello compatible)

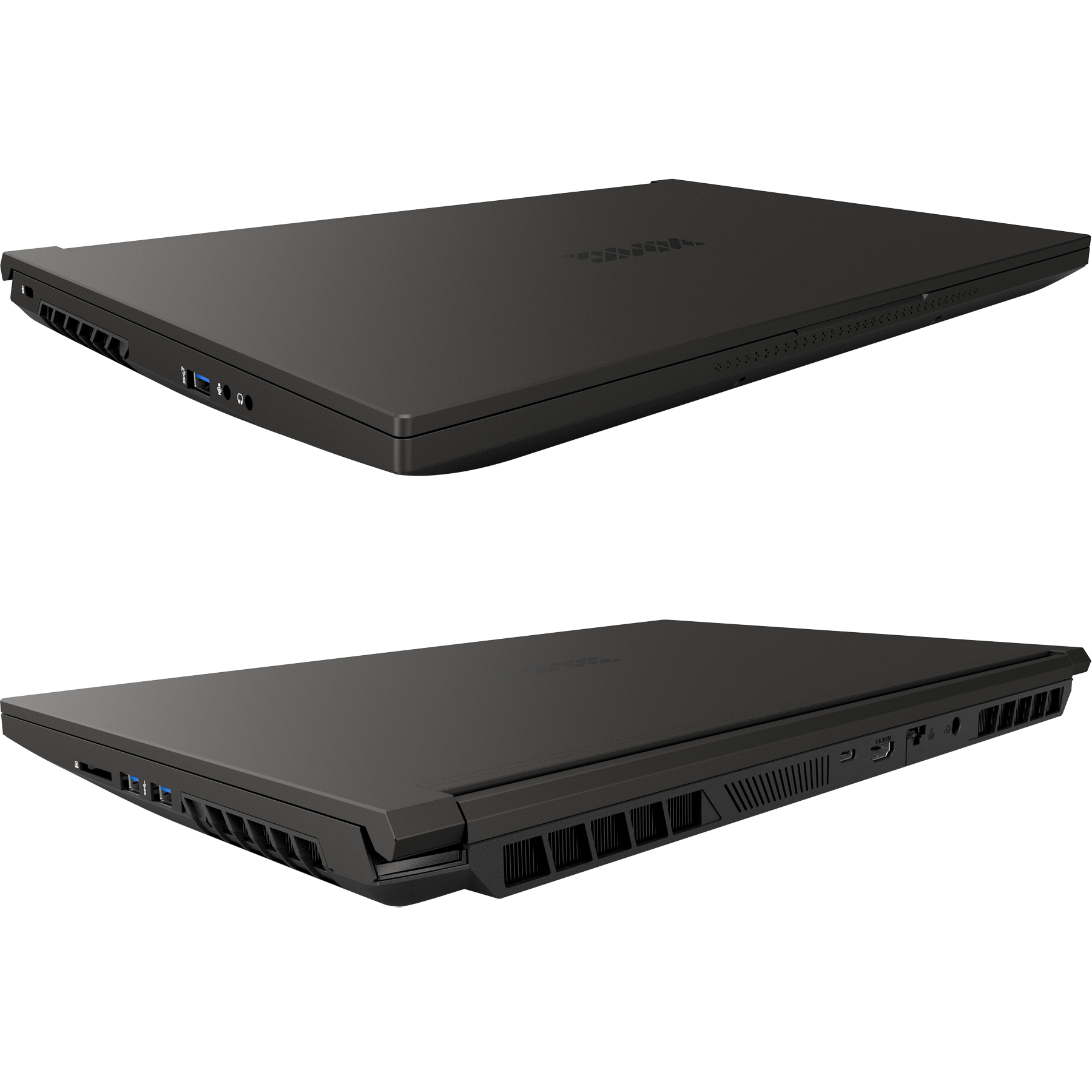

Ports

1x USB-C 3.2 Gen2 (DisplayPort 1.4: yes, G-SYNC compatible | Power Delivery: no)
1x USB-A 3.2 Gen2
2x USB-A 3.2 Gen1
1x HDMI 2.1 (with HDCP 2.3)
1x Headphone-out
1x Mic-in
1x RJ45 Port 2.5 Gbit (LAN)
1x Card reader (SD/SDHC/SDXC)
1x DC-in

Security

Kensington Lock
TPM 2.0 (via Intel PTT)

Chassis

Display lid and top case made of aluminium
Display frame and bottom case made of plastic
135° display opening angle
One-hand opening

Dimensions

359.8 x 243 x 26 mm (W x D x H)

Weight

ca. 2.1 kg

Power supply

230 watts (155 x 75 x 30 mm | 890 g incl. EU power cable)

Battery

Changeable 93 Wh Li-poly battery (internally screwed)
Different battery charging pofiles selectable in control center

Included in box

Laptop (incl. battery), power supply, driver CD/USB-stick, manual
