XMG CORE 15

UNDERCOVER GAMING

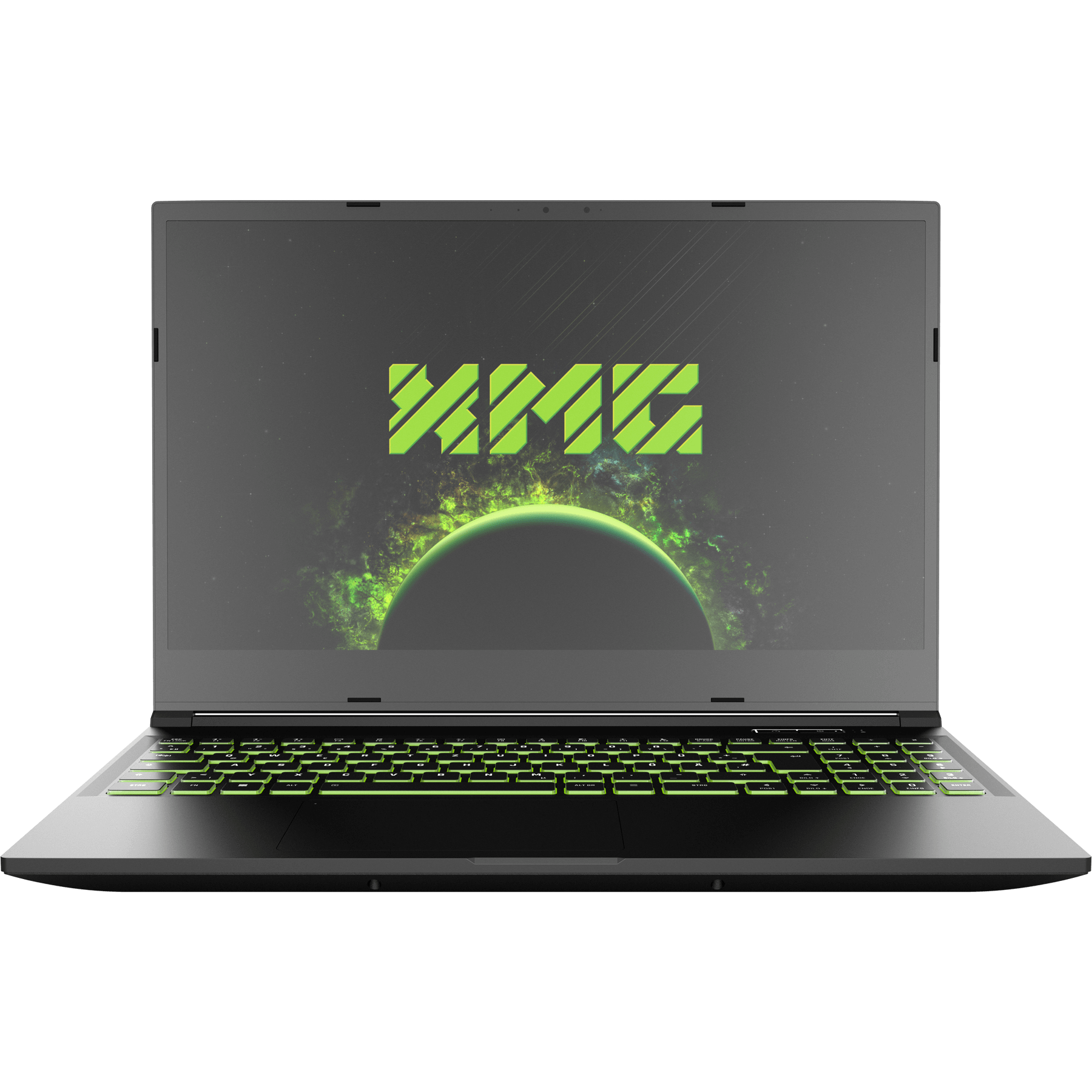

The XMG CORE 15’s rigorous undercover gaming approach sets the new standard in the upper midrange. With NVIDIA’s cutting-edge, ray-traced GeForce RTX 3060 and fast eight-core processors, you’re all set for a performance revolution with the latest generation of hardware. The 15.6 inch XMG CORE 15 follows the design path of simple elegance, setting a counterpoint to the obtrusively playful designs of many other gaming laptops – for pinpoint performance in a timelessly attractive guise.

Next-Level Gaming Performance

Intel Core i7-11800H

With the brand new 11th Core generation, Intel has created truly powerful all-rounders in terms of gaming and content creation performance. Featuring eight fast Tiger Lake cores, 16 threads and a modern 10 nm manufacturing process, the Core i7-11800H in the XMG CORE 15 is one of the fastest mobile CPUs available. The new Tiger Lake architecture also brings several innovations to the table, with features such as the connection of graphics cards and SSDs via PCI Express 4.0 and Thunderbolt 4 support now available in the high-end gaming laptop sector.

8 CORES 2.3-4.6 Ghz

16 THREADS CLOCK SPEED

8 CORES

16 THREADS

2.3-4.6 Ghz

CLOCK SPEED

11. GEN

INTEL PROCESSOR

POWERFUL RAY TRACING

NVIDIA GeForce RTX 3060

The update to NVIDIA’s latest GeForce graphics cards gives the XMG CORE 15 a considerable performance increase. Its RTX 3060 in unrestricted Max-P full configuration effortlessly powers the display with high FPS values. RTX technology helps you turn up the graphics details even further; because with DLSS 2.0 and ray tracing, the XMG CORE 15 is well prepared to bring to life current and upcoming AAA game titles at high quality graphics settings.

HIGH-RESOLUTION

WQHD DISPLAY WITH 165 Hz

Combining WQHD resolution (2560 x 1440 pixels) and a fast refresh rate of 165 Hz, the IPS display hits the sweet spot when it comes to gaming. While the increased pixel density ensures an even sharper and more detailed image, the high-end display simultaneously convinces with a low response time, an incredibly smooth playback and maximum immersion. But the high-resolution model also knows how to excel in the field of professional image editing with an sRGB colour space coverage of 95 percent and taking full advantage of the traditional strengths of IPS technology: brilliant colours, first-class black levels and excellent contrast.

165 Hz
144 Hz

165 Hz

144 Hz

165 Hz
144 Hz

165 Hz

144 Hz

XMG CORE 15 LP FEAT 03 240hz mobile EN 1

Lightweight gamer in

UNDERCOVER DESIGN

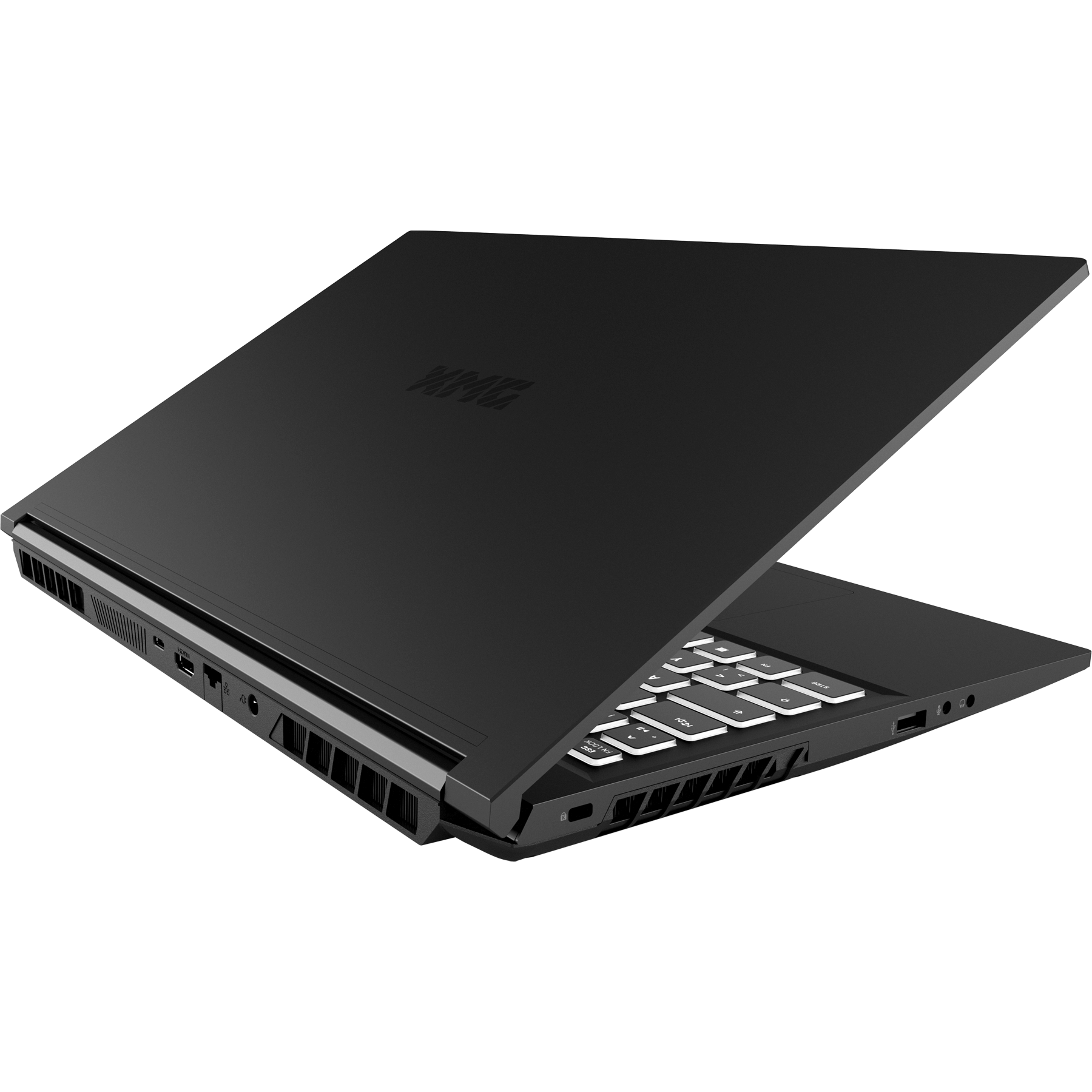

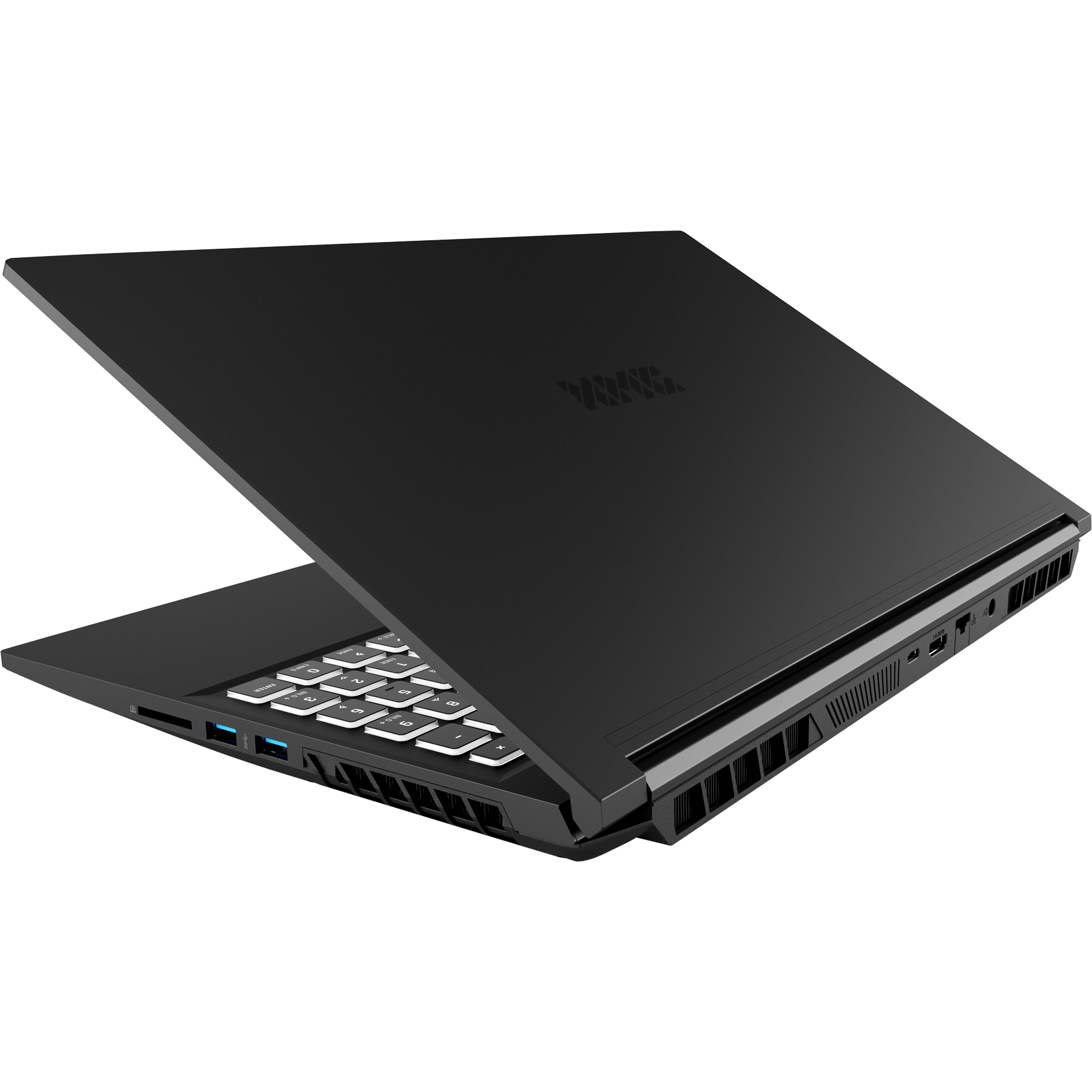

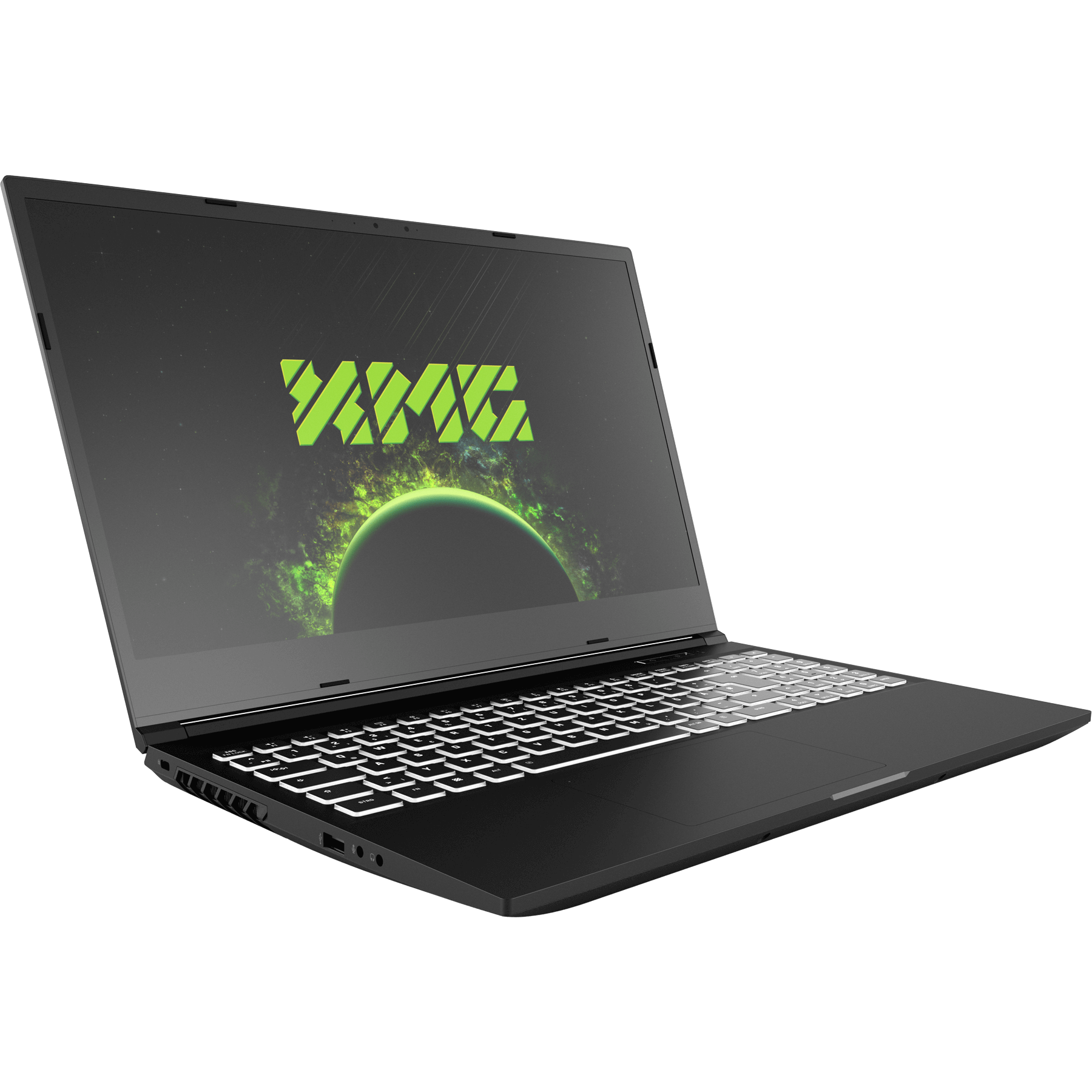

Gaming on-the-go: Thanks to a weight of just 2.1 kg, you can always carry your XMG CORE 15 around comfortably. In terms of design, the slim chassis is all about understatement. Casually modern and discreetly elegant, the laptop design has a serious touch that even makes a good impression in the office. Aluminium is predominantly used on the case’s exterior, ensuring an extremely solid build. The Windows Hello compatible webcam has been moved to the upper edge of the display in the latest CORE generation and thus records from a more advantageous angle.

High-end interface

THUNDERBOLT 4

Thunderbolt 4 isn’t just for connecting the fastest external SSDs to your XMG CORE 15. With two of its G-SYNC-capable DisplayPort streams directly connected to the NVDIA graphics card, you can also easily expand your setup with additional monitors. Or you can opt for a powerful Thunderbolt docking station to connect your keyboard, mouse, network, external storage devices and multi-monitor system to your laptop with a single cable via the high-performance port – for easy and convenient switching between mobile use and a well-equipped home setup with all your peripherals.

Thunderbolt 4

40 Gbit/s

GENEROUS

MEMORY CONFIGURATION

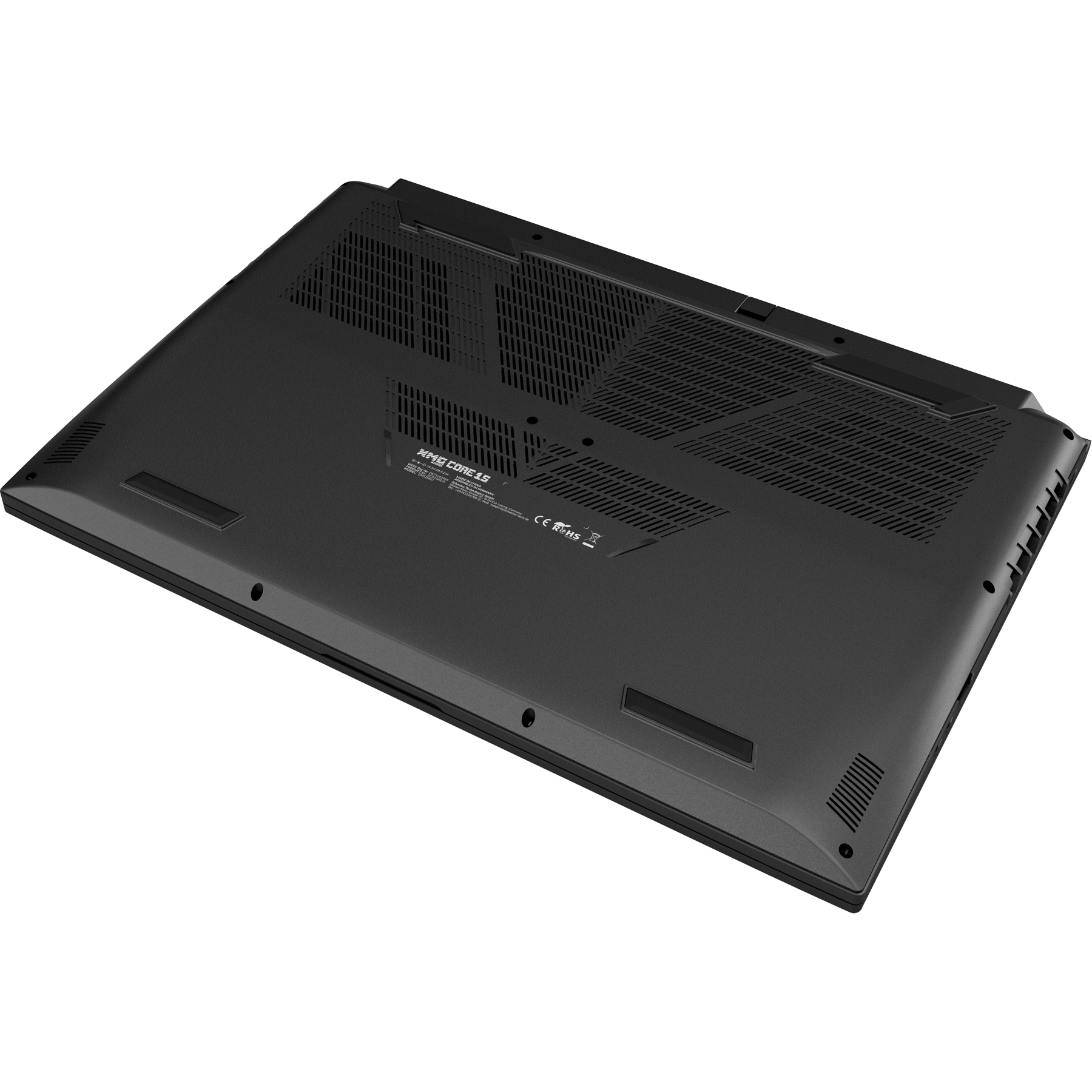

The XMG CORE 15 offers you flexible storage options. Two M.2 SSD, one with lightning fast PCI Express 4.0 connection, as well as two SO-DIMM slots for up to 64 GB DDR4-3200 RAM ensure maximum futureproofing. The inside of the laptop is freely accessible and does not put any unnecessary obstacles in your way, for example if you wish to replacing memory components in the future or simply in maintaining the laptop.

VIDEOS & TESTS

Play Video

" Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo "

GOLEM.DE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

NOTEBOOKCHECK.COM

TECHNICAL DETAILS

Expand all Close all

Product ID

XCO15IM21

Displays

15.6″ IPS | 1920×1080 px | 144 Hz | 300 cd/m² | 90 % sRGB | non-glare
15.6″ IPS | 2560×1440 px | 165 Hz | 350 cd/m² | 95 % sRGB | non-glare

Chipset

Intel HM570

Processor

Intel Core i7-11800H | 2.3 – 4.6 GHz | 8 cores/16 threads | 24 MB cache | 45+ W TDP

Liquid metal compound ex factory
Option for CPU undervolting in the Control Center

Graphics

Intel UHD Graphics 630 | integrated
NVIDIA GeForce RTX 3060 Laptop GPU | 6 GB GDDR6 | 115 W TGP (+15 W Dynamic Boost) | dedicated

Connections:

Internal display selectable via MUX: NVIDIA Optimus (MSHybrid) or directly via dGPU
HDMI 2.1: directly via dGPU
USB-C (DisplayPort 1.4a): directly via dGPU (Alt Mode, 2 Streams)

Number of external displays (simultaneously with use of the internal display):

2 external displays directly at the laptop
3 external displays via docking station without MST (2 at the dock, 1 via HDMI at the laptop)
Additional (4++) external displays with MST capable docking station or MST splitter
VR Ready (may require USB-C to DP adapter, sold separately)

Memory

2x DDR4 SO-DIMM, Dual Channel, up to 64 GB and 3200 MHz
Options for manual RAM tuning in the BIOS

Storage

1x M.2 2280 SSD via PCI Express 4.0 x4 (supports RAID 0/1)
1x M.2 2280 SSD via PCI Express 3.0 x4 (supports RAID 0/1)

Audio

Stereo speakers
Microphone with noise cancelling
Sound Blaster Cinema 6 Plus

Keyboard

Backlit RGB keyboard with numeric keypad
Fn lock function

Touchpad

Microsoft Precision Touchpad, two integrated buttons

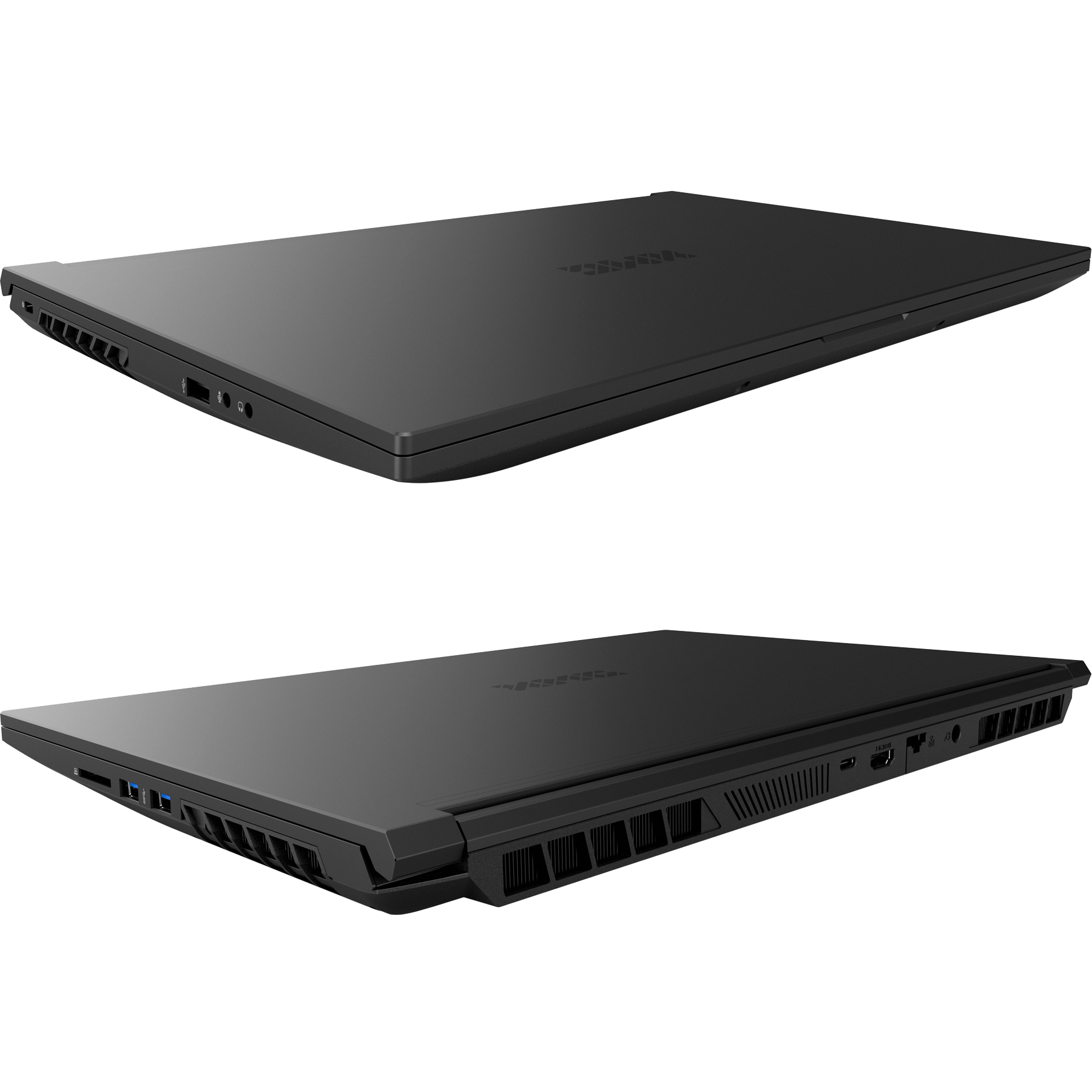

Ports

Left:

Headphone-out
Mic-in
USB-A 2.0

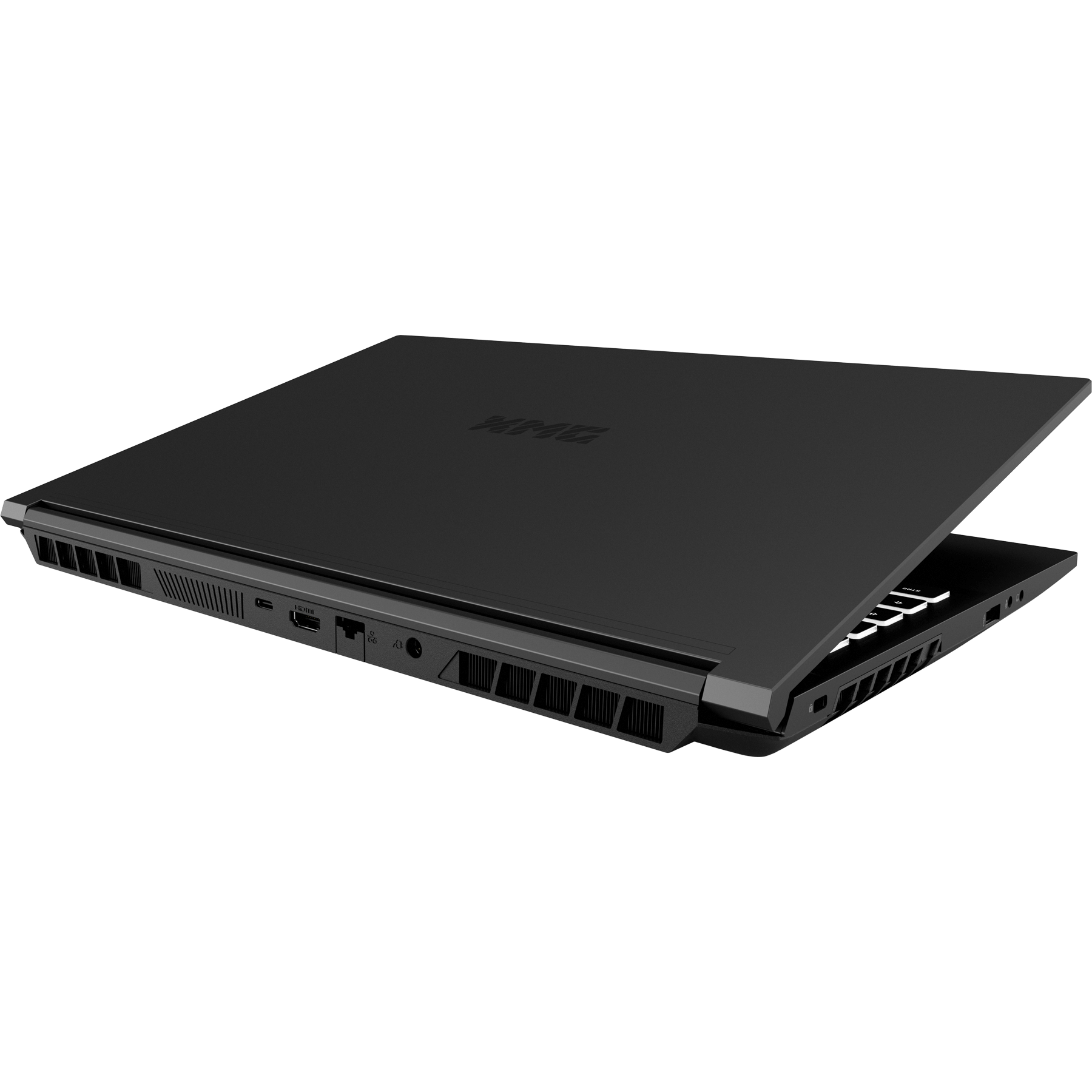

Rear:

DC-in
RJ45 Port 2.5 Gbit (LAN)
HDMI 2.1 (with HDCP 2.3)
Thunderbolt 4/USB-C 4.0 Gen3×1* (DisplayPort 1.4a: yes, G-SYNC compatible | Power Delivery: no)

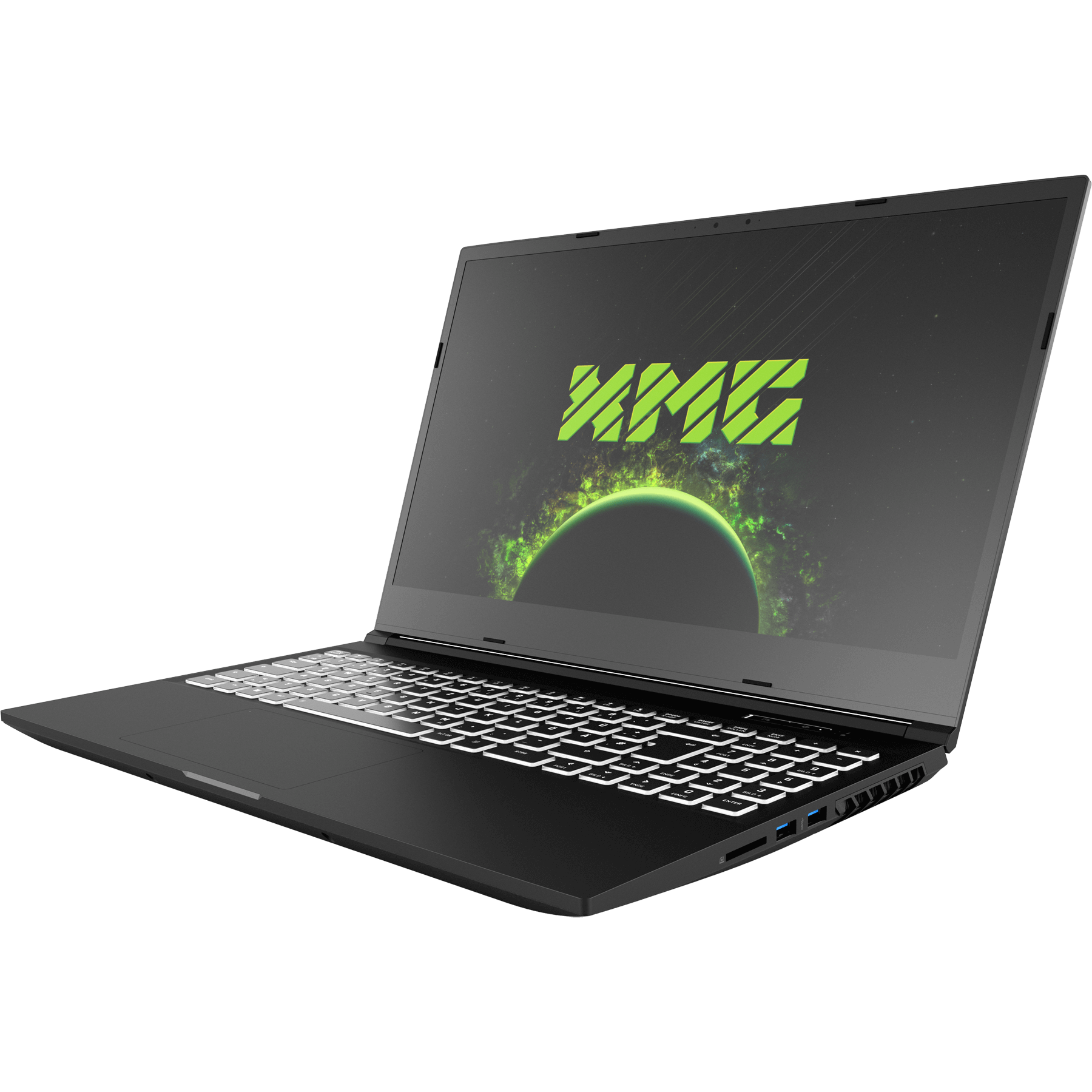

Right:

2x USB-A 3.2 Gen1
Card reader (SD/SDHC/SDXC)

*Specs for Thunderbolt 4:
Thunderbolt 4 with 40 Gbit/s
USB-C 3.2 Gen2×1 with 10 Gbit/s
USB-C 4.0 Gen3×1 with 20 Gbit/s
Power supply for peripherals: max. 5V/3A (15 watts)

Communication

Realtek 2.5 Gbit LAN
WLAN 802.11a/b/g/n/ac/ax + Bluetooth 5
HD Webcam (Windows Hello compatible)

Security

Kensington Lock
TPM 2.0 (via Intel PTT)

Power supply

180 watts (150 x 74 x 25 mm | 583 g incl. EU power cable)

Battery

Changeable Li-poly battery with 62 Wh (internally screwed)
Different battery charging profiles selectable in control center

Surface material

Display lid and top case made of aluminium
Display frame and bottom case made of plastic
135° display opening angle
Performance mode switch button

Weight

ca. 2.1 kg

Dimensions

360.2 x 243.5 x 23 mm (W x D x H)

Included in box

Laptop (incl. battery), power supply, driver USB stick

Drivers

We continuously provide you with the latest driver versions in the download portal of our company headquarters Schenker Technologies GmbH. Download here
