XMG CORE 15

UNDERCOVER GAMING

Elegant Undercover Gaming in a new, compact 15.3-inch format: The XMG CORE 15 combines superior performance, first-class efficiency and maximum functionality – packed into a stylish, all-aluminium chassis weighing just 2 kg.

A highly efficient processor from AMD, an NVIDIA GeForce RTX 4060 and a 99.8 Wh battery make this laptop a powerful and enduring, ultra-mobile all-rounder. With its long list of features, the CORE 15 is aimed at both gamers and creatives.

These include a high-resolution, 500 nits bright 16:10 display, a highly functional edge-to-edge keyboard, a large glass touchpad, up to 96 GB DDR5 RAM and an outstanding range of connections.

VIDEOS & TESTS
Play Video
Play Video
Play Video
Play Video about XMG NEO 15 OASIS Jarrod
Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop
TECHNICAL SPECIFICATION

XCO15M24

  • 15.3″ IPS | 2560×1600 px (16:10) | 240 Hz | 500 nits | FreeSync | 100 % sRGB | non-glare
  • alternatively 60 Hz settable
  • AMD Ryzen 7 8845HS | 8 cores/16 threads | up to 5.1 GHz | 16 MB cache
  • Ryzen AI

integrated (iGPU):

  • AMD Radeon 780M | 12 Compute Units

dedicated (dGPU):

  • NVIDIA GeForce RTX 4060 Laptop | 8 GB GDDR6 | 115 W TGP (+ 25 W Dynamic Boost)¹⁾


¹⁾RTX 4060 can fully max out its GPU power consumption in XMG CORE 15 (M24).
However, according to the NVIDIA specifications, the actual GPU power consumption depends on the type of workload.
Therefore, the actual power consumption may be lower than the specified TGP and Dynamic Boost power draw values.

internal display connection:

  • iGPU with NVIDIA Optimus or dGPU (via MUX switch)

HDMI 2.1 and Mini DisplayPort 1.4a connection:

  • dGPU

DisplayPort 1.4a via USB-C connection:

  • iGPU with NVIDIA Optimus
  • three external displays directly addressable
  • additional external displays possible with docking station/adapter
  • VR Ready
  • composite cooling system with copper heatpipes
  • two fans, each 60 mm in diameter, 8 mm in height and with 89 fan blades
  • four air outlets with a total of 284 copper cooling fins
  • air intake via bottom case and keyboard
  • PTM7958 phase change thermal compound on CPU and GPU
  • CPU + GPU: 190/160 watts (peak/sustained)
  • GPU-only: 140 watts (sustained)
  • CPU-only: 90/80 watts (for up to 30 seconds/sustained)
  • Luftansaugung über Unterseite und Tastatur
  • PTM7958 Phasenwechsel-Wärmeleitmittel auf CPU und GPU ab Werk


Thermals and sustained power limits may vary with room temperature and airflow.
Values represent average capabilities under normal conditions.

  • advanced control center with customisable power limits, fan curves, display profiles (incl. blue light filter) etc.
  • three pre-configured performance profiles (can be changed quickly via a dedicated button)
  • Windows installation without additional third-party software (for configurations with operating system)

2x DDR5 SO-DIMM | Dual Channel | max. 96 GB | max. 5600 MHz | max. 1.1 V

  • 2x M.2 2280 SSD via PCI Express 4.0 x4 (supports RAID 0/1)
  • stereo speakers
  • Nahimic by SteelSeries software
  • microphone with noise cancelling
  • HD webcam (Windows Hello compatible)
  • keyboard with one RGB backlight zone, concave keycaps, fully-fledged numeric keypad, dedicated navigation keys,
    full-size arrow keys and Fn lock function
  • dedicated performance mode switch button above keyboard
  • Microsoft Precision Glass Touchpad, two integrated buttons | 123 x 77.5 mm (W x D)
  • automatic palm recognition to avoid false inputs
  • supports scrolling, tapping, swiping and other multi-finger gestures as defined by operating system

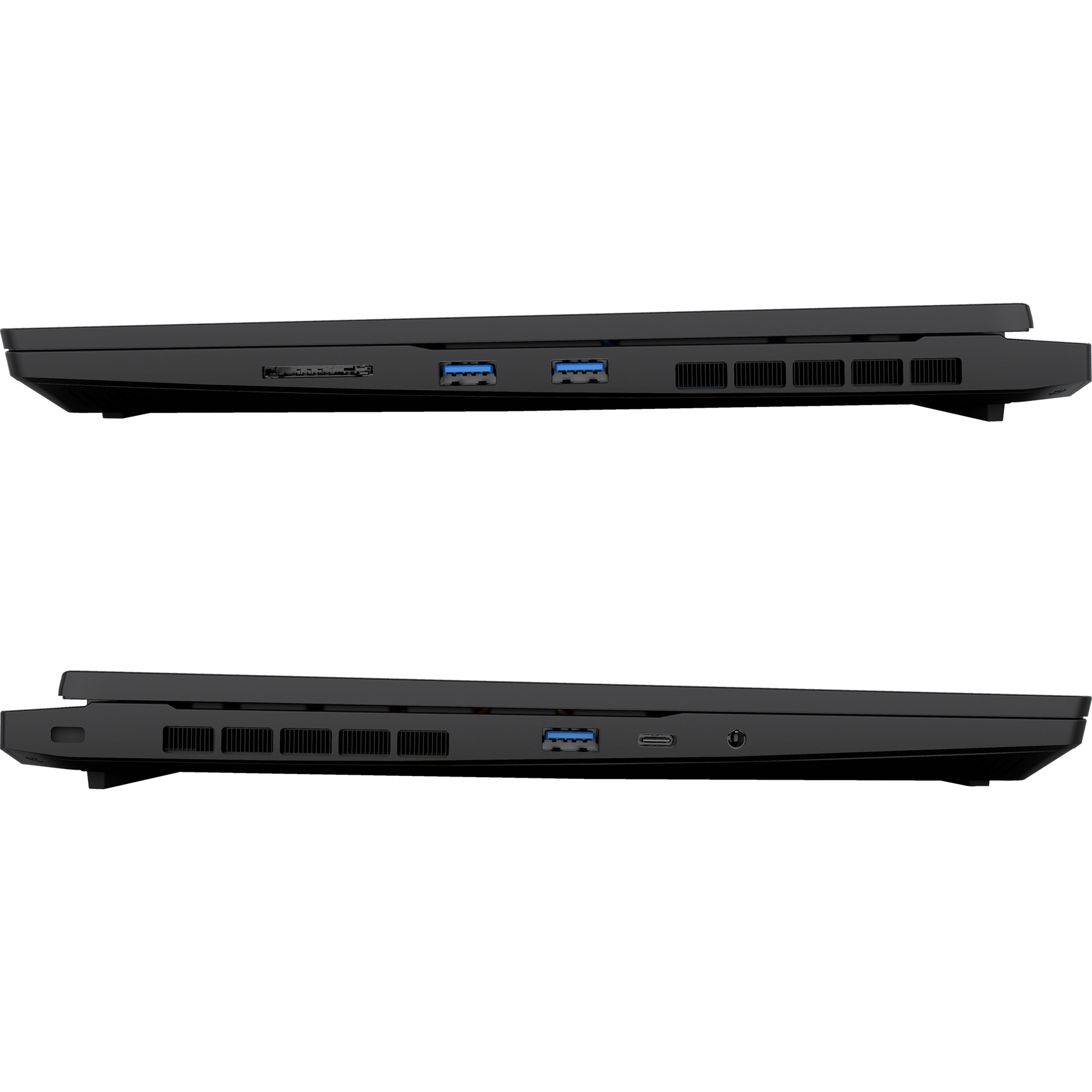

Left:

  • 2-in-1 audio (headphone + mic)
  • USB-C 3.2 Gen1 (5 Gbps | no DisplayPort | no Power Delivery)
  • USB-A 3.2 Gen1 (5 Gbps)

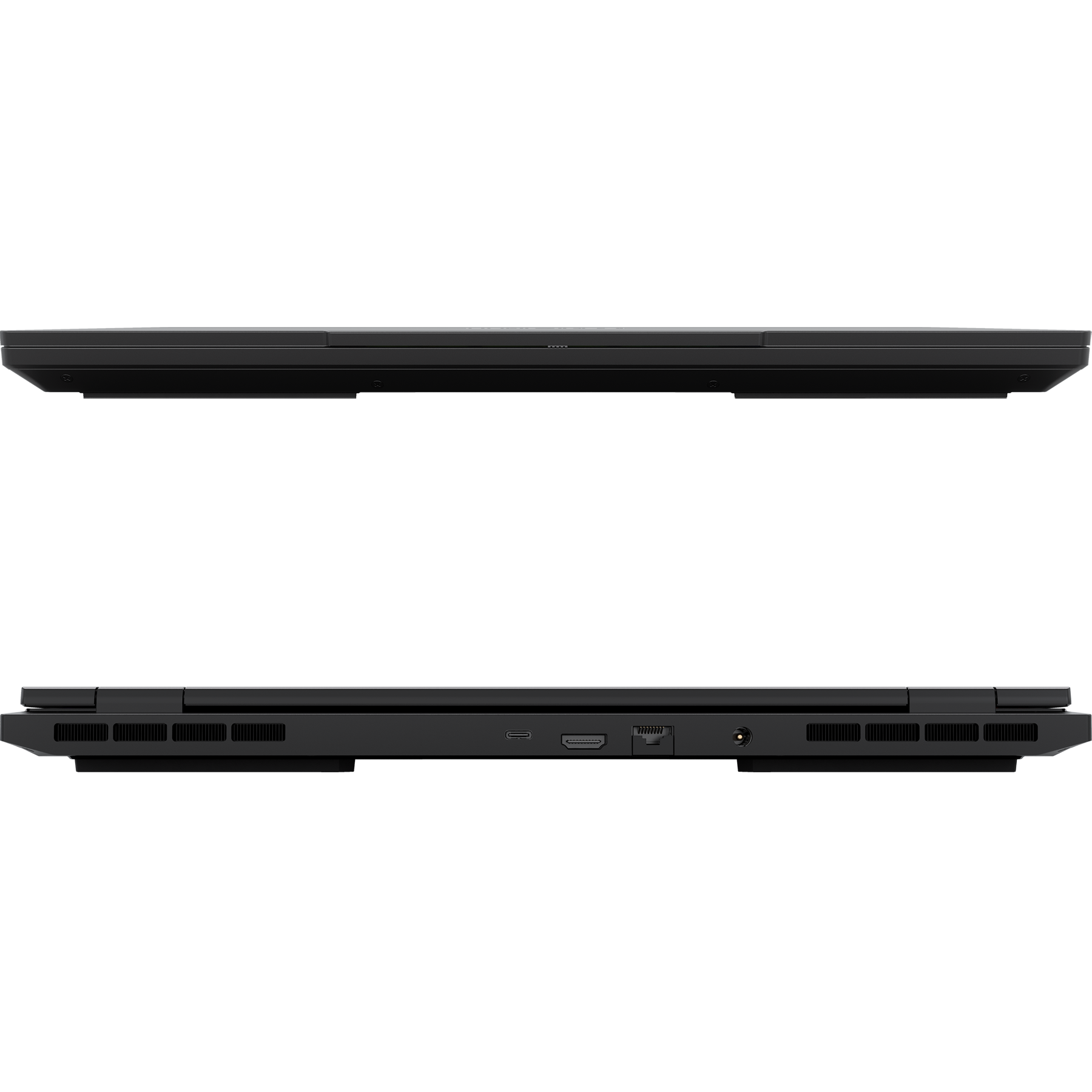

Rear:

  • DC-in (5.5/2.5 x 12.5 mm; IEC 60130-10)
  • RJ45 Port (Gigabit)
  • HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
  • USB-C 3.2 Gen2 (10 Gbps | DisplayPort 1.4a | Power Delivery)²⁾
  • Mini DisplayPort 1.4a (G-SYNC compatible | 2 streams with a total of 32.4 Gbps)


Right:

  • 2x USB-A 3.2 Gen1 (5 Gpbs)
  • Full-Size-Kartenleser (SD/SDHC/SDXC)


²⁾details:
USB-C 3.2 Gen2 with 10 Gbps
USB Power Delivery: exclusively with 20V/5A (100 watts)
power supply for peripherals: max. 5V/3A (15 watts)
supports 2 DisplayPort streams with a total of 32.4 Gbps
no support for VR headsets
no support for G-SYNC (proprietary), but compatible with Adaptive Sync (incl. FreeSync and G-SYNC Compatible)

  • Wi-Fi 6E + Bluetooth 5
  • Realtek Gigabit LAN (supports Wake on LAN and LAN/PXE boot)
  • Kensington NanoSaver Lock (left side)
  • TPM 2.0 (via fTPM)
  • SecureBoot
  • physical webcam shutter
  • support for biometrical login via Windows Hello
  • support for hardware encryption with compatible SSDs
  • 240 watts (125 x 70 x 25 mm | 611 g incl. EU power cable)
  • power cable socket: C6
  • changeable 80 Wh or 99.8 Wh Li-poly battery (internally screwed)
  • different battery charging profiles selectable in control center
  • iGPU-only operating mode selectable
  • display lid, top and bottom case made of aluminium
  • display frame made of plastic
  • 180° display opening angle
  • one-hand opening
  • PH 0 screw heads

ca. 2.0 kg

342.5 x 245 x 21.9 mm (W x D x H)

  • Laptop (inkl. Akku),
  • Netzteil
  • Treiber-USB-Stick
