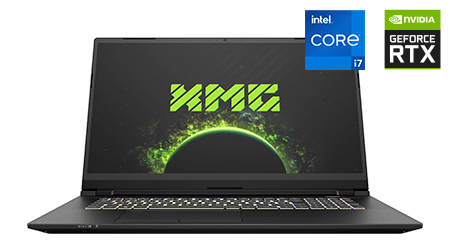

XMG PRO 17
Full HD IPS Display
144 Hz | G-SYNC | non-glare
Intel Core i7-10875H
2.3 – 5.1 GHz | 8 Cores/16 Threads
max. RTX 2070 SUPER
8 GB GDDR6-Memory
max. 64 GB RAM
2x SO-DIMM DDR4 | 2933 MHz
In terms of gaming performance, the XMG PRO 17 takes full advantage of NVDIA’s latest SUPER graphics chips and the brand new Intel Core i7-10875H with eight cores. A particularly optimized cooling system keeps the performance at a permanently high level and forms a reliable basis for ambitious gaming. A display in thin-bezel design provides for compact chassis dimensions.
The top-of-the-line XMG PRO 17 is equipped with an NVIDIA GeForce RTX 2070 SUPER in the powerful Max-P design, which helps you achieve consistently high FPS rates even in the most demanding gaming blockbusters. NVIDIA’s latest mobile graphics cards also feature special AI-based image enhancement and real-time ray tracing effects that take your graphics to a whole new level of detail.
With five fast USB ports (Type A and Type C), Thunderbolt 3 and additional video ports for up to three external monitors, this laptop has all the expansion options you need to create your ideal gaming setup. All these functions are enclosed in a mainly metal chassis, which thanks to its robustness won’t let you down even in heavy duty use. The XMG PRO 17 also places great emphasis on the internal expansion options: The laptop can hold up to 64 GB RAM, two fast M.2 SSDs connected via PCI Express and an additional 2.5-inch drive.
A keyboard with programmable RGB per-key illumination, N-key rollover and anti-ghosting, specially designed to meet the needs of gamers, offers a clearly defined pressure point and allows you to control the action with maximum precision.
Fast, colourful gaming display
A fast IPS panel gives the Full HD display an extraordinarily colour-intensive and high-contrast display. 144 Hz technology and NVIDIA G-SYNC also ensure phenomenally smooth gaming playback.
The synchronisation feature matches the game’s frame rates with the display’s refresh rate and eliminates dropouts and judder in the image build-up, which can severely disturb the player’s concentration
GeForce RTX goes SUPER
In its highest configuration level, the XMG PRO 17 is equipped with an NVIDIA GeForce RTX 2070 SUPER. This provides more than enough power to guarantee outstanding frame rates even for 4K and virtual reality gaming. Innovative features such as real-time ray tracing and the AI-based DLSS take graphics to a new level. A MUX switch allows the display connection in the BIOS to be switched between the dedicated GeForce graphics card and the processor’s iGPU, bypassing NVIDIA’s power-saving Optimus technology if necessary.
Powerful Intel Eight-Core CPU
Intel’s all-new hyperthreading capable Core i7-10875H delivers the massive power of eight cores and handles up to 16 threads simultaneously. This makes it perfect for multi-core-hungry games and applications.
Thanks to a maximum boost clock of over 5 GHz, the CPU also excels in single-core scenarios and remains extraordinarily efficient due to a TDP of just 45 watts.
Extensive connectivity features
The quantity and variety of ports leaves nothing to be desired with two USB-C 3.2 and three USB-A 3.2 ports, Thunderbolt 3 as well as a Mini DisplayPort and HDMI port each. Multi-monitor setups are therefore also possible without any problems.
Plus, NVIDIA Surround View support lets you connect up to three external monitors on your laptop and enjoy a breathtakingly wide panoramic view of your games.
Systematically optimized cooling system
Thanks to several selective optimisations, the well thought-out cooling of the XMG PRO 17 is one of the best solutions in this class of devices. This means that the high-end components deliver consistently high performance even under extreme gaming loads.
In addition to a completely revised heatpipe and dual-fan design, the cooling system also uses thinner fins and new fans with an increased number of rotor blades. In combination with the 4-way air outlets, more heat can be dissipated in less time. Additional improvements to the air intake accelerate the inflow of cold air.
17.3″ Full HD IPS | 144 Hz | G-SYNC | non-glare
Mobile Intel HM470 Express
Intel Core i7-10875H | 2.3 – 5.1 GHz | 8 cores/16 threads | 16 MB cache | 45 watts
NVIDIA GeForce RTX 2070 Refresh | 8 GB GDDR6 | up to 115 watts
NVIDIA GeForce RTX 2070 SUPER | 8 GB GDDR6 | up to 115 watts
Display connection: direct or via NVIDIA Optimus (selectable due to MUX design)
HDMI, Mini DisplayPort, DP via USB-C connection: direct
2x DDR4 SO-DIMM, Dual Channel, up to 64 GB
1x M.2 2280 SSD via PCI-Express x4 (supports RAID 0/1) or SATA III
1x M.2 2280 SSD via PCI-Express x4 (supports RAID 0/1)
1x 2.5″ SSD/HDD (7 mm)
High Definition Audio
2.1 speaker system
Microphone with noise cancelling
TI Smart Amp (TAS5825M)
Sound Blaster Atlas
Gaming keyboard with per-key RGB backlight and numeric keypad
Microsoft Precision Glass-Touchpad, two soft-touch-buttons
3x USB-A 3.2 Gen1 (1x powered)
1x USB-C Gen2 (DisplayPort: yes, G-SYNC compatible, Power Delivery: no)
1x Thunderbolt 3/USB-C 3.1 Gen2 (DisplayPort: yes, G-SYNC compatible, Power Delivery: no)
1x Mini DisplayPort 1.4 (G-SYNC compatible)
1x HDMI 2.0 (with HDCP)
1x Headphone-Out (smartphone-headset compatible)
1x 2-in-1-Audio (Mic-In + S/PDIF optical)
1x RJ45 Port (LAN)
1x UHS-II card reader (SD/SDHC/SDXC)
Realtek Gigabit LAN
WiFi 802.11a/b/g/n/ac/ax + Bluetooth 5
TPM 2.0 (Hardware)
399 x 275 x 29.9 mm (W x D x H)
Ca. 2.9 kg
Changeable 62 Wh Li-Ion-battery
Included in box
Laptop (incl. battery), power supply, driver CD/USB-stick, manual
