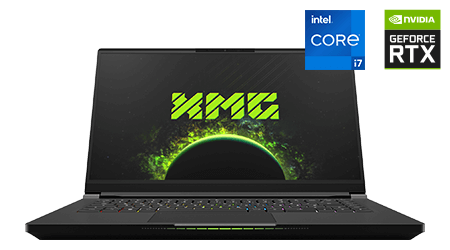

XMG FUSION 15

UNDERCOVER GAMING

In its new 15.3-inch format, the XMG FUSION 15 seamlessly combines the capabilities of a multimedia powerhouse with those of an remarkably compact gaming laptop, all within an elegant 2.1 kg all-aluminium chassis, boasting impressive performance.

Armed with the latest generation of high-performance hardware, this highly optimised all-rounder delivers unparalleled functionality on the go. The FUSION 15 features Intel’s fastest mobile CPU alongside high-performance NVIDIA graphics cards, a high-resolution 16:10 display with 500 nits brightness, a 99.8 Wh battery, and a generously-sized edge-to-edge keyboard with an extensive feature set, all within an exceptionally compact design. With its premium finish and versatile connectivity options, this laptop sets a new standard of excellence.

All-Aluminium Chassis

Compact, Lightweight, Premium Quality

Exclusive elegance, high-quality finish, and crafted from first-class materials, the black anodised all-aluminium chassis of the XMG FUSION 15 offers a perfect fit, weighing in at a mere 2.1 kg, and featuring a torsion-resistant, all-round robust design. With its deliberately understated aesthetics, this sophisticated laptop oozes class. This design ethos extends to the ultra-slim display bezels on all four sides, accentuating the sleek appearance and underlining the concept of maximum functionality within its compact 15.3-inch format.

Efficient CPU Performance &
Innovative GPU Features

Intel Core i9-14900HX

Intel’s Core i9-14900HX stands as the undisputed champion of high-performance mobile computing. This remarkable laptop CPU, with desktop DNA, unleashes the boundless power of 24 cores, 32 threads, and an impressive 36 MB Intel Smart Cache within the FUSION 15. Powered by the modern Raptor Lake Refresh architecture, this processor asserts its dominance across all single and multi-threaded applications. With a boost clock of up to 5.8 GHz, it ensures maximum performance in every application.

NVIDIA GeForce RTX 40

NVIDIA’s upper mid-range GeForce graphics cards offer ample processing power for both gaming and content creation. Choose between the high-performance RTX 4070 or the fast RTX 4060, each operating at maximum power limits to unleash their full potential. Additionally, AI-based DLSS provides both GPUs with a significant FPS boost, particularly beneficial for high-resolution gaming with activated ray tracing.

Customised Composite Cooling System

Perfectly Cooled Components

The composite cooling system of the XMG FUSION 15 is meticulously optimised to guarantee high sustained performance. Specific enhancements include all-copper heat sinks on all four air outlets and a dual fresh air supply from both the bottom shell and the keyboard area, effectively regulating temperatures and maintaining component performance. Further enhancing thermal efficiency are phase-changing Honeywell PTM7957 pads on the CPU and GPU. Even the two M.2 SSD slots are equipped with a separate heat shield and thermal pad.

Premium Display with 500 Nits

Razor-Sharp and Bright

With its remarkable resolution and pixel density (2,560 x 1,600 pixels across 15.3 inches), the non-glare display showcases content with razor-sharp clarity. A notable enhancement is the significantly increased brightness: 500 nits ensure exceptional readability even in bright environments or outdoors. In addition, the IPS display impresses with intense, brilliant colours, high contrasts and first-class viewing angle stability and can be opened up to 180 degrees with one hand.

Lightning-Fast Gaming
with 240 Hz

Seeking an impressively smooth gaming experience? Look no further than the XMG FUSION 15, equipped with a high refresh rate of 240 Hz. With a MUX switch, you have the flexibility to choose whether the display connects directly to the dedicated graphics card from NVIDIA or the efficient, integrated graphics unit from Intel. Supporting Adaptive Sync, the panel ensures games are displayed without any screen tearing or stuttering: all content is rendered on the high-performance dGPU and forwarded to the display via the iGPU.

Professional Colour Accuracy in 16:10

Featuring a colour-calibrated display in a practical 16:10 aspect ratio, the XMG FUSION 15 is specifically designed to meet the high demands of creative professionals. With 100 % coverage of the sRGB colour space, coupled with the added vertical screen area, you’ll experience a substantial improvement in usability for your photo or video editing tasks.

XMG Control Center

Take Command of Your Settings

The powerful XMG Control Center offers comprehensive control over your laptop’s performance settings. From customised performance profiles enabling you to effortlessly select the ideal balance of performance, noise levels, and temperatures, to the creation of individual profiles with manual tuning options, it puts you in the driver’s seat. Unlock the full potential of your laptop’s high-end components, adjust power limits to their maximum, or activate advanced BIOS settings. These options encompass RAM tuning and CPU undervolting, allowing you to get the most out of your system and your individual configuration.

Edge-to-Edge keyboard

Uncompromising functionality and Precision

With its modern edge-to-edge design, the keyboard of the XMG FUSION 15 utilises the entire width of the chassis to accommodate an extended layout without compromising on functionality within its compact design. Gamers benefit from advanced features including N-key rollover, anti-ghosting, a precise actuation point, and fully customisable per-key RGB lighting. Also functioning as a versatile multimedia workstation, the FUSION 15 offers a complete four-row numeric keypad, dedicated navigation keys, full-size offset arrow keys, and an Fn lock function. Additionally, the Windows Precision-compliant glass touchpad provides comfortable navigation with its ample size of 123 x 77.5 mm.

99.8 Wh for On-the-Go

Maximum Battery Capacity

The XMG FUSION 15 boasts a colossal 99.8 Wh battery, offering the maximum permissible capacity for unrestricted, mobile laptop usage. Three selectable charging profiles allow you to optimise the integrated battery’s performance based on your usage habits, depending on whether you use the laptop primarily at your desk or on the move. These profiles directly influence charging speed and maximum capacity to mitigate natural battery wear.

First-Class Connectivity

All the Ports You Need

The XMG FUSION 15 not only boasts an extensive array of ports but also strategically distributes them. Larger connectors are conveniently situated at the rear, including the power supply connection, HDMI 2.1, Gigabit Ethernet, and Thunderbolt 4 port, which supports laptop charging via a USB-C charger with 100 watts. On the sides, you will find a second USB-C port, three USB-A ports, a full-size SD card reader, and a 2-in-1 audio jack for headsets. Furthermore, the webcam features a physical privacy shutter and a separate infrared sensor for seamless login via Windows Hello.

VIDEOS & TESTS

Play Video

Play Video about XMG NEO 15 OASIS Jarrod

Play Video about XMG NEO 15 Dave2D Video The CRAZIEST Way to Cool a Laptop

"Eine herausragende Performance, erstklassige Kühlung und deutlich leisere Lüfter katapultieren das XMG NEO 17 (E23) an die Spitze der besten Gaming-Notebooks."

basic-tutorials.de

"Ein stabiles und schickes Gehäuse, fast grenzenlose Leistung im Alltag [...]"

Notebookcheck.com

"Everything here is top notch, and there is a huge number of options available to make the NEO 17 perfect for you."

techpowerup.com

TECHNICAL SPECIFICATION

Expand all Close all

Product ID

XFU15E24

Display

15.3″ IPS | 2560×1600 px (16:10) | 240 Hz | 500 nits | Adaptive Sync | 100 % sRGB | non-glare
alternatively 60 Hz settable

Processor

Intel Core i7-14650HX | 8 P- & 8 E-cores/24 threads | up to 5.2 GHz | 30 MB Cache
Intel Core i9-14900HX | 8 P- & 16 E-cores/32 threads | up to 5.8 GHz | 36 MB cache

Graphics

integrated (iGPU):

Intel UHD Graphics | 32 Execution Units

dedicated (dGPU):

NVIDIA GeForce RTX 4060 Laptop | 8 GB GDDR6 | 115 W TGP (+ 25 W Dynamic Boost)¹⁾
NVIDIA GeForce RTX 4070 Laptop | 8 GB GDDR6 | 115 W TGP (+ 25 W Dynamic Boost)¹⁾

_{¹⁾RTX 4060 and 4070 can fully max out their GPU power consumption in XMG FUSION 15 (E24).
However, according to the NVIDIA specifications, the actual GPU power consumption depends on the type of workload.
Therefore, the actual power consumption may be lower than the specified TGP and Dynamic Boost power draw values.}

Display connection

internal display connection:

iGPU with NVIDIA Optimus or dGPU (via MUX switch)

HDMI 2.1 and DisplayPort 1.4a via Thunderbolt/USB-C connection:

dGPU

two external displays directly addressable
additional external displays possible with docking station/adapter
VR Ready

Cooling system

composite cooling system with copper heatpipes
two fans, each 60 mm in diameter, 8 mm in height and with 89 fan blades
four air outlets with a total of 284 copper cooling fins
air intake via bottom case and keyboard
PTM7958 phase change thermal compound on CPU and GPU

Power limits

i9-14900HX and RTX 4060/70:

CPU + GPU: 205/160 watts (peak/sustained)
GPU-only: 140 watts (sustained)
CPU-only: 140/105 watts (for up to 15 seconds/sustained)

_{Thermals and sustained power limits may vary with room temperature and airflow.
Values represent average capabilities under normal conditions.}

Firmware features

XMP support
manual CPU undervolting and RAM tuning, incl. recovery function

Software features

advanced control center with customisable power limits, fan curves, display profiles (incl. blue light filter) etc.
three pre-configured performance profiles (can be changed quickly via a dedicated button)
Windows installation without additional third-party software (for configurations with operating system)

Memory

2x DDR5 SO-DIMM | Dual Channel | max. 64 GB | max. 5600 MHz²⁾ | max. 1,1 V | XMP

_{²⁾Currently available 32 GB DDR5 modules are operated by Intel’s Core HX series with DDR5-5200 CL42 by default.}

Storage

2x M.2 2280 SSD via PCI Express 4.0 x4 (supports RAID 0/1)

Audio & webcam

stereo speakers
Nahimic by SteelSeries software
microphone with noise cancelling
Full HD webcam (Windows Hello compatible)

Keyboard

keyboard with per-key RGB backlight, concave keycaps, fully-fledged numeric keypad, dedicated navigation keys, full-size arrow keys, N-key rollover, anti-ghosting and Fn lock function
dedicated performance mode switch button above keyboard

Touchpad

Microsoft Precision Glass Touchpad, two integrated buttons | 123 x 77.5 mm (W x D)
automatic palm recognition to avoid false inputs
supports scrolling, tapping, swiping and other multi-finger gestures as defined by operating system

Ports

Left:

2-in-1 audio (headphone + mic)
USB-C 3.2 Gen1 (5 Gbps | no
DisplayPort | no Power Delivery)
USB-A 3.2 Gen1 (5 Gbps)

Rear:

DC-in (5.5/2.5 x 12.5 mm; IEC 60130-10)
RJ45 Port (Gigabit)
HDMI 2.1 (G-SYNC compatible | HDCP 2.3 | 48 Gbps)
Thunderbolt 4/USB4 (DisplayPort 1.4a | G-SYNC compatible | Power Delivery)³⁾

Right:

2x USB-A 3.2 Gen1
Full-size card reader (SD/SDHC/SDXC)

_{³⁾details:
Thunderbolt 4 with 40 Gbps
USB4 with 40 Gbps
USB-C 3.2 Gen2 with 10 Gbps
USB Power Delivery: exclusively with 20V/5A (100 watts)
power supply for peripherals: max. 5V/3A (15 watts)
supports 2 DisplayPort streams with a total of 32.4 Gbps
supports VR headsets
supports NVIDIA G-SYNC and AMD FreeSync}

Network
