XMG EVO 14

Exploring New Horizons

Compact and lightweight power workstation in a 14-inch form factor: The XMG EVO 14 combines impressive ultrabook performance with an elegant aluminium chassis, offering uncompromising connectivity, memory, and storage capabilities.

Designed for maximum functionality, this laptop excels with cutting-edge AMD processor technology, offering a choice between a Ryzen 9 AI HX 370, Ryzen AI 9 365, and Ryzen AI 7 350. Enhanced by a large dual-fan cooling system, these CPUs utilise their efficient integrated graphics units to deliver peak performance, supported by a robust 80 Wh battery for extended runtimes. In addition to its flexible RAM and SSD expandability, the XMG EVO 14 stands out with top-tier connectivity options and the choice of either an ISO or ANSI keyboard layout.

Lightweight, sturdy
and elegant

1.45 kg lightweight aluminium housing with
ergonomic 180-degree hinge

Reliable partner
for all multimedia tasks

Efficient and powerful –
thanks to the latest generation AMD architecture

Performance up - temperatures and volume down

Powerful dual-fan design for maximum performance with minimum background noise

Razor sharp and 120 Hertz fast

500 nits bright, pre-calibrated 16:10 display with clever anti-reflective coating

Goodbye
Dongle Life

All the connections you need – including a lightning-fast SD card reader

Safety comes first!

TPM 2.0, encryption, privacy shutter and more

Up to 128 GB RAM and 16 TB SSD

Future-proof storage equipment – can also be upgraded at a later date

Endurance until the end of the working day and beyond

Huge 80 Wh battery for battery runtimes of over 10 hours

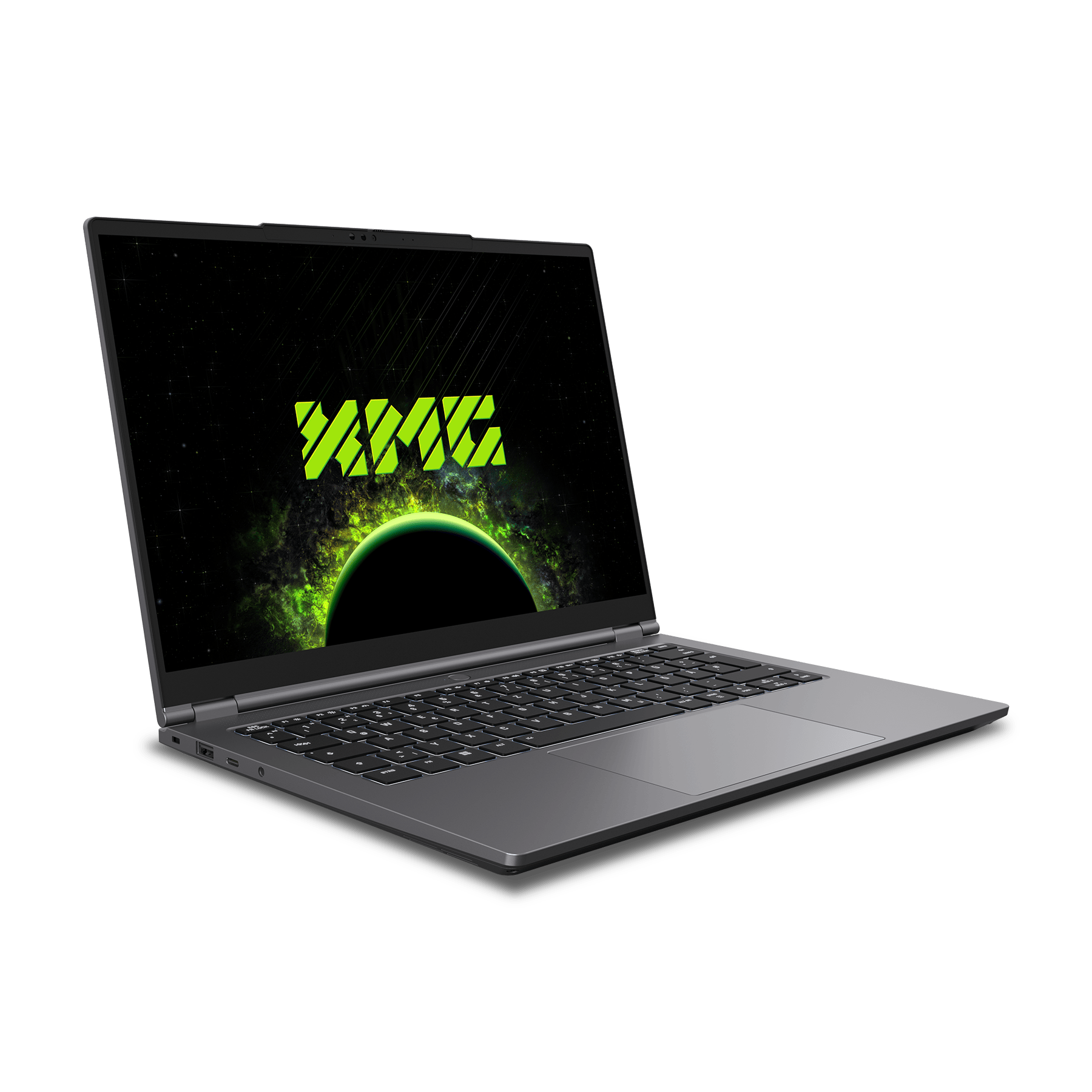

Ultra-Compact Aluminium Chassis

Lightweight, Sturdy, and Elegant

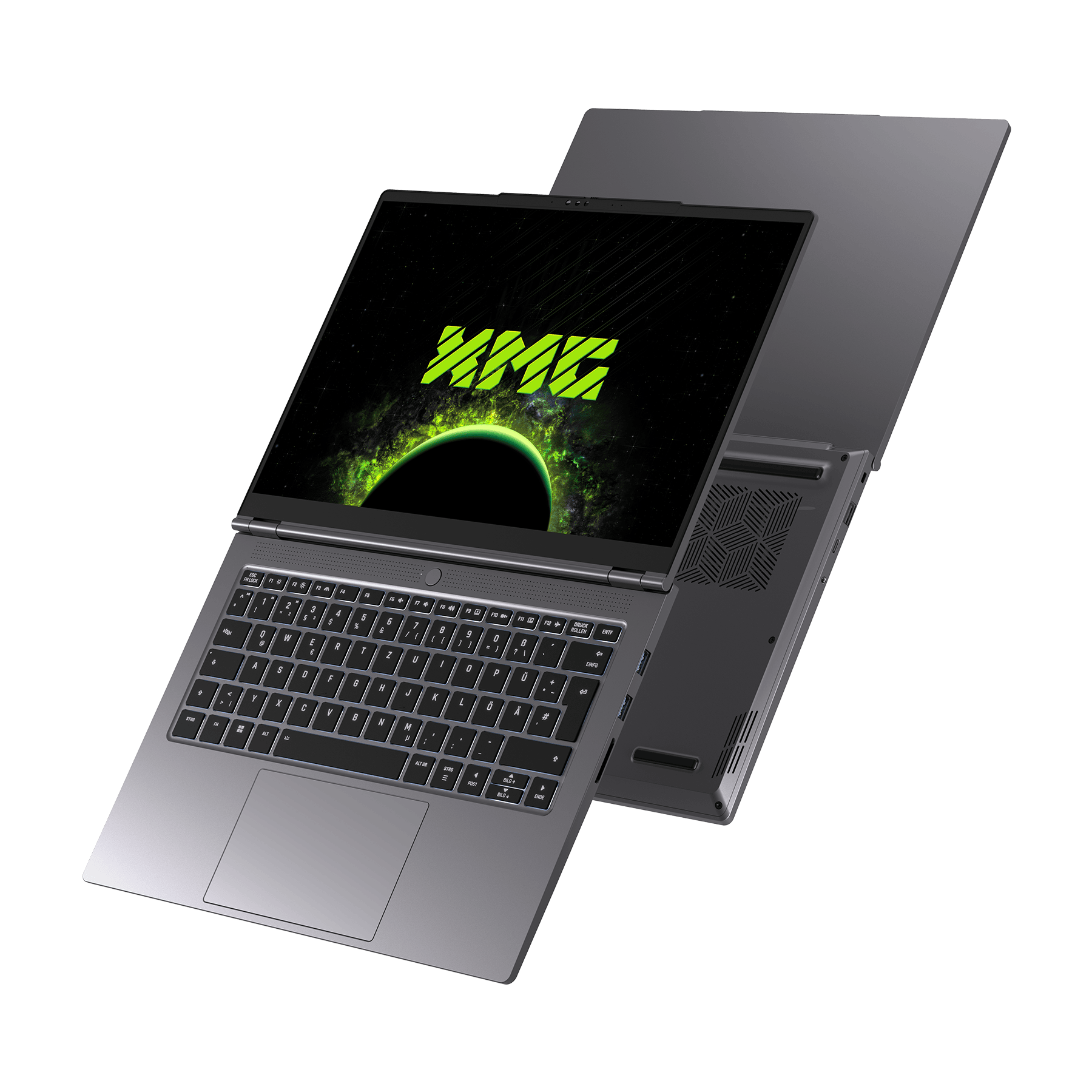

With ergonomic 180-degree hinge

Crafted with a high-quality finish and exceptional durability, the XMG EVO 14 weighs just 1.45 kg and boasts a slim profile of only 17 mm. Constructed entirely from aluminium, it delivers great performance in an ultra-compact 14-inch form factor. The laptop’s precision-fit build epitomises premium craftsmanship, complemented by a sleek, modern design with narrow display bezels on all four sides. Aluminium also enhances thermal conductivity, acting as a passive heat sink alongside the dual-fan cooling system to efficiently manage hardware temperatures.

AMD Krackan and Strix Point

Impressive Performance and Efficiency

AMD Ryzen AI

AMD newest processors combine maximum performance with innovative integrated AI features that accelerate computing tasks in productivity software. The XMG EVO 14 offers flexibility to choose the performance level you need, available with three AMD Ryzen AI processors: the high-performance Ryzen AI 9 HX 370 with 12 cores and 24 threads; the Ryzen AI 9 365, offering excellent value for money; and the Ryzen AI 7 350, ideal for all office and everyday tasks.

AMD Radeon Graphics

Depending on the processor you choose, the XMG EVO 14 features one of three powerful integrated graphics units that offer excellent efficiency, contributing to extended battery life. Built on the modern RDNA 3.5 architecture, these GPUs deliver ample performance for multimedia applications, GPU acceleration in content creation software, and even entry-level gaming with solid FPS rates. They handle popular titles such as League of Legends, Hades 2 and Rocket League with ease. Additionally, AMD’s FSR upscaling technology provides a further boost to frame rates.

Excellent Dual-Fan Cooling System

Powerful and Quiet

As a high-performance ultrabook, the XMG EVO 14 is equipped with a dual-fan cooling system typically reserved for much larger laptops, perfectly optimised for its hardware. This ensures exceptional performance in applications and multimedia tasks while maintaining quiet operation. Additionally, phase-changing Honeywell PTM7958 thermal pads, renowned for their superior heat dissipation, further enhance cooling efficiency.

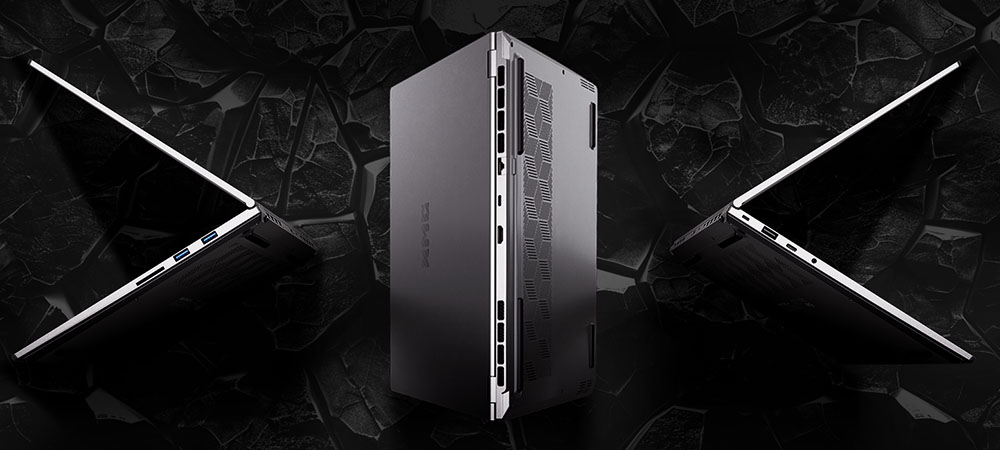

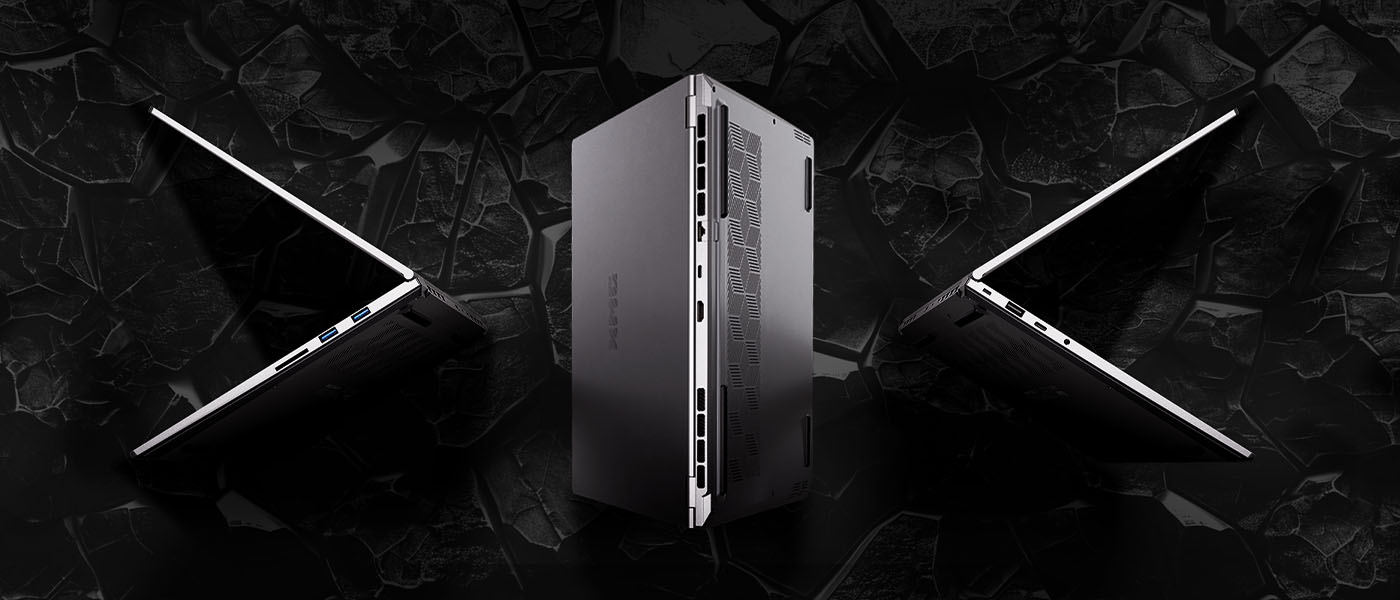

Premium Connectivity

Ideal for Professional Requirements

The XMG EVO 14 delivers exceptional connectivity for an ultrabook. Whether you’re setting up multi-monitor displays, using powerful docking stations, or connecting a range of versatile USB peripherals, it provides all the ports you need to optimise your workflow. The high-speed SD card reader offers significant added value, particularly for photographers and videographers.

USB-C

USB-A

RJ45

LAN

Full-size
card reader

Full-size
card
reader

HDMI

2-in-1
audio

Up to 128 GB RAM and 16 TB Storage

Ready for Demanding Projects

Upgradable at any time

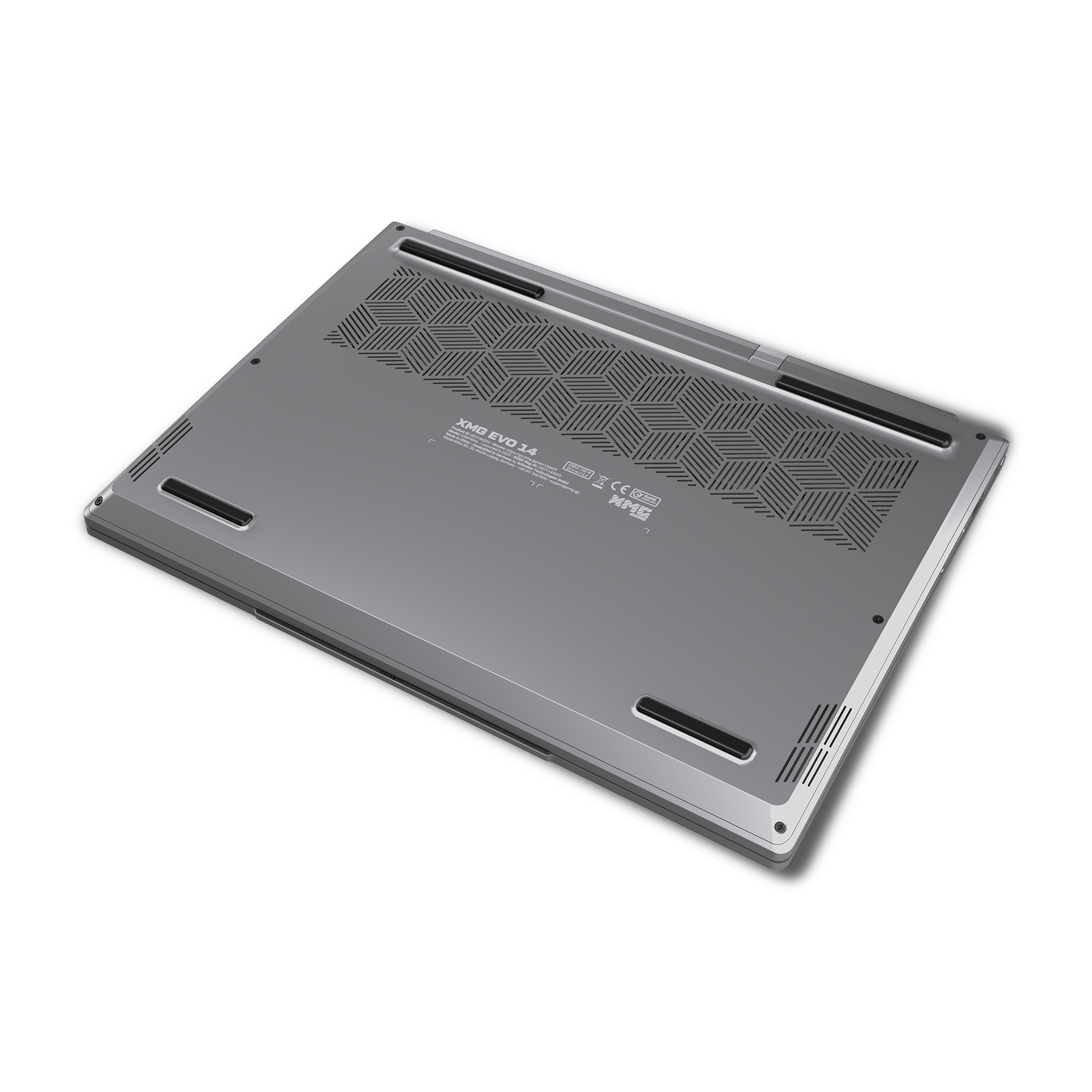

Unlike many ultrabooks, the XMG EVO 14 features memory modules that are not soldered but easily accessible through the laptop’s screw-fastened bottom shell. This design allows for effortless upgrades down the line. With two SO-DIMM slots supporting up to 128 GB of DDR5 RAM and two M.2 slots fitted with thermal pads for fast PCI Express 4.0 SSDs, you have maximum flexibility to configure your ultrabook precisely to your needs.

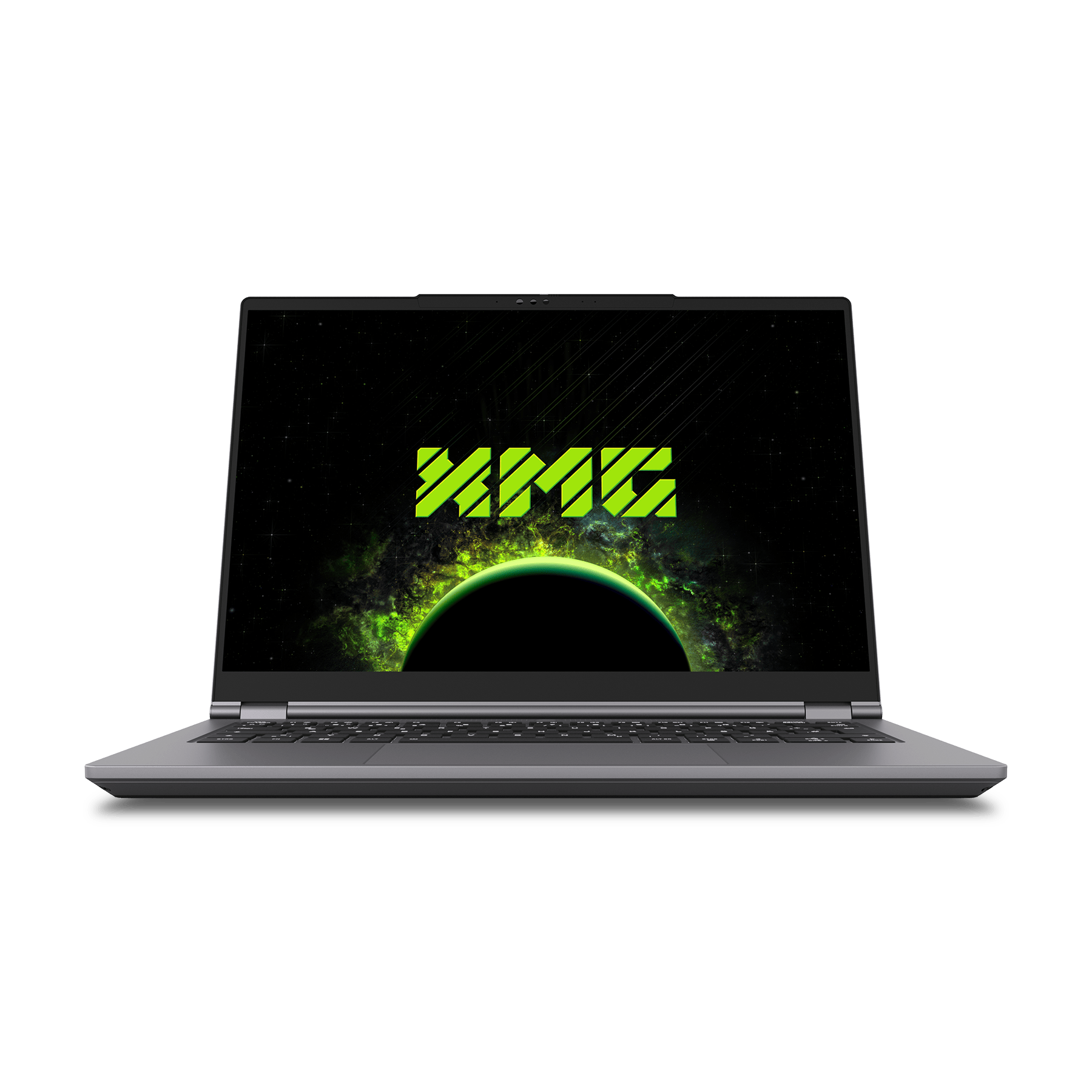

Bright Display with 500 Nits

Razor-Sharp Precision

The 14-inch XMG EVO 14 presents all content in razor-sharp detail with a resolution of 2,880 × 1,800 pixels. Its anti-glare, 500-nit display ensures excellent readability even in brightly lit environments, including outdoor settings, and can be opened up to 180 degrees with one hand. The high-resolution, high-contrast IPS panel delivers vibrant colours and excellent viewing-angle stability.

Professional Colour Fidelity
in a 16:10 Format

Factory colour-calibrated and designed with a practical 16:10 aspect ratio, the XMG EVO 14 is ideal for demanding creative tasks. With 100 % sRGB colour space coverage and additional vertical screen space, it significantly enhances ease of use in photo and video editing software.

Smooth Display
120 Hz and VRR

The fast 120 Hz panel delivers impressively smooth visuals. Variable Refresh Rate (VRR) technology eliminates screen tearing and stuttering, while support for AMD FreeSync ensures flawless playback. You can also choose to reduce the refresh rate to 60 Hz for improved battery life when it matters most.

80 Wh Battery

Extended Battery Life

With an 80 Wh battery and efficient components housed within its ultra-compact design, the XMG EVO 14 is built for long, productive sessions on the move. This powerful ultrabook delivers excellent battery life, easily supporting a full working day of light office tasks and web browsing.

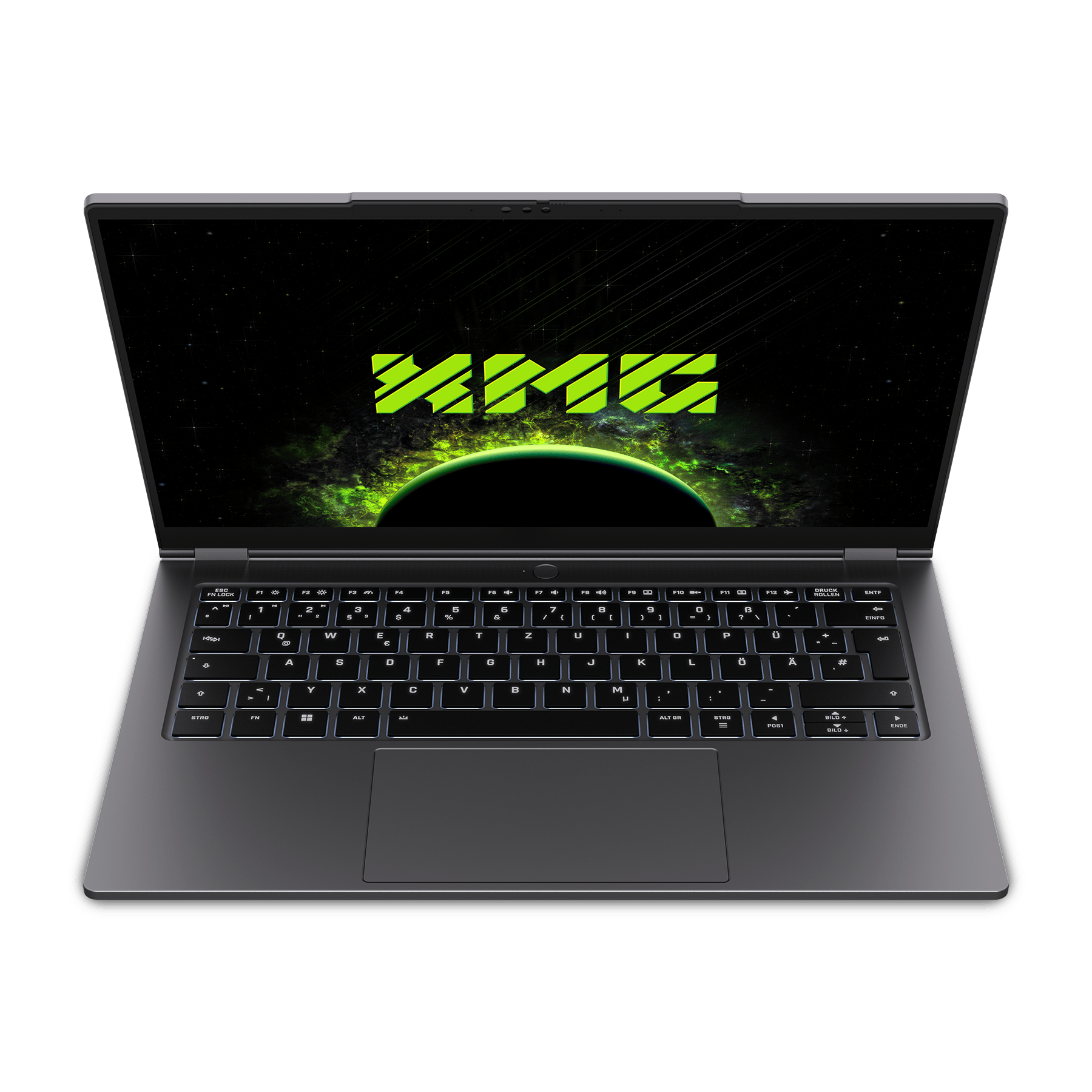

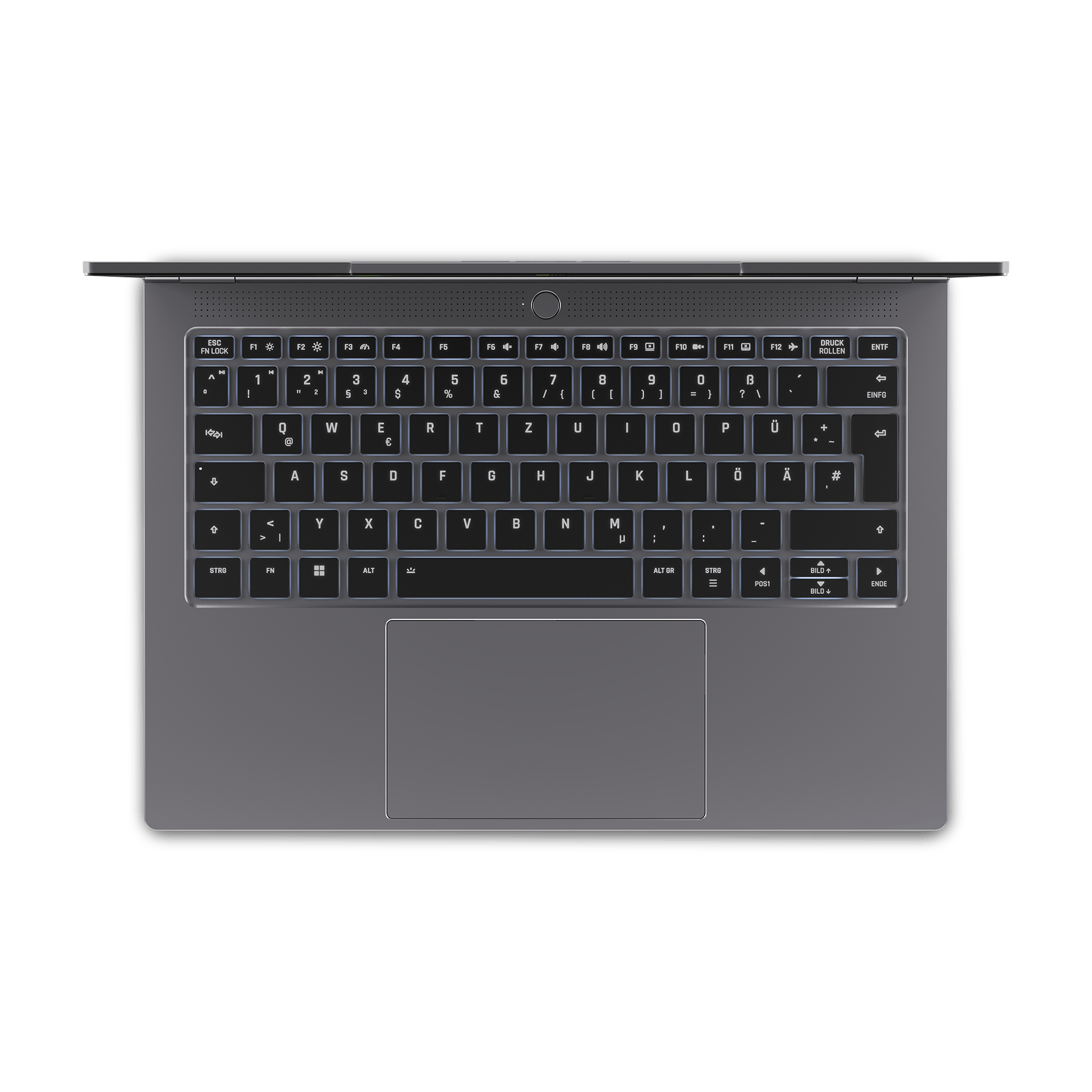

Edge-to-Edge-Tastatur

Funktional, flexibel, komfortabel

Die kompakte Edge-to-Edge-Tastatur bringt eleganten Style und maximale Funktionalität auf den Punkt. Erweiterte Ausstattungsmerkmale wie ein vollwertiger, vierreihiger Nummernblock, separate Full-Size-Pfeiltasten, eine praktische Fn-Lock-Funktion und dedizierte Navigationstasten ergeben ein perfektes Layout für Productivity-Anwendungen. Eine mehrstufig regelbare, weiße Hintergrundbeleuchtung und ein klar definierter Druckpunkt überzeugen ebenso wie das Windows-Precision-konforme, hochwertig verarbeitete Glas-Touchpad.

TPM, Encryption and Privacy Shutter

Security & Privacy Included

Advanced security features are integral to the XMG EVO 14. These include Secure Boot, SSD hardware encryption, and a Full HD webcam with infrared support for biometric Windows Hello login. Additionally, a Kensington NanoSaver lock is provided to help deter theft while in use. For enhanced protection, the laptop employs tamper-resistant TPM 2.0 to manage cryptographic keys for software-based drive encryption with BitLocker. A physical privacy shutter allows you to cover the webcam when it’s not in use.

VIDEOS & TESTS

"Eine herausragende Performance, erstklassige Kühlung und deutlich leisere Lüfter katapultieren das XMG NEO 17 (E23) an die Spitze der besten Gaming-Notebooks."

basic-tutorials.de

TECHNICAL DETAILS

Expand all Close all

Product ID

XEV14AE25

Display

14.0″ IPS | 2880×1800 px | 16:10 | 120 Hz | 500 nits | 100 % sRGB | Low Blue Light | non-glare
AMD FreeSync
alternatively 60 Hz settable

Processors

AMD Ryzen AI 9 HX 370 | 12 cores/24 threads | up to 5.1 GHz | 24 MB cache | Ryzen AI

AMD Radeon 890M | 16 compute units | integrated

AMD Ryzen AI 9 365 | 10 cores/20 threads | up to 5 GHz | 24 MB cache | Ryzen AI

AMD Radeon 880M | 12 compute units | integrated

AMD Ryzen AI 7 350 | 8 cores/16 threads | up to 5 GHz | 16 MB cache | Ryzen AI

AMD Radeon 860M | 8 compute units | integrated

three external displays directly addressable (additional to the internal display) additional external displays possible with docking station/adapter

Please note:
There is currently an incompatibility between the public AMD graphics driver and the integrated GPU in the AMD Ryzen AI 300 series. For now, please only use the graphics driver provided by us. Click here for more information.
Click here for more information.

Cooling system

composite cooling system with copper heatpipes
two fans, each 47 mm in diameter, 7 mm in height and with 80 fan blades
two air outlets with a total of 68 copper cooling fins
PTM7958 phase change thermal compound on CPU

CPU Power limits

65/35* watts sustained (plugged in/on battery) in Overboost mode
35/35* watts sustained (plugged in/on battery) in Enthusiast mode
25/25* watts sustained (plugged in/on battery) in Balanced mode

Values represent average capabilities under normal conditions.

_{*When running on battery, the power limits are adjusted with the charge level to protect long-term battery health:
• Overboost mode: maximum 15 watts from 30% charge
• Enthusiast/Balanced mode: 15 watts from 70%; 13 watts from 30% charge}

Software features

control center with customisable battery charging profiles, display profiles (incl. factory-calibrated profile), system infos etc.
three pre-configured performance profiles (can be changed quickly via Fn+F3)
Windows installation without additional third-party software (for configurations with operating system)

Memory

2x DDR5 SO-DIMM | Dual Channel | max. 128 GB | max. 5600 MT/s | max. 1,1 V

Storage

2x M.2 2280 SSD via PCI Express 4.0 x4 (supports RAID 0/1)

Audio & Webcam

stereo speakers
microphone with noise cancellation
Full HD webcam (Windows Hello compatible) with physical shutter

Keyboard

white backlit keyboard with Fn lock function

Touchpad

Microsoft Precision Glass Touchpad, two integrated buttons | 123 x 77.5 mm (W x D)
automatic palm recognition to avoid false inputs
supports scrolling, tapping, swiping and other multi-finger gestures as defined by operating system

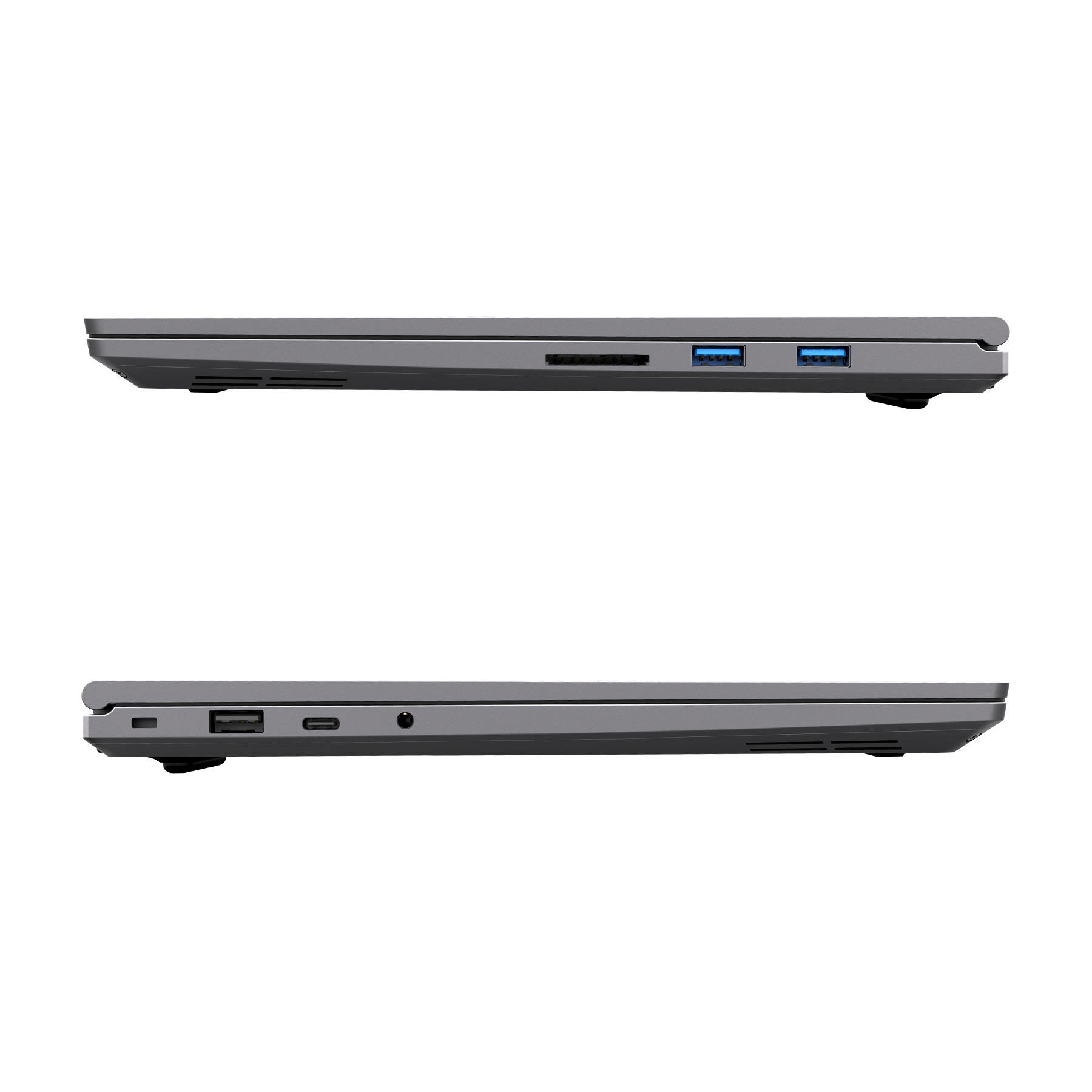

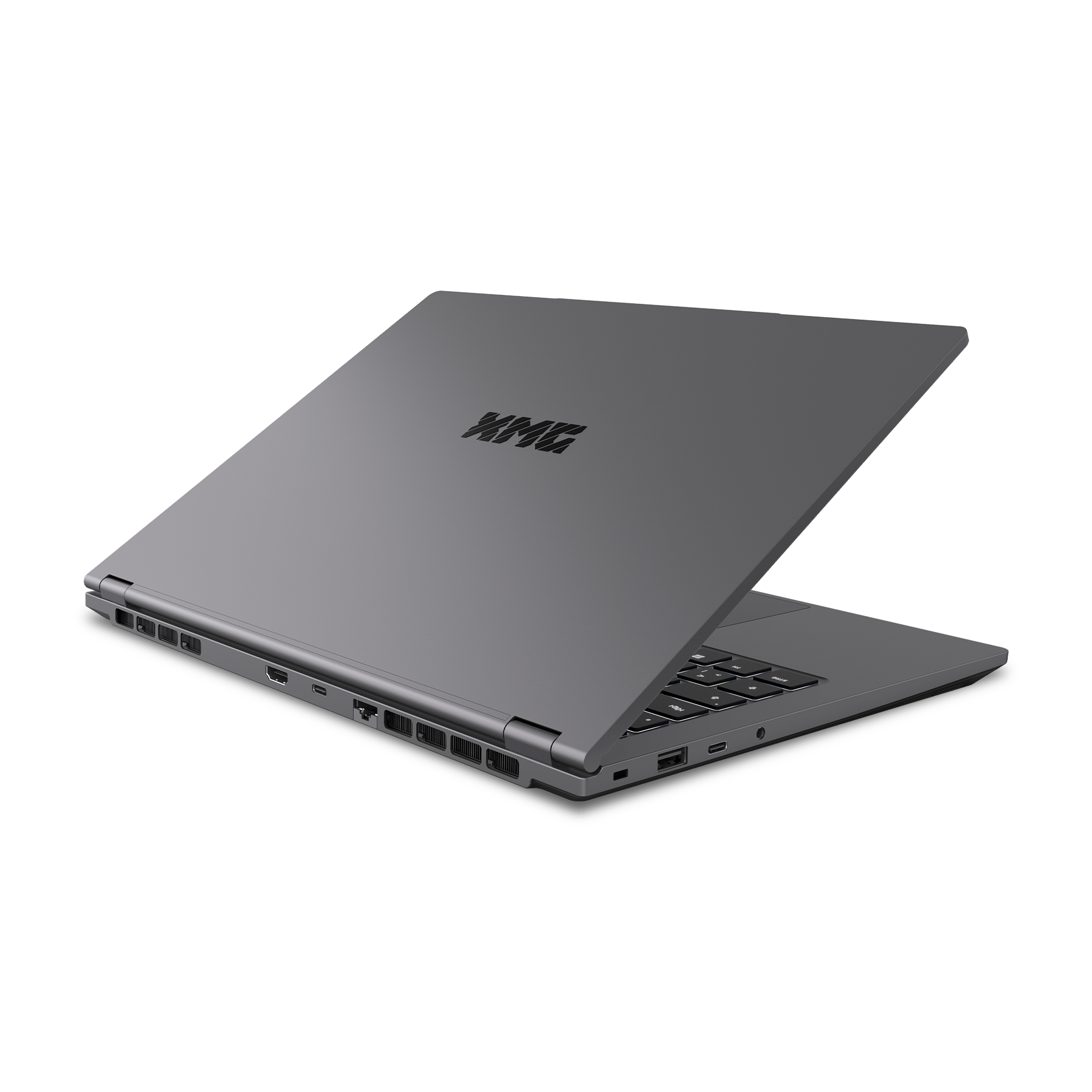

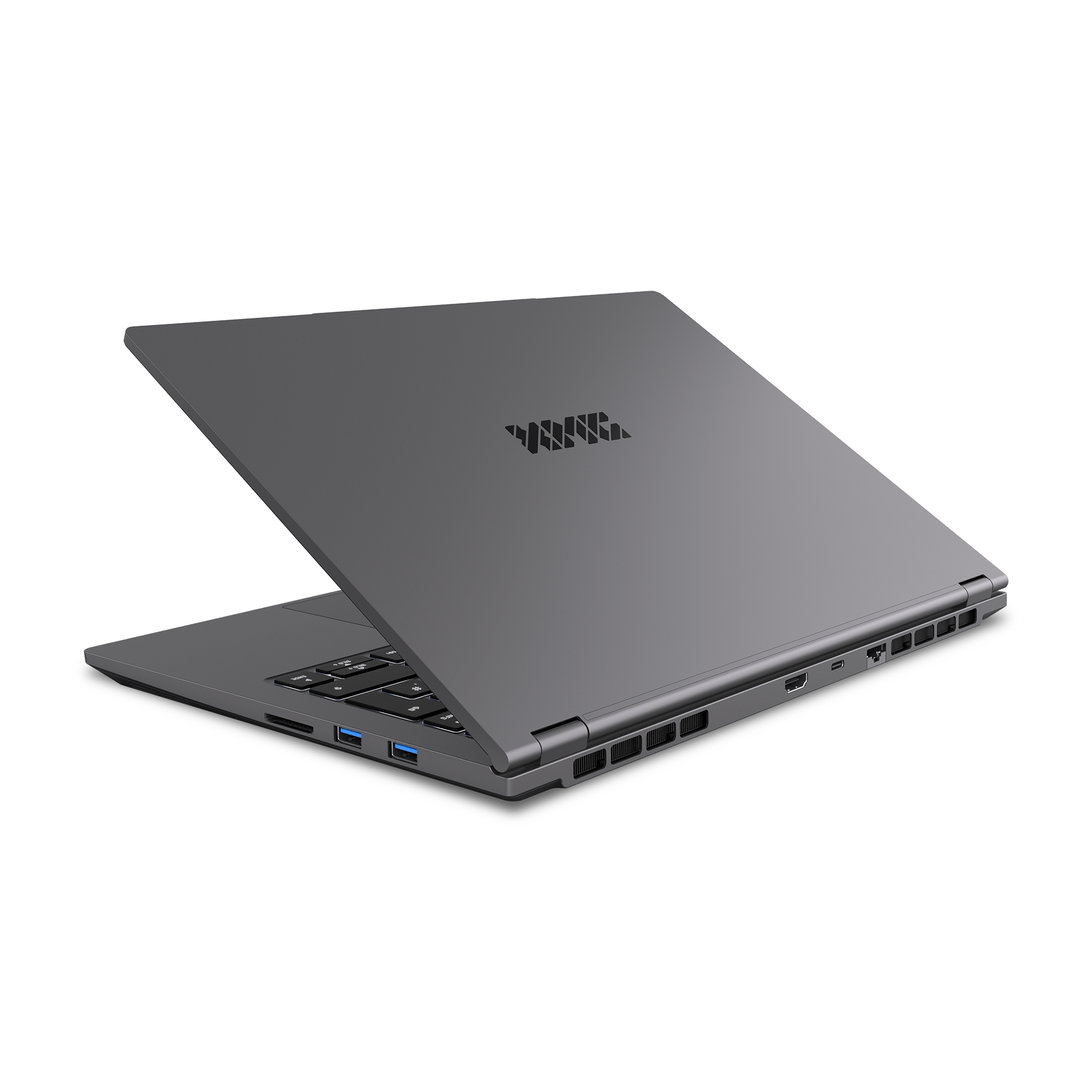

Ports (clockwise)

Left:

2-in-1 audio (headphone + mic)
USB-C 3.2 Gen2 (10 Gbps |
DisplayPort 1.4a | 100 W Power Delivery)¹⁾
USB-A 2.0

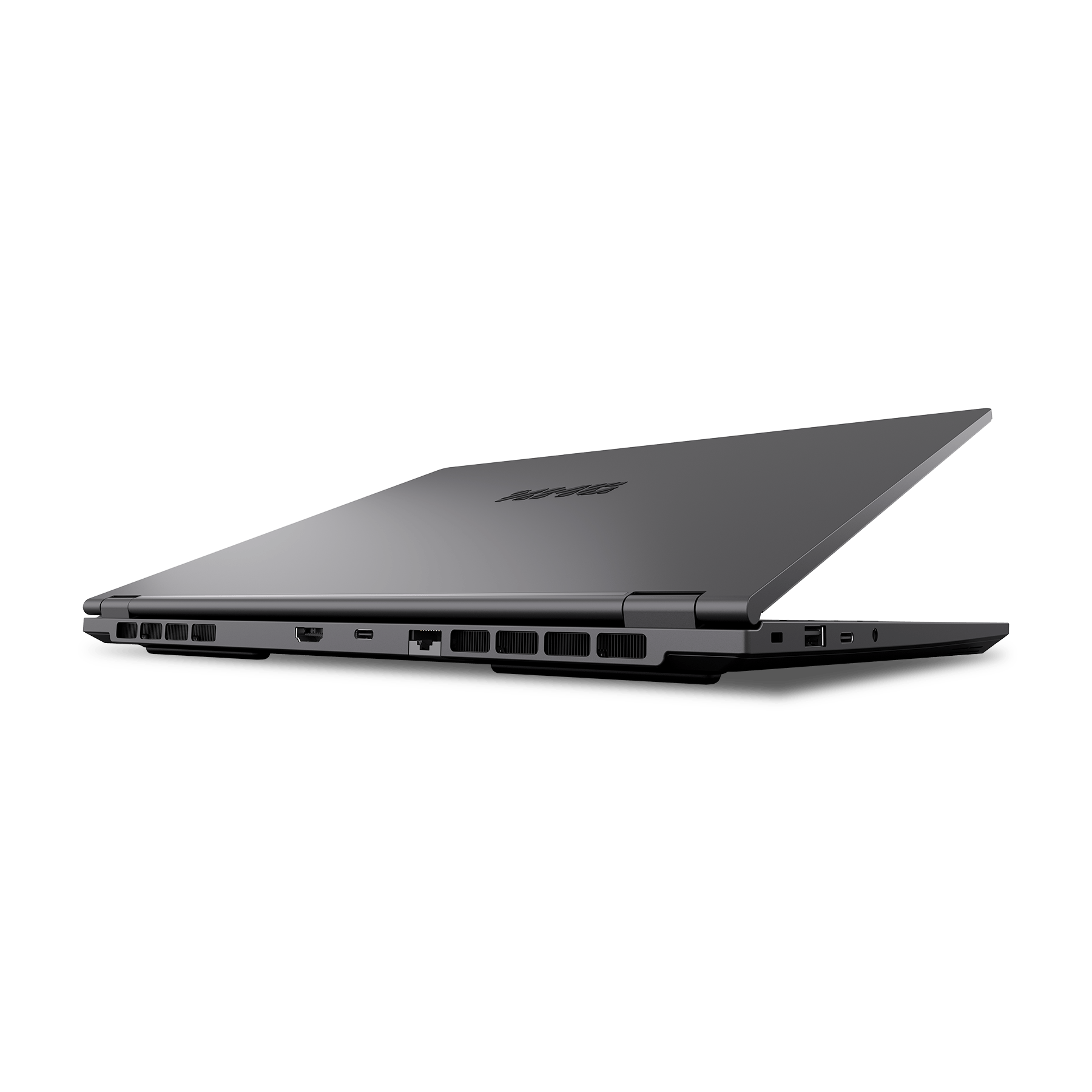

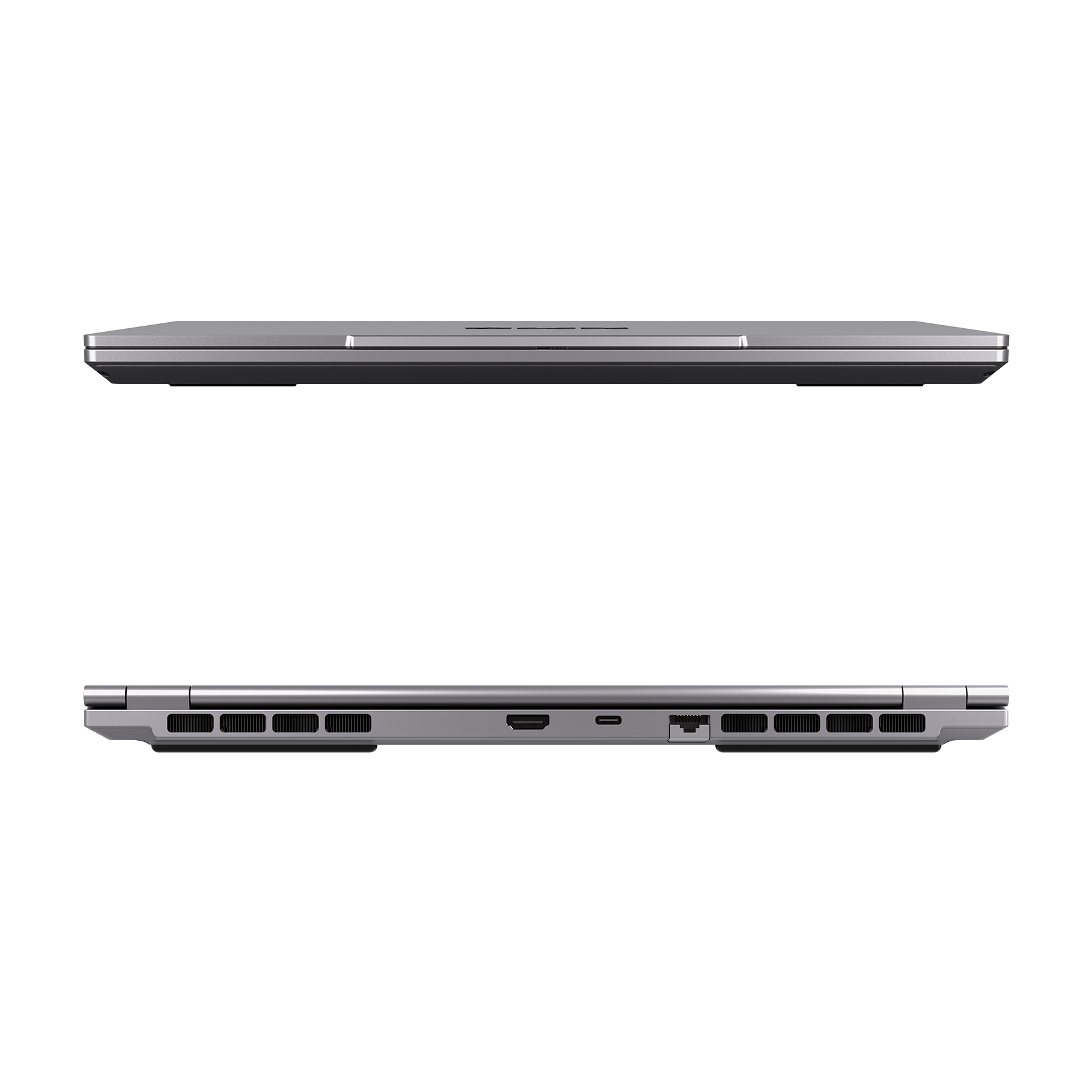

Rear:

RJ45 Port (Gigabit)
USB4 (40 Gbps | DisplayPort 2.1 (DP40/UHBR10) | 100 W Power Delivery)²⁾
HDMI 2.1 (32 Gbps | HDCP 2.3 | VRR/FreeSync-kompatibel)

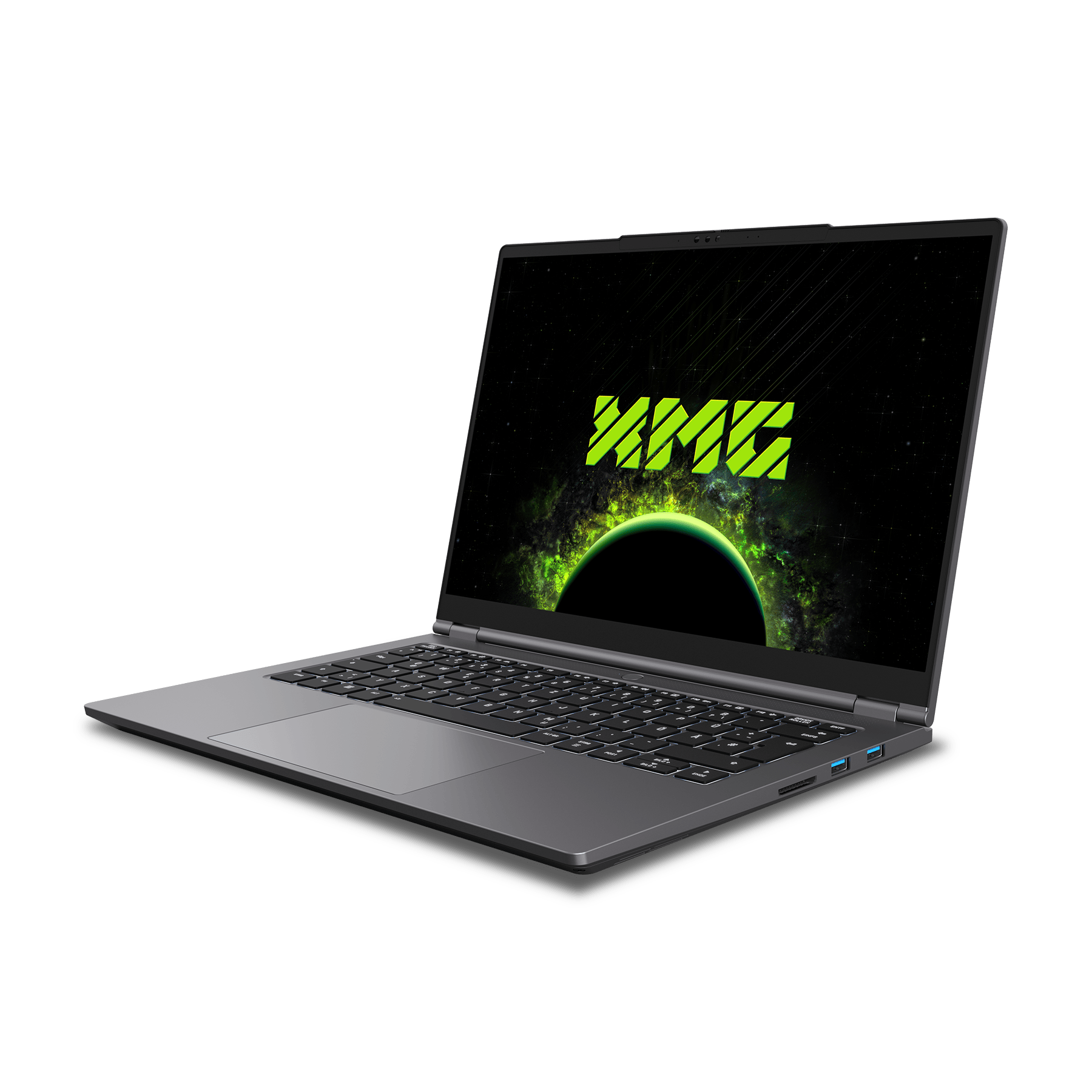

Right:

2x USB-A 3.2 Gen1 (5 Gbps)
Full-size card reader (SD Express/UHS-II)³⁾

_{¹⁾ details:
USB Power Delivery: 20V/5A (100 watts), min. 20V/3A (60 watts)
power supply for peripherals: max. 5V/3A (15 watts)
DisplayPort 1.4a with two DisplayPort streams and a total of 32.4 Gbps
no support for VR headsets
supports AMD FreeSync and NVIDIA G-SYNC Compatible}
_{²⁾ details:
Thunderbolt 4 with 40 Gbps
USB4 with 40 Gbps (Thunderbolt 4 compatible)
USB Power Delivery: 20V/5A (100 watts), min. 20V/3A (60 watts)
power supply for peripherals: max. 5V/3A (15 watts)
DisplayPort 2.1 with two DisplayPort streams and a total of 40 Gbps
eGPU compatible
no support for VR headsets
supports AMD FreeSync and NVIDIA G-SYNC Compatible}
_{³⁾ Read/write speeds:
SD Express up to 900/500 MB/s
SDXC UHS-II up to 270/230 MB/s}

Network

Wi-Fi 6E + Bluetooth 5
Gigabit LAN (supports Wake on LAN and LAN/PXE boot)

Security

Kensington NanoSaver Lock (left side)
TPM 2.0 via fTPM (AMD)
Secure Boot
physical webcam shutter
support for biometrical login via Windows Hello
support for hardware encryption with compatible SSDs

Power supply

150 watts USB-C (114 x 65 x 23 mm | 495 g incl. EU power cable)
USB cable length: ca. 1.5 m | power cable length: ca. 1.8 m
power cable socket: C6

_{If you already own a compatible USB-C charger, you can remove the power supply during configuration on bestware. A 100 watts USB-C charger (20V/5A) is sufficient to power XMG EVO 14 at full performance. The 150 watts power supply we include by default (20V/7.5A) is slightly smaller
and lighter than the 100 W model from the previous generation. However, there is no difference in performance or battery charging speed
between these two wattages when used with the XMG EVO 14.}
